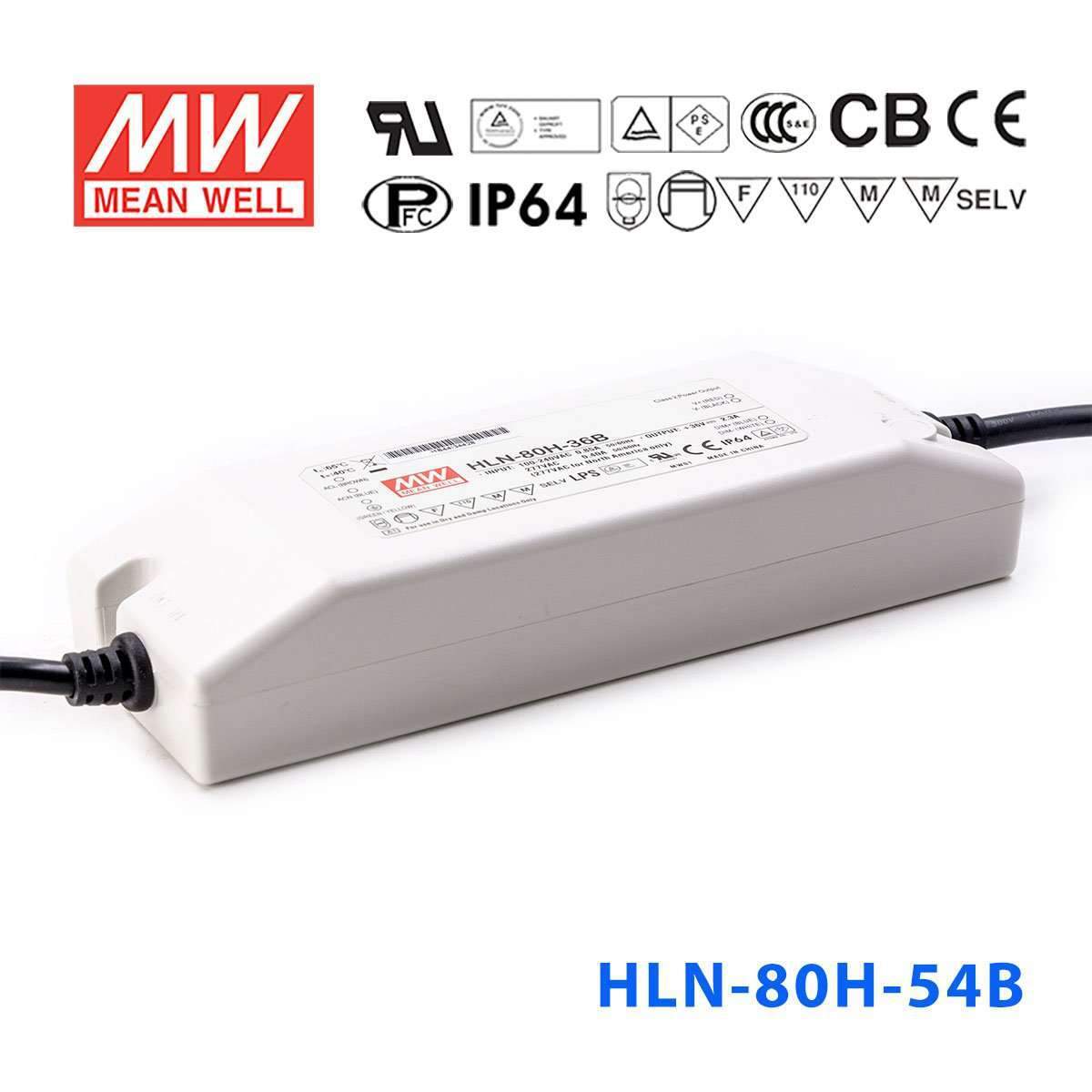

Mean Well HLN-80H-54B Power Supply 80W 54V - IP64, Dimmable
Please Login for Pricing
Description
Description
The HLN-80H is a 80W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+50℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.7 UL8750, CSA C22.2 No. 250.0-08(except for 48V, 54V), EN61347-1, EN61347-2-13 independent ; IP64, J61347-1, J61347-2-13
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating81 Watt
-
Output Voltage54 Volt
-
Rated Current1.5 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length18.1 cm
-
Width6.15 cm
-
Height3.5 cm
-
Weight0.5 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the HLN-80H-54B power constant-current LED sign modules in a 54V system?
Yes, it is suitable for signage applications and provides a 1.5A constant-current output. The module string needs to operate within the 32-54V range and stay within the driver’s 81W maximum output.
Is this driver appropriate for constant-current facade or accent lighting?
It can be used for facade or accent lighting fixtures that are designed for 1.5A constant-current input within 32-54V. The driver’s higher output-voltage range makes it relevant for fixtures built around longer LED strings rather than lower-voltage loads.
Can I use the HLN-80H-54B with constant-current LED strip lighting for display cases or coves?
It may be used if the strip system is a constant-current design rated for 1.5A and operates between 32V and 54V. The total connected load must also stay within the 81W output limit.
What is the maximum LED strip length this driver can support?
Calculate it from the driver’s 81W maximum output: 81 ÷ strip rated watts per meter = estimated maximum length. Check your strip rated power per meter, and make sure the strip is compatible with constant-current operation in the 32-54V range.
Is the HLN-80H-54B suitable for damp or outdoor signage enclosures?
Yes, IP64 means protection against dust and splashing water, which suits many damp-location or outdoor-adjacent enclosures. The specified operating temperature range is -40°C to +50°C, so the site conditions need to remain inside that range.
