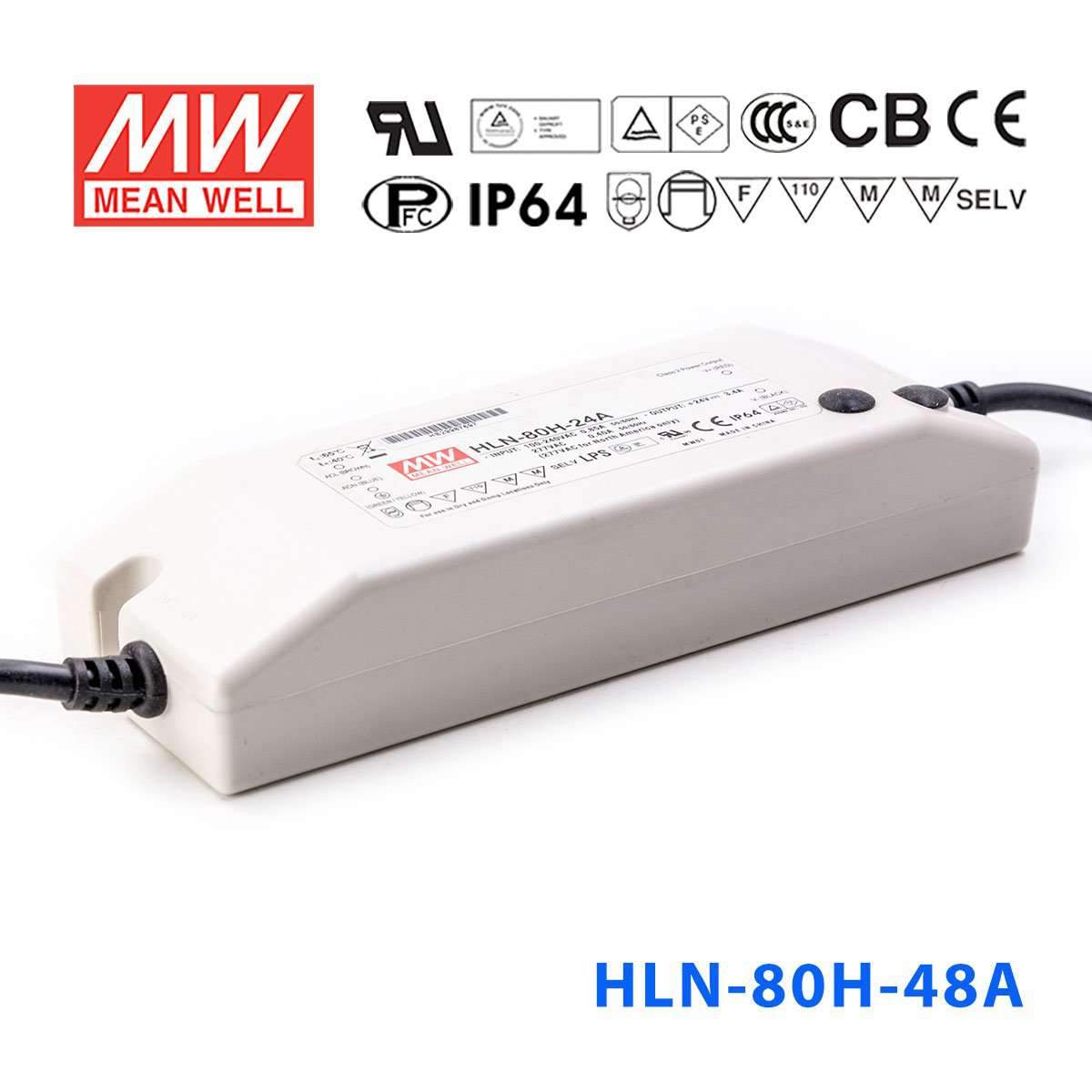

Mean Well HLN-80H-48A Power Supply 80W 48V - IP64, Adjustable
Please Login for Pricing
Description
Description
The HLN-80H is a 80W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+50℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.7 UL8750, CSA C22.2 No. 250.0-08(except for 48V, 54V), EN61347-1, EN61347-2-13 independent ; IP64, J61347-1, J61347-2-13
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating81.6 Watt
-
Output Voltage48 Volt
-
Rated Current1.7 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length18.1 cm
-
Width6.15 cm
-
Height3.5 cm
-
Weight0.5 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLN-80H-48A for outdoor LED sign lighting?
Yes, it is suitable for signage applications and has an IP64 enclosure for dust and splashing-water protection. Electrically, the LED load needs to match a constant-current driver with 1.7A output across a 28-48V range.
Is the HLN-80H-48A a good fit for constant-current linear lighting runs?
It can be used for constant-current linear lighting if the run is built around a 1.7A LED load operating within 28-48V. The driver is rated for 81.6W maximum output, so the full run has to stay within that power ceiling.
Can this driver power 48V-class constant-current LED modules for display lighting?
Yes, that is the kind of application this model is aimed at when the module string needs constant current rather than constant voltage. The load should be compatible with 1.7A output and stay inside the 28-48V constant-current window.
How do I estimate LED strip length for the HLN-80H-48A?
Use the driver’s 81.6W maximum output and divide by the strip’s rated watts per meter: 81.6 ÷ strip watts per meter = estimated maximum length. Check your strip rated power per meter and make sure the strip system is designed for constant-current operation in the 28-48V range.
Is the HLN-80H-48A suitable for wet or cold environments?
It is rated IP64, so it is appropriate where dust protection and resistance to splashing water are needed. The specified operating temperature range is -40°C to +50°C, which supports both cold-weather and higher-ambient installations within that band.
