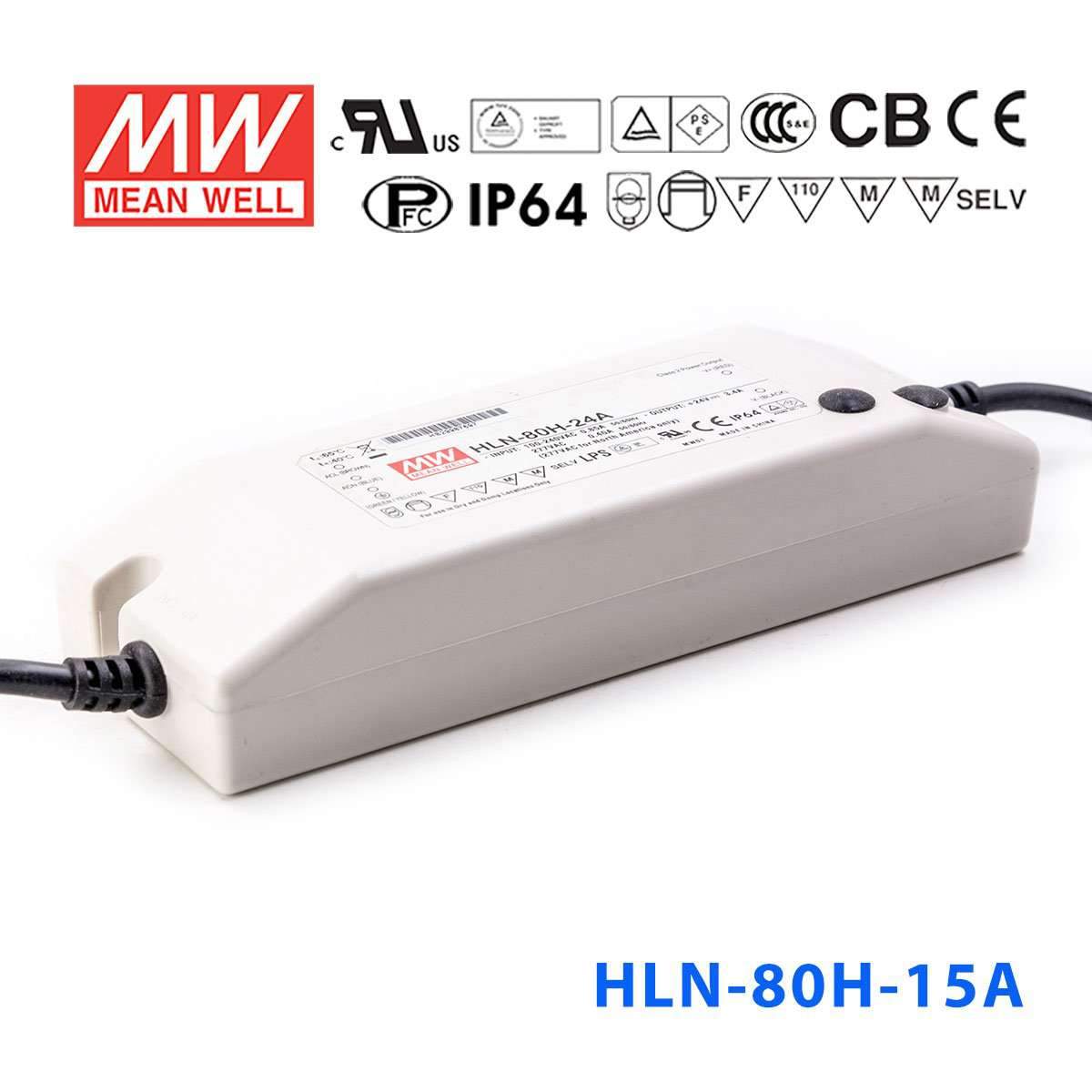

Mean Well HLN-80H-15A Power Supply 75W 15V - IP64, Adjustable
Please Login for Pricing
Description
Description
The HLN-80H is a 80W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+50℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.7 UL8750, CSA C22.2 No. 250.0-08(except for 48V, 54V), EN61347-1, EN61347-2-13 independent ; IP64, J61347-1, J61347-2-13
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating75 Watt
-
Output Voltage15 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length18.1 cm
-
Width6.15 cm
-
Height3.5 cm
-
Weight0.5 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLN-80H-15A for 15V LED signage modules?
Yes, this model is suitable for signage applications when the load matches its 15V output and stays within 75W and 5A. Its constant current range is 9-15V, so the connected signage load needs to operate inside that range.
Is this driver suitable for 15V LED strip lighting in display or accent projects?
It can work for 15V LED strip lighting if the strip system is compatible with a 15V, 5A, 75W driver and operates within the 9-15V constant current range. This makes it a fit for low-voltage lighting runs where the total strip load does not exceed the driver rating.
Can the HLN-80H-15A power small outdoor sign lighting?
It is a practical option for outdoor sign lighting because the housing is rated IP64 and the unit is specifically noted as suitable for signage applications. The load still needs to stay within 15V output, 5A, and 75W.
How much 15V LED strip can this driver support?
Use the driver's maximum power for the estimate: 75W divided by your strip's rated watts per meter equals the maximum theoretical length. Also confirm the strip is a 15V load and check your strip rated power per meter so the total stays within 75W and 5A.
Is the HLN-80H-15A OK for wet or outdoor locations?
Its IP64 rating means it is intended for dusty or splash-prone environments rather than full water exposure. The operating temperature range is -40°C to +50°C, so it is built for demanding indoor or outdoor conditions within that temperature window.
