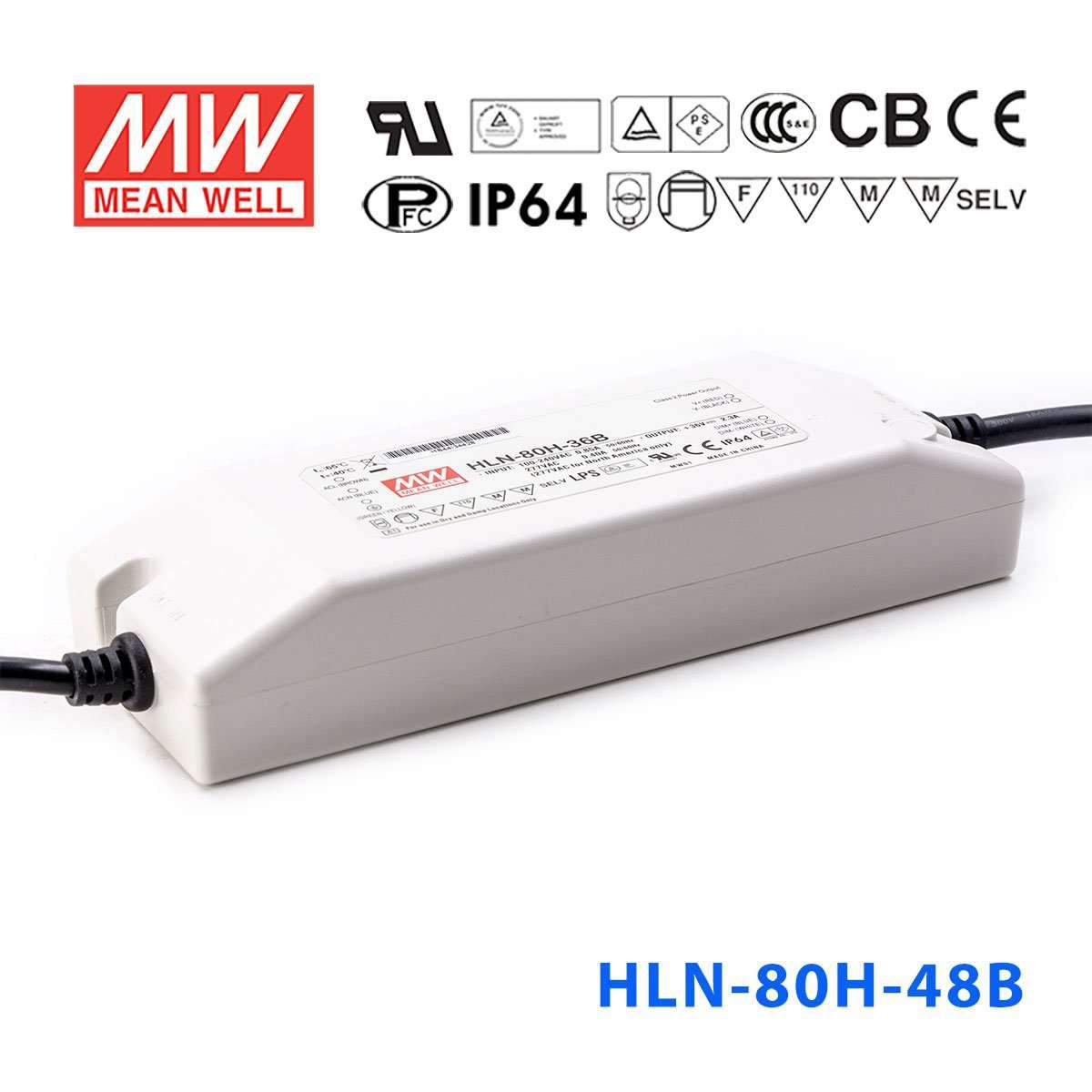

Mean Well HLN-80H-48B Power Supply 80W 48V - IP64, Dimmable
Please Login for Pricing
Description
Description
The HLN-80H is a 80W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+50℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.7 UL8750, CSA C22.2 No. 250.0-08(except for 48V, 54V), EN61347-1, EN61347-2-13 independent ; IP64, J61347-1, J61347-2-13
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating81.6 Watt
-
Output Voltage48 Volt
-
Rated Current1.7 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length18.1 cm
-
Width6.15 cm
-
Height3.5 cm
-
Weight0.5 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the HLN-80H-48B be used for constant-current LED channel letter or sign lighting?
Yes, this model is listed as suitable for signage applications and delivers constant current at 1.7A. The LED load must operate within the 28-48V constant-current range and stay within the 81.6W power rating.
Will the HLN-80H-48B work for architectural LED fixtures that need a 48V-class constant-current driver?
It can, provided the fixture is designed for constant-current operation at 1.7A and falls within the 28-48V range. That makes it relevant for many linear or architectural fixtures built around higher-voltage LED strings.
Can I use this driver with a constant-current LED strip for display or cove lighting?
It may be used with a constant-current LED strip if the strip is specified for 1.7A and operates inside the 28-48V constant-current window. The key check is that the strip is not a constant-voltage product and that the total load does not exceed 81.6W.
What strip length can the HLN-80H-48B support?
Start with the driver’s maximum output of 81.6W and calculate 81.6 ÷ strip rated watts per meter = estimated maximum length. Check your strip rated power per meter, and verify the strip is a constant-current design compatible with the 28-48V range.
Is the HLN-80H-48B okay for outdoor enclosures or damp signage locations?
Its IP64 rating means it is protected against dust and splashing water, which suits many outdoor or damp-location lighting and signage housings. It is also specified for -40°C to +50°C operation, so ambient temperature needs to remain within that range.
