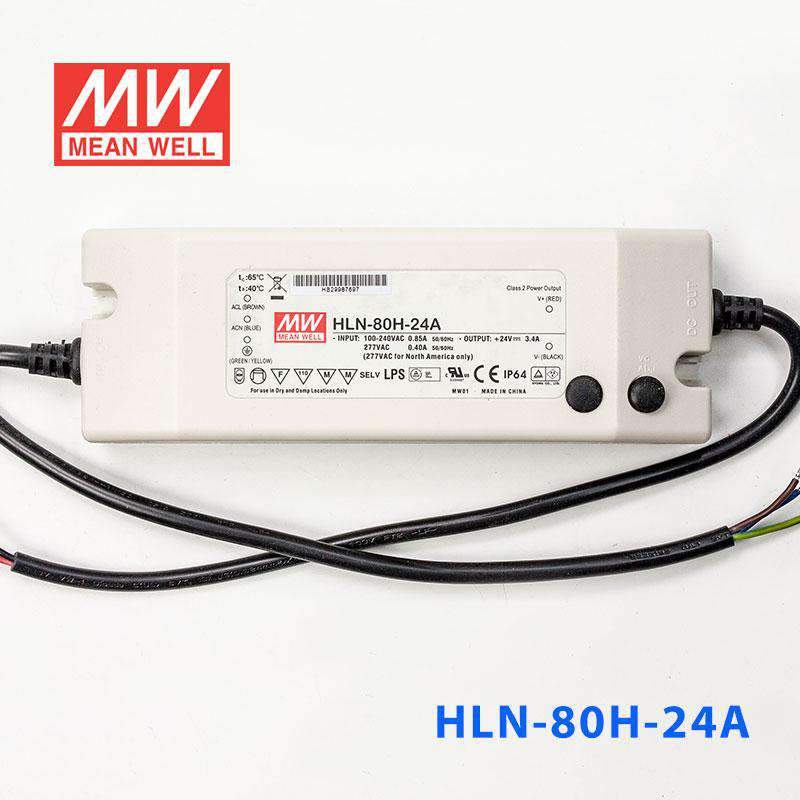

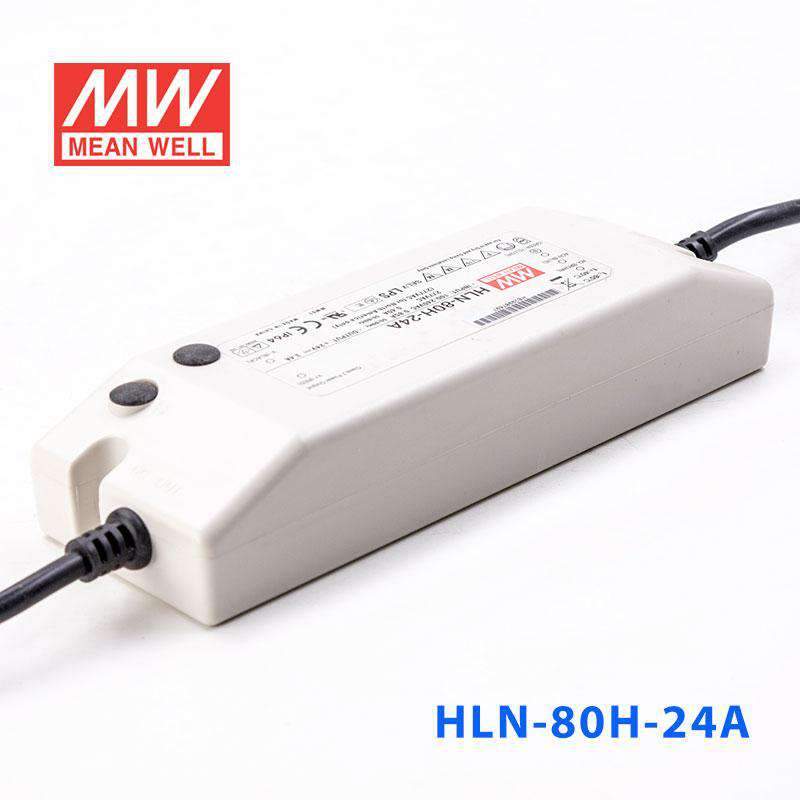

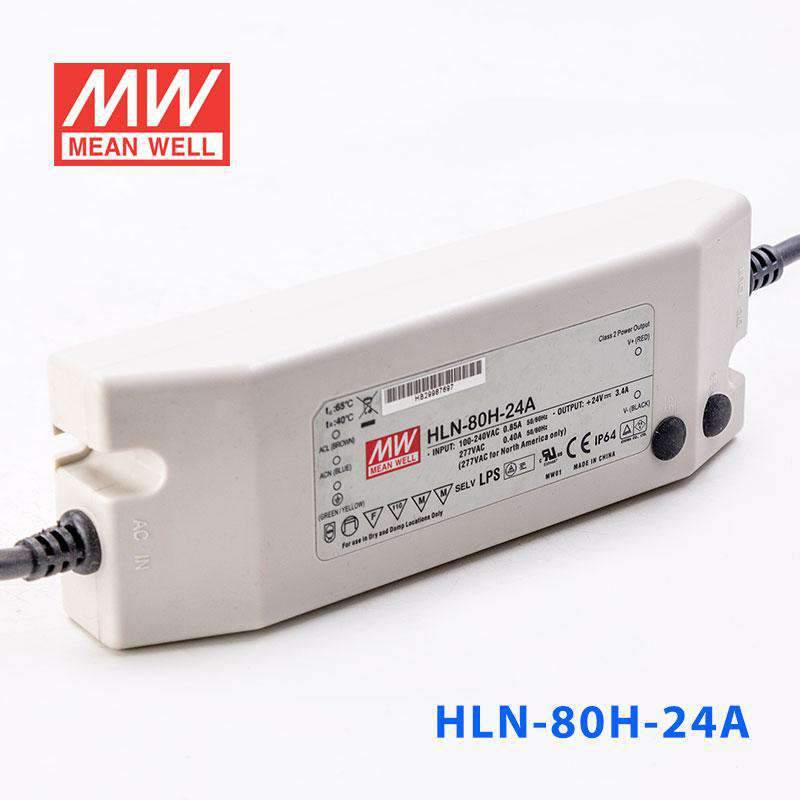

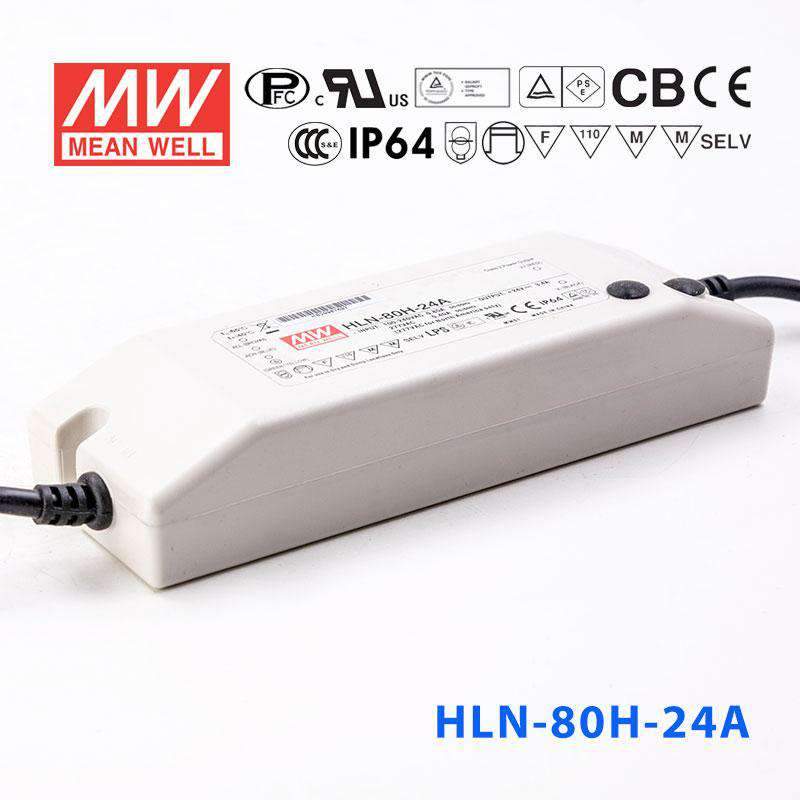

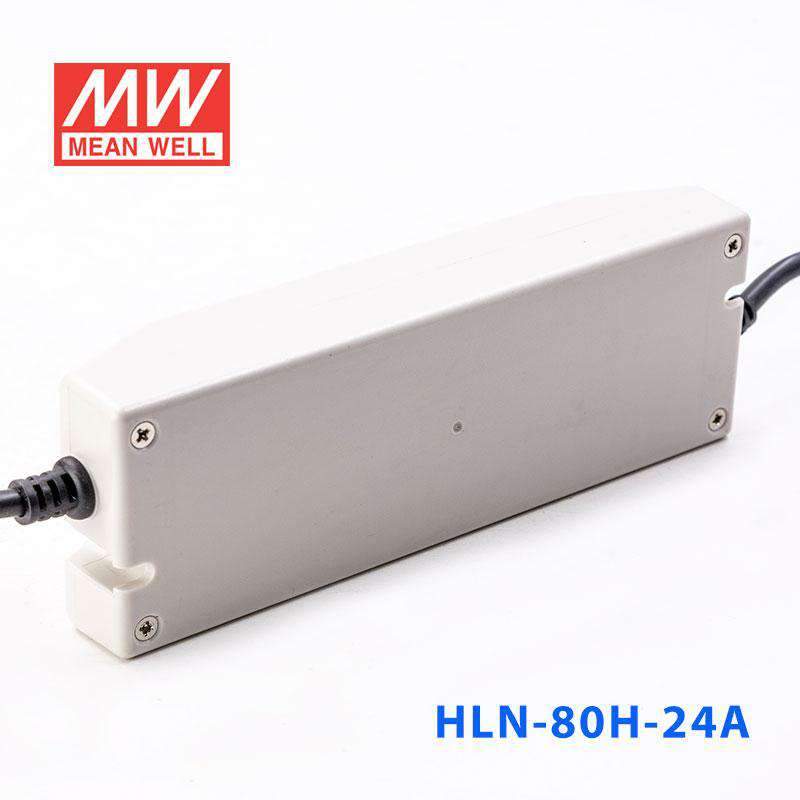

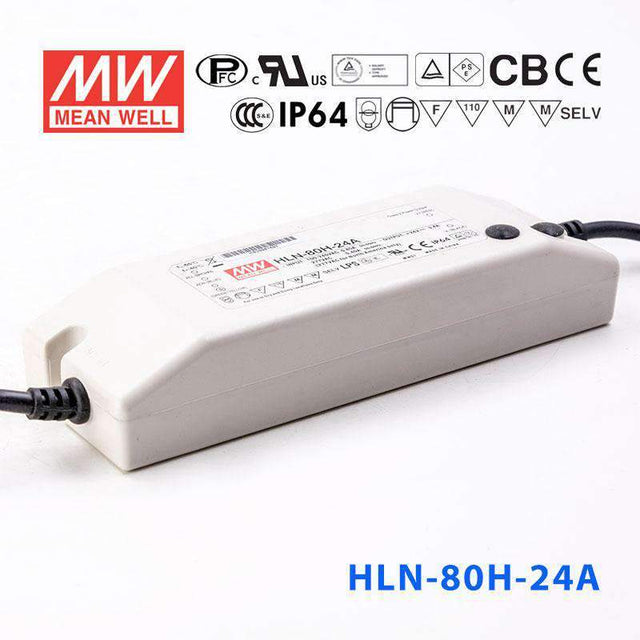

Mean Well HLN-80H-24A Power Supply 80W 24V - IP64, Adjustable
Please Login for Pricing
Description
Description
The HLN-80H is a 80W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+50℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.7 UL8750, CSA C22.2 No. 250.0-08(except for 48V, 54V), EN61347-1, EN61347-2-13 independent ; IP64, J61347-1, J61347-2-13
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating81.6 Watt
-
Output Voltage24 Volt
-
Rated Current3.4 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length18.1 cm
-
Width6.15 cm
-
Height3.5 cm
-
Weight0.5 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLN-80H-24A for 24V LED strip lighting?
Yes, it can suit 24V LED strip lighting when the strip system is compatible with a 24V driver and the full load stays within 81.6W and 3.4A. The connected load also needs to operate within the 14-24V constant current range.
Is this driver appropriate for 24V illuminated signage?
It is suitable for signage applications when the sign lighting is designed for 24V operation and the total demand does not exceed 81.6W. The 3.4A output current is the upper current limit for that load.
Can the HLN-80H-24A be used for longer 24V lighting runs than a lower-power driver?
This model provides up to 81.6W at 24V, so it can support more 24V lighting load than a lower-wattage driver in the same voltage class. You still need the total connected load to remain within 81.6W and 3.4A.
How much 24V LED strip can this driver run?
Estimate the run length by dividing 81.6W by the strip's rated watts per meter. Check your strip rated power per meter, then confirm the total load stays within 81.6W, 3.4A, and 24V compatibility.
Is the HLN-80H-24A suitable for outdoor or wet-area use?
Its IP64 rating supports use in dusty and splash-exposed areas, which makes it suitable for many outdoor lighting or sign locations. It is rated to operate from -40°C to +50°C, so the environment should stay within that temperature range.
