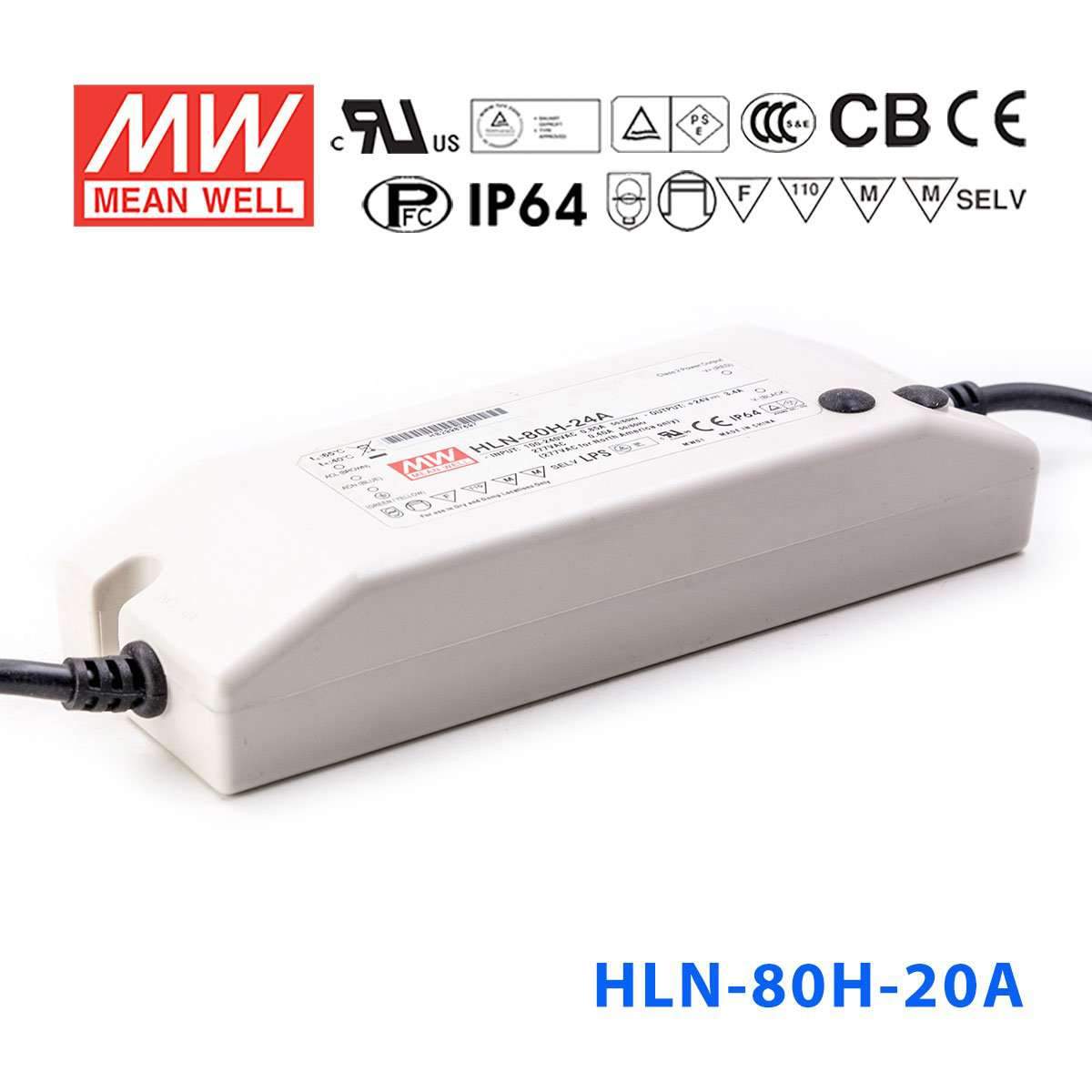

Mean Well HLN-80H-20A Power Supply 80W 20V - IP64, Adjustable
Please Login for Pricing
Description
Description
The HLN-80H is a 80W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+50℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.7 UL8750, CSA C22.2 No. 250.0-08(except for 48V, 54V), EN61347-1, EN61347-2-13 independent ; IP64, J61347-1, J61347-2-13
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHLN Series
-
Power Rating80 Watt
-
Output Voltage20 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length18.1 cm
-
Width6.15 cm
-
Height3.5 cm
-
Weight0.5 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLN-80H-20A for 20V LED signage?
Yes, it is suitable for signage applications when the sign load is a 20V load and stays within 80W and 4A. The connected load should also fall inside the 12-20V constant current range.
Is this driver suitable for 20V linear or accent lighting?
It can suit 20V linear or accent lighting where the fixture matches the 20V output and the total demand stays at or below 80W. Its 4A output current sets the upper current limit for the connected load.
Can the HLN-80H-20A power outdoor lighting for signs or displays?
For signs or display lighting, this model is a reasonable choice because it is IP64 rated and described as suitable for signage applications. The lighting load still needs to be compatible with 20V output, 4A, and 80W maximum power.
How do I estimate the maximum 20V LED strip length for this driver?
Use 80W divided by your strip's rated watts per meter to estimate the maximum theoretical length. Check your strip rated power per meter, then confirm the full run stays within 80W total and 4A at 20V.
Is the HLN-80H-20A suitable for wet or dusty environments?
Its IP64 rating makes it appropriate for environments with dust and splashing water, including many outdoor locations. It is also rated for -40°C to +50°C operation, so the site conditions need to stay within that temperature range.
