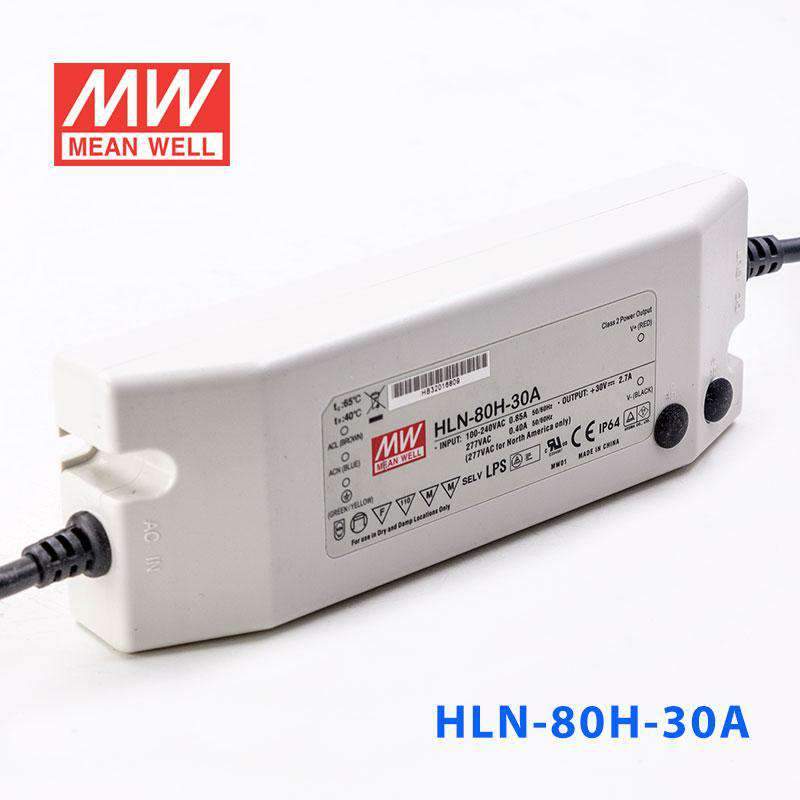

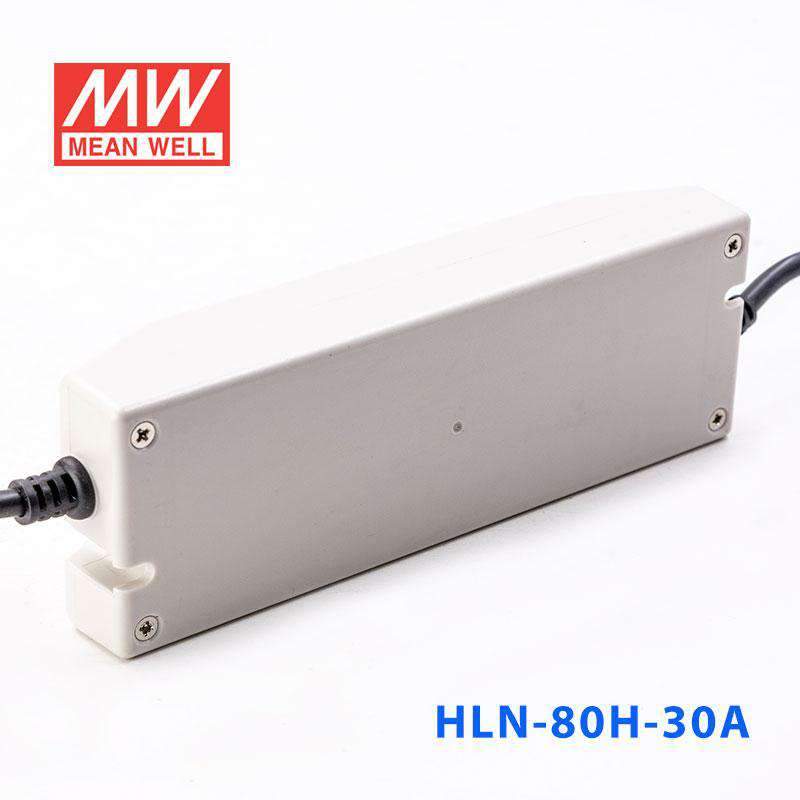

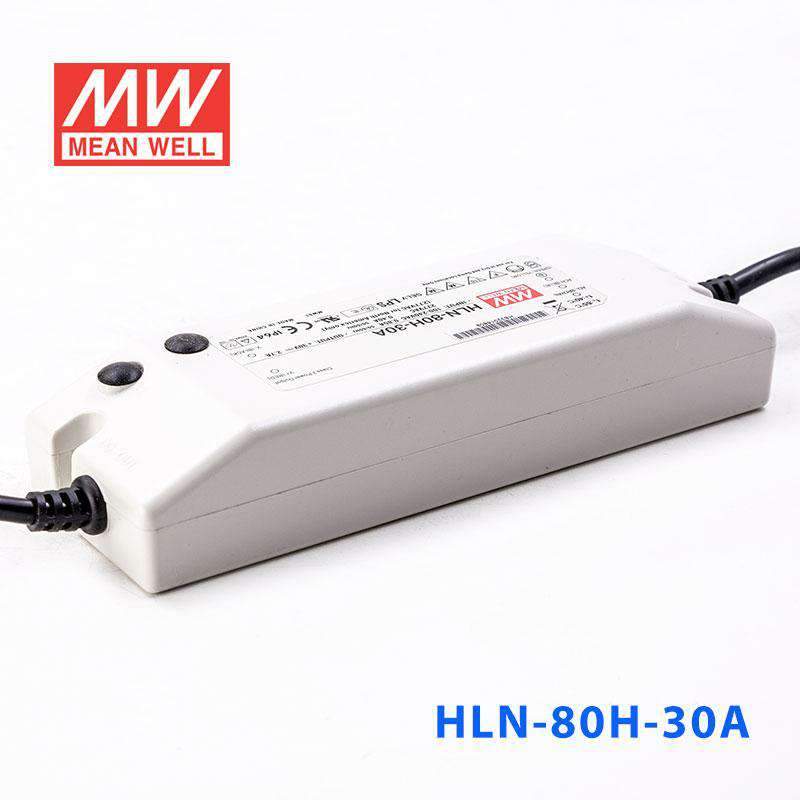

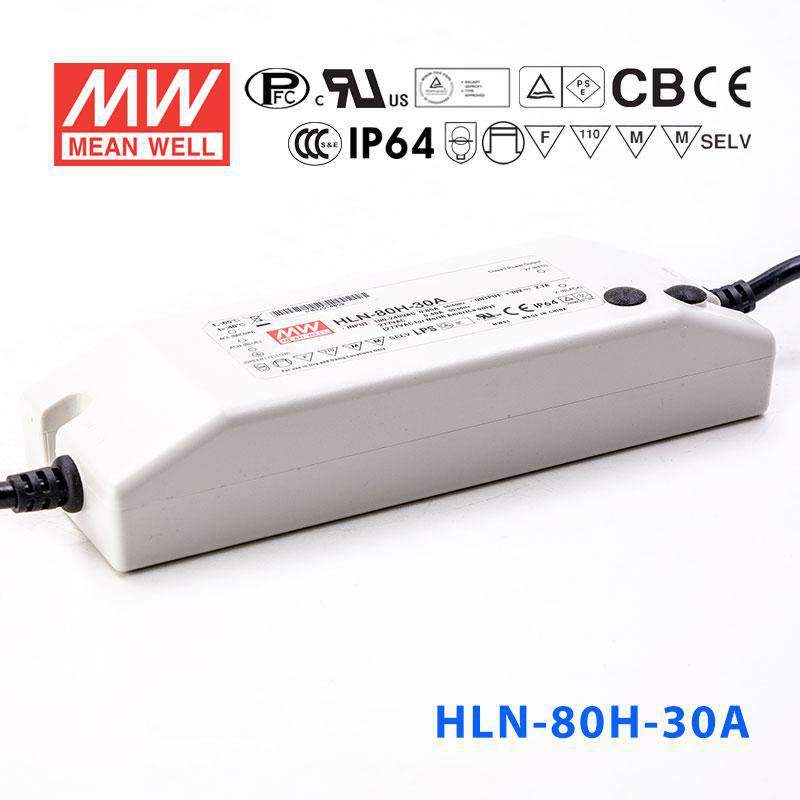

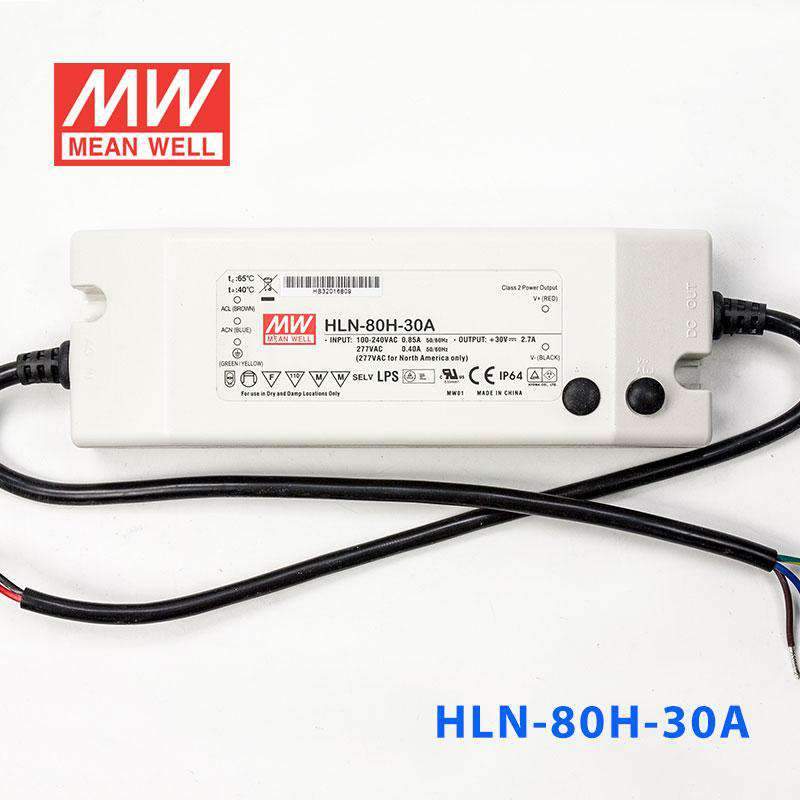

Mean Well HLN-80H-30A Power Supply 80W 30V - IP64, Adjustable 2.7A

fully isolated plastic caseIP64suitable for signage applicationsClass 2 power unit
SKU HLN-80H-30A
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
End of Life, Succeeded by LPF-90-30
Available to order
|

Overview

HLN-80H-30A is the 30V output model of this series: rated current 2.7A, rated power 81W, typical efficiency 91%.

Features

  • Universal AC input / Full range (up to 305VAC)
  • Built-in active PFC function
  • Protections: Short circuit / Over current / Over voltage / Over temperature
  • Cooling by free air convection
  • OCP point adjustable through output cable or internal potentiometer
  • Fully isolated plastic case with IP64 level
  • Class 2 power unit
  • Three in one dimming function (1~10Vdc or PWM signal or resistance)
  • Suitable for LED lighting, Industrial Lighting and moving sign applications
  • Compliance to worldwide safety regulations for lighting
  • Suitable for dry / damp locations or outdoor application
  • 3 years warranty

Specifications

HLN-80H-30ASpecifications from the official datasheet (2026-02-09 edition)

OUTPUT

DC VOLTAGE
30V
CONSTANT CURRENT REGIONNote.4
18 ~ 30V
RATED CURRENT
2.7A
RATED POWER
81W
RIPPLE & NOISE (max.)Note.2
200mVp-p
VOLTAGE ADJ. RANGENote.6
27 ~ 33V
CURRENT ADJ. RANGE
Can be adjusted by internal potentiometer A type only
CURRENT ADJ. RANGE
1.62 ~ 2.7A
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIMENote.8
1200ms,80ms/115VAC 500ms,80ms/230VAC at full load ; B type 1200ms,200ms/115VAC 500ms,200ms/230VAC at 95% load
HOLD UP TIME (Typ.)
16ms at full load 230VAC /115VAC

INPUT

VOLTAGE RANGENote.5
90 ~ 305VAC 127 ~ 431VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.96/115VAC, PF>0.96/230VAC, PF>0.94/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION
THD< 20% when output loading≧60% at 115VAC/230VAC input and output loading≧75% at 277VAC input
EFFICIENCY (Typ.)
91%
AC CURRENT (Typ.)
0.85A / 115VAC 0.425A / 230VAC 0.4A / 277VAC
INRUSH CURRENT(Typ.)
COLD START 70A(twidth=485μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC

PROTECTION

OVER CURRENTNote.4
95 ~ 108% Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
35 ~ 43V
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-40 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 40℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.7
UL8750, CSA C22.2 No. 250.0-08, BS EN/EN 61347-1, BS EN/EN 61347-2-13 independent ; IP64, EAC TP TC 004 approved ; Design refer to UL60950-1
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (≧60% load, 12V model ≧65% load) ; BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge 4KV), criteria B, EAC TP TC 020

OTHERS

MTBF
2786.8K hrs min. Telcordia SR-332(Bellcore) ; 316.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
181*61.5*35mm (L*W*H)
PACKING
0.5Kg; 24pcs/13Kg/0.87CUFT

Certifications & ratings

Marked features
110
Test conditions and notes13
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Please refer to "DRIVING METHODS OF LED MODULE".
  5. 5. Derating may be needed under low input voltages. Please check the static characteristics for more details.
  6. 6. A type only.
  7. 7. Safety and EMC design refer to EN60598-1, CNS15233, FCC part18.
  8. 8. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
  9. 9. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  10. 10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  11. 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  12. 12. This product is not suitable for LED lighting applications in China.(It is recommended to use the LPF/NPF/XLG/XLC/XLN series in China)
  13. 13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HLN-80H-30A Mechanical Specification
Mechanical Specification
HLN-80H-30A Block Diagram
Block Diagram
HLN-80H-30A Derating Curve
Derating Curve
HLN-80H-30A Power Factor Characteristic
Power Factor Characteristic
HLN-80H-30A EFFICIENCY vs LOAD (48V Model)
EFFICIENCY vs LOAD (48V Model)
HLN-80H-30A H L N - 8 0 H series
H L N - 8 0 H series
HLN-80H-30A H L N - 8 0 H series (2)
H L N - 8 0 H series (2)
HLN-80H-30A DIMMING OPERATION(for B-type only)
DIMMING OPERATION(for B-type only)
HLN-80H-30A ※ Please DO NOT connect "DIM-" to "-V".
※ Please DO NOT connect "DIM-" to "-V".
HLN-80H-30A H L N - 8 0 H series
H L N - 8 0 H series
HLN-80H-30A H L N - 8 0 H series (2)
H L N - 8 0 H series (2)

Downloads

FAQ

Can I use the HLN-80H-30A for LED signage lighting?

Yes, this driver is suitable for signage applications and delivers constant current at 2.7A with a 30V output. It is a fit for sign lighting loads that operate within the 18-30V constant-current range and stay within the 81W maximum power.

Is this driver suitable for a 30V linear LED lighting fixture?

It can be, if the fixture is designed for constant-current operation at 2.7A and falls inside the 18-30V CC range. The available output power is 81W, so the connected load needs to stay at or below that limit.

Can I use this for outdoor architectural or accent lighting?

It is better suited to outdoor or semi-exposed lighting where the driver may see dust and splashing water, because the enclosure is rated IP64. The operating temperature range is -40°C to +50°C, so it is intended for demanding ambient conditions within that range.

How much LED strip can the HLN-80H-30A support?

The power limit is 81W, so the basic sizing math is 81W divided by your strip's rated watts per meter. For example, the formula is 81 ÷ strip W/m = maximum theoretical length in meters; check your strip rated power per meter and confirm it is a 30V load.

How does the HLN-80H-30A compare with other HLN-80H models?

Within the HLN-80H range, the listed outputs are 12V 60W 5A, 15V 75W 5A, 20V 80W 4A, 24V 81.6W 3.4A, 30V 81W 2.7A, 36V 82.8W 2.3A, 42V 81.9W 1.95A, 48V 81.6W 1.7A, and 54V 81W 1.5A. Each of those output options is available in both A and B versions in the sibling list.
