Mean Well

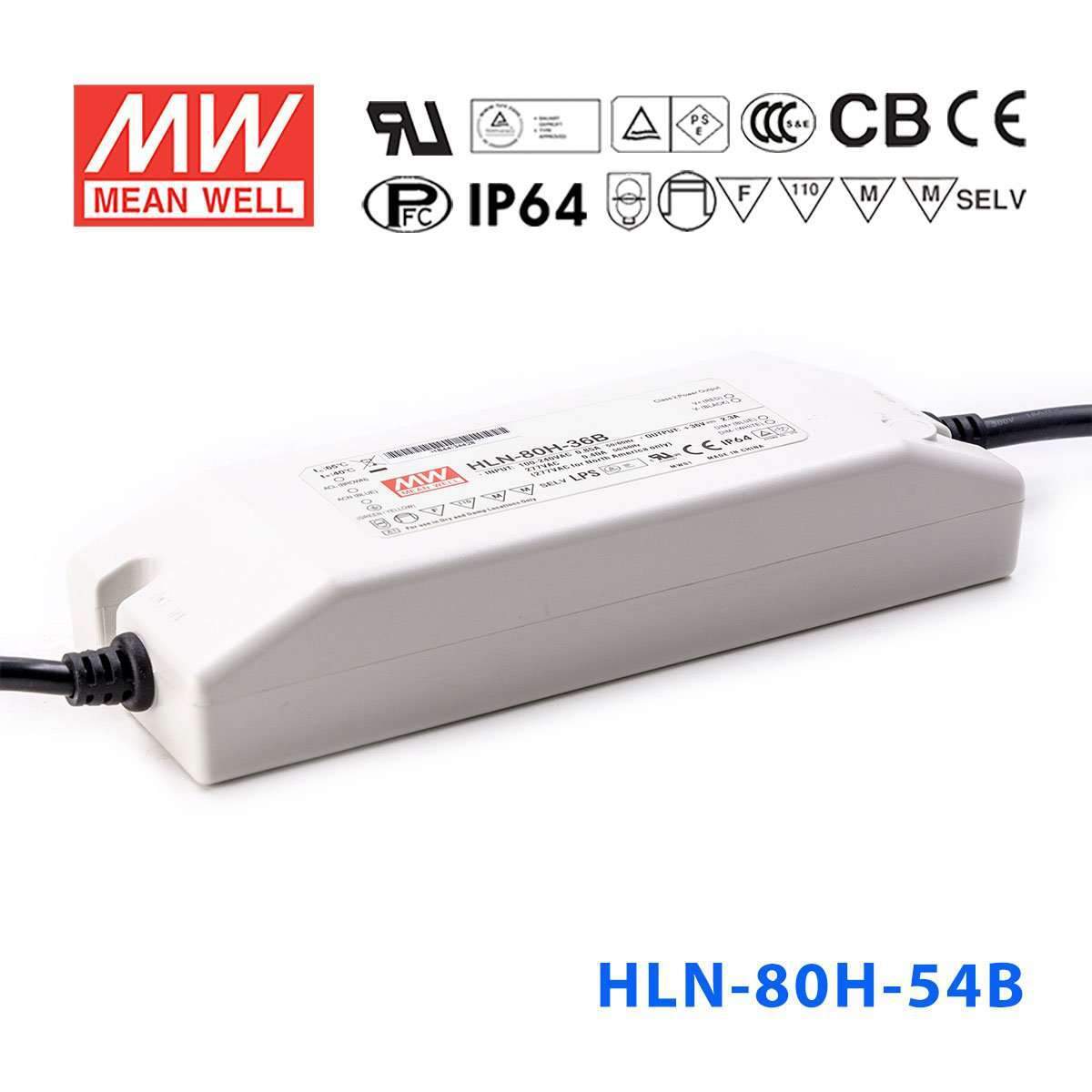

Mean Well HLN-80H-54B Power Supply 80W 54V - IP64, Dimmable 1.5A

fully isolated plastic caseIP64suitable for signage applicationsClass 2 power unit
SKU HLN-80H-54B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
End of Life, Succeeded by LPF-90-54
Available to order
|

Overview

HLN-80H-54B is the 54V output model of this series: rated current 1.5A, rated power 81W, typical efficiency 91%.

Features

  • Universal AC input / Full range (up to 305VAC)
  • Built-in active PFC function
  • Protections: Short circuit / Over current / Over voltage / Over temperature
  • Cooling by free air convection
  • OCP point adjustable through output cable or internal potentiometer
  • Fully isolated plastic case with IP64 level
  • Class 2 power unit
  • Three in one dimming function (1~10Vdc or PWM signal or resistance)
  • Suitable for LED lighting, Industrial Lighting and moving sign applications
  • Compliance to worldwide safety regulations for lighting
  • Suitable for dry / damp locations or outdoor application
  • 3 years warranty

Specifications

HLN-80H-54BSpecifications from the official datasheet (2026-02-09 edition)

OUTPUT

DC VOLTAGE
54V
CONSTANT CURRENT REGIONNote.4
32.4 ~ 54V
RATED CURRENT
1.5A
RATED POWER
81W
RIPPLE & NOISE (max.)Note.2
200mVp-p
VOLTAGE ADJ. RANGENote.6
49 ~ 58V
CURRENT ADJ. RANGE
Can be adjusted by internal potentiometer A type only
CURRENT ADJ. RANGE
0.9 ~ 1.5A
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIMENote.8
1200ms,80ms/115VAC 500ms,80ms/230VAC at full load ; B type 1200ms,200ms/115VAC 500ms,200ms/230VAC at 95% load
HOLD UP TIME (Typ.)
16ms at full load 230VAC /115VAC

INPUT

VOLTAGE RANGENote.5
90 ~ 305VAC 127 ~ 431VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.96/115VAC, PF>0.96/230VAC, PF>0.94/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION
THD< 20% when output loading≧60% at 115VAC/230VAC input and output loading≧75% at 277VAC input
EFFICIENCY (Typ.)
91%
AC CURRENT (Typ.)
0.85A / 115VAC 0.425A / 230VAC 0.4A / 277VAC
INRUSH CURRENT(Typ.)
COLD START 70A(twidth=485μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC

PROTECTION

OVER CURRENTNote.4
95 ~ 108% Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
59 ~ 68V
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-40 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 40℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.7
UL8750, CSA C22.2 No. 250.0-08, BS EN/EN 61347-1, BS EN/EN 61347-2-13 independent ; IP64, EAC TP TC 004 approved ; Design refer to UL60950-1
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (≧60% load, 12V model ≧65% load) ; BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge 4KV), criteria B, EAC TP TC 020

OTHERS

MTBF
2786.8K hrs min. Telcordia SR-332(Bellcore) ; 316.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
181*61.5*35mm (L*W*H)
PACKING
0.5Kg; 24pcs/13Kg/0.87CUFT

Certifications & ratings

Marked features
110
Test conditions and notes13
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Please refer to "DRIVING METHODS OF LED MODULE".
  5. 5. Derating may be needed under low input voltages. Please check the static characteristics for more details.
  6. 6. A type only.
  7. 7. Safety and EMC design refer to EN60598-1, CNS15233, FCC part18.
  8. 8. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
  9. 9. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  10. 10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  11. 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  12. 12. This product is not suitable for LED lighting applications in China.(It is recommended to use the LPF/NPF/XLG/XLC/XLN series in China)
  13. 13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

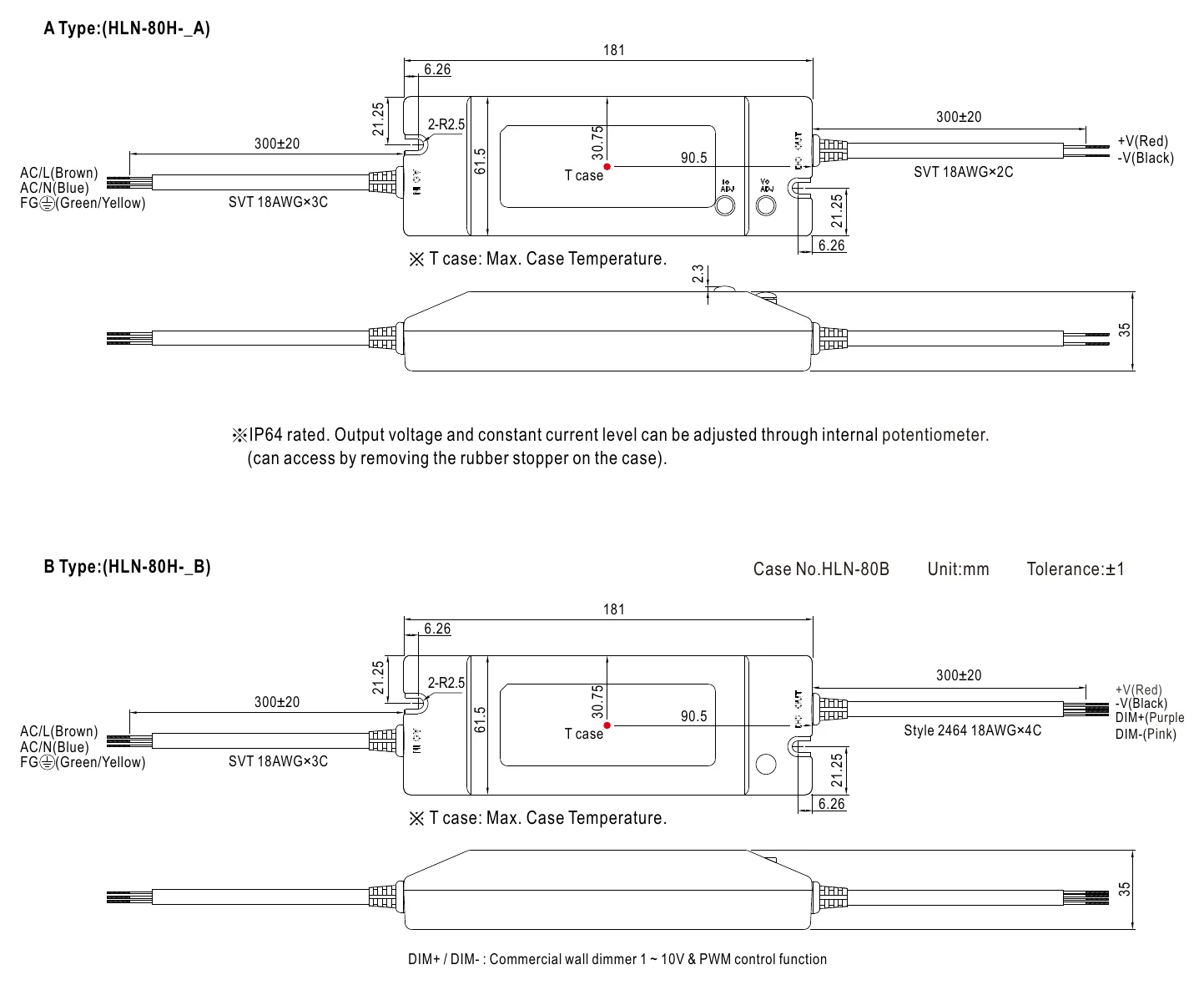

HLN-80H-54B Mechanical Specification
Mechanical Specification

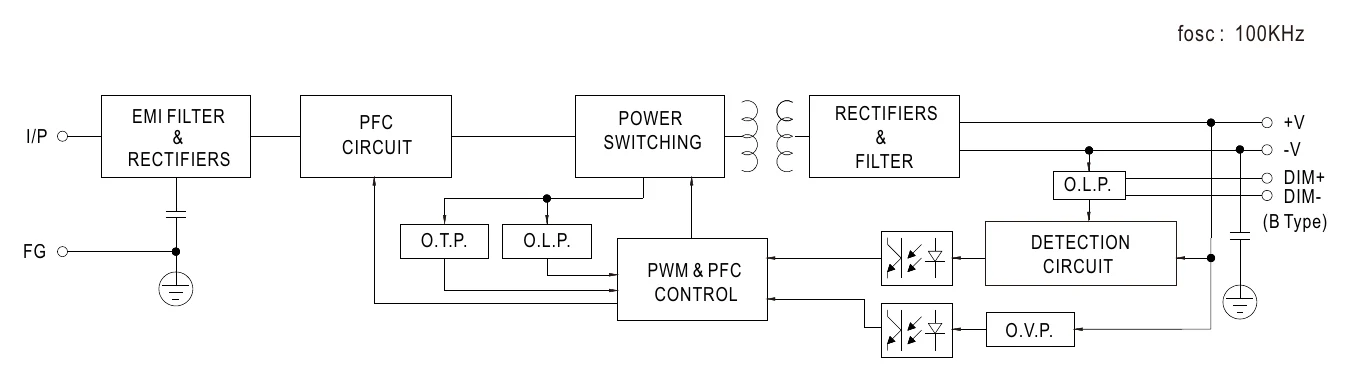

HLN-80H-54B Block Diagram
Block Diagram

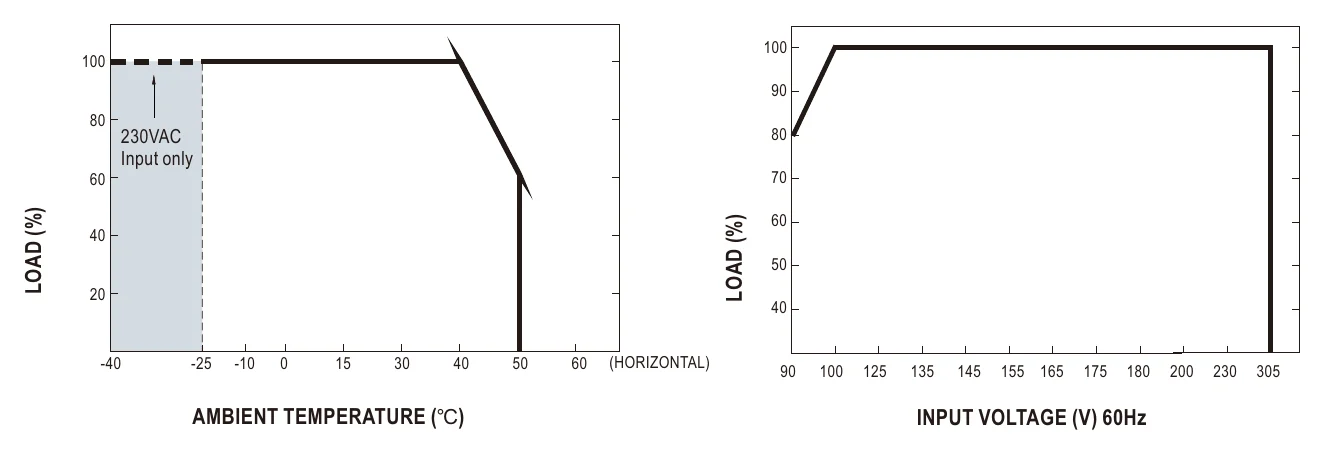

HLN-80H-54B Derating Curve
Derating Curve

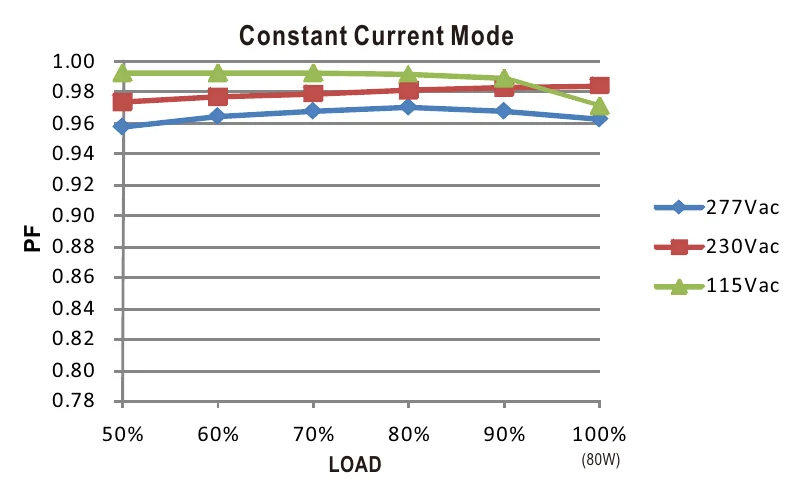

HLN-80H-54B Power Factor Characteristic
Power Factor Characteristic

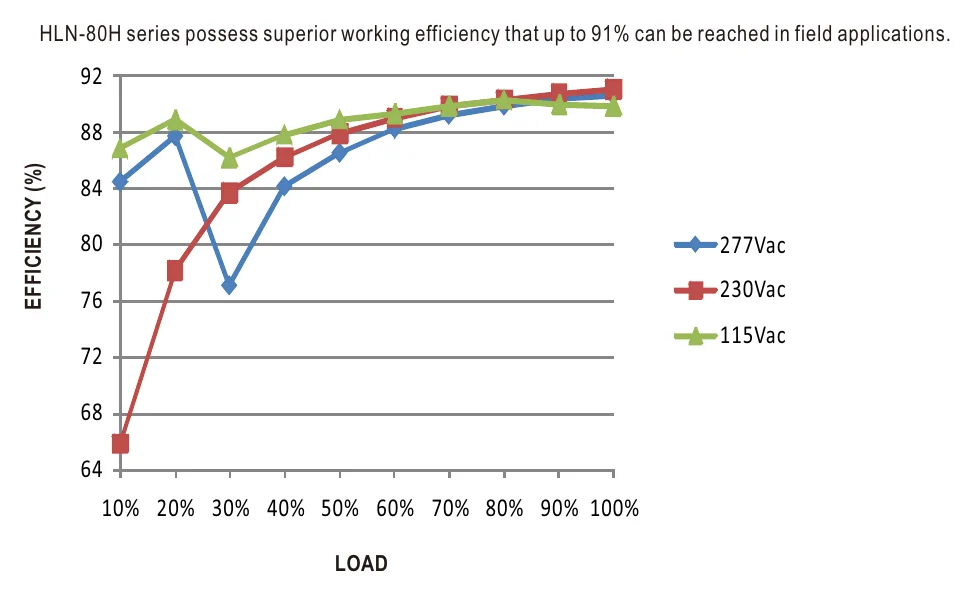

HLN-80H-54B EFFICIENCY vs LOAD (48V Model)
EFFICIENCY vs LOAD (48V Model)

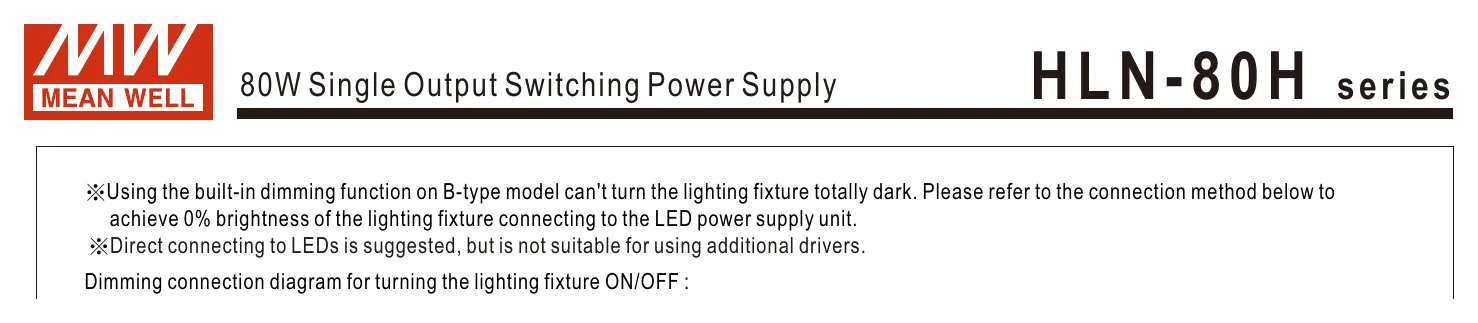

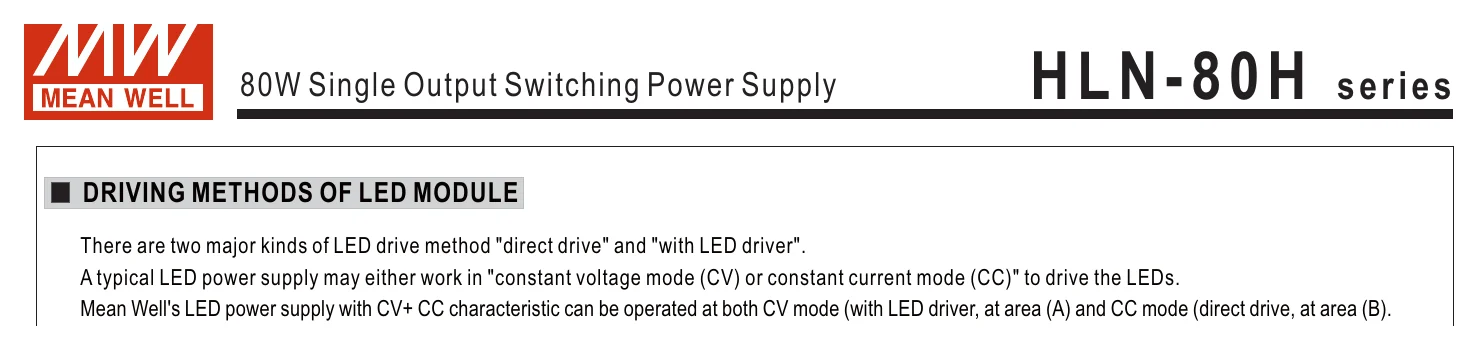

HLN-80H-54B H L N - 8 0 H series
H L N - 8 0 H series

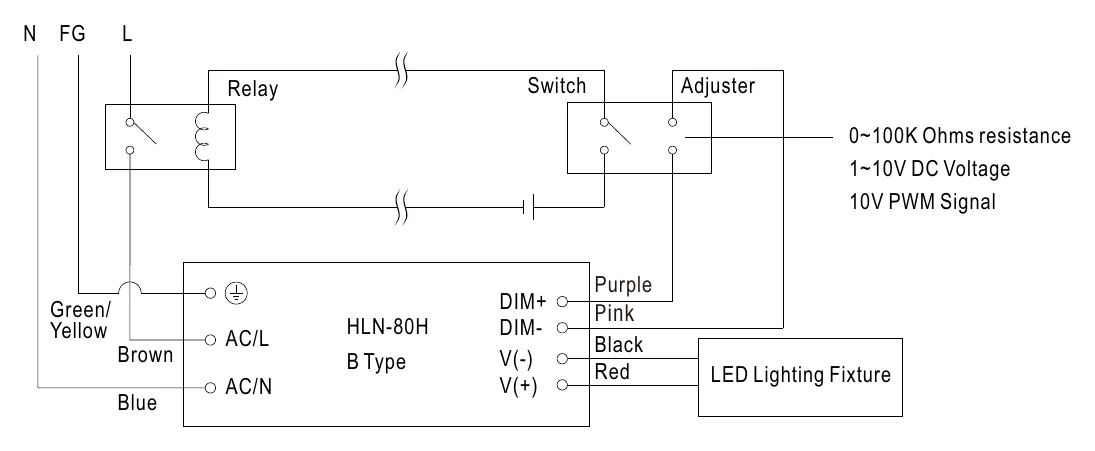

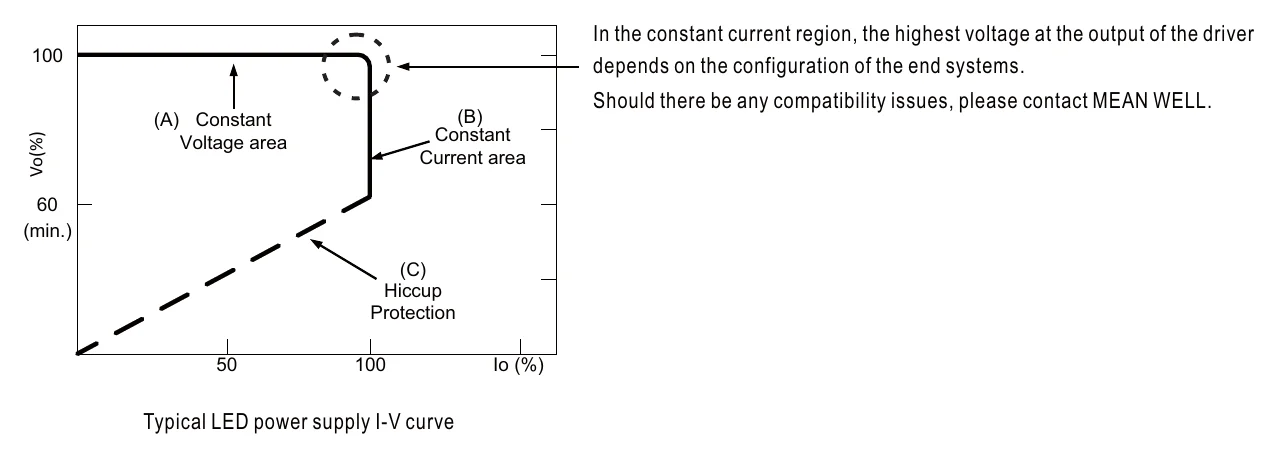

HLN-80H-54B H L N - 8 0 H series (2)
H L N - 8 0 H series (2)

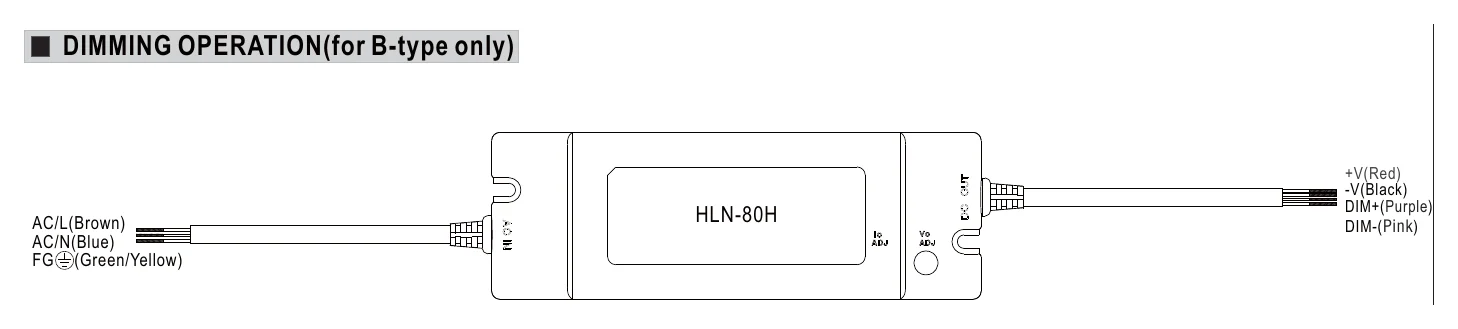

HLN-80H-54B DIMMING OPERATION(for B-type only)
DIMMING OPERATION(for B-type only)

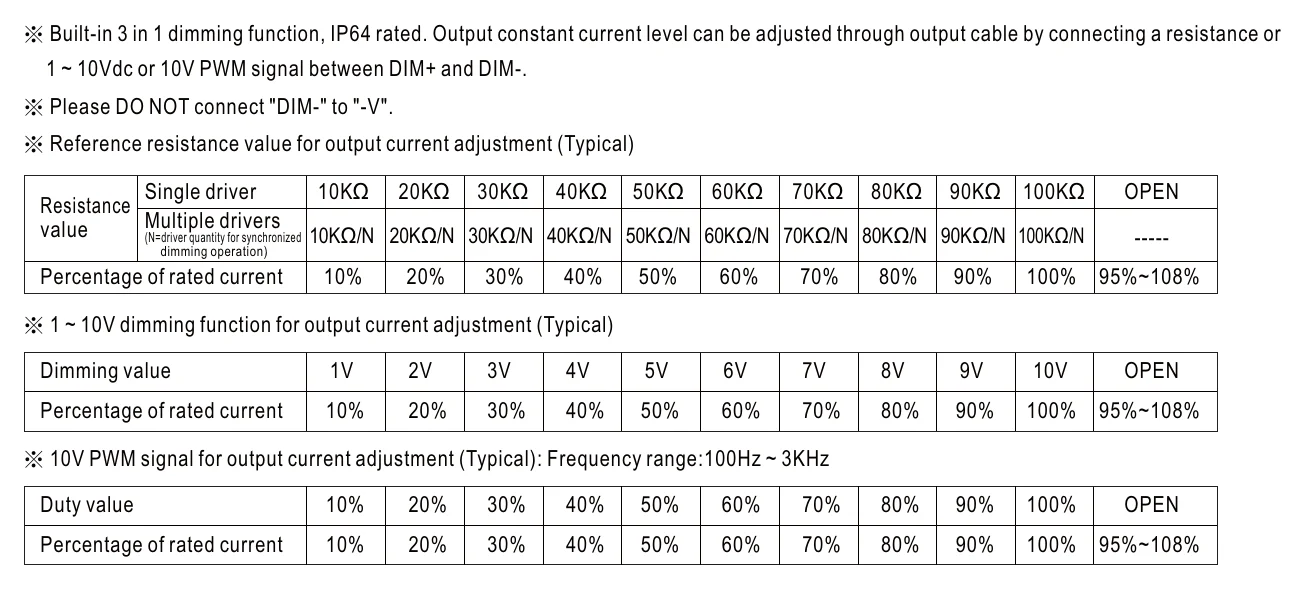

HLN-80H-54B ※ Please DO NOT connect "DIM-" to "-V".
※ Please DO NOT connect "DIM-" to "-V".
HLN-80H-54B H L N - 8 0 H series
H L N - 8 0 H series
HLN-80H-54B H L N - 8 0 H series (2)
H L N - 8 0 H series (2)

Downloads

FAQ

Can the HLN-80H-54B power constant-current LED sign modules in a 54V system?

Yes, it is suitable for signage applications and provides a 1.5A constant-current output. The module string needs to operate within the 32.4-54V range and stay within the driver’s 81W maximum output.

Is this driver appropriate for constant-current facade or accent lighting?

It can be used for facade or accent lighting fixtures that are designed for 1.5A constant-current input within 32.4-54V. The driver’s higher output-voltage range makes it relevant for fixtures built around longer LED strings rather than lower-voltage loads.

Can I use the HLN-80H-54B with constant-current LED strip lighting for display cases or coves?

It may be used if the strip system is a constant-current design rated for 1.5A and operates between 32.4V and 54V. The total connected load must also stay within the 81W output limit.

What is the maximum LED strip length this driver can support?

Calculate it from the driver’s 81W maximum output: 81 ÷ strip rated watts per meter = estimated maximum length. Check your strip rated power per meter, and make sure the strip is compatible with constant-current operation in the 32.4-54V range.

Is the HLN-80H-54B suitable for damp or outdoor signage enclosures?

Yes, IP64 means protection against dust and splashing water, which suits many damp-location or outdoor-adjacent enclosures. The specified operating temperature range is -40°C to +50°C, so the site conditions need to remain inside that range.
