Ltech Q4 RGBW Touch remote control

SKU Q4
Log in to see price Trade pricing & online ordering for account holders
In stock
|

Overview

Q series remote control is a 4 zones control in color circle dimming and slider touch dimming. Color and brightness is displayed by color indicators. Connect to any wireless driver within effective distance and keep the effect in sync. Working with F4-5A, F5-DMX-4A and touch panel, etc.

Specifications

Q4Specifications from the official datasheet (2019-05-16 edition)Download datasheet PDF

Parameters

Remote Type
4 zones control
Power Supply
2 AAA batteries
Wireless Type
RF 2.4GHz
Working Temp.
-20°C~55°C
Package
L166×W47×H22(mm)
Weight(G.W.)
85g

Others

Dimensions
L166×W47×H22(mm)

Technical drawings

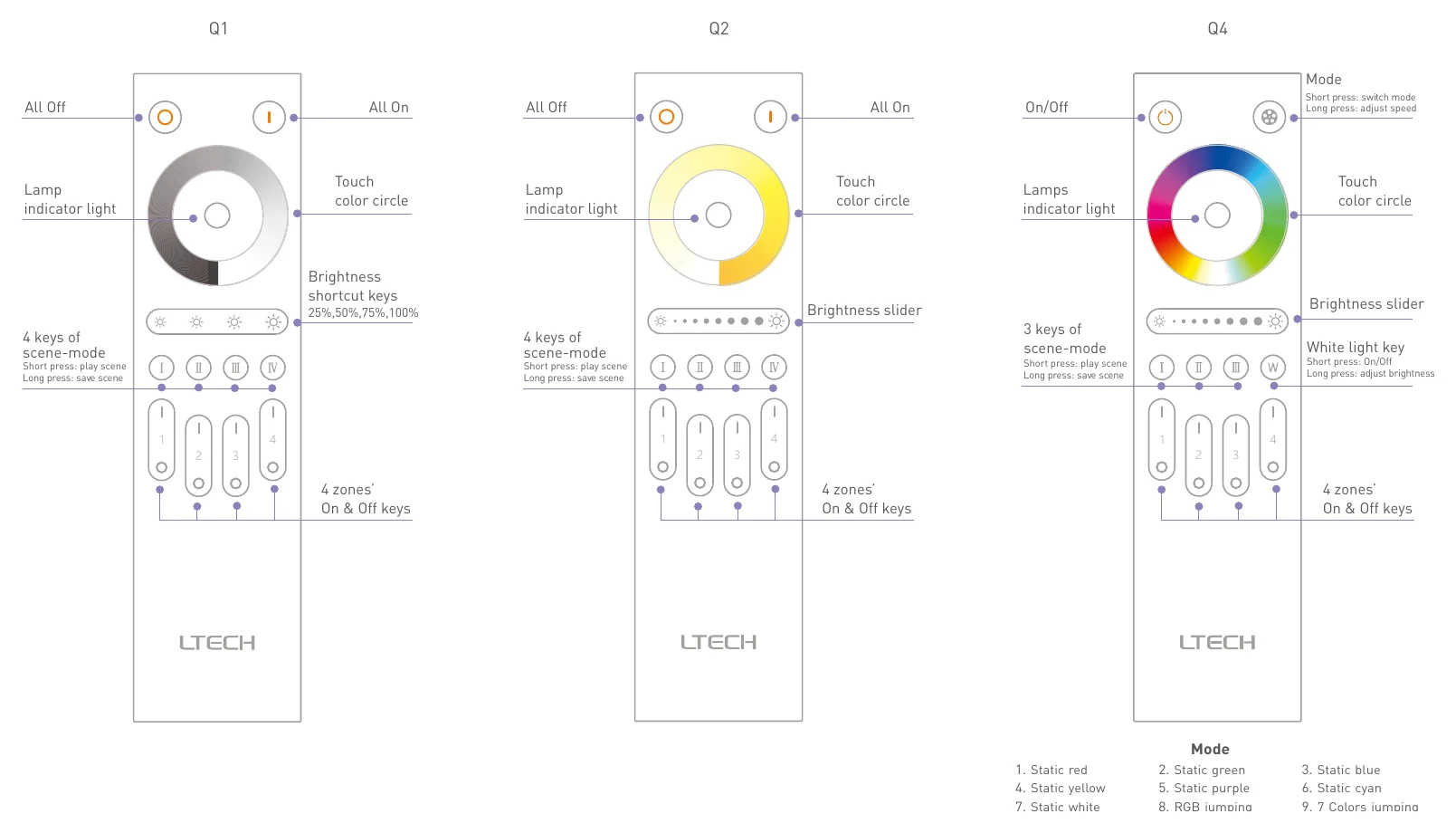

Q4 Key Functions
Key Functions

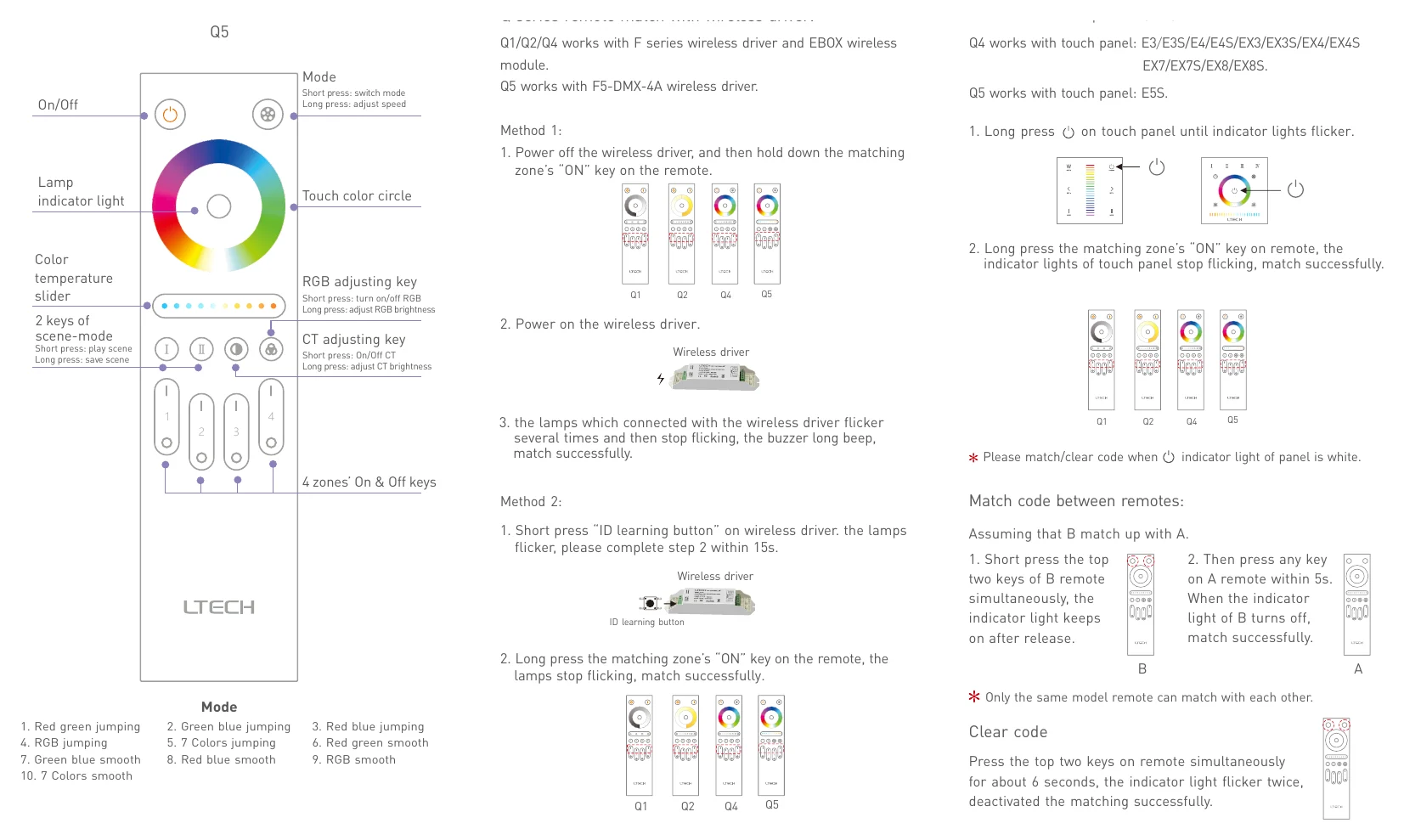

Q4 Illustration (page 2)
Illustration (page 2)

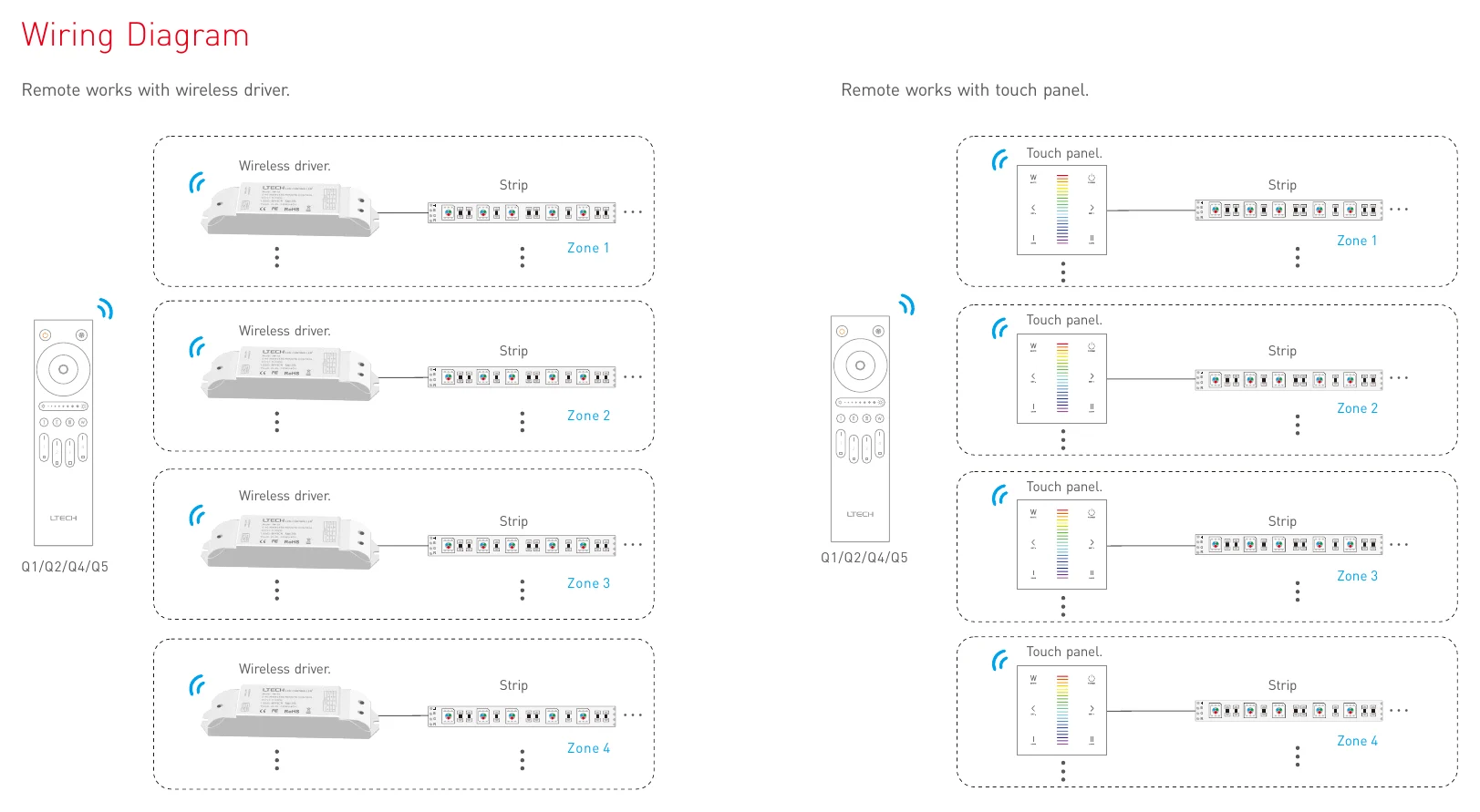

Q4 Wiring Diagram
Wiring Diagram

Downloads

FAQ

What is the Ltech Q4 RGBW Touch remote control used for?

The Ltech Q4 is a handheld RGBW remote for controlling compatible wireless lighting devices. It is designed for applications where you want color and brightness control across up to four separate zones from one remote.

Does the Q4 support multi-zone lighting control?

Yes. This model is a 4-zone remote, so it is intended for setups that need separate control of multiple lighting areas or groups. That makes it a practical choice for commercial or multi-area RGBW lighting layouts.

What kind of control interface does the Ltech Q4 offer?

The Q4 uses a touch-based interface with color circle dimming and slider touch dimming. It also uses color indicators to display color and brightness status, which helps make adjustments more intuitive during use.

Is the Q4 compatible with other Ltech wireless products?

Yes. The product description states that it can work with compatible wireless drivers within effective distance, including models such as the F4-5A, F5-DMX-4A, and matching touch panels. Compatibility should be considered at the wireless device family level rather than by assuming it fits every controller or driver.

Can the Ltech Q4 keep lighting effects synchronized across zones?

Yes. The Q4 is designed to connect to compatible wireless devices and keep the effect in sync while operating within effective distance. That makes it suitable for coordinated RGBW lighting scenes where consistent response matters.

What operating conditions is the Q4 rated for?

This model has a stated operating temperature range of -20°C to 55°C. It is designed for professional environments requiring reliable wireless control within this thermal window.
