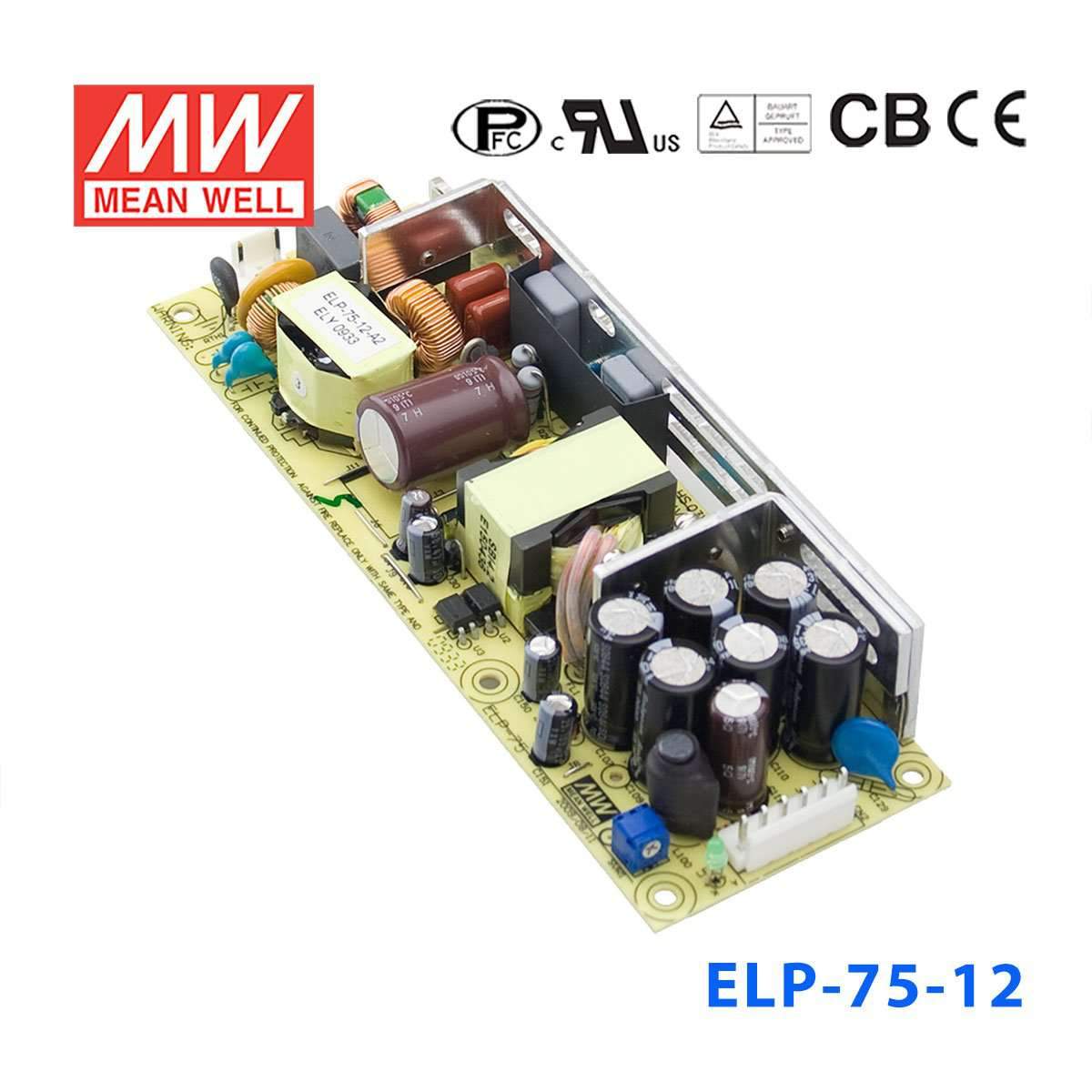

Mean Well ELP-75-12 Power Supply 75W 12V

built-in active PFC function, PF>0.95, high efficiency up to 90%, 1U low profile, no load power consumption
SKU:
ELP-75-12

|

Description

Features

Universal AC input / Full range
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage
No load power consumption <0.5W
Cooling by free air convection
High efficiency up to 90%
Case available (ELP-75-x-C)
LED indicator for power on
1U low profile
3 years warranty

General Specification

AC input voltage range 90~264VAC; 127~370VDC
AC inrush current (max.) Cold start, 60A at 230VAC
DC adjustment range ±10% rated output voltage
Overload protection 105%~150% hiccup mode, auto-recovery
Over voltage protection 115%~135% rated output voltage
Leakage current Less than 1mA at 240VAC
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, O/P-FG: 0.5kVAC
Working temperature -30~+70°C (refer to output derating curve)
Safety standards UL60905-1, TUV EN60950-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Setup, rise, hold up time 2500ms, 50ms, 20ms at full load and 230VAC
Dimension (LxWxH) 175x 60x 27 mm; 195x 68.5x 33 mm

Specifications

  • Brand
    Mean Well
  • Series
    ELP Series
  • Power Rating
    75 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    6.25 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    17.5 cm
  • Width
    6 cm
  • Height
    2.7 cm
  • Weight
    0.25 kg

File Downloads
