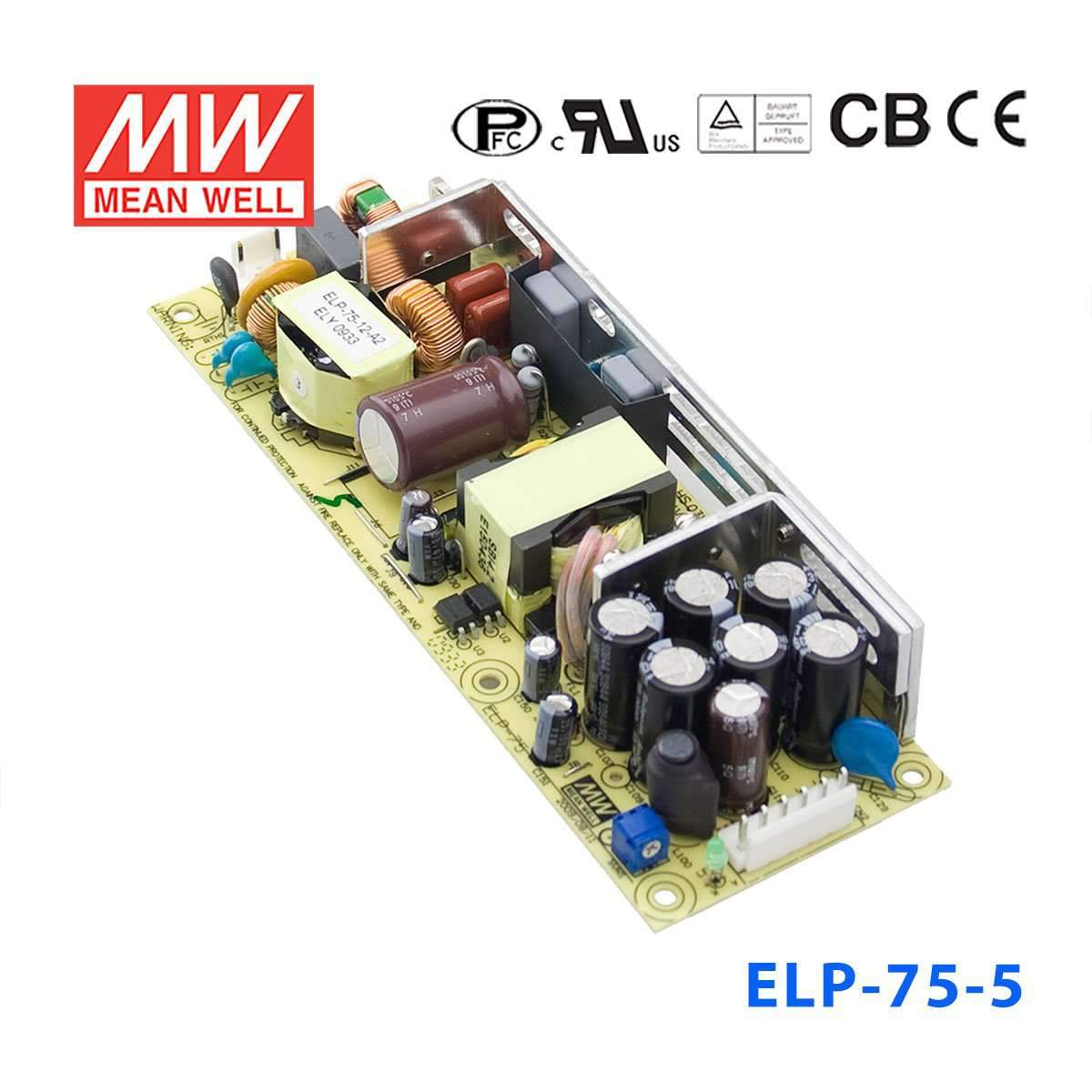

Mean Well ELP-75-5 Power Supply 75W 5V

Q: Can I use the ELP-75-5 for a 5V industrial controller or PLC accessory load?

Yes, if the equipment requires a constant 5V supply and the total load stays within 75W and 15A. That makes it a fit for 5V industrial control electronics, interface boards, and similar low-voltage automation loads that need higher current.

Q: Is the ELP-75-5 suitable for powering embedded computers or multiple 5V logic devices in one system?

It can be used where several 5V embedded devices share one constant-voltage source, as long as the combined draw does not exceed 15A or 75W. The wide 90-264VAC input also helps when the same design is used across different AC input ranges.

Q: Can this power supply run 5V HMI panels, sensors, or communication modules in an automation cabinet?

It is appropriate for 5V automation peripherals that need constant voltage and fit within the 15A output current limit. For cabinet builds, the 1U low-profile form factor and 175.0 x 60.0 x 27.0 mm size can also matter where vertical space is limited.

Q: Is the ELP-75-5 okay for outdoor or harsh-area use?

The published operating temperature range is -30C to +70C, but no IP rating is listed in the provided specs. That means temperature capability is stated, while outdoor or washdown suitability cannot be confirmed from these specs alone.

Q: How does the ELP-75-5 compare with the other ELP-75 models?

Within the ELP-75 family, the 5V versions are ELP-75-5 and ELP-75-5-C at 75W, 5V, 15A, while the 3.3V versions are ELP-75-3.3 and ELP-75-3.3-C at 49.5W, 3.3V, 15A. The 12V models are ELP-75-12 and ELP-75-12-C at 75W, 12V, 6.25A; the 15V models are ELP-75-15 and ELP-75-15-C at 75W, 15V, 5A; the 24V models are ELP-75-24 and ELP-75-24-C at 75.6W, 24V, 3.15A; the 36V models are ELP-75-36 and ELP-75-36-C at 75.6W, 36V, 2.1A; and the 48V models are ELP-75-48 and ELP-75-48-C at 76.8W, 48V, 1.6A.

built-in active PFC function, PF>0.95, high efficiency up to 90%, 1U low profile, no load power consumption

SKU:

ELP-75-5

Please for Pricing

Notify me when it's back in stock

Description

Features

Universal AC input / Full range

Built-in active PFC function

Protections: Short circuit / Overload / Over voltage

No load power consumption <0.5W

Cooling by free air convection

High efficiency up to 90%

Case available (ELP-75-x-C)

LED indicator for power on

1U low profile

3 years warranty

General Specification

AC input voltage range	90~264VAC; 127~370VDC
AC inrush current (max.)	Cold start, 60A at 230VAC
DC adjustment range	±10% rated output voltage
Overload protection	105%~150% hiccup mode, auto-recovery
Over voltage protection	115%~135% rated output voltage
Leakage current	Less than 1mA at 240VAC
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, O/P-FG: 0.5kVAC
Working temperature	-30~+70°C (refer to output derating curve)
Safety standards	UL60905-1, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Setup, rise, hold up time	2500ms, 50ms, 20ms at full load and 230VAC
Dimension (LxWxH)	175x 60x 27 mm; 195x 68.5x 33 mm

Specifications

Brand

Mean Well
Series

ELP Series
Power Rating

75 Watt
Output Voltage

5 Volt
Rated Current

15 Ampere
Input Voltage

90V~264V
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

17.5 cm
Width

6 cm
Height

2.7 cm
Weight

0.25 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the ELP-75-5 for a 5V industrial controller or PLC accessory load?

Yes, if the equipment requires a constant 5V supply and the total load stays within 75W and 15A. That makes it a fit for 5V industrial control electronics, interface boards, and similar low-voltage automation loads that need higher current.

Is the ELP-75-5 suitable for powering embedded computers or multiple 5V logic devices in one system?

It can be used where several 5V embedded devices share one constant-voltage source, as long as the combined draw does not exceed 15A or 75W. The wide 90-264VAC input also helps when the same design is used across different AC input ranges.

Can this power supply run 5V HMI panels, sensors, or communication modules in an automation cabinet?

It is appropriate for 5V automation peripherals that need constant voltage and fit within the 15A output current limit. For cabinet builds, the 1U low-profile form factor and 175.0 x 60.0 x 27.0 mm size can also matter where vertical space is limited.

Is the ELP-75-5 okay for outdoor or harsh-area use?

The published operating temperature range is -30C to +70C, but no IP rating is listed in the provided specs. That means temperature capability is stated, while outdoor or washdown suitability cannot be confirmed from these specs alone.

How does the ELP-75-5 compare with the other ELP-75 models?

Within the ELP-75 family, the 5V versions are ELP-75-5 and ELP-75-5-C at 75W, 5V, 15A, while the 3.3V versions are ELP-75-3.3 and ELP-75-3.3-C at 49.5W, 3.3V, 15A. The 12V models are ELP-75-12 and ELP-75-12-C at 75W, 12V, 6.25A; the 15V models are ELP-75-15 and ELP-75-15-C at 75W, 15V, 5A; the 24V models are ELP-75-24 and ELP-75-24-C at 75.6W, 24V, 3.15A; the 36V models are ELP-75-36 and ELP-75-36-C at 75.6W, 36V, 2.1A; and the 48V models are ELP-75-48 and ELP-75-48-C at 76.8W, 48V, 1.6A.

Model	Power	Voltage	Current
Mean Well ELP-75-5-C Power Supply 75W 5V	75W	5V	15A	View
Mean Well ELP-75-48-C Power Supply 76W 48V	76.8W	48V	1.6A	View
Mean Well ELP-75-48 Power Supply 76W 48V	76.8W	48V	1.6A	View
Mean Well ELP-75-36-C Power Supply 75W 36V	75.6W	36V	2.1A	View
Mean Well ELP-75-36 Power Supply 75W 36V	75.6W	36V	2.1A	View
Mean Well ELP-75-3.3-C Power Supply 49W 3.3V	49.5W	3.3V	15A	View
Mean Well ELP-75-3.3 Power Supply 49W 3.3V	49.5W	3.3V	15A	View
Mean Well ELP-75-24-C Power Supply 75W 24V	75.6W	24V	3.15A	View
Mean Well ELP-75-24 Power Supply 75W 24V	75.6W	24V	3.15A	View
Mean Well ELP-75-15-C Power Supply 75W 15V	75W	15V	5A	View
Mean Well ELP-75-15 Power Supply 75W 15V	75W	15V	5A	View
Mean Well ELP-75-12-C Power Supply 75W 12V	75W	12V	6.25A	View
Mean Well ELP-75-12 Power Supply 75W 12V	75W	12V	6.25A	View
