Mean Well

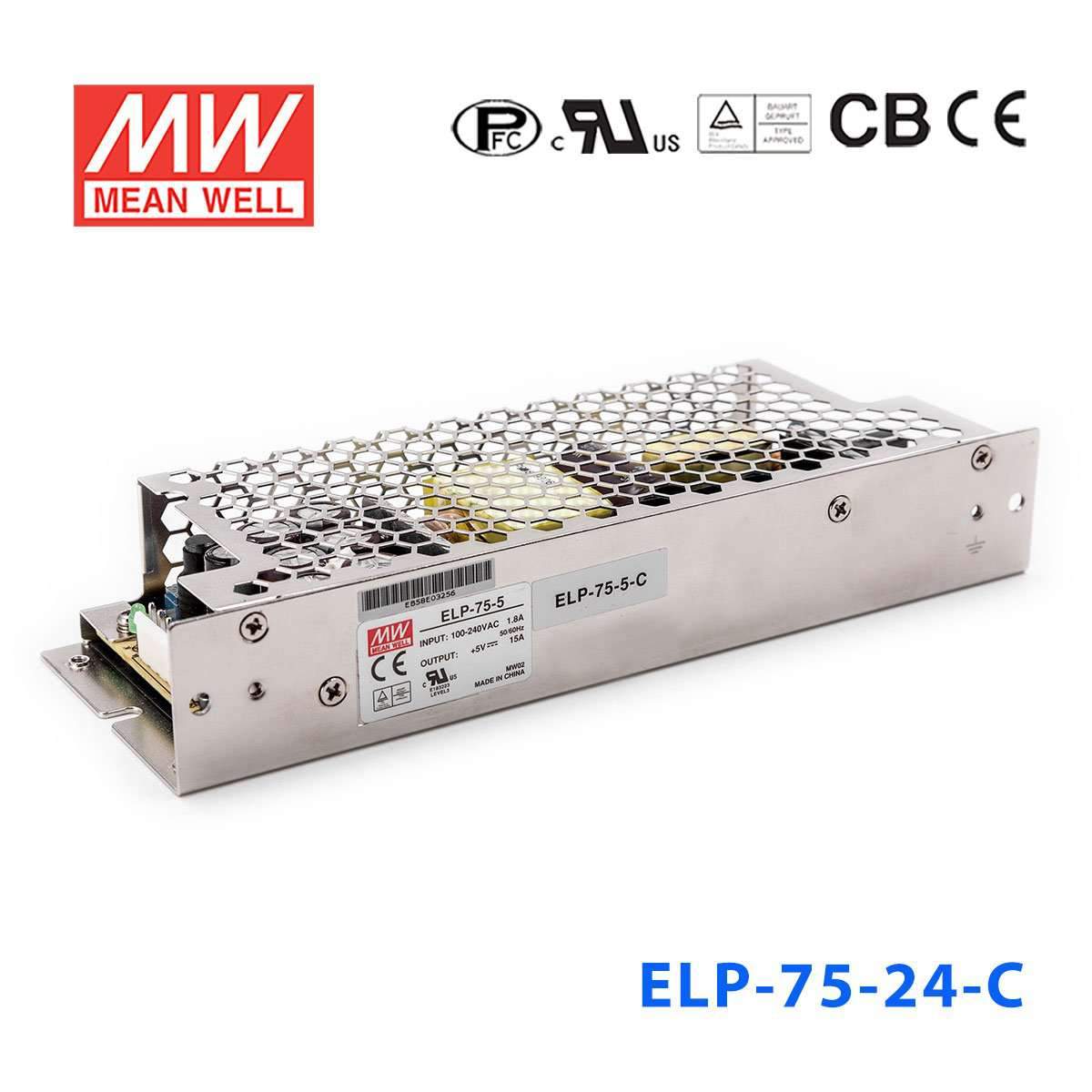

Mean Well ELP-75-24-C Power Supply 75W 24V

built-in active PFC function, PF>0.95, high efficiency up to 90%, 1U low profile, no load power consumption
SKU:
ELP-75-24-C
Please for Pricing
|

Description

Features

Universal AC input / Full range
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage
No load power consumption <0.5W
Cooling by free air convection
High efficiency up to 90%
Case available (ELP-75-x-C)
LED indicator for power on
1U low profile
3 years warranty

General Specification

AC input voltage range 90~264VAC; 127~370VDC
AC inrush current (max.) Cold start, 60A at 230VAC
DC adjustment range ±10% rated output voltage
Overload protection 105%~150% hiccup mode, auto-recovery
Over voltage protection 115%~135% rated output voltage
Leakage current Less than 1mA at 240VAC
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, O/P-FG: 0.5kVAC
Working temperature -30~+70°C (refer to output derating curve)
Safety standards UL60905-1, TUV EN60950-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Setup, rise, hold up time 2500ms, 50ms, 20ms at full load and 230VAC
Dimension (LxWxH) 175x 60x 27 mm; 195x 68.5x 33 mm

Specifications
  • Brand
    Mean Well
  • Series
    ELP Series
  • Power Rating
    75.6 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    3.15 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    19.5 cm
  • Width
    6.85 cm
  • Height
    3.3 cm
  • Weight
    0.54 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can the ELP-75-24-C be used for 24V machine control electronics?

Yes, it is a constant-voltage 24V power supply with 75.6W total output and 3.15A available current. That makes it suitable for 24V machine control electronics that require regulated 24V DC within those limits.

Is this a good fit for 24V automation panels or monitoring equipment?

It is suitable when the panel or monitoring equipment is designed for 24V DC input and does not exceed 3.15A. The unit accepts 90-264VAC input, which is useful in industrial environments with different AC mains standards.

Can I use the ELP-75-24-C for 24V industrial networking or control modules?

Yes, for 24V industrial networking or control modules that need a constant-voltage supply. The power budget is 75.6W, so the total connected 24V load must stay at or below 3.15A.

What output choices exist in the ELP-75 family besides the ELP-75-24-C?

The listed siblings cover 3.3V at 49.5W and 15A, 5V at 75W and 15A, 12V at 75W and 6.25A, 15V at 75W and 5A, 24V at 75.6W and 3.15A, 36V at 75.6W and 2.1A, and 48V at 76.8W and 1.6A. The ELP-75-24-C is the 24V option rated at 75.6W and 3.15A.

Can this model be used in unheated spaces or warmer industrial enclosures?

The specified operating temperature range is -30°C to +70°C, so it is rated for both cold and warm operating conditions within that span. The supplied specs do not provide an IP rating, so exposed outdoor or wet-location suitability is not defined here.
