Mean Well

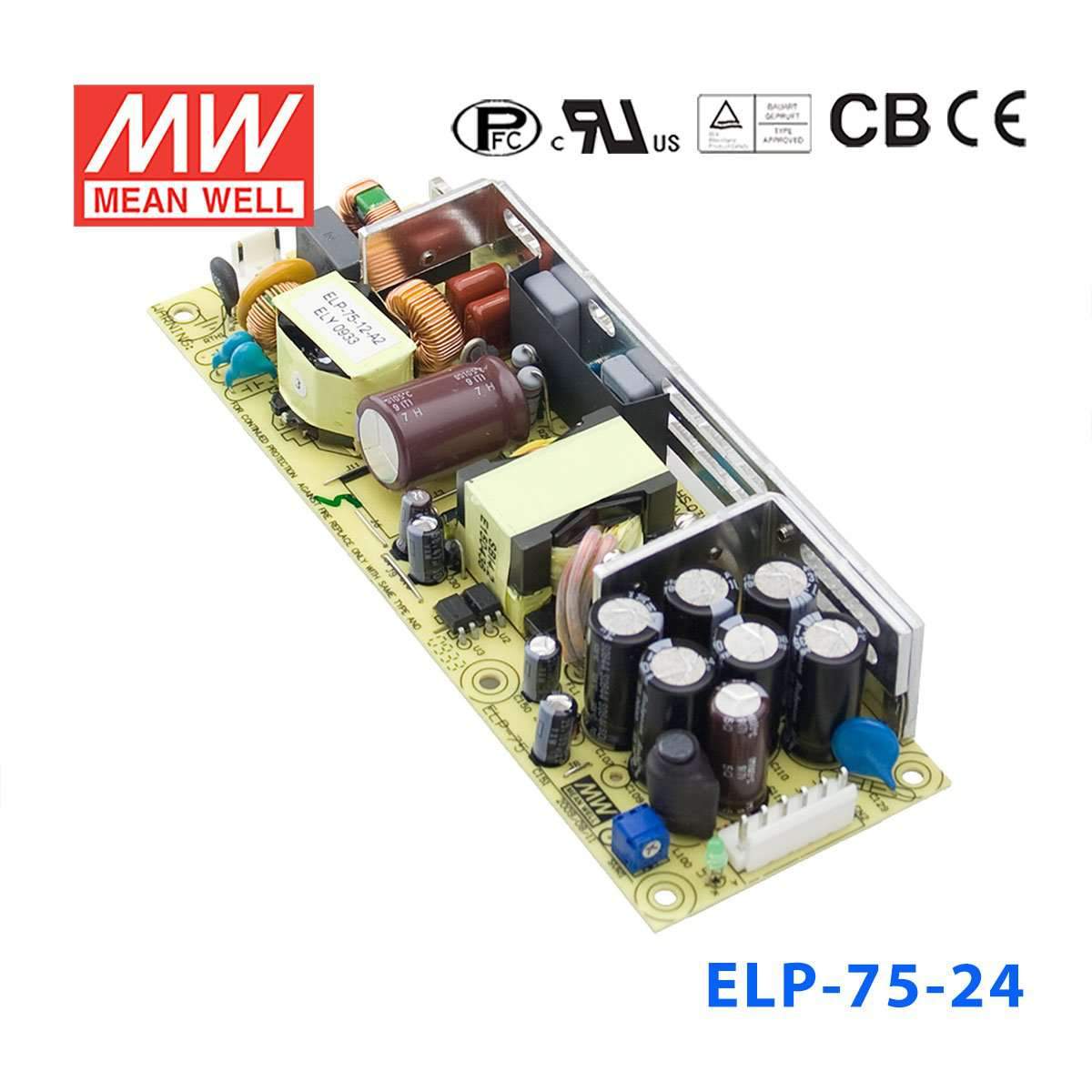

Mean Well ELP-75-24 Power Supply 75W 24V

built-in active PFC function, PF>0.95, high efficiency up to 90%, 1U low profile, no load power consumption
SKU:
ELP-75-24
Please for Pricing
|

Description

Features

Universal AC input / Full range
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage
No load power consumption <0.5W
Cooling by free air convection
High efficiency up to 90%
Case available (ELP-75-x-C)
LED indicator for power on
1U low profile
3 years warranty

General Specification

AC input voltage range 90~264VAC; 127~370VDC
AC inrush current (max.) Cold start, 60A at 230VAC
DC adjustment range ±10% rated output voltage
Overload protection 105%~150% hiccup mode, auto-recovery
Over voltage protection 115%~135% rated output voltage
Leakage current Less than 1mA at 240VAC
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, O/P-FG: 0.5kVAC
Working temperature -30~+70°C (refer to output derating curve)
Safety standards UL60905-1, TUV EN60950-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Setup, rise, hold up time 2500ms, 50ms, 20ms at full load and 230VAC
Dimension (LxWxH) 175x 60x 27 mm; 195x 68.5x 33 mm

Specifications
  • Brand
    Mean Well
  • Series
    ELP Series
  • Power Rating
    75.6 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    3.15 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    17.5 cm
  • Width
    6 cm
  • Height
    2.7 cm
  • Weight
    0.25 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the ELP-75-24 for 24V PLC accessories or industrial I/O hardware?

Yes, this is a constant-voltage 24V supply rated for 75.6W and 3.15A. It is appropriate for 24V PLC accessories, I/O hardware, or control electronics that require 24V DC and stay within the 3.15A output limit.

Is the ELP-75-24 suitable for 24V industrial sensors and automation devices?

It can be used with 24V automation devices, sensors, or control modules that are designed for constant-voltage 24V input. Available output is 3.15A, with total power up to 75.6W.

Can this 24V model power embedded control systems or industrial communication equipment?

Yes, if the embedded control or communications equipment is specified for 24V DC input and the load remains within 75.6W and 3.15A. The 90-264VAC input also supports use where AC input conditions vary across regions or facilities.

How does the ELP-75-24 differ from other ELP-75 series power supplies?

The sibling range includes 3.3V at 49.5W and 15A, 5V at 75W and 15A, 12V at 75W and 6.25A, 15V at 75W and 5A, 24V at 75.6W and 3.15A, 36V at 75.6W and 2.1A, and 48V at 76.8W and 1.6A. This model is the 24V, 75.6W, 3.15A version.

Is the ELP-75-24 rated for outdoor use or wide-temperature operation?

Its operating temperature range is -30°C to +70°C, which supports use in a wide temperature span. No IP rating is listed in the provided specifications, so outdoor exposure or water-resistant use is not confirmed here.
