Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

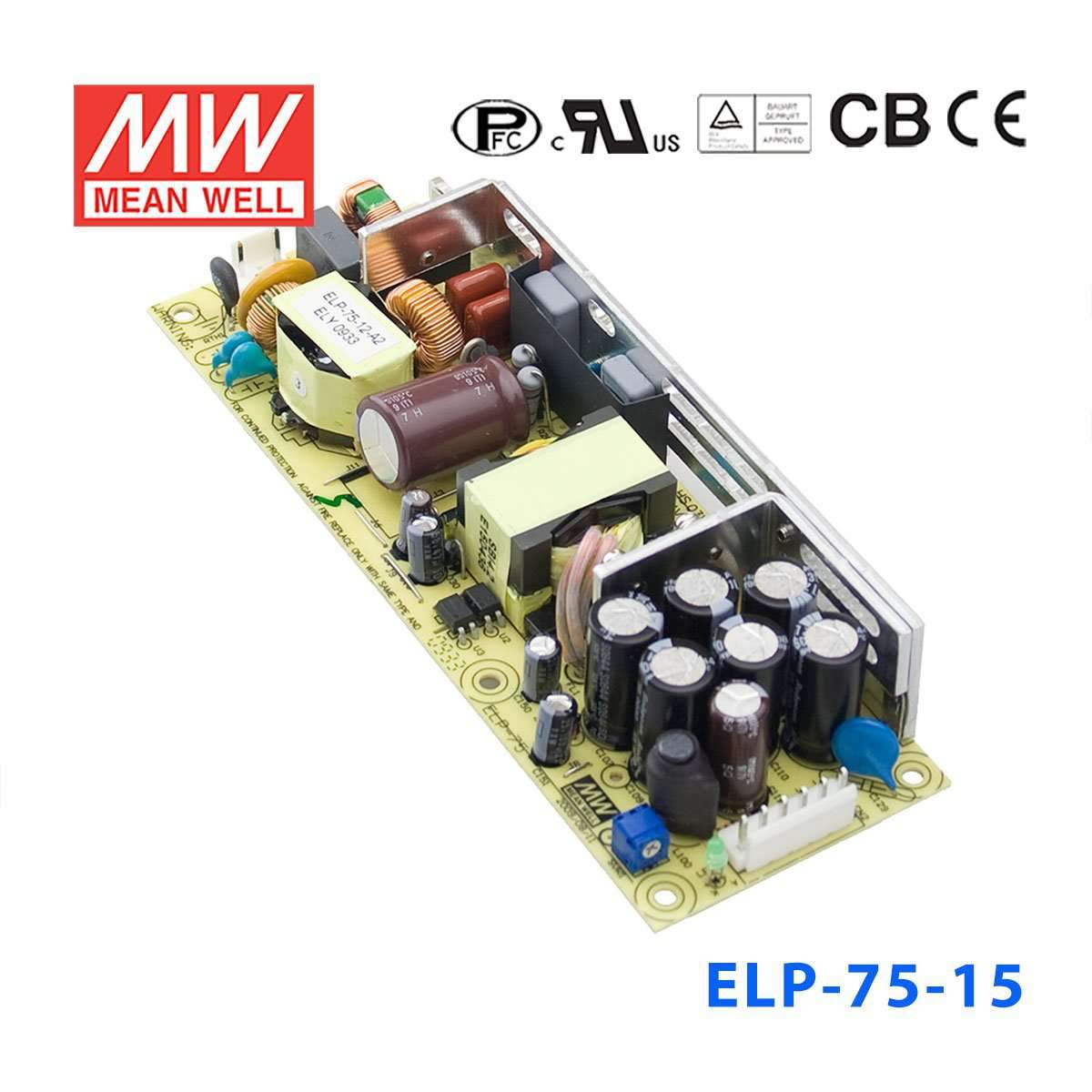

Mean Well ELP-75-15 Power Supply 75W 15V

Q: Can I use the ELP-75-15 for a 15V industrial controller or automation panel?

Yes, this model is a constant-voltage 15V power supply rated for 75W and 5A. It fits 15V industrial control or automation equipment that requires a regulated 15V DC source and stays within the 5A output limit.

Q: Is the ELP-75-15 suitable for 15V embedded systems or industrial electronics?

It can be used for 15V embedded or industrial electronic loads when the equipment is designed for constant-voltage 15V input. The available output is 5A with total power up to 75W, so the combined load needs to remain within those ratings.

Q: Can this 15V power supply run 15V relays, interface boards, or test equipment in a factory setting?

Yes, it is intended for 15V constant-voltage applications and can support industrial relays, interface boards, or bench and factory test devices that need 15V DC. Its 75W output and universal 90-264VAC input make it suitable for equipment used across different AC mains conditions.

Q: What are the differences across the ELP-75 series models?

Within the listed sibling range, the series includes 3.3V models at 49.5W and 15A, 5V models at 75W and 15A, 12V models at 75W and 6.25A, 15V models at 75W and 5A, 24V models at 75.6W and 3.15A, 36V models at 75.6W and 2.1A, and 48V models at 76.8W and 1.6A. This ELP-75-15 is the 15V, 75W, 5A version in that group.

Q: Is the ELP-75-15 suitable for outdoor or harsh-temperature environments?

The stated operating temperature range is -30°C to +70°C, so the temperature specification supports a wide indoor industrial range. No IP rating is provided in the supplied specs, so outdoor, wet, or washdown suitability is not established here.

built-in active PFC function, PF>0.95, high efficiency up to 90%, 1U low profile, no load power consumption

SKU:

ELP-75-15

Please for Pricing

Notify me when it's back in stock

Description

Features

Universal AC input / Full range

Built-in active PFC function

Protections: Short circuit / Overload / Over voltage

No load power consumption <0.5W

Cooling by free air convection

High efficiency up to 90%

Case available (ELP-75-x-C)

LED indicator for power on

1U low profile

3 years warranty

General Specification

AC input voltage range	90~264VAC; 127~370VDC
AC inrush current (max.)	Cold start, 60A at 230VAC
DC adjustment range	±10% rated output voltage
Overload protection	105%~150% hiccup mode, auto-recovery
Over voltage protection	115%~135% rated output voltage
Leakage current	Less than 1mA at 240VAC
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, O/P-FG: 0.5kVAC
Working temperature	-30~+70°C (refer to output derating curve)
Safety standards	UL60905-1, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Setup, rise, hold up time	2500ms, 50ms, 20ms at full load and 230VAC
Dimension (LxWxH)	175x 60x 27 mm; 195x 68.5x 33 mm

Specifications

Brand

Mean Well
Series

ELP Series
Power Rating

75 Watt
Output Voltage

15 Volt
Rated Current

5 Ampere
Input Voltage

90V~264V
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

17.5 cm
Width

6 cm
Height

2.7 cm
Weight

0.25 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the ELP-75-15 for a 15V industrial controller or automation panel?

Yes, this model is a constant-voltage 15V power supply rated for 75W and 5A. It fits 15V industrial control or automation equipment that requires a regulated 15V DC source and stays within the 5A output limit.

Is the ELP-75-15 suitable for 15V embedded systems or industrial electronics?

It can be used for 15V embedded or industrial electronic loads when the equipment is designed for constant-voltage 15V input. The available output is 5A with total power up to 75W, so the combined load needs to remain within those ratings.

Can this 15V power supply run 15V relays, interface boards, or test equipment in a factory setting?

Yes, it is intended for 15V constant-voltage applications and can support industrial relays, interface boards, or bench and factory test devices that need 15V DC. Its 75W output and universal 90-264VAC input make it suitable for equipment used across different AC mains conditions.

What are the differences across the ELP-75 series models?

Within the listed sibling range, the series includes 3.3V models at 49.5W and 15A, 5V models at 75W and 15A, 12V models at 75W and 6.25A, 15V models at 75W and 5A, 24V models at 75.6W and 3.15A, 36V models at 75.6W and 2.1A, and 48V models at 76.8W and 1.6A. This ELP-75-15 is the 15V, 75W, 5A version in that group.

Is the ELP-75-15 suitable for outdoor or harsh-temperature environments?

The stated operating temperature range is -30°C to +70°C, so the temperature specification supports a wide indoor industrial range. No IP rating is provided in the supplied specs, so outdoor, wet, or washdown suitability is not established here.

Model	Power	Voltage	Current
Mean Well ELP-75-5-C Power Supply 75W 5V	75W	5V	15A	View
Mean Well ELP-75-5 Power Supply 75W 5V	75W	5V	15A	View
Mean Well ELP-75-48-C Power Supply 76W 48V	76.8W	48V	1.6A	View
Mean Well ELP-75-48 Power Supply 76W 48V	76.8W	48V	1.6A	View
Mean Well ELP-75-36-C Power Supply 75W 36V	75.6W	36V	2.1A	View
Mean Well ELP-75-36 Power Supply 75W 36V	75.6W	36V	2.1A	View
Mean Well ELP-75-3.3-C Power Supply 49W 3.3V	49.5W	3.3V	15A	View
Mean Well ELP-75-3.3 Power Supply 49W 3.3V	49.5W	3.3V	15A	View
Mean Well ELP-75-24-C Power Supply 75W 24V	75.6W	24V	3.15A	View
Mean Well ELP-75-24 Power Supply 75W 24V	75.6W	24V	3.15A	View
Mean Well ELP-75-15-C Power Supply 75W 15V	75W	15V	5A	View
Mean Well ELP-75-12-C Power Supply 75W 12V	75W	12V	6.25A	View
Mean Well ELP-75-12 Power Supply 75W 12V	75W	12V	6.25A	View
