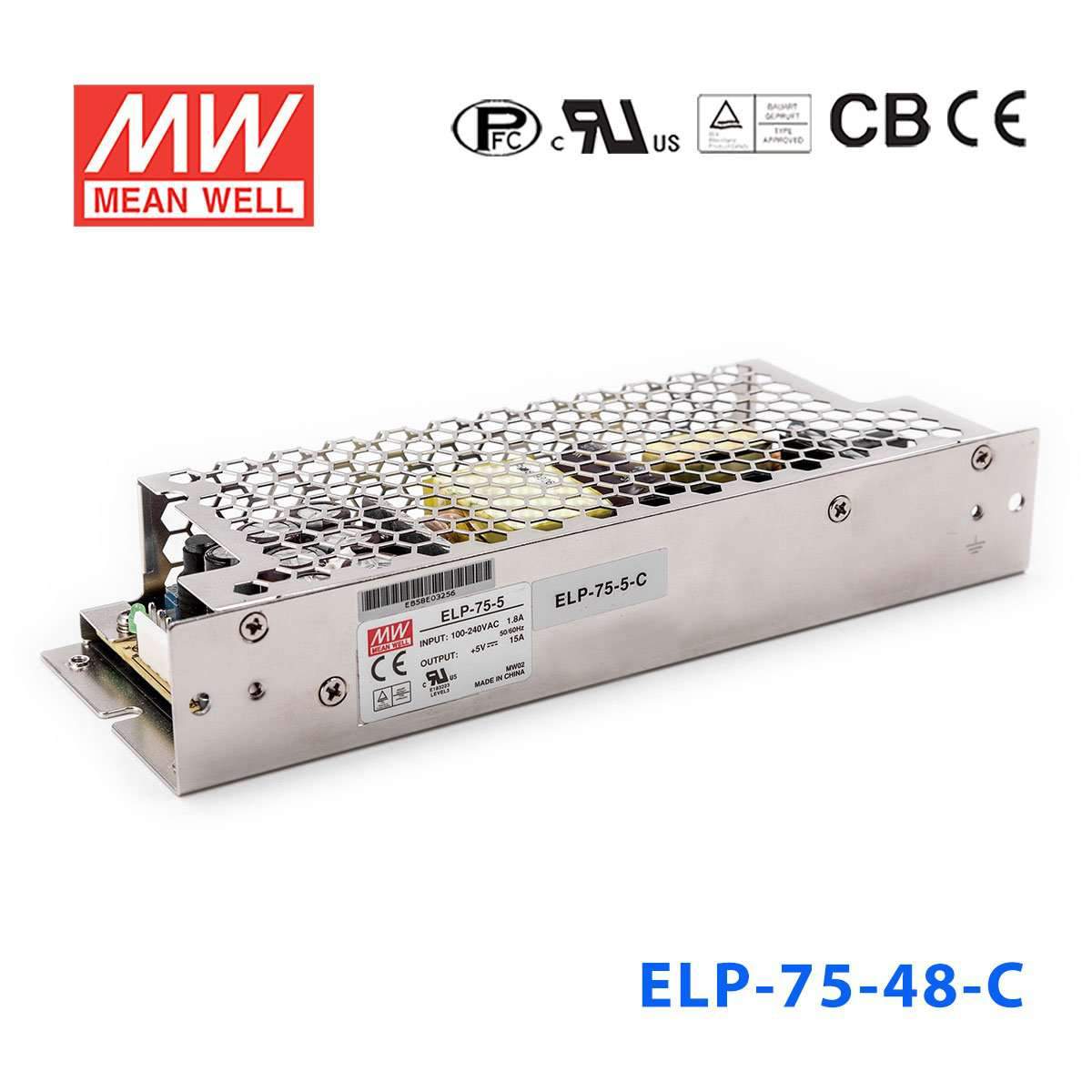

Mean Well ELP-75-48-C Power Supply 76W 48V

Q: Can the ELP-75-48-C power 48V automation or industrial electronics?

Yes, it provides constant voltage 48V output up to 1.6A, with a total power rating of 76.8W. That makes it suitable for industrial, automation, and embedded systems that are specified for regulated 48V DC within those limits.

Q: Is this a good option for 48V control hardware that runs from a wide AC input range?

It accepts 90-264VAC input, which supports installations that need broad AC input compatibility. The connected load must still be a 48V constant voltage device and stay within 1.6A and 76.8W.

Q: Can I use the ELP-75-48-C where enclosure height and profile matter?

This model is described as 1U low profile and measures 195.0 x 68.5 x 33.0 mm. It is suited to 48V applications in tighter equipment spaces when the required load is no more than 1.6A and 76.8W.

Q: Is the ELP-75-48-C suitable for outdoor installations or exposed environments?

The supplied specifications show an operating temperature range of -30°C to +70°C, but they do not provide an IP rating. Based on that information, temperature capability is defined, while exposed outdoor suitability is not.

Q: What are the voltage and output differences across the ELP-75 family compared with the ELP-75-48-C?

The sibling models listed are 3.3V at 49.5W and 15A, 5V at 75W and 15A, 12V at 75W and 6.25A, 15V at 75W and 5A, 24V at 75.6W and 3.15A, 36V at 75.6W and 2.1A, and 48V at 76.8W and 1.6A, with C and non-C versions across the series. The ELP-75-48-C is one of the 48V versions and shares its 76.8W and 1.6A rating with the ELP-75-48.

built-in active PFC function, PF>0.95, high efficiency up to 90%, 1U low profile, no load power consumption

SKU:

ELP-75-48-C

Please for Pricing

Notify me when it's back in stock

Description

Features

Universal AC input / Full range

Built-in active PFC function

Protections: Short circuit / Overload / Over voltage

No load power consumption <0.5W

Cooling by free air convection

High efficiency up to 90%

Case available (ELP-75-x-C)

LED indicator for power on

1U low profile

3 years warranty

General Specification

AC input voltage range	90~264VAC; 127~370VDC
AC inrush current (max.)	Cold start, 60A at 230VAC
DC adjustment range	±10% rated output voltage
Overload protection	105%~150% hiccup mode, auto-recovery
Over voltage protection	115%~135% rated output voltage
Leakage current	Less than 1mA at 240VAC
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, O/P-FG: 0.5kVAC
Working temperature	-30~+70°C (refer to output derating curve)
Safety standards	UL60905-1, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Setup, rise, hold up time	2500ms, 50ms, 20ms at full load and 230VAC
Dimension (LxWxH)	175x 60x 27 mm; 195x 68.5x 33 mm

Specifications

Brand

Mean Well
Series

ELP Series
Power Rating

76.8 Watt
Output Voltage

48 Volt
Rated Current

1.6 Ampere
Input Voltage

90V~264V
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

19.5 cm
Width

6.85 cm
Height

3.3 cm
Weight

0.54 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can the ELP-75-48-C power 48V automation or industrial electronics?

Yes, it provides constant voltage 48V output up to 1.6A, with a total power rating of 76.8W. That makes it suitable for industrial, automation, and embedded systems that are specified for regulated 48V DC within those limits.

Is this a good option for 48V control hardware that runs from a wide AC input range?

It accepts 90-264VAC input, which supports installations that need broad AC input compatibility. The connected load must still be a 48V constant voltage device and stay within 1.6A and 76.8W.

Can I use the ELP-75-48-C where enclosure height and profile matter?

This model is described as 1U low profile and measures 195.0 x 68.5 x 33.0 mm. It is suited to 48V applications in tighter equipment spaces when the required load is no more than 1.6A and 76.8W.

Is the ELP-75-48-C suitable for outdoor installations or exposed environments?

The supplied specifications show an operating temperature range of -30°C to +70°C, but they do not provide an IP rating. Based on that information, temperature capability is defined, while exposed outdoor suitability is not.

What are the voltage and output differences across the ELP-75 family compared with the ELP-75-48-C?

The sibling models listed are 3.3V at 49.5W and 15A, 5V at 75W and 15A, 12V at 75W and 6.25A, 15V at 75W and 5A, 24V at 75.6W and 3.15A, 36V at 75.6W and 2.1A, and 48V at 76.8W and 1.6A, with C and non-C versions across the series. The ELP-75-48-C is one of the 48V versions and shares its 76.8W and 1.6A rating with the ELP-75-48.

Model	Power	Voltage	Current
Mean Well ELP-75-5-C Power Supply 75W 5V	75W	5V	15A	View
Mean Well ELP-75-5 Power Supply 75W 5V	75W	5V	15A	View
Mean Well ELP-75-48 Power Supply 76W 48V	76.8W	48V	1.6A	View
Mean Well ELP-75-36-C Power Supply 75W 36V	75.6W	36V	2.1A	View
Mean Well ELP-75-36 Power Supply 75W 36V	75.6W	36V	2.1A	View
Mean Well ELP-75-3.3-C Power Supply 49W 3.3V	49.5W	3.3V	15A	View
Mean Well ELP-75-3.3 Power Supply 49W 3.3V	49.5W	3.3V	15A	View
Mean Well ELP-75-24-C Power Supply 75W 24V	75.6W	24V	3.15A	View
Mean Well ELP-75-24 Power Supply 75W 24V	75.6W	24V	3.15A	View
Mean Well ELP-75-15-C Power Supply 75W 15V	75W	15V	5A	View
Mean Well ELP-75-15 Power Supply 75W 15V	75W	15V	5A	View
Mean Well ELP-75-12-C Power Supply 75W 12V	75W	12V	6.25A	View
Mean Well ELP-75-12 Power Supply 75W 12V	75W	12V	6.25A	View
