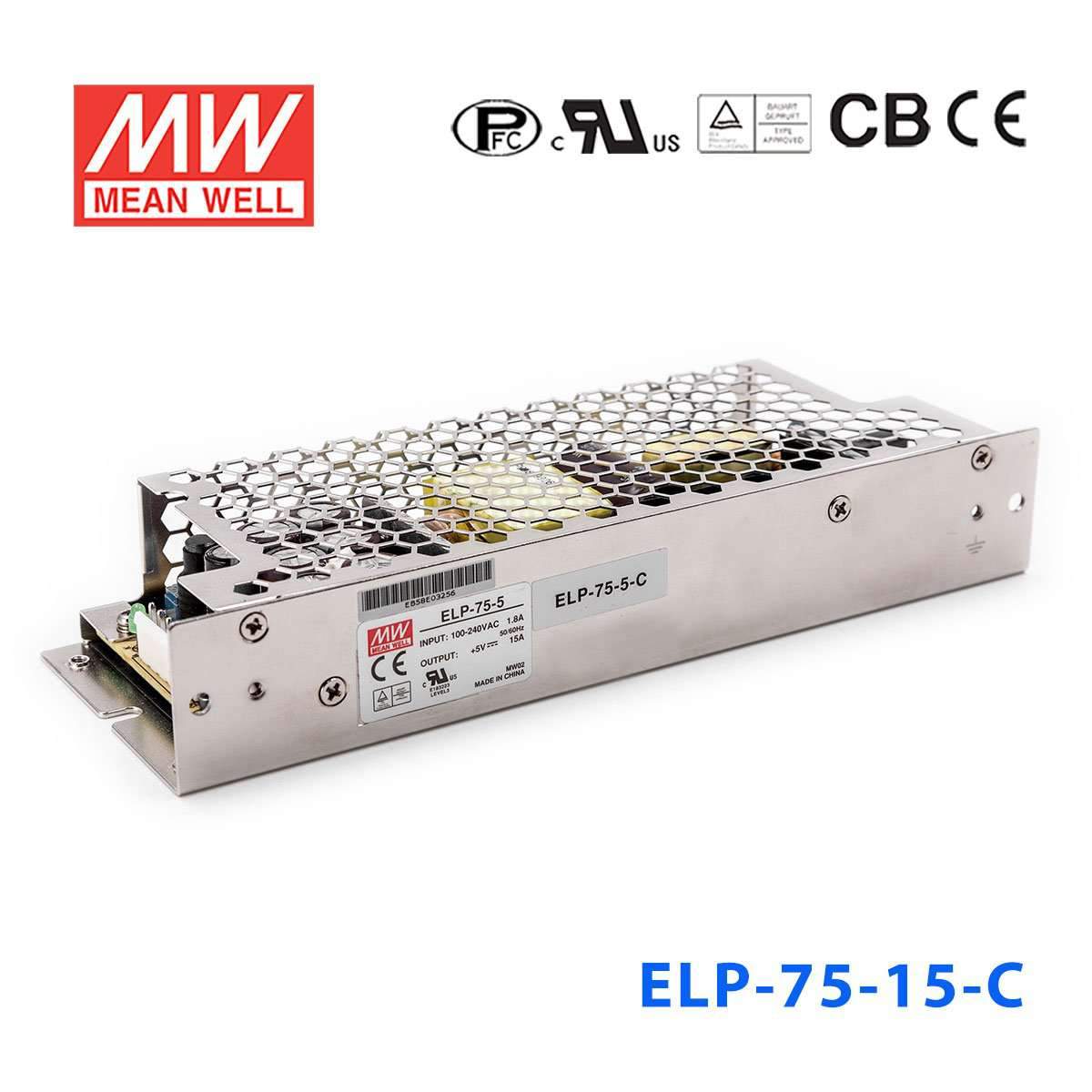

Mean Well ELP-75-15-C Power Supply 75W 15V
Please Login for Pricing
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC function |
| Protections: Short circuit / Overload / Over voltage |
| No load power consumption <0.5W |
| Cooling by free air convection |
| High efficiency up to 90% |
| Case available (ELP-75-x-C) |
| LED indicator for power on |
| 1U low profile |
| 3 years warranty |
General Specification
| AC input voltage range | 90~264VAC; 127~370VDC |
| AC inrush current (max.) | Cold start, 60A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection | 105%~150% hiccup mode, auto-recovery |
| Over voltage protection | 115%~135% rated output voltage |
| Leakage current | Less than 1mA at 240VAC |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Safety standards | UL60905-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Setup, rise, hold up time | 2500ms, 50ms, 20ms at full load and 230VAC |
| Dimension (LxWxH) | 175x 60x 27 mm; 195x 68.5x 33 mm |
Specifications
Specifications
-
BrandMean Well
-
SeriesELP Series
-
Power Rating75 Watt
-
Output Voltage15 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length19.5 cm
-
Width6.85 cm
-
Height3.3 cm
-
Weight0.54 kg
