Mean Well

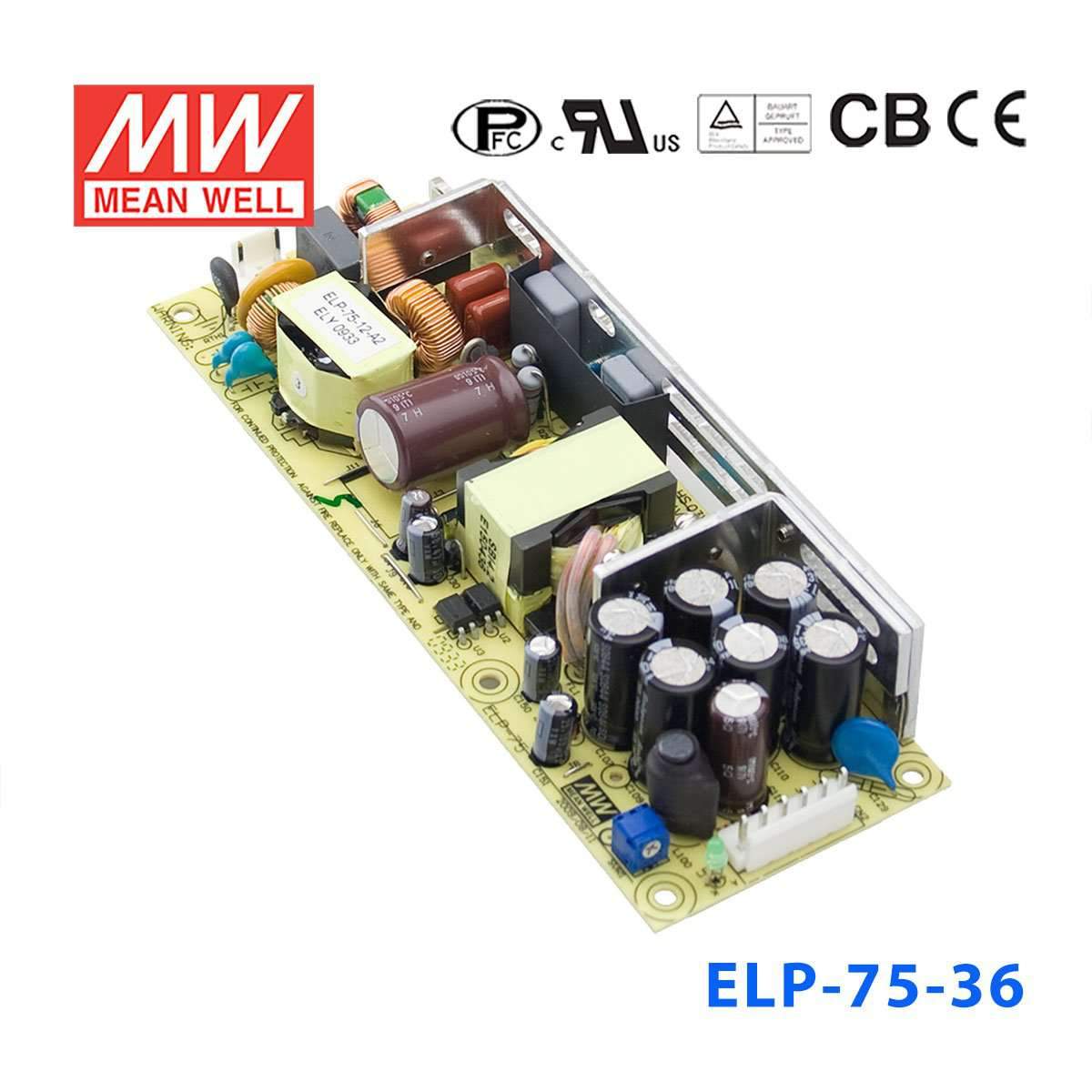

Mean Well ELP-75-36 Power Supply 75W 36V

built-in active PFC function, PF>0.95, high efficiency up to 90%, 1U low profile, no load power consumption
SKU:
ELP-75-36
Please for Pricing
|

Description

Features

Universal AC input / Full range
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage
No load power consumption <0.5W
Cooling by free air convection
High efficiency up to 90%
Case available (ELP-75-x-C)
LED indicator for power on
1U low profile
3 years warranty

General Specification

AC input voltage range 90~264VAC; 127~370VDC
AC inrush current (max.) Cold start, 60A at 230VAC
DC adjustment range ±10% rated output voltage
Overload protection 105%~150% hiccup mode, auto-recovery
Over voltage protection 115%~135% rated output voltage
Leakage current Less than 1mA at 240VAC
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, O/P-FG: 0.5kVAC
Working temperature -30~+70°C (refer to output derating curve)
Safety standards UL60905-1, TUV EN60950-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Setup, rise, hold up time 2500ms, 50ms, 20ms at full load and 230VAC
Dimension (LxWxH) 175x 60x 27 mm; 195x 68.5x 33 mm

Specifications
  • Brand
    Mean Well
  • Series
    ELP Series
  • Power Rating
    75.6 Watt
  • Output Voltage
    36 Volt
  • Rated Current
    2.1 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    17.5 cm
  • Width
    6 cm
  • Height
    2.7 cm
  • Weight
    0.25 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the ELP-75-36 for 36V industrial control or automation equipment?

Yes, this unit provides constant voltage 36V output up to 2.1A, with a total power rating of 75.6W. It is suited to industrial or automation devices that require a regulated 36V DC source within those limits.

Is the ELP-75-36 suitable for 36V embedded or motion-related electronics that need a constant voltage supply?

It can be used where the equipment is specified for constant voltage 36V input and draws no more than 2.1A or 75.6W. The wide 90-264VAC input is also useful in systems that must accept a broad AC input range.

Can this power supply be used for 36V devices in compact control cabinets?

It is built in a 1U low-profile format and measures 175.0 x 60.0 x 27.0 mm. That makes it a practical option for 36V DC loads in control enclosures where space is limited and the load stays within 2.1A and 75.6W.

Can the ELP-75-36 be used in cold or hot indoor equipment spaces?

The specified operating temperature range is -30°C to +70°C, so the temperature capability is broad for indoor equipment environments. The provided specs do not list an IP rating, so exposed outdoor suitability is not confirmed by the data shown.

What is the difference between the ELP-75-36 and the other ELP-75 voltage models?

The sibling range includes 3.3V at 49.5W and 15A, 5V at 75W and 15A, 12V at 75W and 6.25A, 15V at 75W and 5A, 24V at 75.6W and 3.15A, 36V at 75.6W and 2.1A, and 48V at 76.8W and 1.6A, with C and non-C versions listed for each except where noted. The ELP-75-36 is one of the 36V models and matches the ELP-75-36-C at 75.6W and 2.1A.
