Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

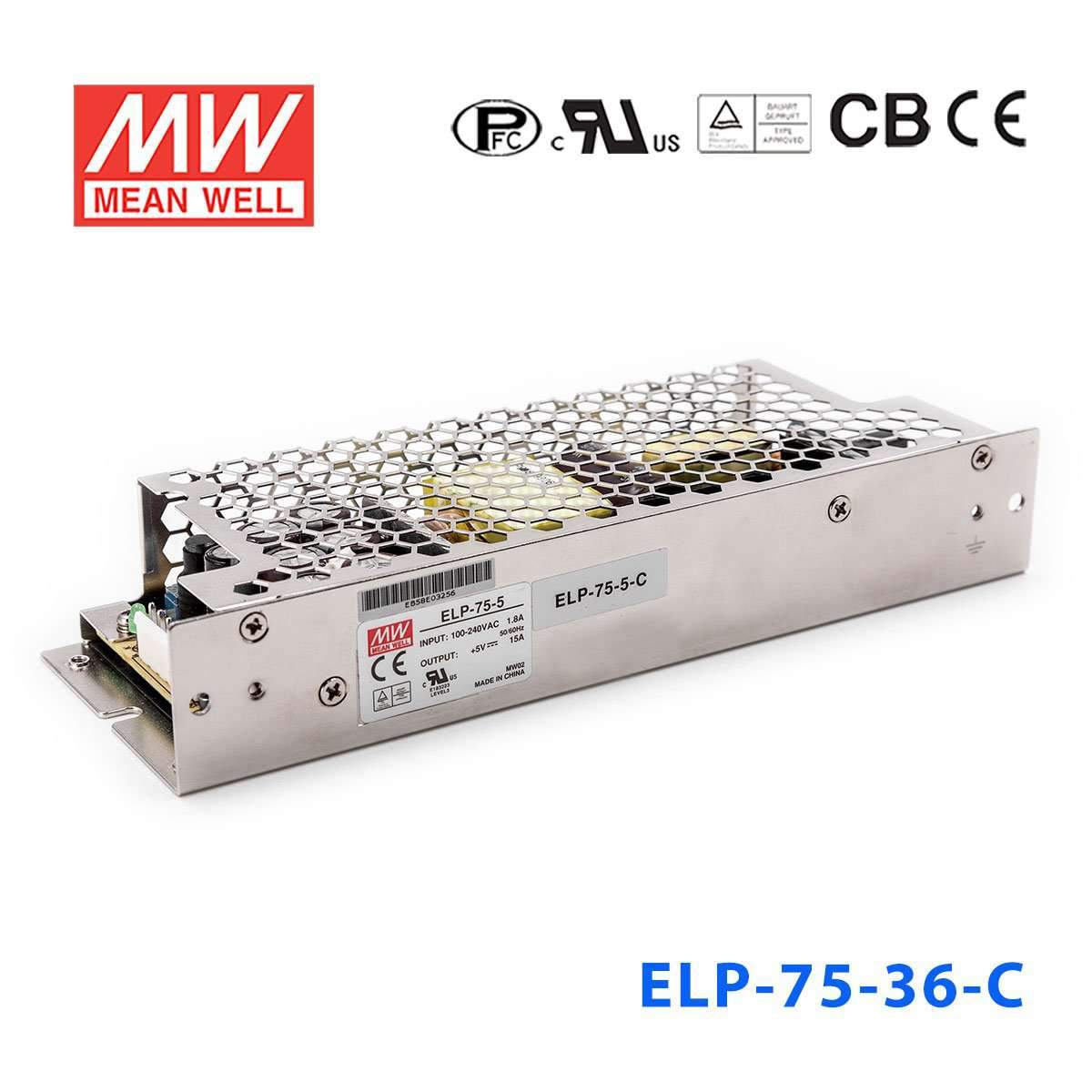

Mean Well ELP-75-36-C Power Supply 75W 36V

Q: Can the ELP-75-36-C power 36V automation components that need a regulated DC supply?

Yes, it is a constant voltage 36V power supply rated for up to 2.1A and 75.6W. That makes it suitable for automation and industrial electronics designed for a steady 36V DC input within those limits.

Q: Is this 36V model appropriate for industrial electronics with universal AC input requirements?

It accepts 90-264VAC input, which supports use across a wide AC input range. On the DC side, the load still needs to match the unit's 36V constant voltage output and remain within 2.1A and 75.6W.

Q: Can I use the ELP-75-36-C for 36V systems where a low-profile power supply is preferred?

Yes, it is described as a 1U low-profile model and measures 195.0 x 68.5 x 33.0 mm. It is intended for constant voltage 36V applications that fit within its 2.1A and 75.6W output capability.

Q: Is the ELP-75-36-C intended for outdoor equipment exposure?

The specs provide an operating temperature range of -30°C to +70°C, but no IP rating is listed. That means the temperature range is defined, while outdoor exposure or water-ingress suitability is not established by the provided specifications.

Q: How does the ELP-75-36-C compare with the other ELP-75 series outputs?

Across the sibling series, the output options listed are 3.3V at 49.5W and 15A, 5V at 75W and 15A, 12V at 75W and 6.25A, 15V at 75W and 5A, 24V at 75.6W and 3.15A, 36V at 75.6W and 2.1A, and 48V at 76.8W and 1.6A. This model is the 36V C-version and has the same 75.6W and 2.1A rating as the ELP-75-36.

built-in active PFC function, PF>0.95, high efficiency up to 90%, 1U low profile, no load power consumption

SKU:

ELP-75-36-C

Please for Pricing

Notify me when it's back in stock

Description

Features

Universal AC input / Full range

Built-in active PFC function

Protections: Short circuit / Overload / Over voltage

No load power consumption <0.5W

Cooling by free air convection

High efficiency up to 90%

Case available (ELP-75-x-C)

LED indicator for power on

1U low profile

3 years warranty

General Specification

AC input voltage range	90~264VAC; 127~370VDC
AC inrush current (max.)	Cold start, 60A at 230VAC
DC adjustment range	±10% rated output voltage
Overload protection	105%~150% hiccup mode, auto-recovery
Over voltage protection	115%~135% rated output voltage
Leakage current	Less than 1mA at 240VAC
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, O/P-FG: 0.5kVAC
Working temperature	-30~+70°C (refer to output derating curve)
Safety standards	UL60905-1, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Setup, rise, hold up time	2500ms, 50ms, 20ms at full load and 230VAC
Dimension (LxWxH)	175x 60x 27 mm; 195x 68.5x 33 mm

Specifications

Brand

Mean Well
Series

ELP Series
Power Rating

75.6 Watt
Output Voltage

36 Volt
Rated Current

2.1 Ampere
Input Voltage

90V~264V
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

19.5 cm
Width

6.85 cm
Height

3.3 cm
Weight

0.54 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can the ELP-75-36-C power 36V automation components that need a regulated DC supply?

Yes, it is a constant voltage 36V power supply rated for up to 2.1A and 75.6W. That makes it suitable for automation and industrial electronics designed for a steady 36V DC input within those limits.

Is this 36V model appropriate for industrial electronics with universal AC input requirements?

It accepts 90-264VAC input, which supports use across a wide AC input range. On the DC side, the load still needs to match the unit's 36V constant voltage output and remain within 2.1A and 75.6W.

Can I use the ELP-75-36-C for 36V systems where a low-profile power supply is preferred?

Yes, it is described as a 1U low-profile model and measures 195.0 x 68.5 x 33.0 mm. It is intended for constant voltage 36V applications that fit within its 2.1A and 75.6W output capability.

Is the ELP-75-36-C intended for outdoor equipment exposure?

The specs provide an operating temperature range of -30°C to +70°C, but no IP rating is listed. That means the temperature range is defined, while outdoor exposure or water-ingress suitability is not established by the provided specifications.

How does the ELP-75-36-C compare with the other ELP-75 series outputs?

Across the sibling series, the output options listed are 3.3V at 49.5W and 15A, 5V at 75W and 15A, 12V at 75W and 6.25A, 15V at 75W and 5A, 24V at 75.6W and 3.15A, 36V at 75.6W and 2.1A, and 48V at 76.8W and 1.6A. This model is the 36V C-version and has the same 75.6W and 2.1A rating as the ELP-75-36.

Model	Power	Voltage	Current
Mean Well ELP-75-5-C Power Supply 75W 5V	75W	5V	15A	View
Mean Well ELP-75-5 Power Supply 75W 5V	75W	5V	15A	View
Mean Well ELP-75-48-C Power Supply 76W 48V	76.8W	48V	1.6A	View
Mean Well ELP-75-48 Power Supply 76W 48V	76.8W	48V	1.6A	View
Mean Well ELP-75-36 Power Supply 75W 36V	75.6W	36V	2.1A	View
Mean Well ELP-75-3.3-C Power Supply 49W 3.3V	49.5W	3.3V	15A	View
Mean Well ELP-75-3.3 Power Supply 49W 3.3V	49.5W	3.3V	15A	View
Mean Well ELP-75-24-C Power Supply 75W 24V	75.6W	24V	3.15A	View
Mean Well ELP-75-24 Power Supply 75W 24V	75.6W	24V	3.15A	View
Mean Well ELP-75-15-C Power Supply 75W 15V	75W	15V	5A	View
Mean Well ELP-75-15 Power Supply 75W 15V	75W	15V	5A	View
Mean Well ELP-75-12-C Power Supply 75W 12V	75W	12V	6.25A	View
Mean Well ELP-75-12 Power Supply 75W 12V	75W	12V	6.25A	View
