Mean Well

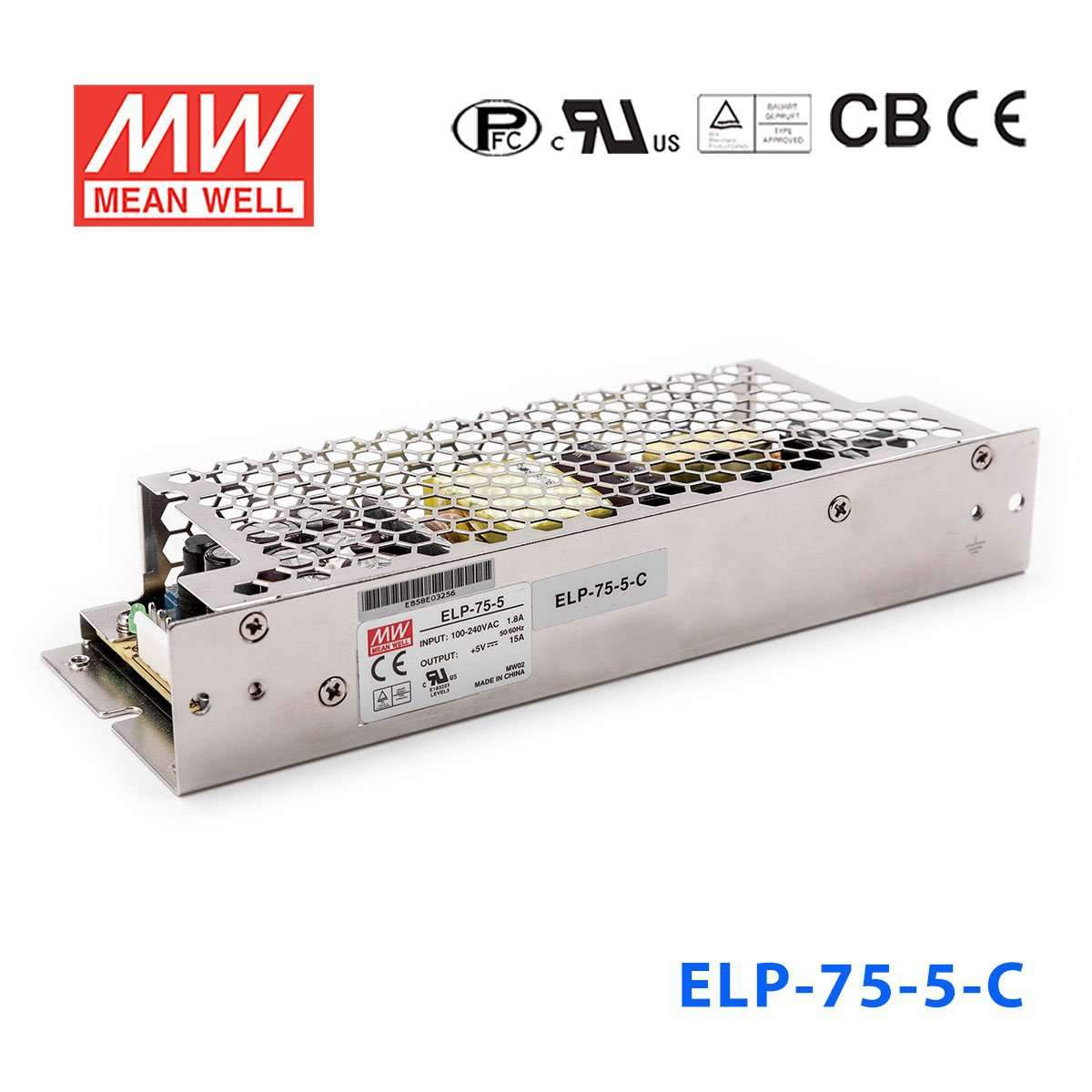

Mean Well ELP-75-5-C Power Supply 75W 5V

built-in active PFC function, PF>0.95, high efficiency up to 90%, 1U low profile, no load power consumption
SKU:
ELP-75-5-C
Please for Pricing
|

Description

Features

Universal AC input / Full range
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage
No load power consumption <0.5W
Cooling by free air convection
High efficiency up to 90%
Case available (ELP-75-x-C)
LED indicator for power on
1U low profile
3 years warranty

General Specification

AC input voltage range 90~264VAC; 127~370VDC
AC inrush current (max.) Cold start, 60A at 230VAC
DC adjustment range ±10% rated output voltage
Overload protection 105%~150% hiccup mode, auto-recovery
Over voltage protection 115%~135% rated output voltage
Leakage current Less than 1mA at 240VAC
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, O/P-FG: 0.5kVAC
Working temperature -30~+70°C (refer to output derating curve)
Safety standards UL60905-1, TUV EN60950-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Setup, rise, hold up time 2500ms, 50ms, 20ms at full load and 230VAC
Dimension (LxWxH) 175x 60x 27 mm; 195x 68.5x 33 mm

Specifications
  • Brand
    Mean Well
  • Series
    ELP Series
  • Power Rating
    75 Watt
  • Output Voltage
    5 Volt
  • Rated Current
    15 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    19.5 cm
  • Width
    6.85 cm
  • Height
    3.3 cm
  • Weight
    0.54 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can the ELP-75-5-C power a 5V embedded control assembly with several boards on one supply?

Yes, if the assembly needs constant 5V and the total demand stays within 75W and 15A. That makes it usable for embedded control stacks, processing boards, and other 5V electronics that need higher current from one source.

Is the ELP-75-5-C a good fit for 5V automation devices inside equipment enclosures?

It fits 5V automation loads such as control electronics, communication boards, and low-voltage peripherals when the load does not exceed 15A. Its 195.0 x 68.5 x 33.0 mm size should still be checked against the available enclosure space.

Can I use this 5V 75W model for high-current logic or processor loads in industrial equipment?

It is intended for constant-voltage 5V loads and provides up to 15A, so it can support higher-current logic or processor-based equipment within the 75W rating. The 90-264VAC input also supports use across a broad AC input range.

Can the ELP-75-5-C be used in cold or hot environments?

The stated operating temperature range is -30C to +70C. No IP rating is listed in the provided specs, so temperature range is defined but indoor versus outdoor exposure is not confirmed here.

What is the difference between the ELP-75-5-C and the other ELP-75 output options?

The ELP-75-5-C matches the ELP-75-5 at 75W, 5V, 15A, while the ELP-75-3.3 and ELP-75-3.3-C are 49.5W, 3.3V, 15A. Other siblings are ELP-75-12 and ELP-75-12-C at 75W, 12V, 6.25A; ELP-75-15 and ELP-75-15-C at 75W, 15V, 5A; ELP-75-24 and ELP-75-24-C at 75.6W, 24V, 3.15A; ELP-75-36 and ELP-75-36-C at 75.6W, 36V, 2.1A; and ELP-75-48 and ELP-75-48-C at 76.8W, 48V, 1.6A.

{ "id":8430174339371, "variants" :[{ "context":"default", "variant_id": 45661514006827, "sku":"ELP-75-5-C", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

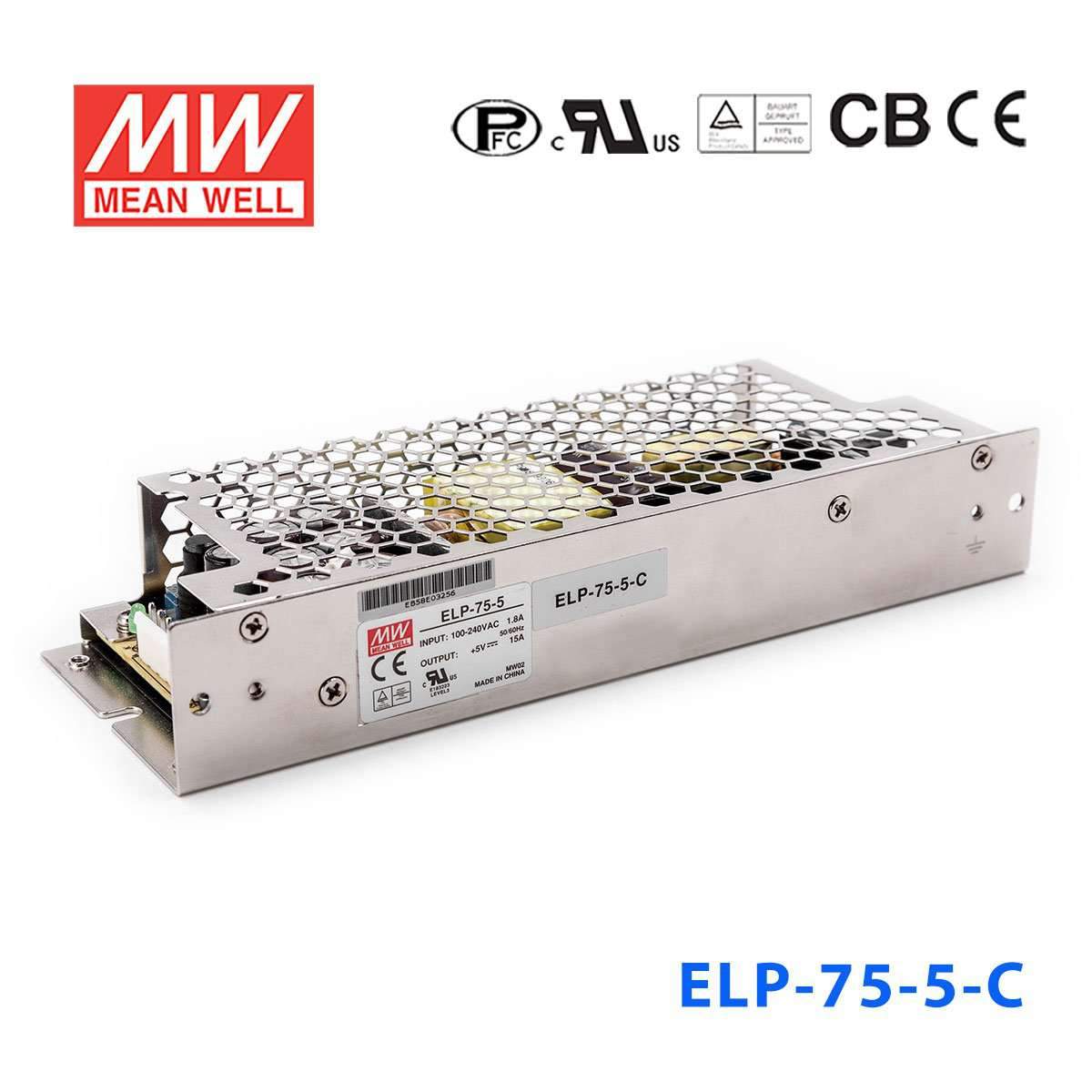

Mean Well ELP-75-5-C Power Supply 75W 5V
