Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

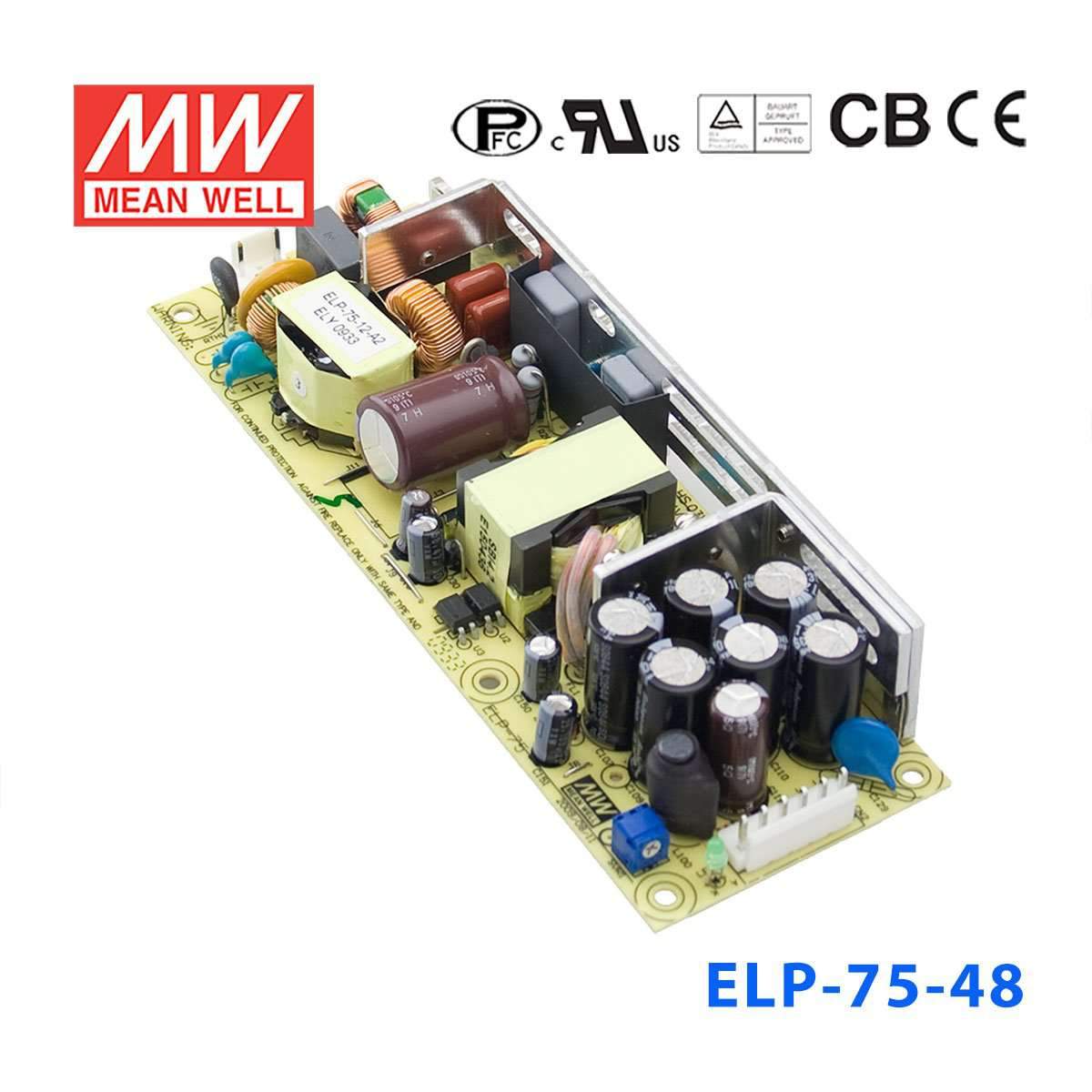

Mean Well ELP-75-48 Power Supply 76W 48V

Q: Can I use the ELP-75-48 for 48V industrial control or automation devices?

Yes, this is a constant voltage 48V power supply rated for up to 1.6A and 76.8W. It is appropriate for industrial and automation equipment that is designed for regulated 48V DC input within those output limits.

Q: Is the ELP-75-48 a fit for 48V telecom or networking equipment that needs DC power?

It can be used where the equipment requires constant voltage 48V and the load does not exceed 1.6A or 76.8W. The 90-264VAC input is also useful where wide-range AC input compatibility is needed.

Q: Can this model be used in compact cabinets for 48V embedded or industrial electronics?

Yes, the ELP-75-48 uses a 1U low-profile design and measures 175.0 x 60.0 x 27.0 mm. That supports use in tighter equipment spaces as long as the 48V load stays within 1.6A and 76.8W.

Q: Will the ELP-75-48 handle harsh temperature conditions indoors?

The operating temperature range is specified as -30°C to +70°C, which covers a broad temperature span for indoor electrical equipment. The provided specifications do not include an IP rating, so outdoor or wet-location suitability is not confirmed here.

Q: How does the ELP-75-48 differ from the other ELP-75 series models?

The series includes 3.3V at 49.5W and 15A, 5V at 75W and 15A, 12V at 75W and 6.25A, 15V at 75W and 5A, 24V at 75.6W and 3.15A, 36V at 75.6W and 2.1A, and 48V at 76.8W and 1.6A, with both C and non-C versions listed across the range. The ELP-75-48 is the 48V non-C option and matches the ELP-75-48-C at 76.8W and 1.6A.

built-in active PFC function, PF>0.95, high efficiency up to 90%, 1U low profile, no load power consumption

SKU:

ELP-75-48

Please for Pricing

Notify me when it's back in stock

Description

Features

Universal AC input / Full range

Built-in active PFC function

Protections: Short circuit / Overload / Over voltage

No load power consumption <0.5W

Cooling by free air convection

High efficiency up to 90%

Case available (ELP-75-x-C)

LED indicator for power on

1U low profile

3 years warranty

General Specification

AC input voltage range	90~264VAC; 127~370VDC
AC inrush current (max.)	Cold start, 60A at 230VAC
DC adjustment range	±10% rated output voltage
Overload protection	105%~150% hiccup mode, auto-recovery
Over voltage protection	115%~135% rated output voltage
Leakage current	Less than 1mA at 240VAC
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, O/P-FG: 0.5kVAC
Working temperature	-30~+70°C (refer to output derating curve)
Safety standards	UL60905-1, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Setup, rise, hold up time	2500ms, 50ms, 20ms at full load and 230VAC
Dimension (LxWxH)	175x 60x 27 mm; 195x 68.5x 33 mm

Specifications

Brand

Mean Well
Series

ELP Series
Power Rating

76.8 Watt
Output Voltage

48 Volt
Rated Current

1.6 Ampere
Input Voltage

90V~264V
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

17.5 cm
Width

6 cm
Height

2.7 cm
Weight

0.25 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the ELP-75-48 for 48V industrial control or automation devices?

Yes, this is a constant voltage 48V power supply rated for up to 1.6A and 76.8W. It is appropriate for industrial and automation equipment that is designed for regulated 48V DC input within those output limits.

Is the ELP-75-48 a fit for 48V telecom or networking equipment that needs DC power?

It can be used where the equipment requires constant voltage 48V and the load does not exceed 1.6A or 76.8W. The 90-264VAC input is also useful where wide-range AC input compatibility is needed.

Can this model be used in compact cabinets for 48V embedded or industrial electronics?

Yes, the ELP-75-48 uses a 1U low-profile design and measures 175.0 x 60.0 x 27.0 mm. That supports use in tighter equipment spaces as long as the 48V load stays within 1.6A and 76.8W.

Will the ELP-75-48 handle harsh temperature conditions indoors?

The operating temperature range is specified as -30°C to +70°C, which covers a broad temperature span for indoor electrical equipment. The provided specifications do not include an IP rating, so outdoor or wet-location suitability is not confirmed here.

How does the ELP-75-48 differ from the other ELP-75 series models?

The series includes 3.3V at 49.5W and 15A, 5V at 75W and 15A, 12V at 75W and 6.25A, 15V at 75W and 5A, 24V at 75.6W and 3.15A, 36V at 75.6W and 2.1A, and 48V at 76.8W and 1.6A, with both C and non-C versions listed across the range. The ELP-75-48 is the 48V non-C option and matches the ELP-75-48-C at 76.8W and 1.6A.

Model	Power	Voltage	Current
Mean Well ELP-75-5-C Power Supply 75W 5V	75W	5V	15A	View
Mean Well ELP-75-5 Power Supply 75W 5V	75W	5V	15A	View
Mean Well ELP-75-48-C Power Supply 76W 48V	76.8W	48V	1.6A	View
Mean Well ELP-75-36-C Power Supply 75W 36V	75.6W	36V	2.1A	View
Mean Well ELP-75-36 Power Supply 75W 36V	75.6W	36V	2.1A	View
Mean Well ELP-75-3.3-C Power Supply 49W 3.3V	49.5W	3.3V	15A	View
Mean Well ELP-75-3.3 Power Supply 49W 3.3V	49.5W	3.3V	15A	View
Mean Well ELP-75-24-C Power Supply 75W 24V	75.6W	24V	3.15A	View
Mean Well ELP-75-24 Power Supply 75W 24V	75.6W	24V	3.15A	View
Mean Well ELP-75-15-C Power Supply 75W 15V	75W	15V	5A	View
Mean Well ELP-75-15 Power Supply 75W 15V	75W	15V	5A	View
Mean Well ELP-75-12-C Power Supply 75W 12V	75W	12V	6.25A	View
Mean Well ELP-75-12 Power Supply 75W 12V	75W	12V	6.25A	View
