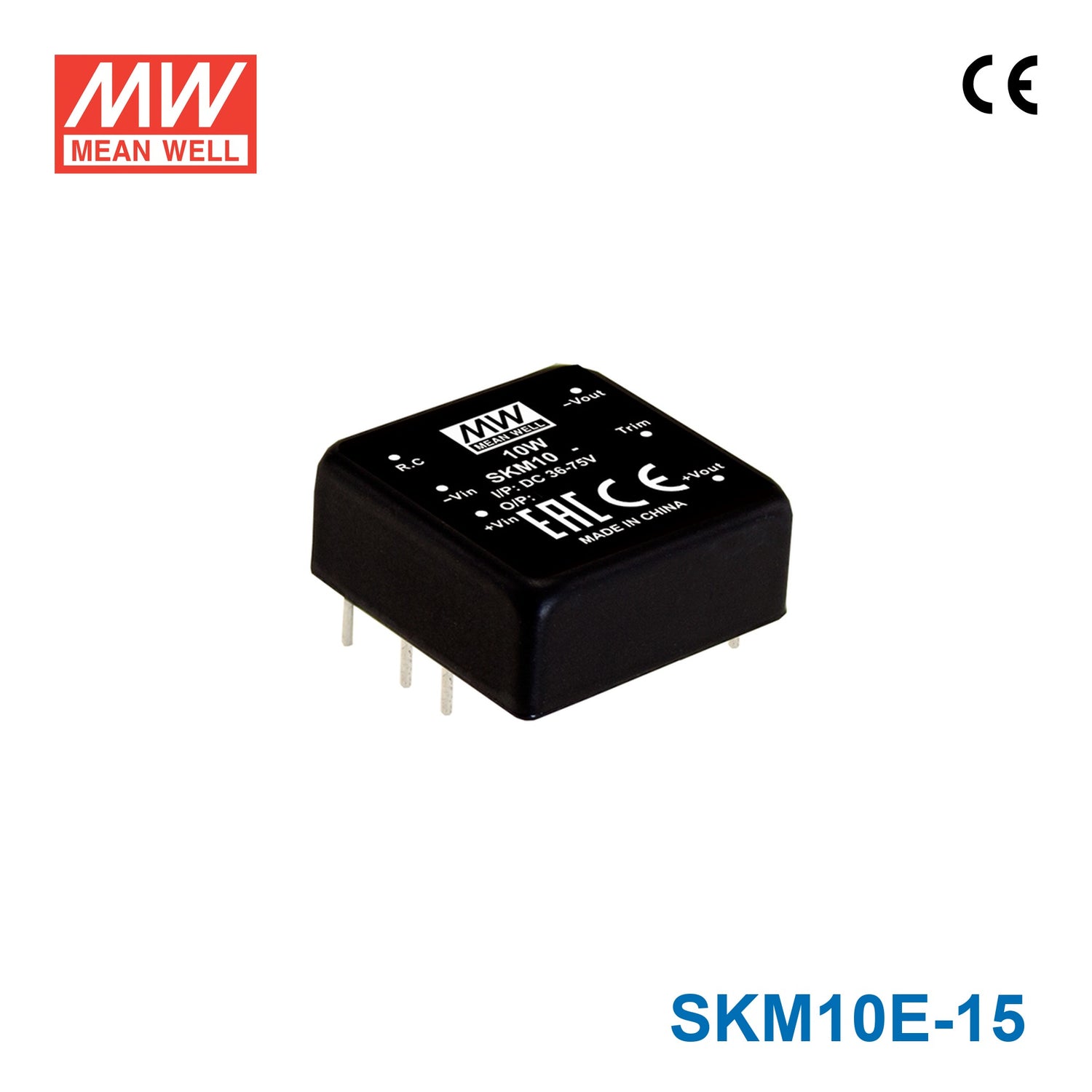

Mean Well SKM10E-15 DC-DC Converter - 10W - 4.7~9V in 15V out 666mA
Log in to see priceThe SKM10E is a 10W Mean Well power converter (input range: 4.7~9Vdc).
Key Features
- ✓ Input voltage range: 4.7~9Vdc
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage / Under voltage
- ✓ Safety approvals: EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSKM Series
-
Power Rating10 Watt
-
Output Voltage15 Volt
-
Rated Current0.66 Ampere
-
Input Voltage4.7V~9V
-
Standards MetCE
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length2.54 cm
-
Width2.54 cm
-
Height1.02 cm
-
Weight0.02 kg
::specification::
Frequently Asked Questions
Can I use the SKM10E-15 for a 15V analog or control section in industrial electronics?
This model delivers a constant 15V output with a 10W power rating. It is suited to embedded or industrial electronics that specifically require a 15V rail and align with the listed 15V, 666A output specification.
Is the SKM10E-15 suitable for 15V instrumentation or signal-conditioning hardware?
The converter is intended for constant-voltage 15V applications and uses a 4-9VAC input range. For instrumentation or signal-conditioning sections designed around a 15V supply, it matches that voltage class and 10W output level.
Can this model be used in compact embedded systems that need a 15V rail?
Yes, its 25.4 × 25.4 × 10.2 mm form factor is compact for embedded equipment layouts. The key electrical fit is a constant 15V output with total output power rated at 10W.
Does the SKM10E-15 support outdoor environments or wide temperature swings?
The operating temperature is specified as -40°C to +85°C, which supports broad indoor industrial temperature conditions. The specs do not include an IP rating, so exposed outdoor suitability is not established by the listed data.
What is different between the SKM10E-15 and the other SKM10E variants?
The listed SKM10E models all share 10W output, 4-9VAC input, and the same 25.4 × 25.4 × 10.2 mm package size. The main difference is output: SKM10E-03 is 3.3V at 2.5A, SKM10E-05 is 5V at 2A, SKM10E-12 is 12V at 833A, and SKM10E-15 is 15V at 666A.
