Ltech D16 Constant Voltage 16 Channel DMX/RDM Decoder, 12-24VDC, 4A...
Log in to see priceOverview
Features
- OLED display
- 8 bit / 16 bit
- 3 kinds of DMX interfaces
- Dimming curve: 0.1~9.9
- Short circuit / Over current / Overheat protection

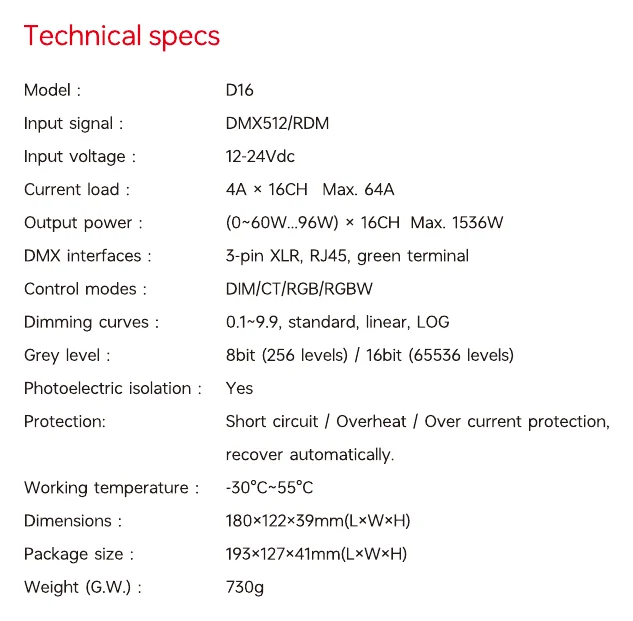

Specifications
Product introduction
- 1
- Designed for Hi-power multiple channels application, 16 channels output, and Max. 4A current per channel, up to 1536W output power.
- 2

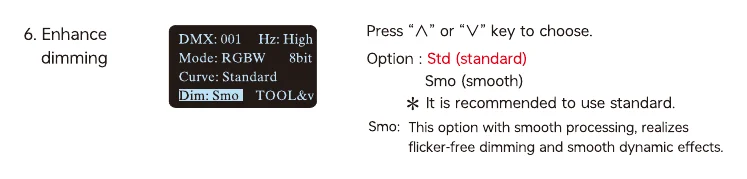

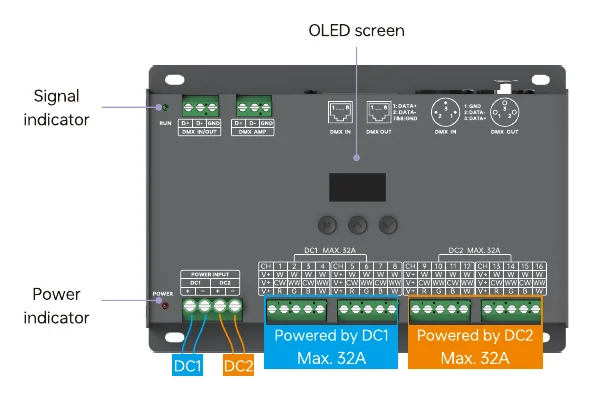

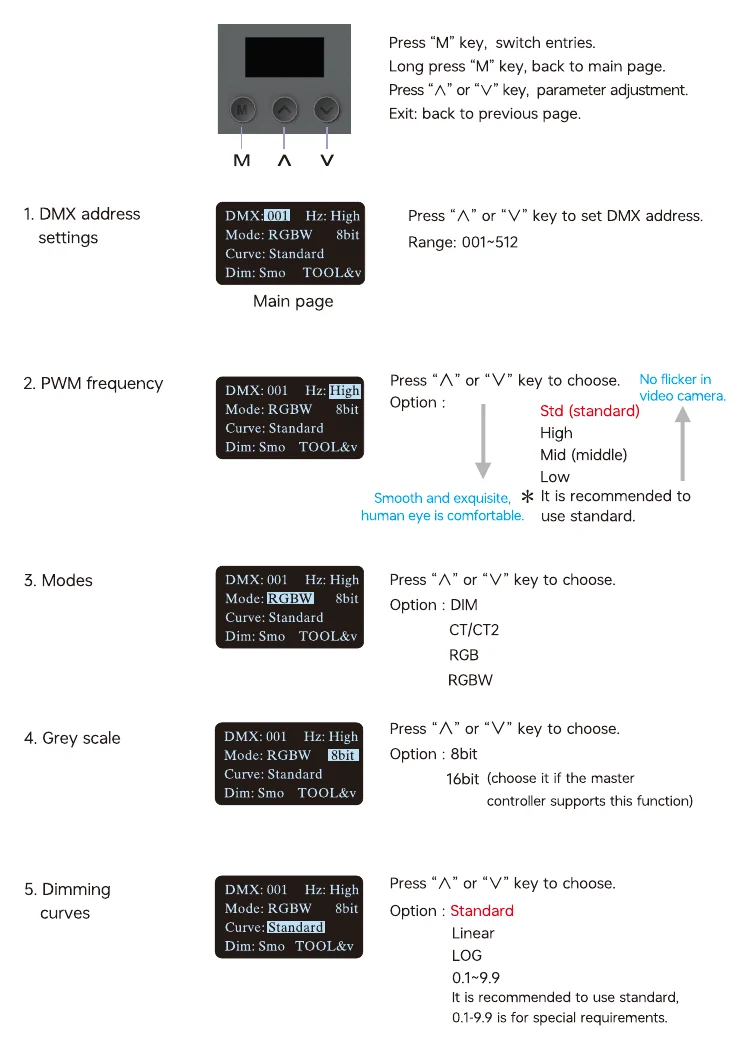

- Easy operation with OLED screen and touch buttons.
- 3

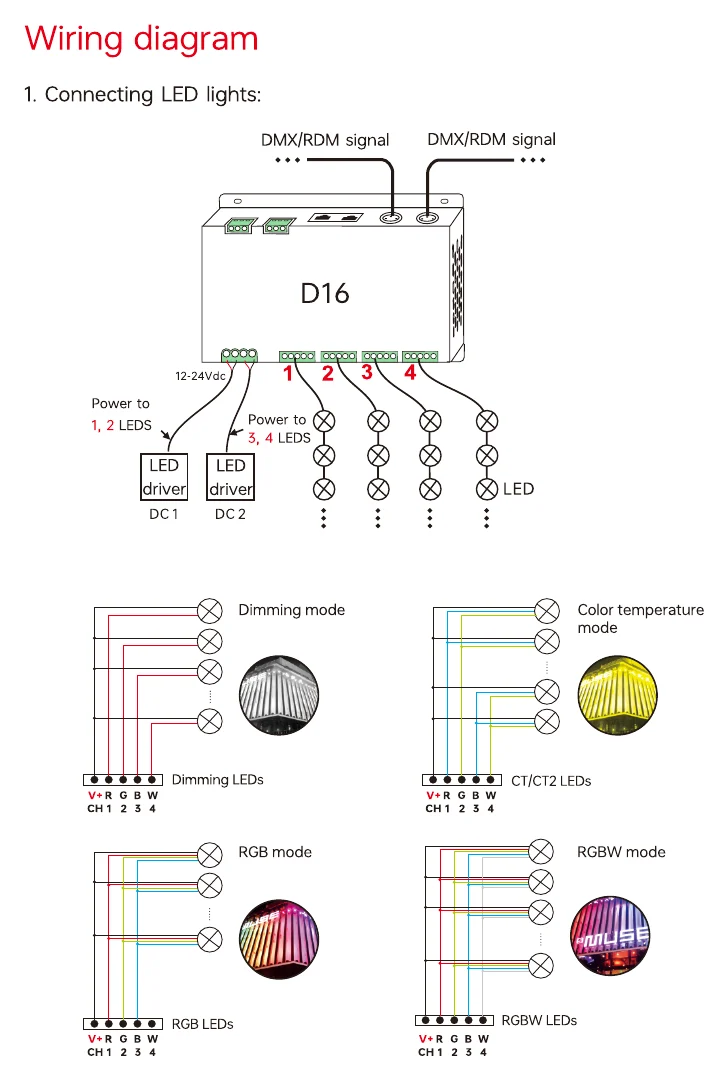

- 3 kinds of optional modes available: DIM, CT, RGB, RGBW
- 4

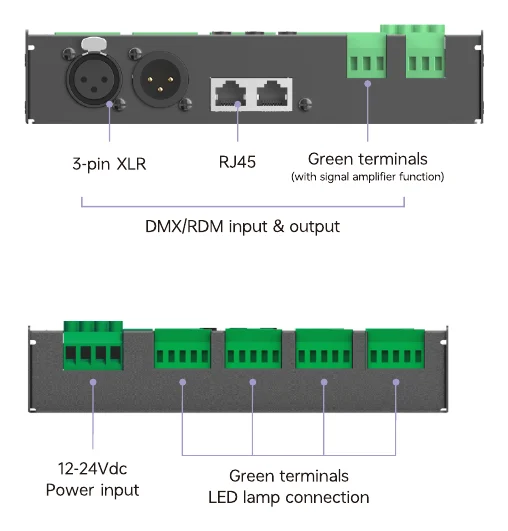

- 3-pin XLR, RJ45 and green terminal DMX interface with photoelectric isolation, improve signal transmission efficiency and anti-interference ability, the green terminal also has signal amplifier function.
- 5

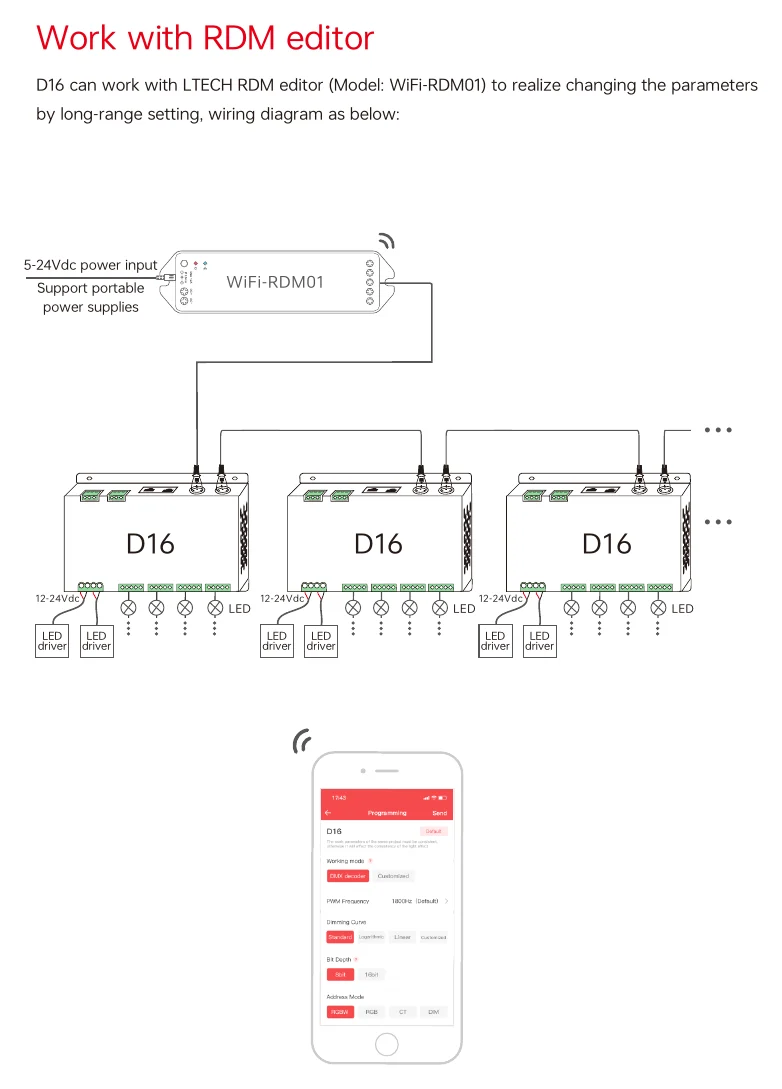

- With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & settings, DMX address settings, equipment recognition, etc.
- 6

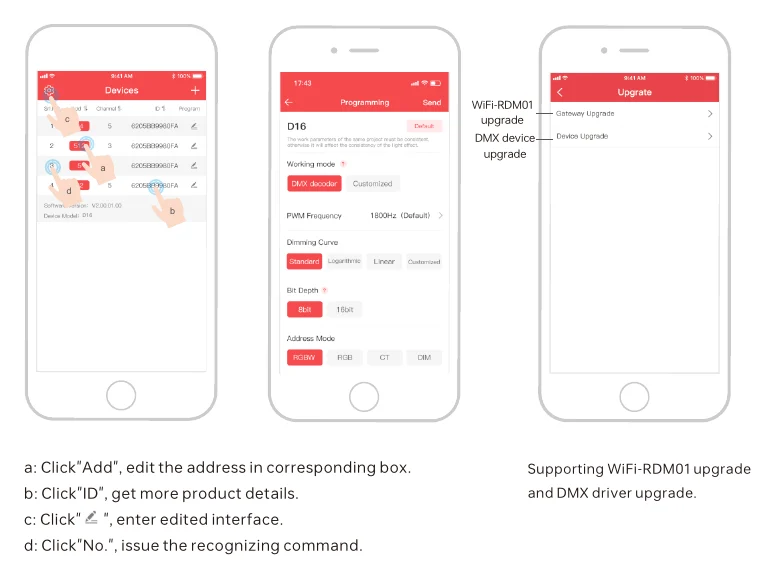

- With firmware upgrade function.
- 7
- With short circuit, over current and overheat protection, as well as warning function when a fault occurs.
- 8

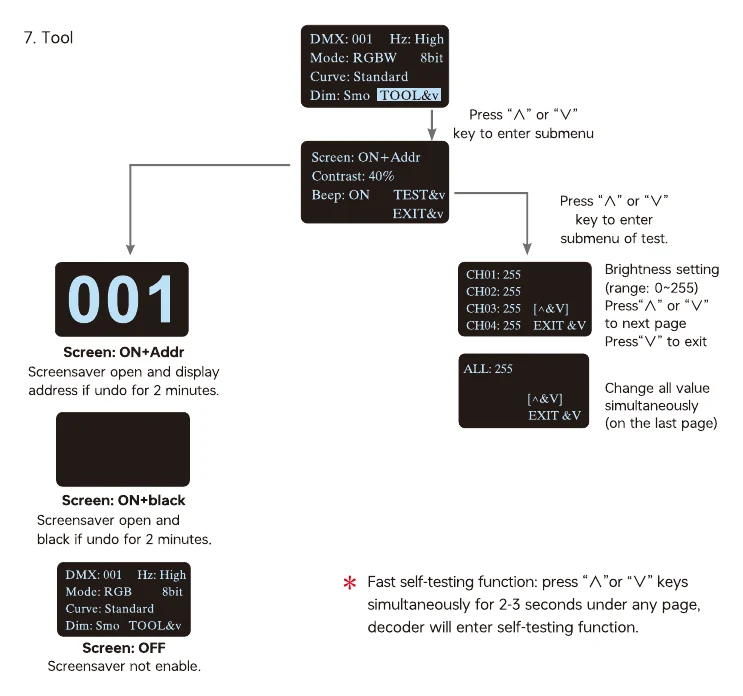

- With power-on state management and fast self-testing function.
- 9
- 16bit (65536 levels) / 8bit (256 levels) grey level available.
- 10

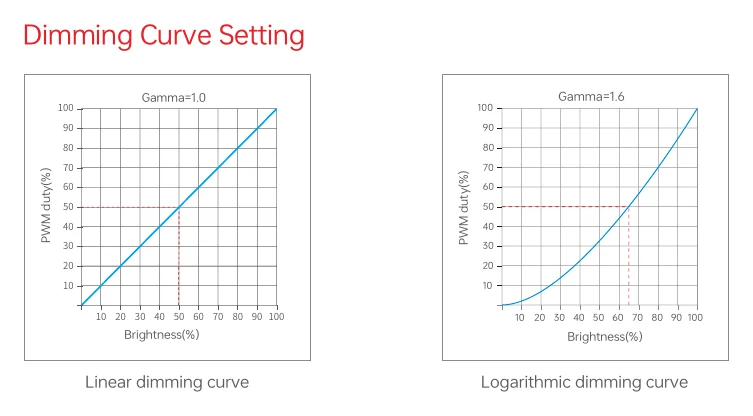

- Available for standard, linear, LOG or customize 0.1-9.9 dimming curve.
Others
- Warranty periods
- 5 years
Certifications & ratings
- Certification marks
- CE, RoHS, FCC

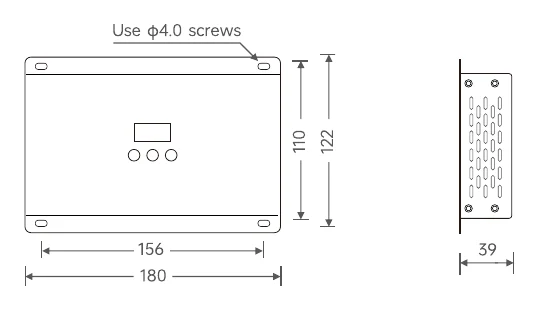

Technical drawings
Downloads
Datasheet1
FAQ
What is the Ltech D16 used for?
It is a high-power, 16-channel DMX/RDM decoder designed for multi-channel lighting applications, supporting up to 1536W total output power.
How many channels does it support and what is the current per channel?
The D16 provides 16 output channels, with a maximum current of 4A per channel.
What lighting modes are available?
It supports three optional modes: DIM, CT, and RGB/RGBW.
How is the device controlled and configured?
It features an OLED screen and touch buttons for easy operation. It also supports RDM remote management for parameter settings and DMX address configuration via a master console.
What DMX interfaces are provided?
It includes 3-pin XLR, RJ45, and green terminal DMX interfaces with photoelectric isolation. The green terminal also functions as a signal amplifier.
What safety protections are included?
The unit includes short circuit, over current, and overheat protection, along with a warning function for faults and a fast self-testing feature.
What is the warranty period?
The Ltech D16 comes with a 5-year warranty.
