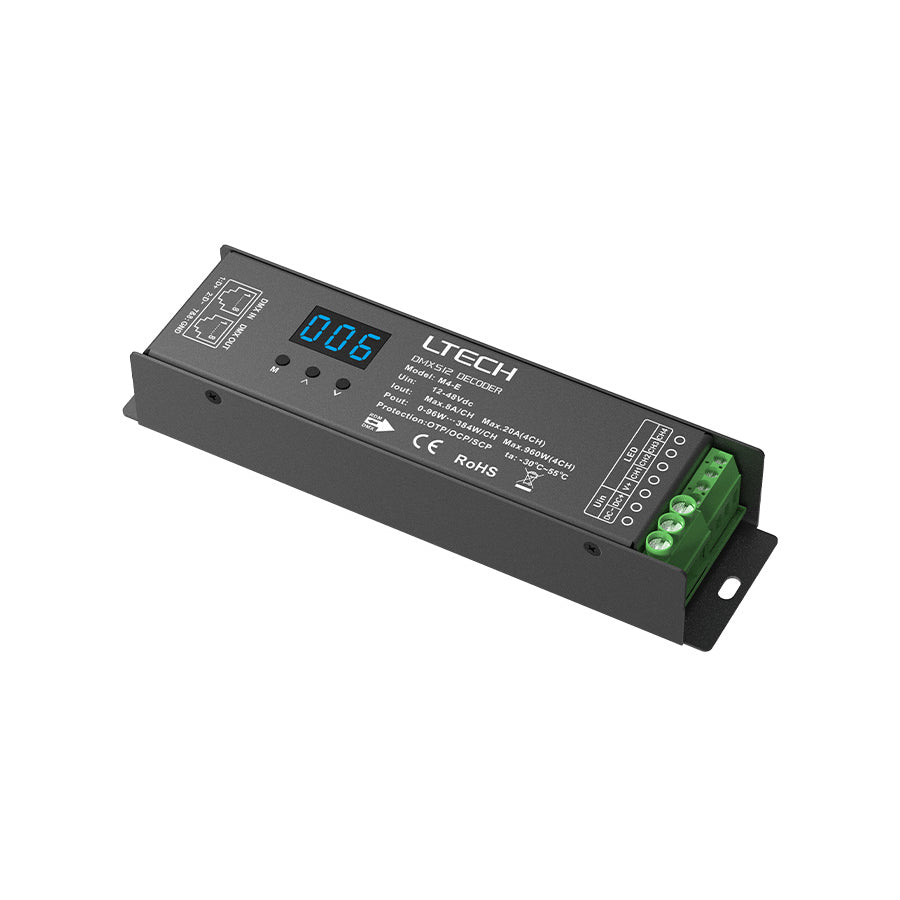

Ltech M4-E Constant Voltage 4 Channel DMX/RDM Decoder, 12-48V, 24A, RJ45 Terminal, LED Display

new model for LT-858-5Apwm frequency selectable

SKU M4-E

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

Features

Standard DMX/RDM interfaces; Set address via the LCD screen and buttons;
RDM protocol; Browse and set parameters, change DMX address, and recognize devices via a RDM master;

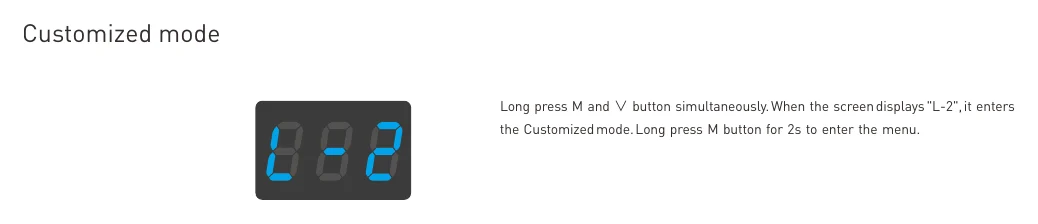

DMX mode and customized mode can be switched;
PWM frequency options: 300/600/1200/1500/1800/2400/3600/7200/10800/14400/18000Hz (default is 1800Hz);

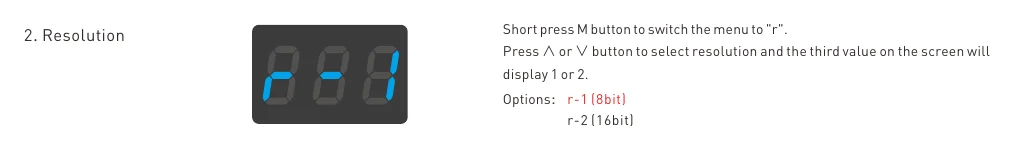

16bit (65536 levels)/8bit (256 levels) gray scale optional;
Two dimming mode options: standard and smooth dimming;

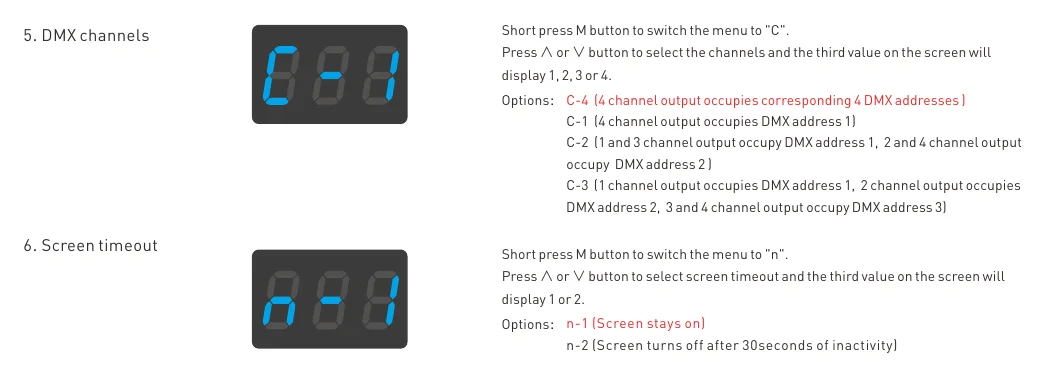

Set 1/2/3/4 DMX channel output (default is 4 channel output);

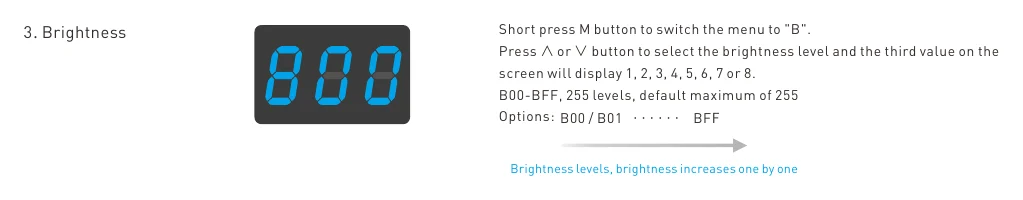

Provide 10 lighting effects, 8 levels of dynamic mode speed, 255 brightness levels;
Set screen timeout, LCD screen always on, and screen turning off after 30s of inactivity;
Short circuit, over-temperature, over-current protection and auto recovery;

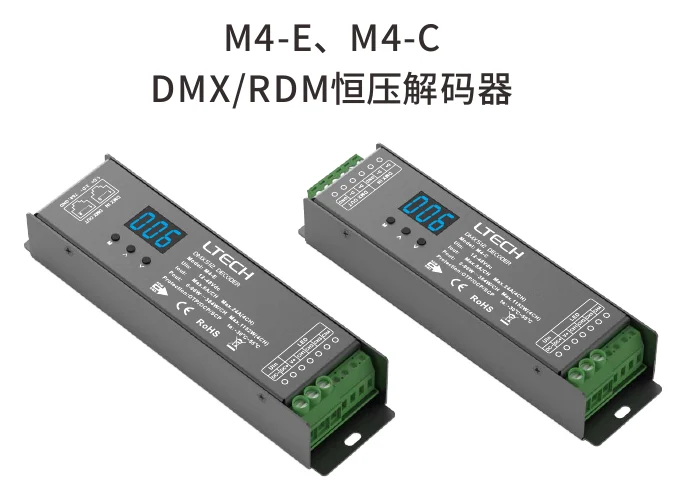

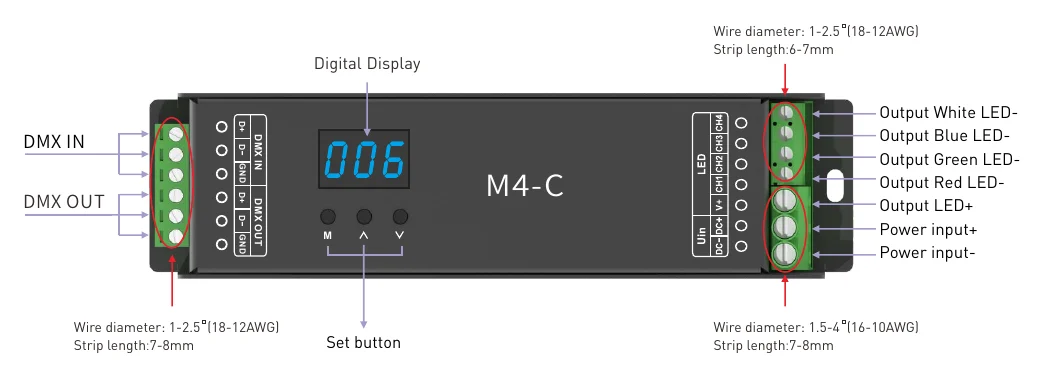

M4-C has green terminal DMX interfaces, M4-E has RJ-45 DMX interfaces.

Specifications

M4-ESpecifications from the official datasheetDownload datasheet PDF

Product Parameters

Input Signal: DMX512, RDM
Input Voltage: 12-48V
Input Voltage: Max.8A/CH Max.24A(4CH)
Output Power: 0-96W/CH, Max. 384W/CH, Max. 1152W (4CH)
Dimming Range: 0-100%
DMX Signal Port: RJ45
Working Temp.: -30°C-55°C
Dimensions: L175×W46×H30mm
Package Size: L187×W52×H36mm
Weight(G.W.): 325g±5g
Protection: Short circuit, over temperature, over current protection, auto recovery.

Load parameters

12V: 6A×4CH/288W 8A×3CH/288W
24V: 6A×4CH/576W 8A×3CH/576W
36V: 6A×4CH/864W
48V: 6A×4CH/1152W

Others

Warranty periods: 5 years

Certifications & ratings

Certification marks: CE, RoHS

Test conditions and notes1

Note: The load capacity of all the above PWM frequency gears has been tested at high temperature (55℃) for 4 hours.

Technical drawings

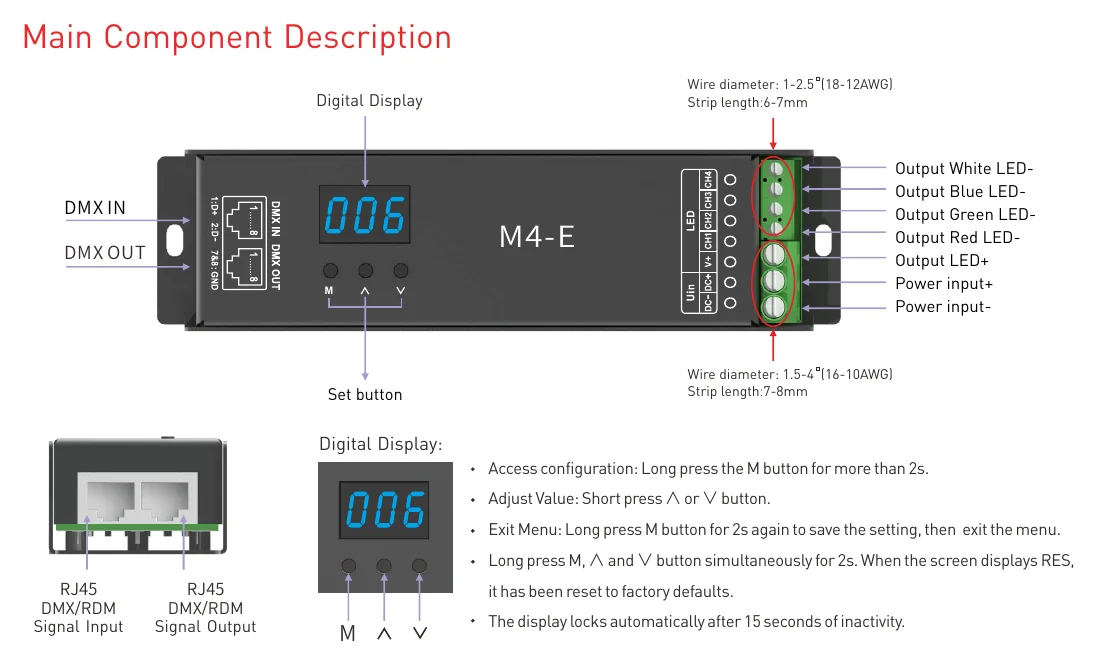

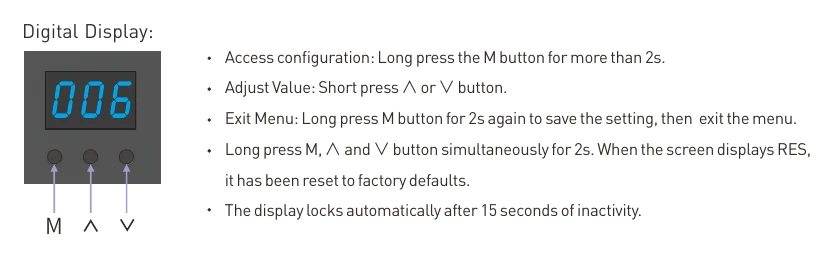

M4-E Main Component Description — Main Component Description

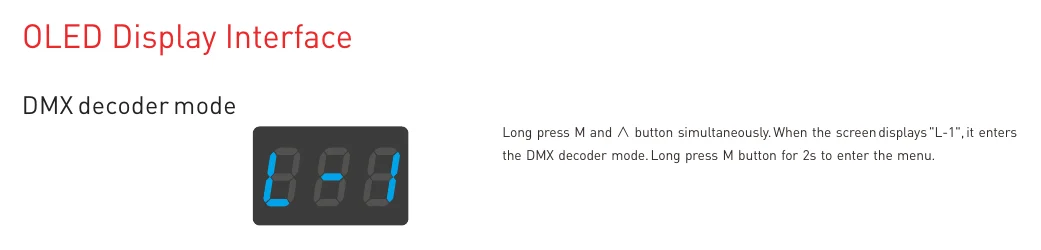

M4-E OLED Display Interface — OLED Display Interface

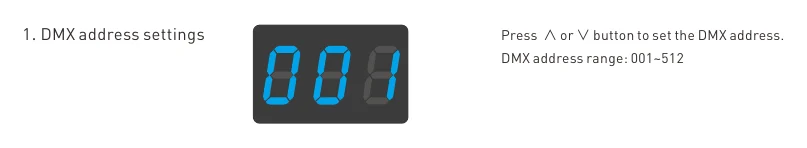

M4-E 1. DMX address settings — 1. DMX address settings

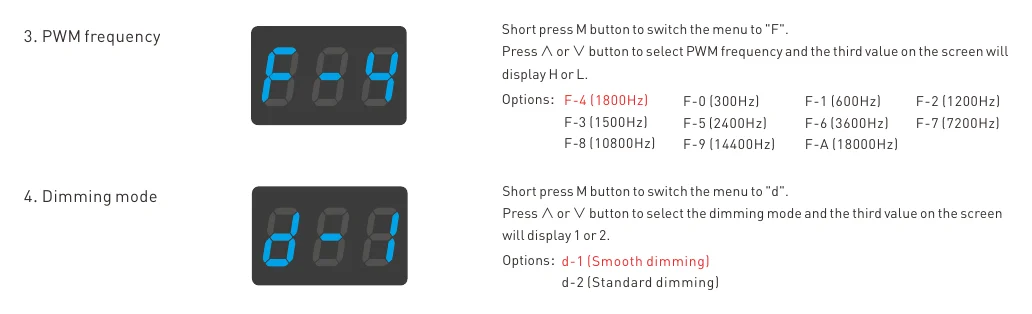

M4-E 3. PWM frequency — 3. PWM frequency

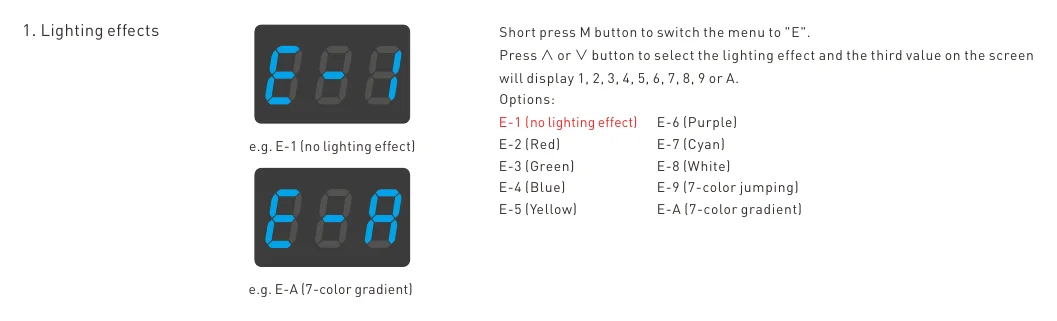

M4-E 1. Lighting effects — 1. Lighting effects

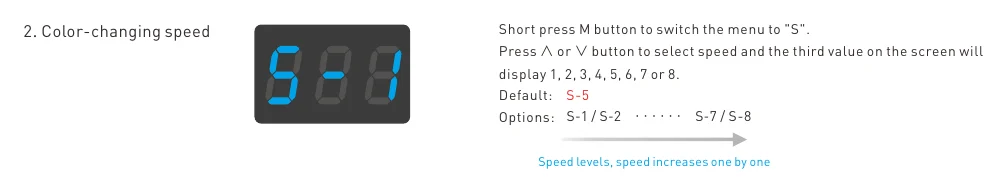

M4-E 2. Color-changing speed — 2. Color-changing speed

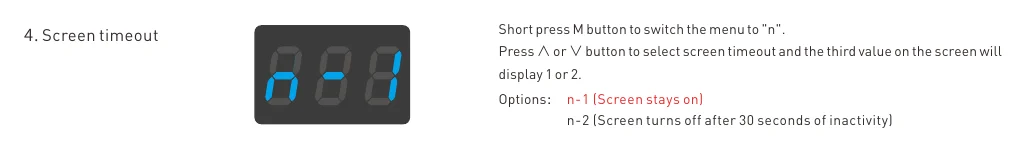

M4-E 4.Screen timeout — 4.Screen timeout

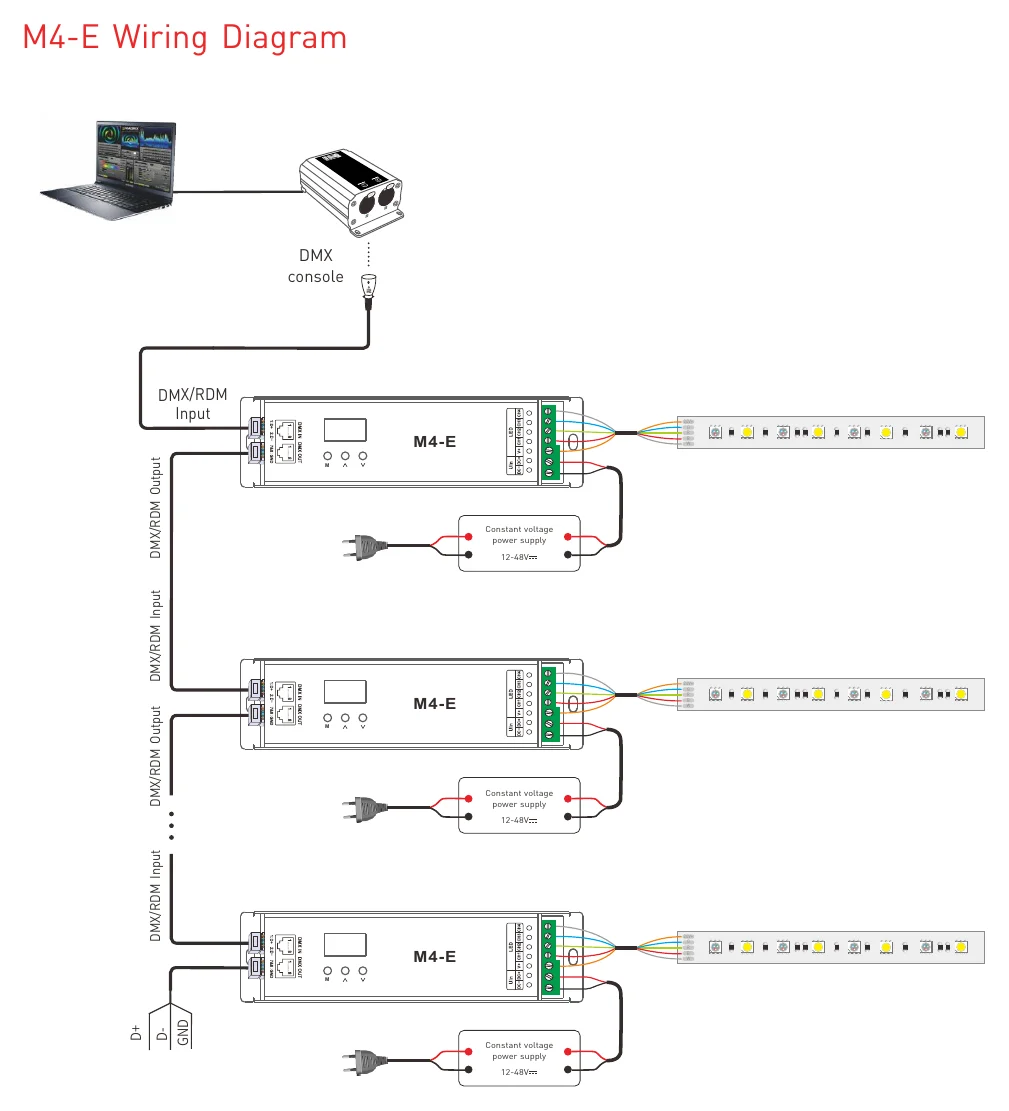

M4-E M4-E Wiring Diagram — M4-E Wiring Diagram

M4-E Illustration (page 9) — Illustration (page 9)

Downloads

Datasheet1

M4-E datasheetM4_E_spec_sheet.pdf PDF Download

FAQ

What type of LED load is the Ltech M4-E designed to control?

The Ltech M4-E is a constant voltage 4-channel DMX/RDM decoder for low-voltage LED lighting systems. It accepts 12-48V input and provides PWM dimming control for constant-voltage applications rather than constant-current LED loads.

Does the M4-E support both DMX512 and RDM control?

Yes. This model supports DMX512 input along with RDM, which allows device parameters and DMX addressing to be viewed and adjusted through an RDM-capable controller. That makes it better suited for managed lighting systems than DMX-only decoders.

What are the voltage, current, and power limits of the M4-E?

The M4-E operates from 12V to 48V DC. It is rated for up to 8A per channel and 24A maximum total across 4 channels. Total output power is listed as up to 1152W at 48V, with lower maximum wattage at lower input voltages.

Can the M4-E be used in systems that need high-resolution dimming?

The M4-E supports a dimming range of 0-100%. It is suitable for applications requiring precise intensity control within this range.

What makes the M4-E different from the M4-C version?

The main stated difference is the DMX interface type. The M4-E uses an RJ45 DMX signal port, while the M4-C version uses green terminal DMX interfaces. Buyers typically choose between them based on the interface format required by their control system.

Is the M4-E suitable for demanding commercial or architectural environments?

It is designed for professional control applications with protection against short circuit, over-temperature, and over-current conditions, plus auto recovery. Its working temperature range of -30°C to 55°C also supports use in a wide range of indoor or protected commercial environments.

What control and output options are available on this decoder?

The M4-E supports DMX512 and RDM control protocols. It features selectable 1, 2, 3, or 4 DMX channel output configurations to match different lighting performance requirements.
