Ltech

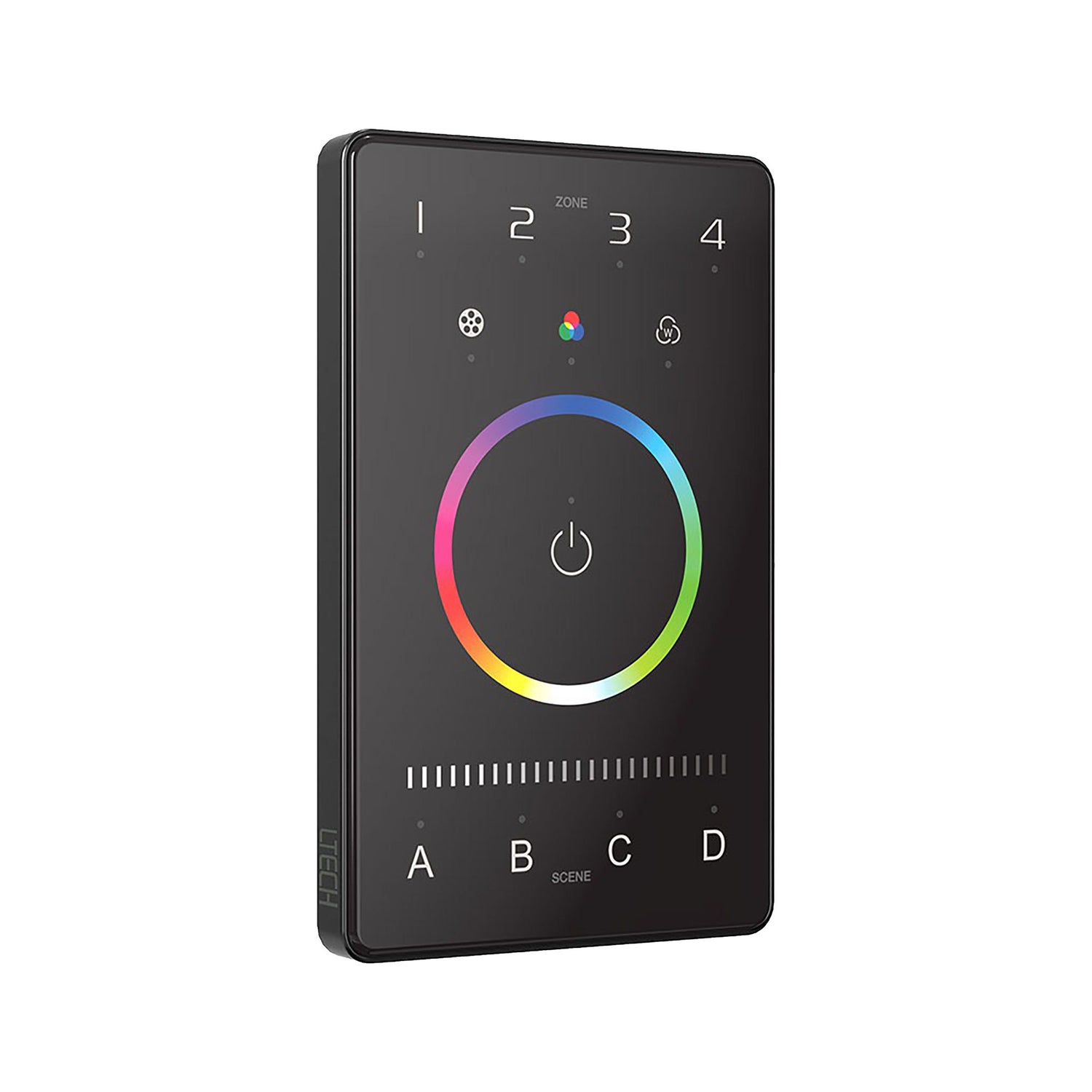

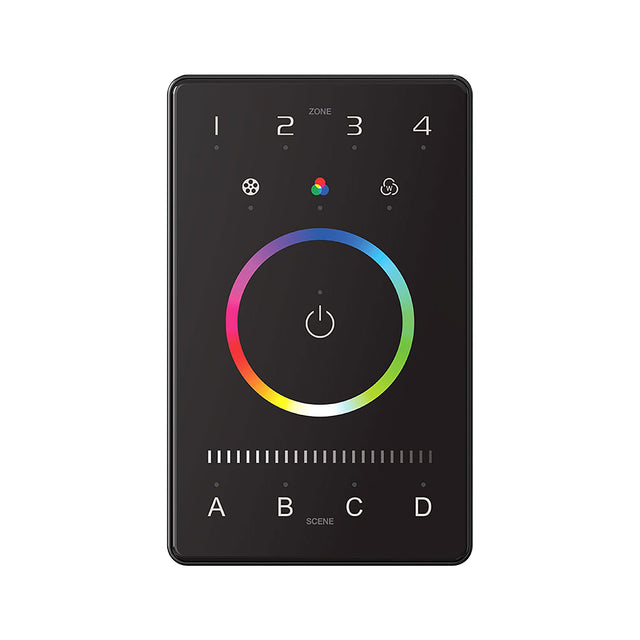

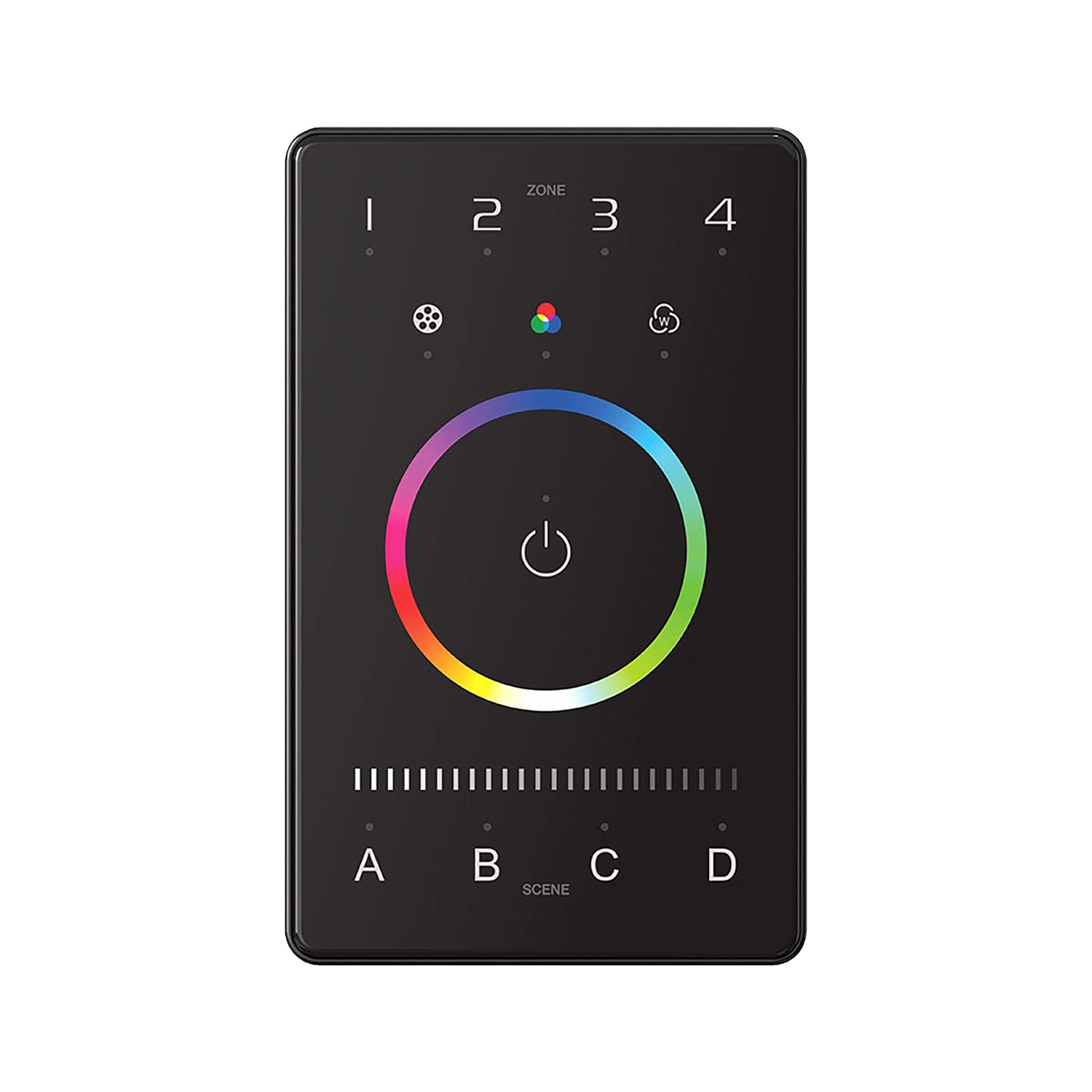

Ltech Intelligent Touch Panel UB4(Bluetooth + DMX)

RGBW12-24V4 zones4 scenes
SKU UB4
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

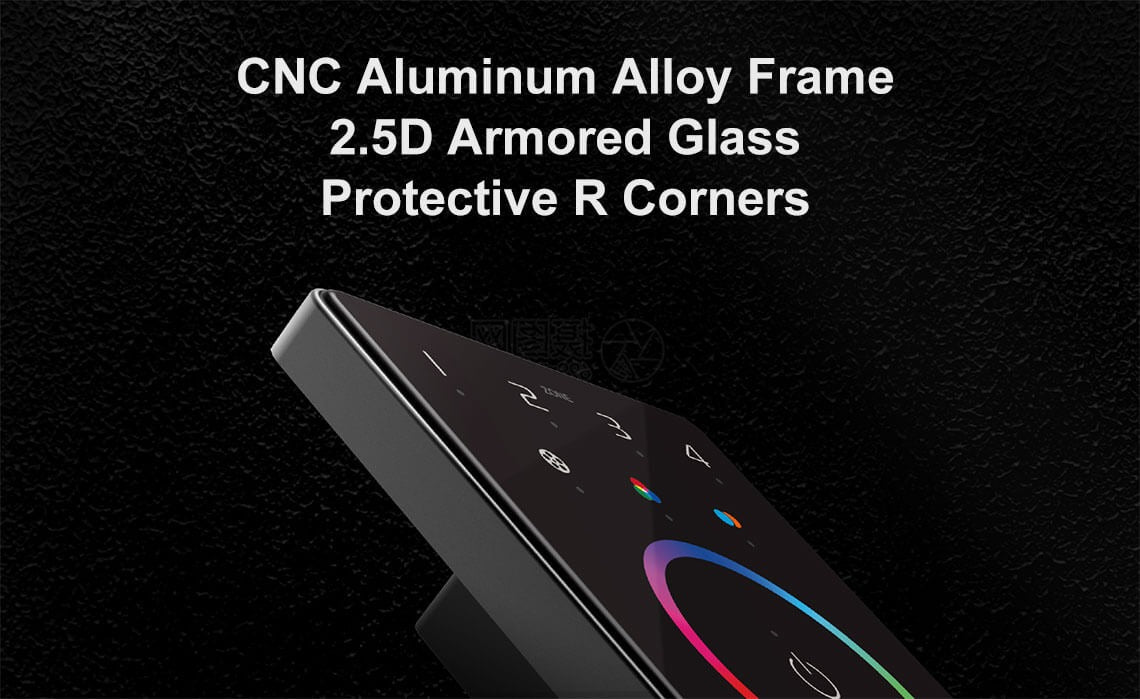

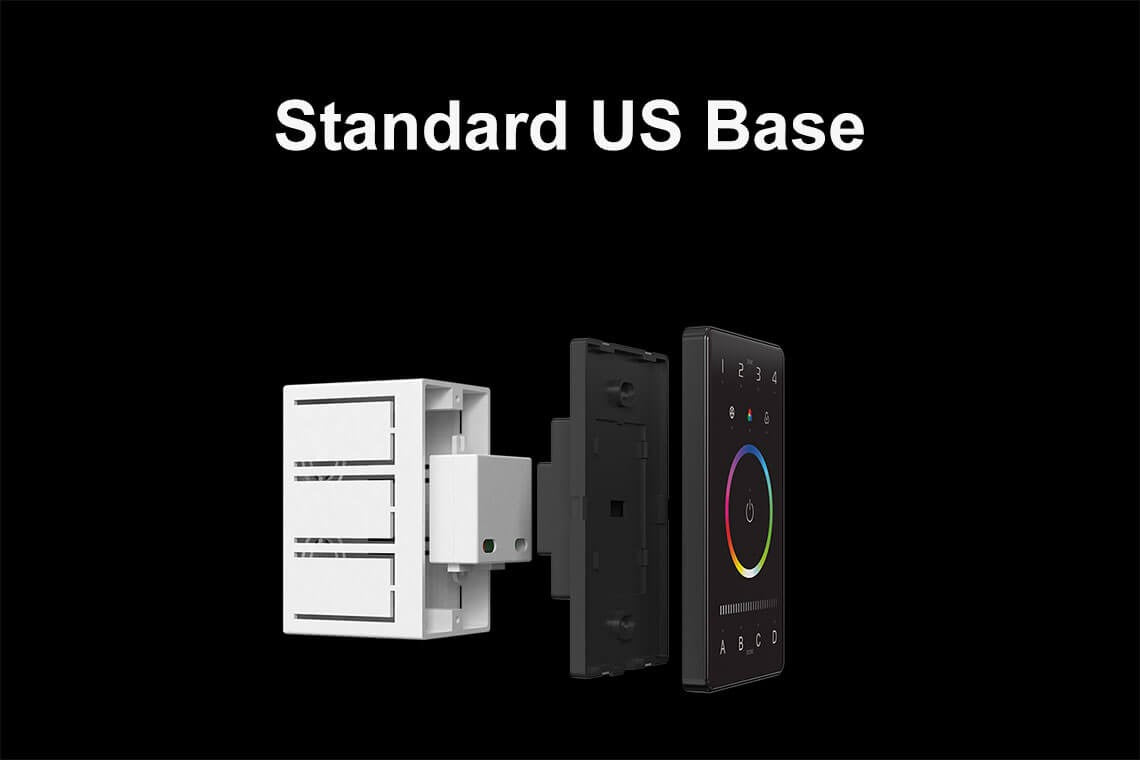

Intelligent Touch Panel is an American base wall switch, integrating Bluetooth 5.0 SIG Mesh and DMX signals. It is a simple but elegant design with CNC aviation aluminum frame and 2.5D tempered glass. The panel is suitable for multi-scene and multi-zone lighting control applications. Working with Bluetooth systems makes it more convenient and intelligent.

Specifications

UB4Specifications from the official datasheetDownload datasheet PDF

Technical Specs

Control mode
RGBW
Input voltage
12-24VDC, Powered by Class 2
Wireless protocol type
Bluetooth 5.0 SIG Mesh
Output signal
DMX 512
Zones
4
Working temperature
-20°C~55°C
Dimensions(L×W×H)
120×75×30(mm)
Package size(L×W×H)
158×113×62(mm)
Weight(G.W.)
225g

Others

Warranty periods
2 years

Certifications & ratings

Certification marks
UL, CE, RoHS, FCC

Technical drawings

UB4 Unit: mm
Unit: mm
UB4 Illustration (page 3)
Illustration (page 3)
UB4 Illustration (page 4)
Illustration (page 4)
UB4 Illustration (page 5)
Illustration (page 5)
UB4 1.Wireless Control.
1.Wireless Control.
UB4 2.Wireless+Wired control (With reliable and stable signals).
2.Wireless+Wired control (With reliable and stable signals).
UB4 3.Wireless+Wired control (Enriching different lighting…
3.Wireless+Wired control (Enriching different lighting…
UB4 4.Visual control+Remote control of traditional panels.
4.Visual control+Remote control of traditional panels.
UB4 Bluetooth5.0SIG Mesh
Bluetooth5.0SIG Mesh
UB4 Zone1
Zone1
UB4 Type
Type
UB4 Step 1: Remove the panel plate with a flathead…
Step 1: Remove the panel plate with a flathead…
UB4 Step 2: Attach the wires to the panel, as shown in the…
Step 2: Attach the wires to the panel, as shown in the…
UB4 to secure the panel plate to the box.
to secure the panel plate to the box.
UB4 to secure the panel plate to the box. (2)
to secure the panel plate to the box. (2)
UB4 Scan and download the App
Scan and download the App

Downloads

FAQ

What is the Ltech Intelligent Touch Panel UB4(Bluetooth + DMX) designed to do?

The UB4 is an intelligent touch panel for multi-zone lighting control in commercial and professional LED control applications. It combines Bluetooth 5.0 SIG Mesh wireless technology with DMX 512 output, and it supports RGBW colour control, brightness adjustment, and scene execution.

How many lighting zones can the UB4 control?

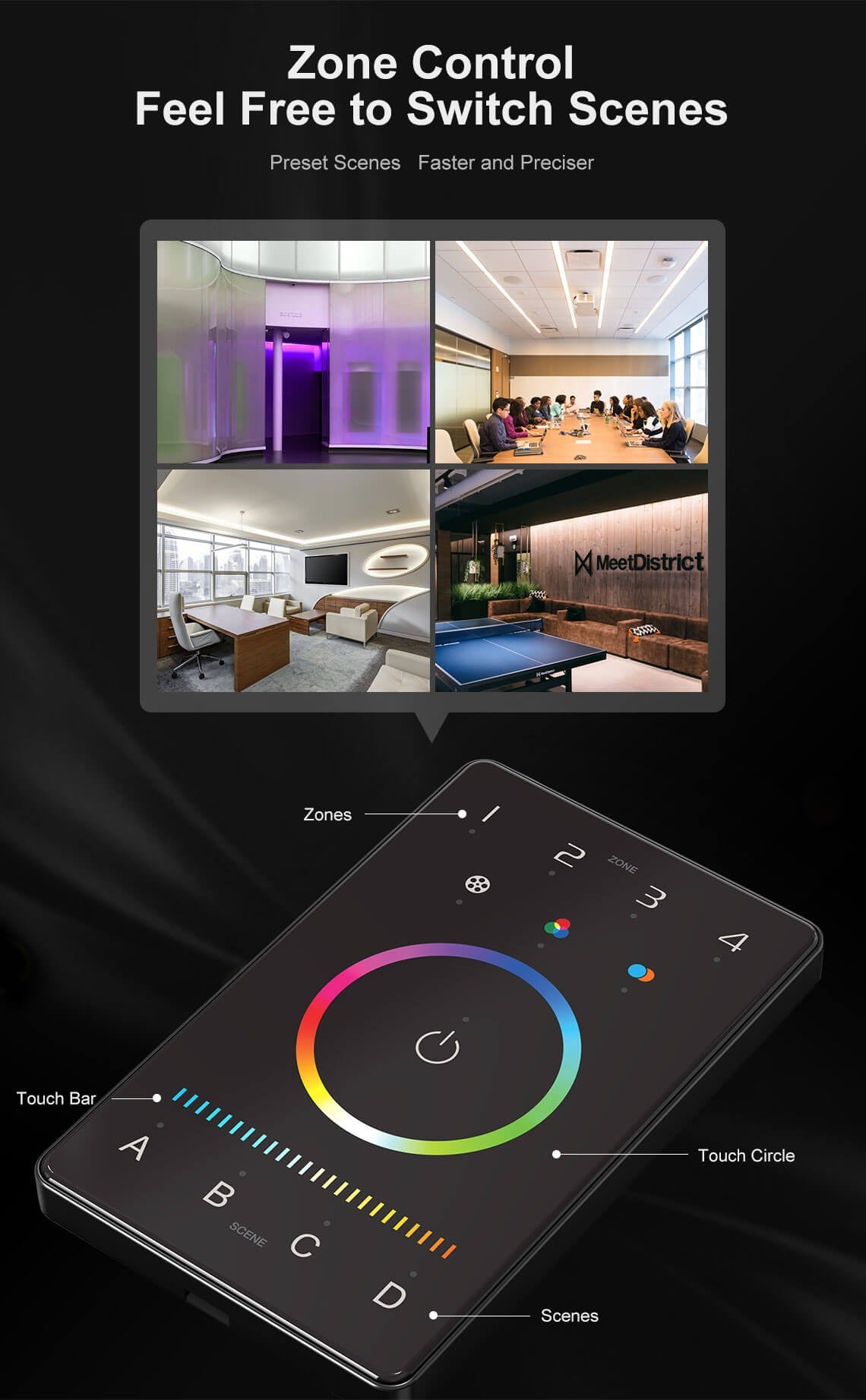

The UB4 supports control of up to four lighting zones. That makes it suitable for spaces that need separate control areas while keeping operation on a single wall-mounted touch interface.

What makes the UB4 different from a basic LED wall controller?

This model stands out by combining Bluetooth 5.0 SIG Mesh wireless control with DMX 512 output in one premium touch panel. It also adds multi-zone and multi-scene control in a refined housing.

Is the UB4 suitable for RGB lighting projects?

Yes, the UB4 is designed for RGBW colour control and brightness adjustment. It is intended for applications where users want precise colour selection and scene-based control from a dedicated touch panel.

What control methods are supported by the UB4?

The UB4 supports Bluetooth-based control using Bluetooth 5.0 SIG Mesh and also provides DMX 512 output. This combination makes it suitable for projects that need both wireless control flexibility and DMX-based lighting control capability.

What operating environment is the UB4 rated for?

The UB4 has an operating temperature range of -20°C to 55°C. This allows it to be used in a wide range of indoor commercial and professional lighting environments, provided conditions stay within that specified range.

What warranty is offered for the UB4?

The UB4 includes a 2-year warranty. This gives buyers defined coverage support for the product over its stated warranty period.
