Ltech

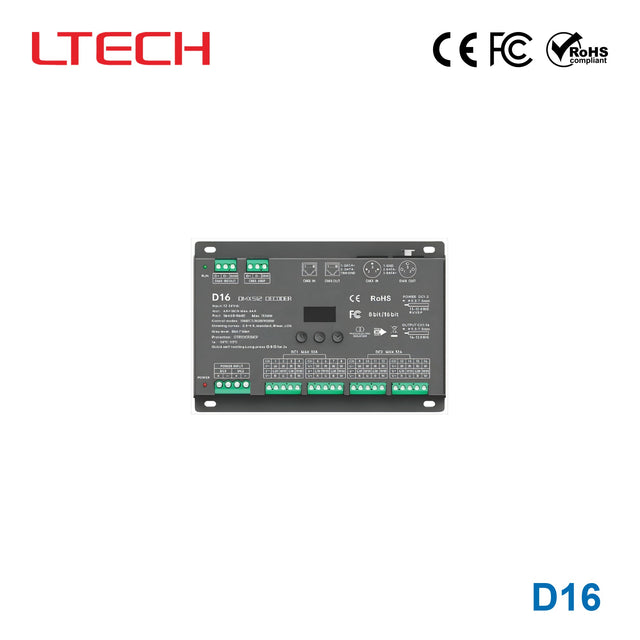

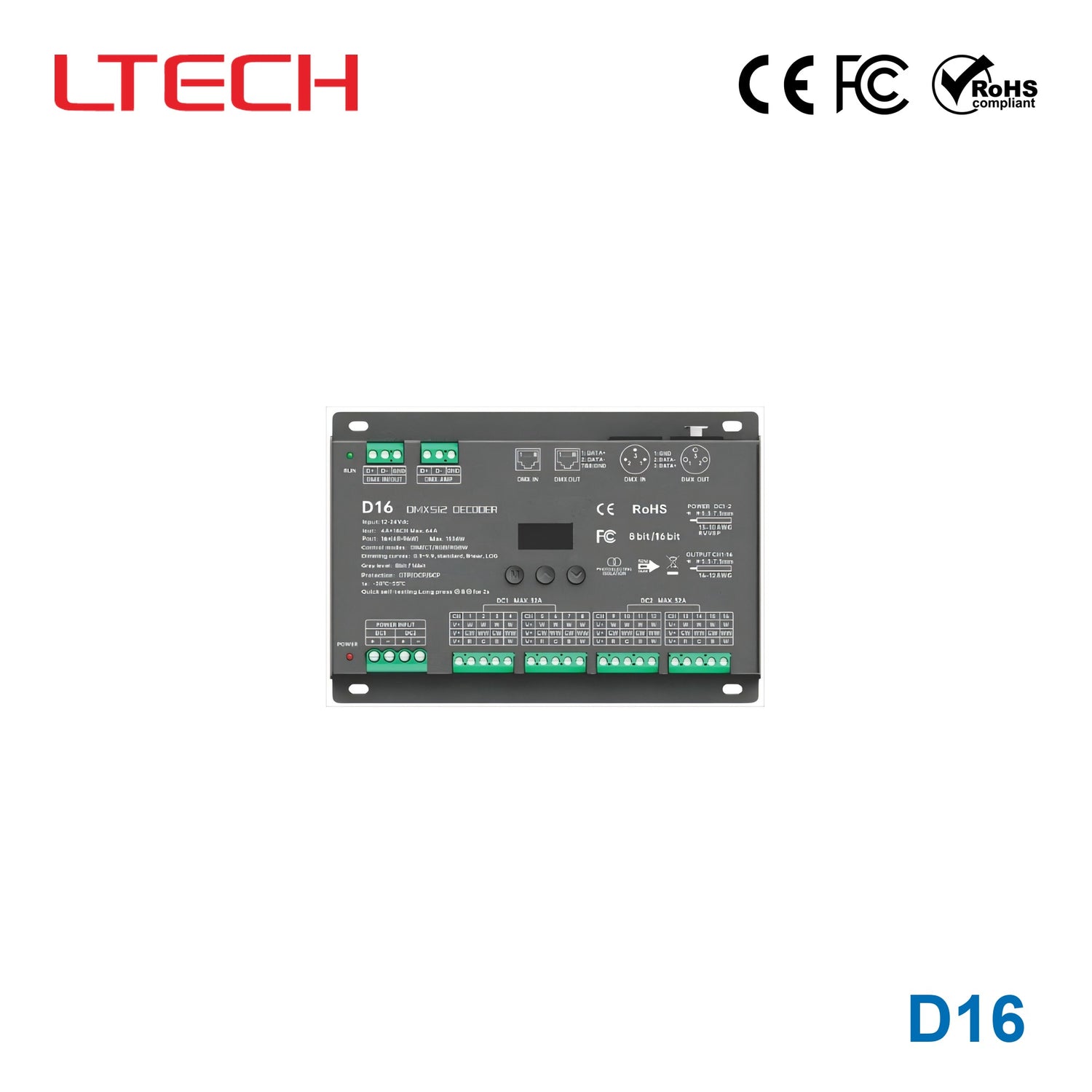

Ltech D16 Constant Voltage 16 Channel DMX/RDM Decoder, 12-24VDC, 4A per Channel

DMX512RDMOLED display16 channel4A per channel12-24VDCXLR-3 and RJ45
SKU D16
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
|

The Ltech D16 Constant Voltage 16 Channel DMX/RDM Decoder, 12-24VDC, 4A per Channel is part of Ltech's professional LED control range, distributed in New Zealand by Wellforces. 16 channel constant voltage DMX512/RDM decoder with OLED display. 4A per channel, max 64A total. PWM frequency 300-18000Hz. Dimming curve 0.1-9.9 gamma. Green terminal, XLR-3 and RJ45 ports.

Input 12-24V. Operating temperature -30°C to 55°C. Backed by a 5 year warranty.

Key Features

  • ✓16 channel constant voltage DMX512/RDM decoder
  • ✓4A per channel, 64A and 1536W total capacity
  • ✓OLED display for direct address and mode setting
  • ✓Selectable output modes: DIM, CT, RGB and RGBW
  • ✓PWM frequency 300-18000Hz, dimming curve adjustable 0.1-9.9 gamma
  • ✓Green terminal, XLR-3 and RJ45 DMX ports
  • ✓5 year warranty
