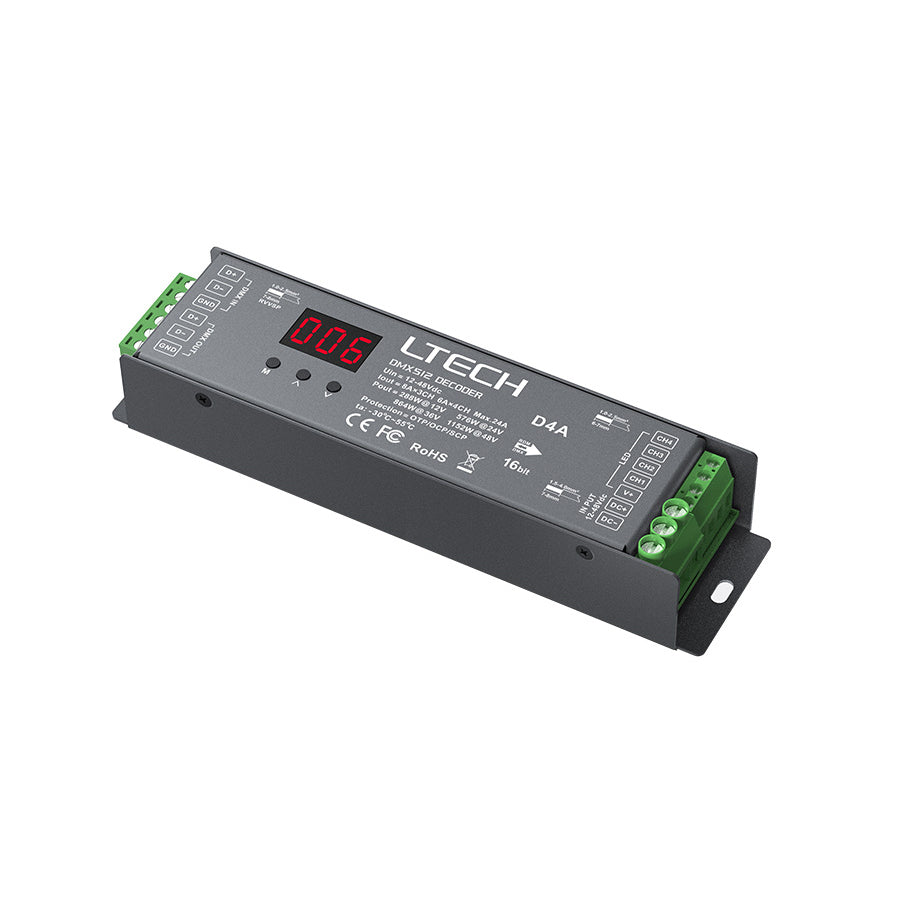

Ltech D4A Constant Voltage 4 Channel DMX/RDM Decoder, 12-48V, 24A, ...
Please Login for Pricing
Description
Description
Features:
- Standard DMX/RDM interfaces; Set addresses via the digital display and buttons.
- RDM protocol; Browse parameters and change DMX addresses via a RDM master or via the mobile APP .
- DMX mode and customized mode can be switched.
- PWM frequency options: 300/600/1200/1500/1800/2400/3600/7200/10800/ 14400/18000Hz.
- 16bit (65536 levels)/8bit (256 levels) gray scale optional.
- Two dimming mode options: standard and smooth dimming
- Set 1/2/3/4 DMX channel output.
- Provide 10 lighting effects, 8 speed levels of dynamic modes, and 255 brightness levels
- Set screen timeout, LCD screen always on, and screen turning off after 30s of inactivity
- Short circuit, over-temperature, over-current protection and auto recovery
- D4A has green terminal DMX interfaces, D4B has RJ45 DMX interfaces.
General Specification
Model
D4A
Input Signal
DMX512,RDM
Input Type
Constant Voltage
Output Current
8A×3CH 6A×4CH Max.24A
Output Voltage
4×(12-48V)
Output Power
288W@12V 576W@24V 864W@36V 1152W@48V
Dimming Range
0-100%
DMX Signal Port
Green terminal
Working temp.
-25°C~55°C
Safety & Emc
CE, EN 55015: 2019/A11: 2020, EN IEC 61000-3-2:2019+A1: 2021, EN 61000-3-3: 2013+A1: 2019+A2: 2021, EN 61547-1: 2021
FCC Part 15 Class B
Dimension
L175×W46×H30mm
Package Size
L187×W52×H36mm
Weight(G.W.)
325g±5g
Protection
Short circuit, over temperature, over current protection, auto recovery
Specifications
Specifications
-
BrandLtech
-
SeriesLtech WIFI Series
-
Power Rating288 Watt
-
Output Voltage12 Volt
-
Rated Current24 Ampere
-
Input Voltage12V~48V
-
Standards MetCE,FC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~55°C
-
Warranty5 Year
-
Length17.5 cm
-
Width4.6 cm
-
Height3 cm
-
Weight0.01 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What does the Ltech D4A do?
The Ltech D4A is a constant voltage DMX/RDM decoder for LED control systems. It provides 4-channel output and is designed for dimming and control of compatible constant voltage LED lighting loads. This model includes a digital display for local parameter and address adjustment.
Is the D4A compatible with both DMX512 and RDM systems?
Yes. The D4A supports standard DMX512 input and also supports RDM, which allows parameter browsing and DMX address changes through an RDM master. It can also switch between DMX mode and customized mode.
What voltage and output capacity does the D4A support?
The D4A is designed for 12-48V constant voltage systems. Its maximum total output current is 24A, with rated output listed as 8A x 3 channels or 6A x 4 channels. Output power is rated up to 288W at 12V, 576W at 24V, 864W at 36V, and 1152W at 48V.
What dimming and performance options are available on this model?
The D4A supports 0-100% dimming and offers both 16-bit and 8-bit grayscale options. It also provides standard and smooth dimming modes, along with selectable PWM frequencies from 300Hz up to 18000Hz. These options make it suitable for applications that need either broad compatibility or finer dimming performance.
What kinds of LED control applications is the D4A suited for?
This model is suited for multi-channel constant voltage LED control where DMX or RDM integration is required. Its configurable 1/2/3/4 channel output and built-in lighting effects make it useful for architectural, display, and commercial lighting projects. It is positioned more as a control component for professional LED systems than as a basic single-function dimmer.
What is the difference between the D4A and D4B versions?
The product description states that the D4A uses a green terminal DMX interface, while the D4B uses an RJ45 DMX interface. The distinction given here is the DMX signal port style rather than a change in output class or control protocol. If port format matters for your system standard, that is the key comparison point between these two versions.
Is the D4A suitable for demanding operating environments?
The listed working temperature range is -25°C to 55°C, which supports use in a wide range of indoor or protected commercial environments. The unit also includes short circuit, over-temperature, and over-current protection with auto recovery. In addition, it carries CE and FCC Part 15 Class B compliance information in the provided specifications.
What warranty is listed for the Ltech D4A?
The provided product data lists a 5-year warranty period for this model. That makes it a longer-term component choice for commercial LED control applications. Buyers should still confirm any seller-specific warranty terms at the time of purchase.
