Ltech

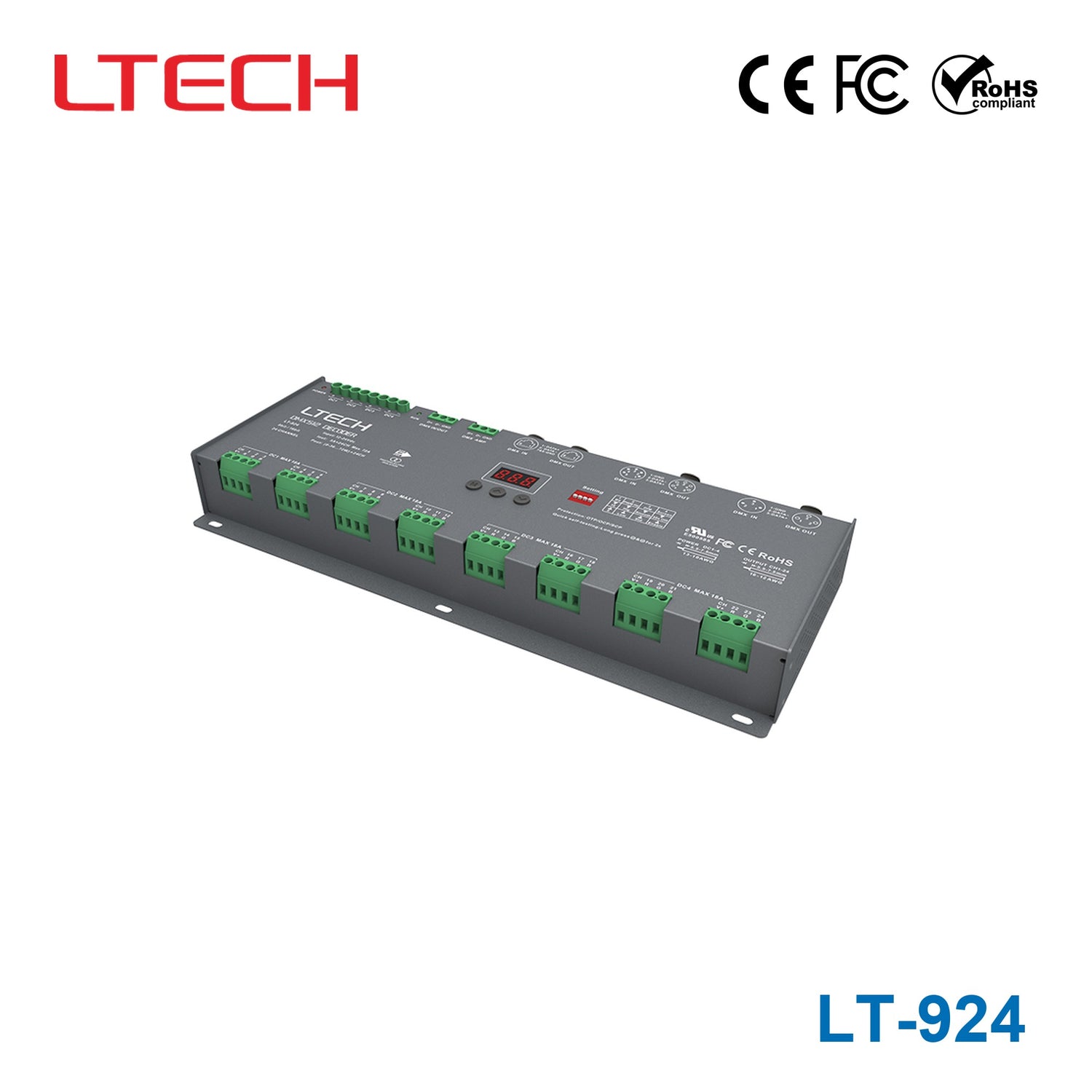

Ltech LT-924 Constant Voltage Decoder - DMX/RDM

Please for Pricing
|

Description

The 24-channel OLED DMX decoder is suitable for applications where multiple DIM, CT or RGB must be controlled  with a DMX signal. In case you are using RGB FlexStrip a maximum of 8 modules can be connected. It has 24 channels of 3A (72A max) and a maximum power of 1728W. Works with 12 and 24 Volt DC LED modules. Has multiple DMX sockets to chose from: RJ45, Green terminal, XLR-3 and XLR-5. Also supports 8 & 16 bit functions and has 0.1 - 9,9 dimming curve.

Specifications
  • Brand
    Ltech
  • Series
    Ltech DMX Series
  • Power Rating
    1728 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    72 Ampere
  • Input Voltage
    12V~24V
  • Standards Met
    CE,FCC,ROHS
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~65°C
  • Warranty
    5 Year
  • Length
    30 cm
  • Width
    12.2 cm
  • Height
    3.9 cm
  • Weight
    1.18 kg

File Downloads
