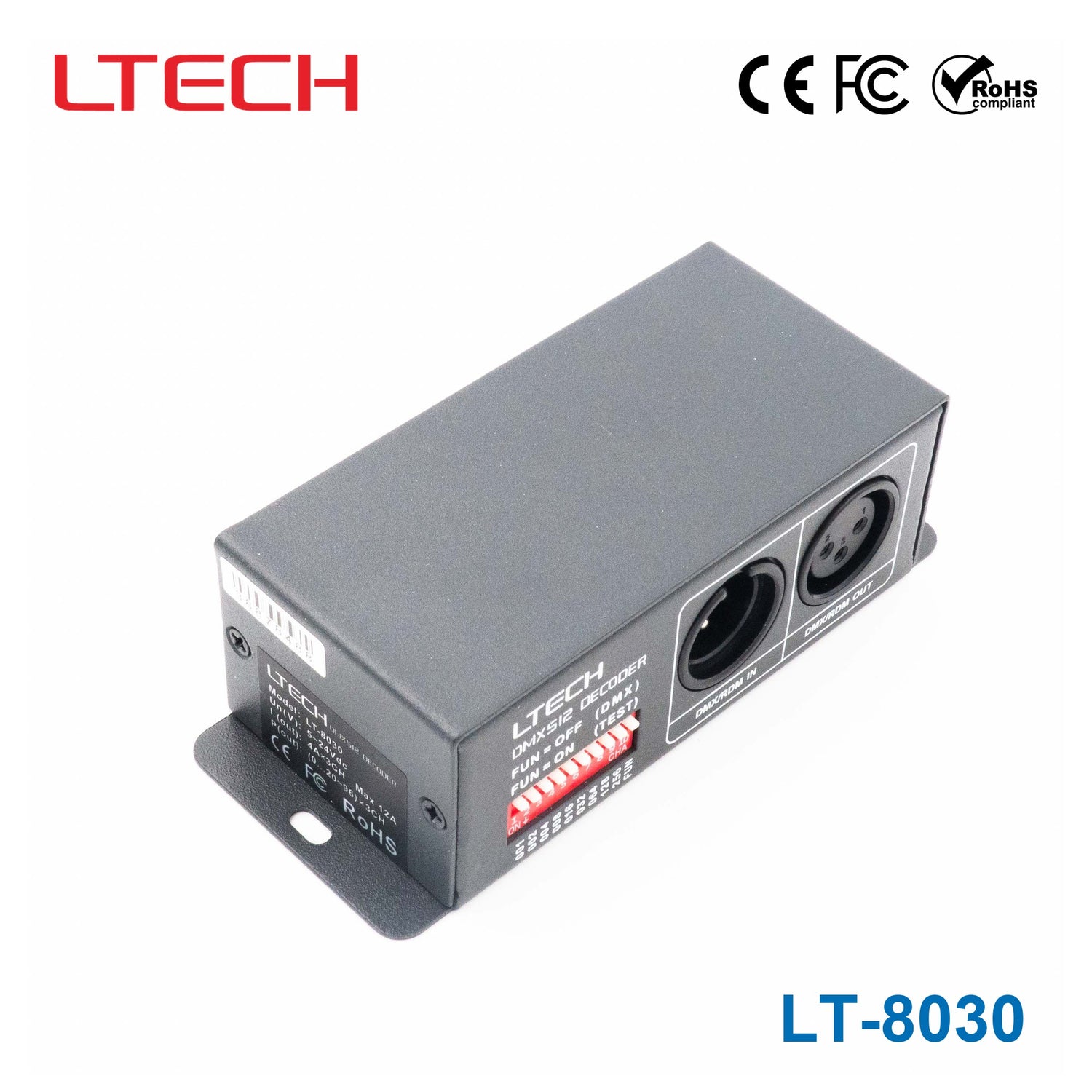

Ltech LT-8030 Constant Voltage Decoder - DMX

SKU LT-8030
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

LT-8030 with the standard RDM remote device management protocol, supports DMX512 signal bi-directional communication, achieves remote management of reading and writing DMX address (DMX master controller must recognize the RDM protocol). Equipped with DMX standard XLR-3, green terminal interface. Realize 0-100% dimming or different lighting effect; workable with single color, bi-color or RGB LED lamps.

Specifications

LT-8030Specifications from the official datasheet (2016-09-23 edition)Download datasheet PDF

1. Product Parameter

Input Signal
DMX512, RDM
Input Voltage
5~24Vdc
Current Load
4A×3CH Max. 12A
Output Power
Max. 60W/144W/288W(5V/12V/24V)
DMX512 Socket

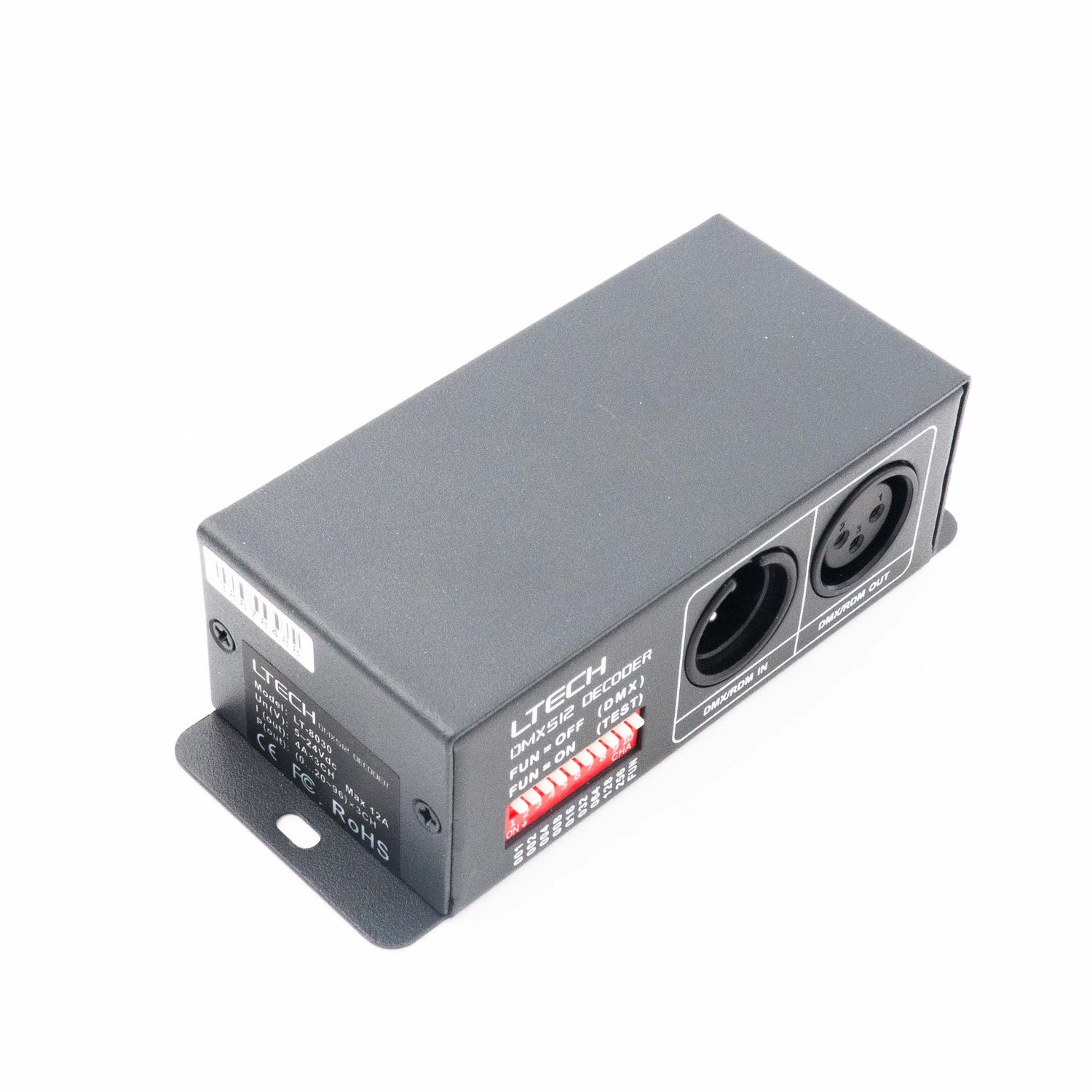

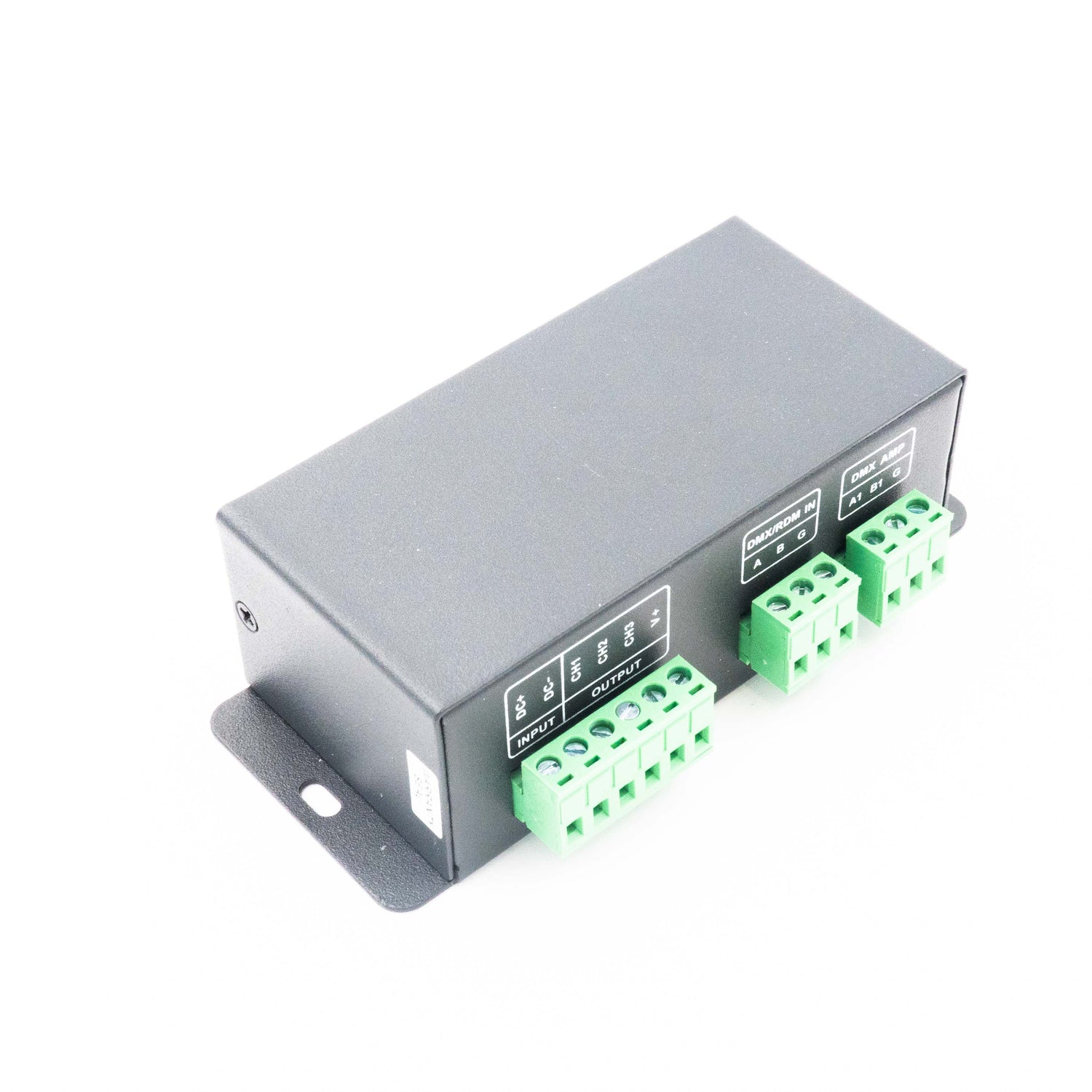

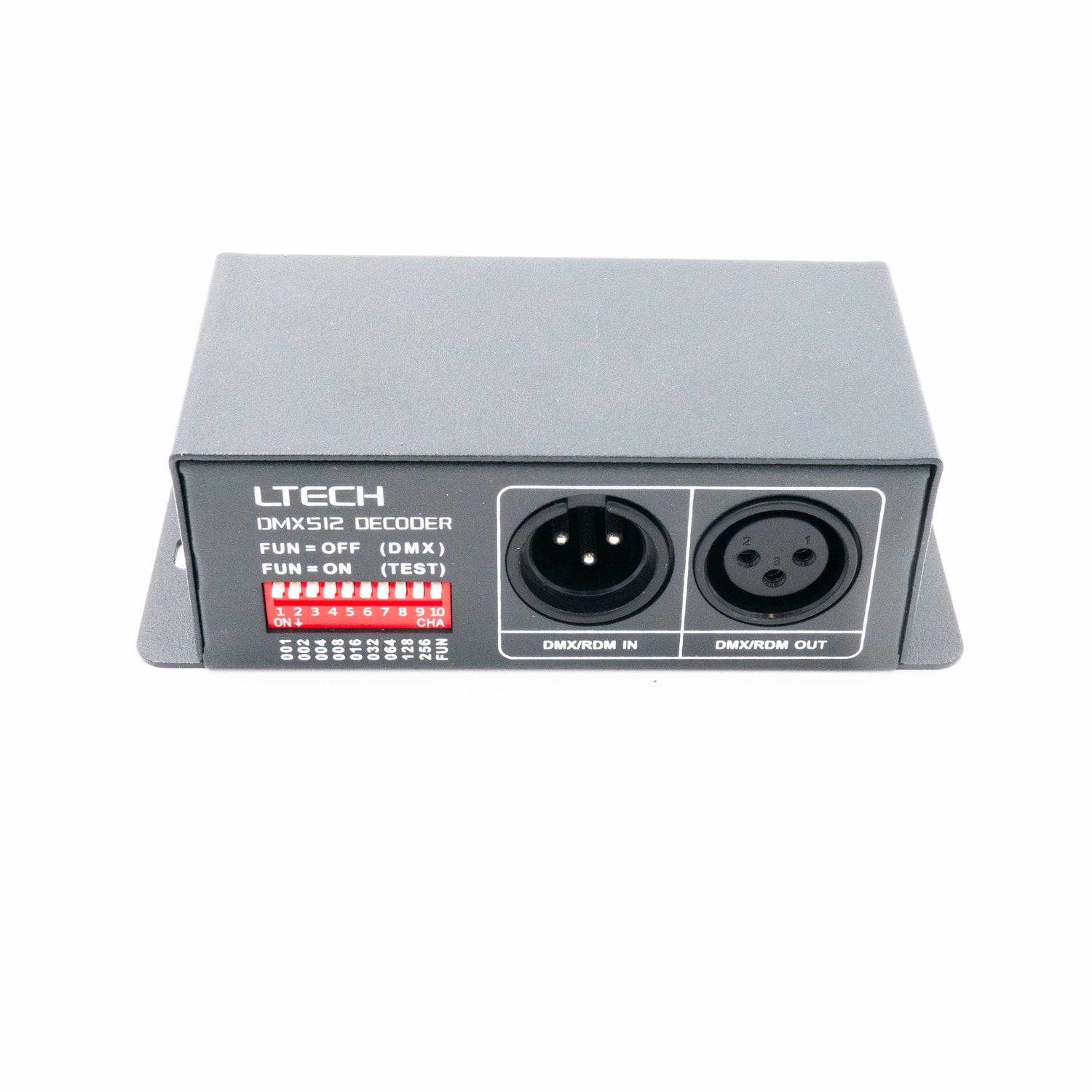

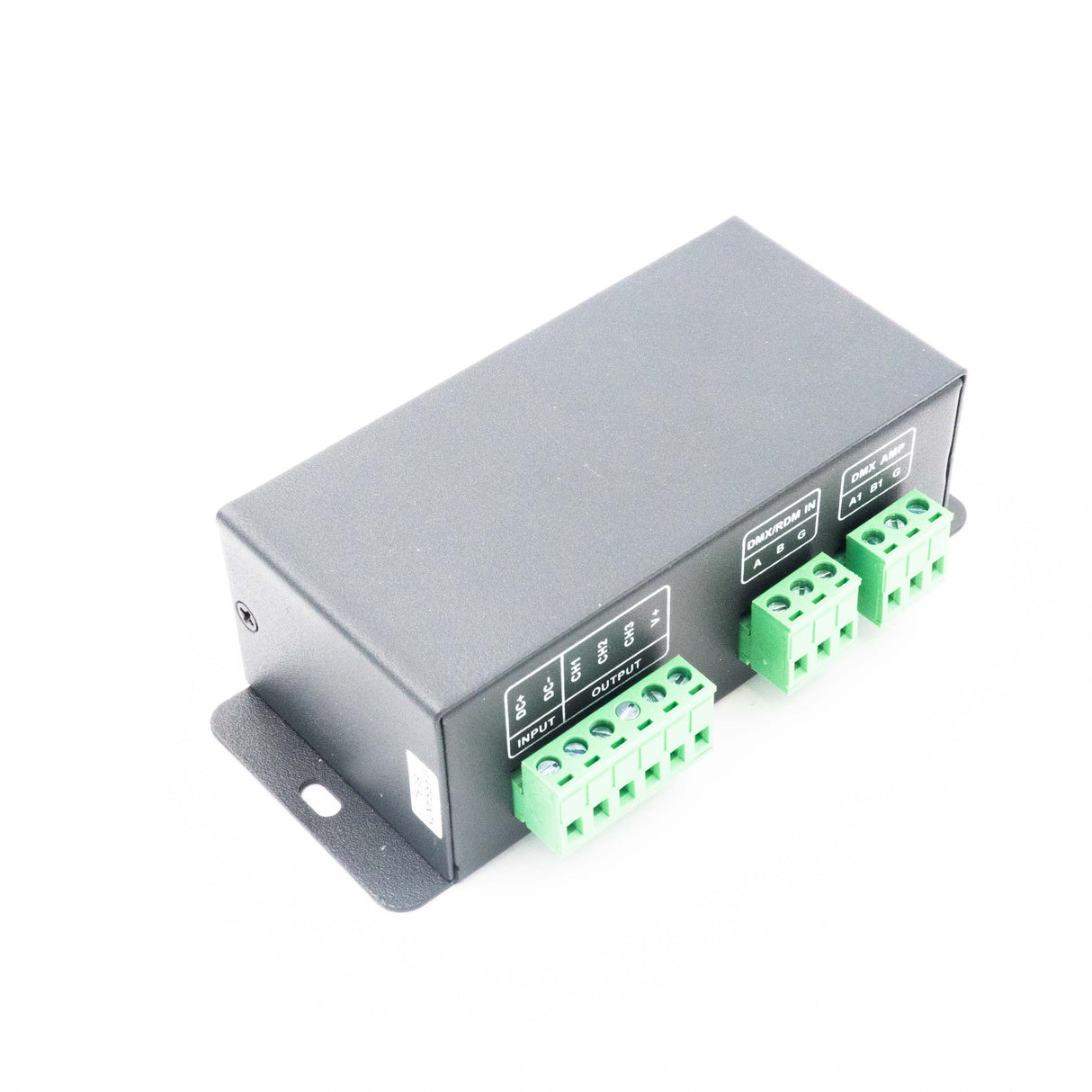

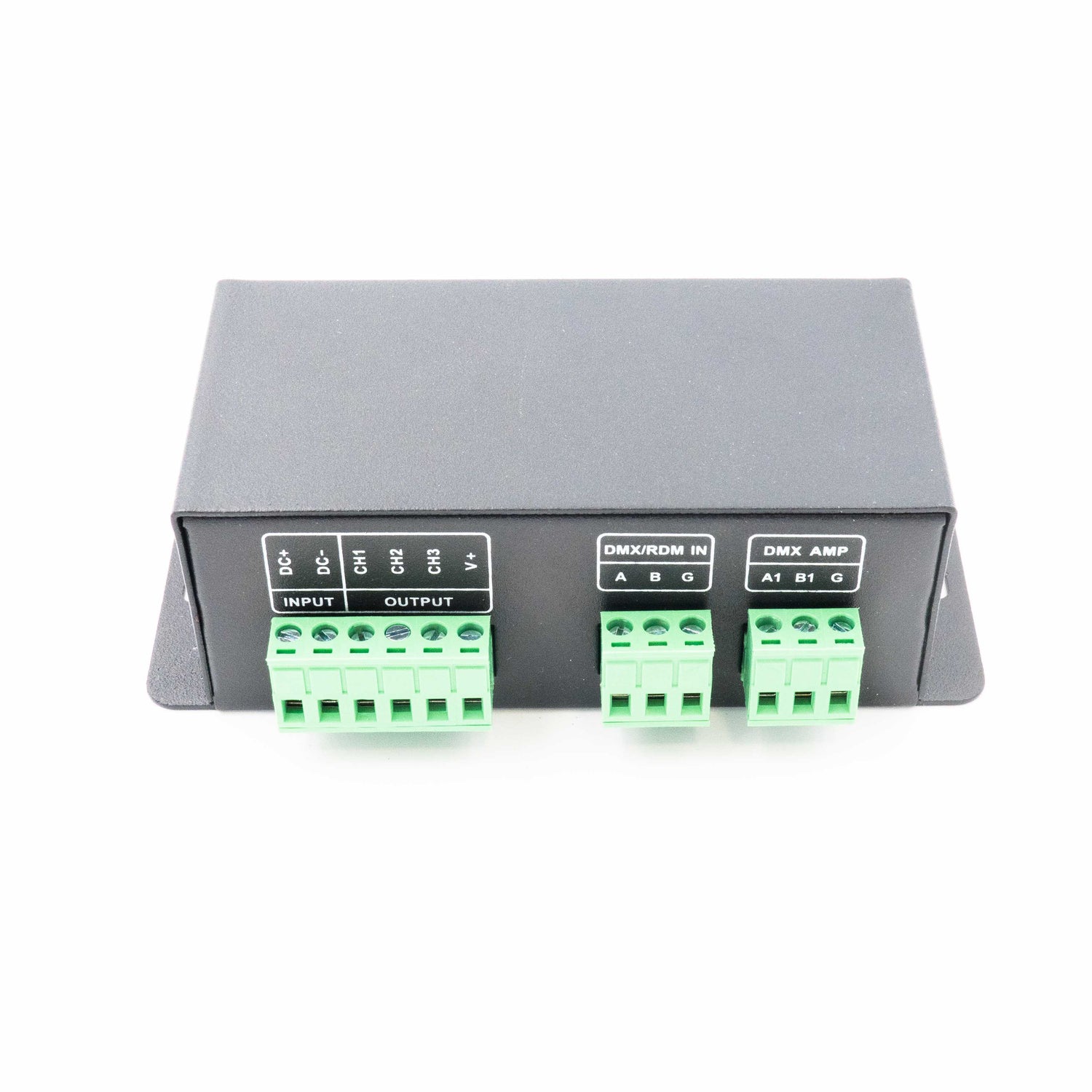

XLR-3, Green Terminal
Dimming Range
0~100%
Working Temperature
-30℃~65℃
Package Size
L135×W70×H50(mm)
Weight (G.W.)
305g

Protection

Attention
non-waterproof

Certifications & ratings

warranty
5 years
Certification marks
FCC, CE, RoHS, ISO9001:2008

Downloads

FAQ

What type of LED projects is the Ltech LT-8030 best suited for?

The LT-8030 is designed for smaller constant-voltage LED installations where moderate output capacity is enough. With a total power rating of 288 W at 24 V, it fits applications that need DMX-based control without the size or capacity of a larger decoder.

What are the electrical ratings of the Ltech LT-8030?

This model supports 5V, 12V, and 24V output voltages. It features 3 channels with a maximum current of 4A per channel, totaling 12A. The maximum output power is 60W at 5V, 144W at 12V, and 288W at 24V.

Does the LT-8030 support DMX only, or does it also support RDM?

The LT-8030 supports both DMX and RDM dimming control. That makes it suitable for projects that require standard DMX control while also needing compatibility with RDM-capable systems.

Is the LT-8030 a constant-voltage or constant-current decoder?

The LT-8030 is a constant-voltage decoder. It supports 5V, 12V, and 24V output voltages, so it should be used in applications built around constant-voltage LED products and control systems.

Can the LT-8030 be used in demanding temperature conditions?

This model is rated for operation from -30 C to 65 C. That wide operating range makes it appropriate for environments that experience significant temperature variation, as long as the rest of the system is specified for the same conditions.

What warranty coverage comes with the Ltech LT-8030?

The LT-8030 includes a 5-year warranty period. For commercial buyers, that longer warranty can be useful when evaluating lifecycle cost and support expectations for LED control components.
