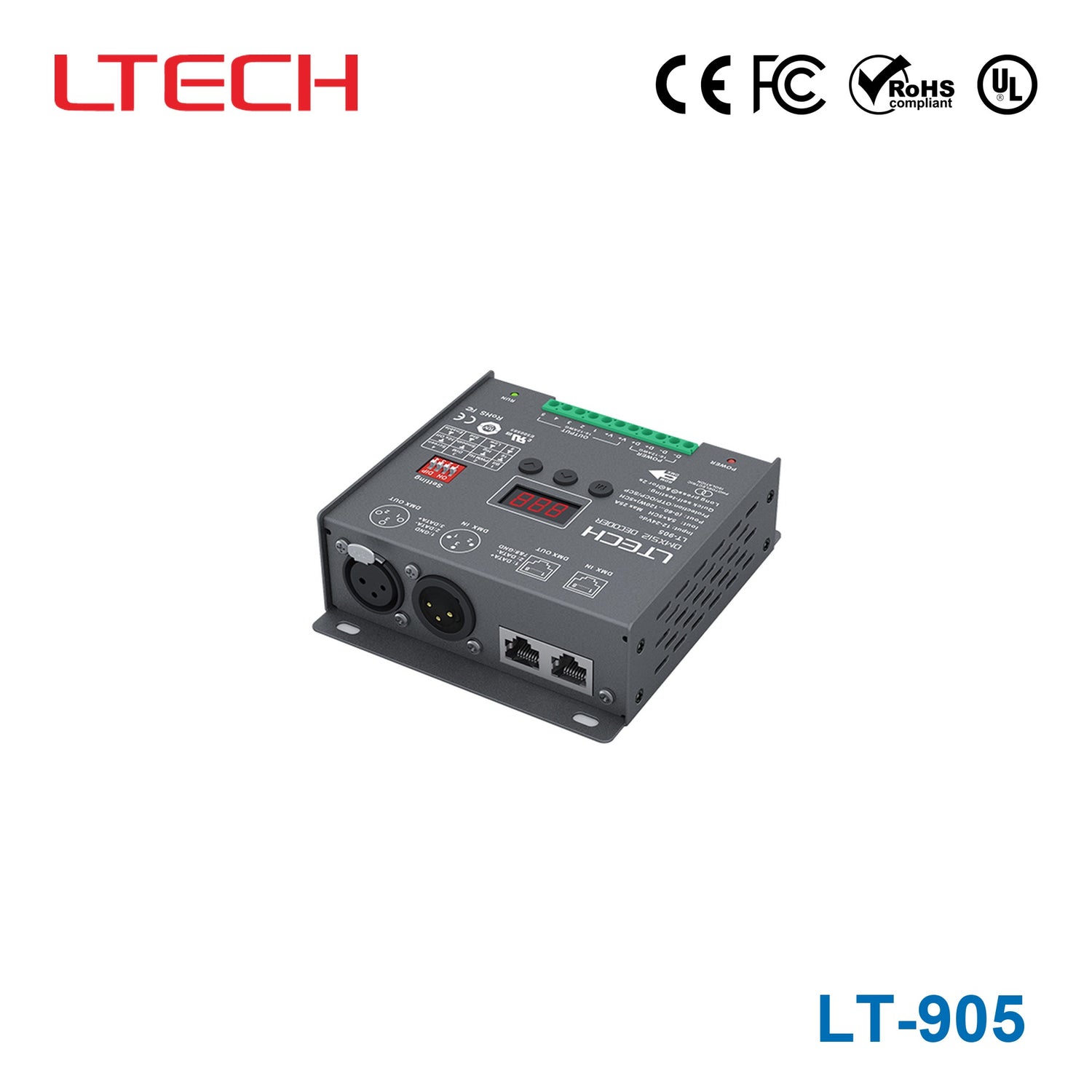

Ltech LT-905 Constant Voltage Decoder - DMX/RDM

The Ltech LT-905 is a constant-voltage decoder designed for DMX and RDM lighting control systems. It provides 5 output channels with up to 5A per channel and a maximum output power of 600W.

Yes. The LT-905 is built for multi-channel constant-voltage LED control in DMX-based environments where centralized control and remote device management matter. Its 5-channel design, RDM support, and 600W power capacity make it relevant for more demanding professional and B2B lighting projects.

This model supports both DMX and RDM. RDM adds remote management functions such as parameter browsing and setting, DMX address setting, and equipment identification through an RDM master console.

Compared with a basic DMX-only decoder, the LT-905 adds RDM remote management capability for easier device administration. It also includes a digital display, touch-button operation, self-testing, selectable PWM frequency, and selectable 16-bit or 8-bit grey levels.

The LT-905 is rated for 24V output, 25A total current, and up to 600W output power. It uses a 5-channel output design, with a maximum of 5A available per channel.

The specified operating temperature range is -30°C to 65°C. That makes it suitable for a broad range of indoor and controlled-environment commercial applications where equipment may be exposed to low or elevated ambient temperatures.

Yes. The LT-905 includes shortcut protection, overload protection, and a warning function when a fault occurs. These features help support safer operation in professional lighting control environments.

The LT-905 offers selectable high or low PWM frequency and selectable 16-bit or 8-bit grey levels. That gives buyers flexibility when choosing between finer dimming resolution and standard control behavior for different project requirements.
