Ltech Intelligent Touch Panel UB5(Bluetooth + DMX)
Please Login for Pricing
Description
Description
General Description

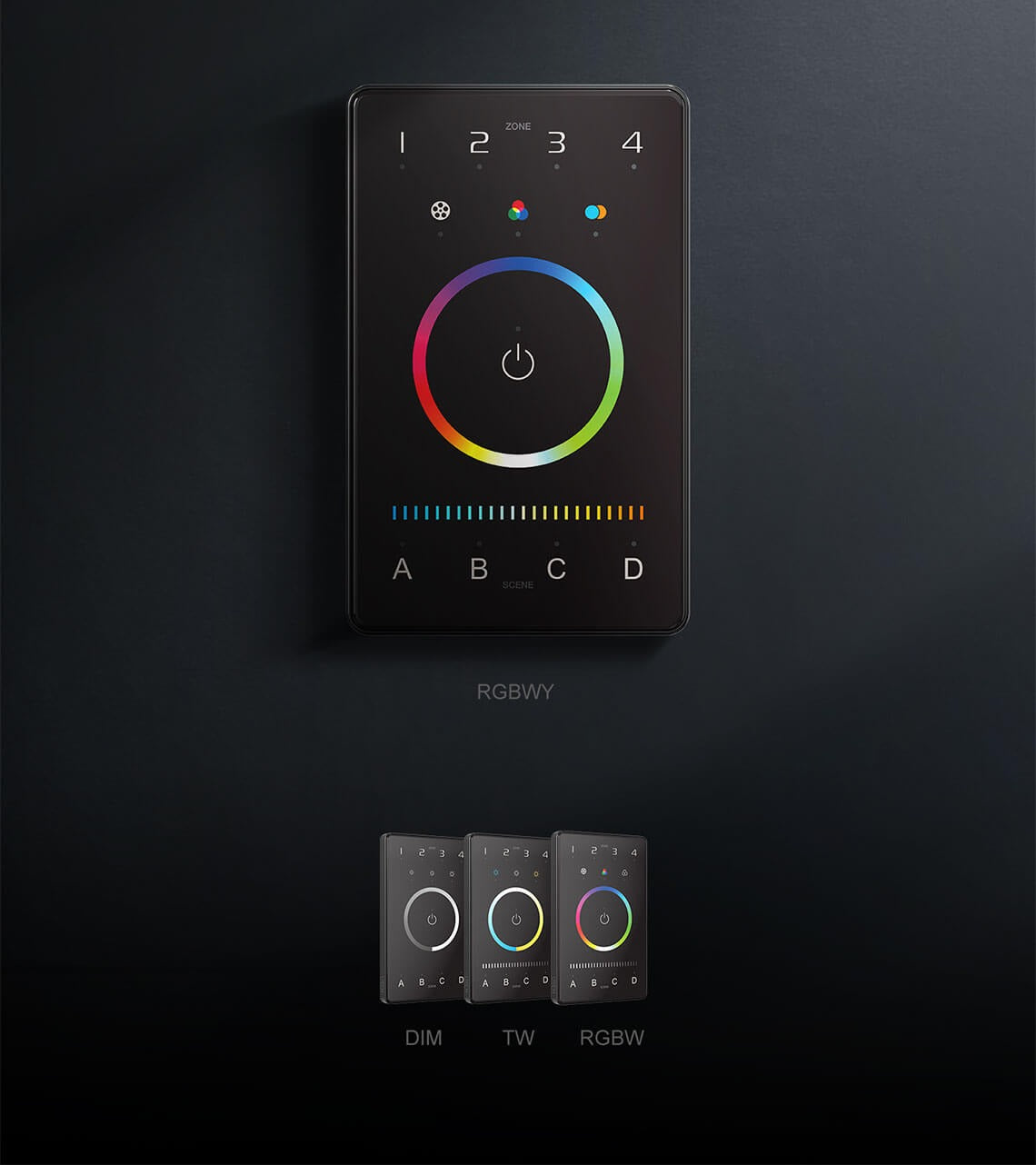

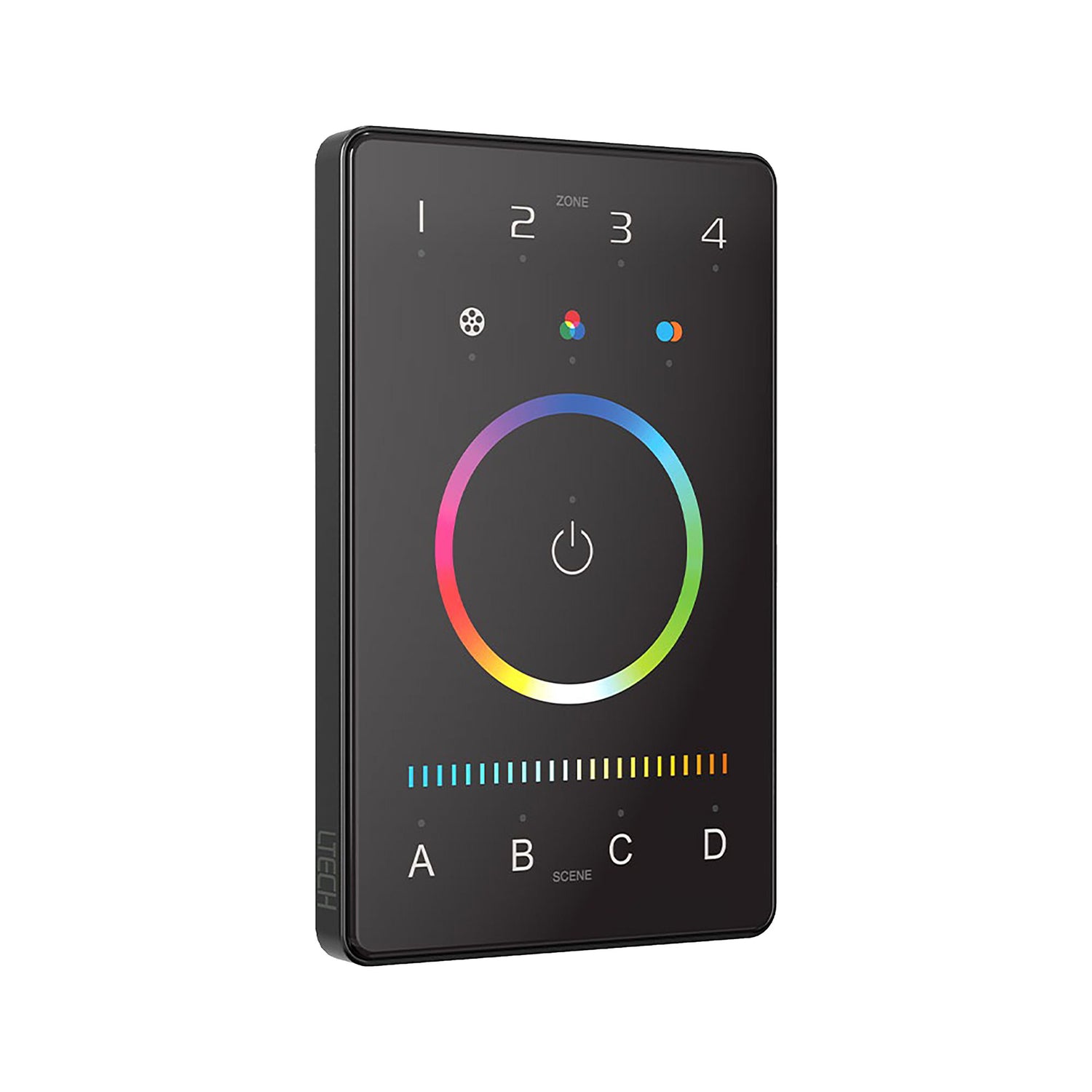

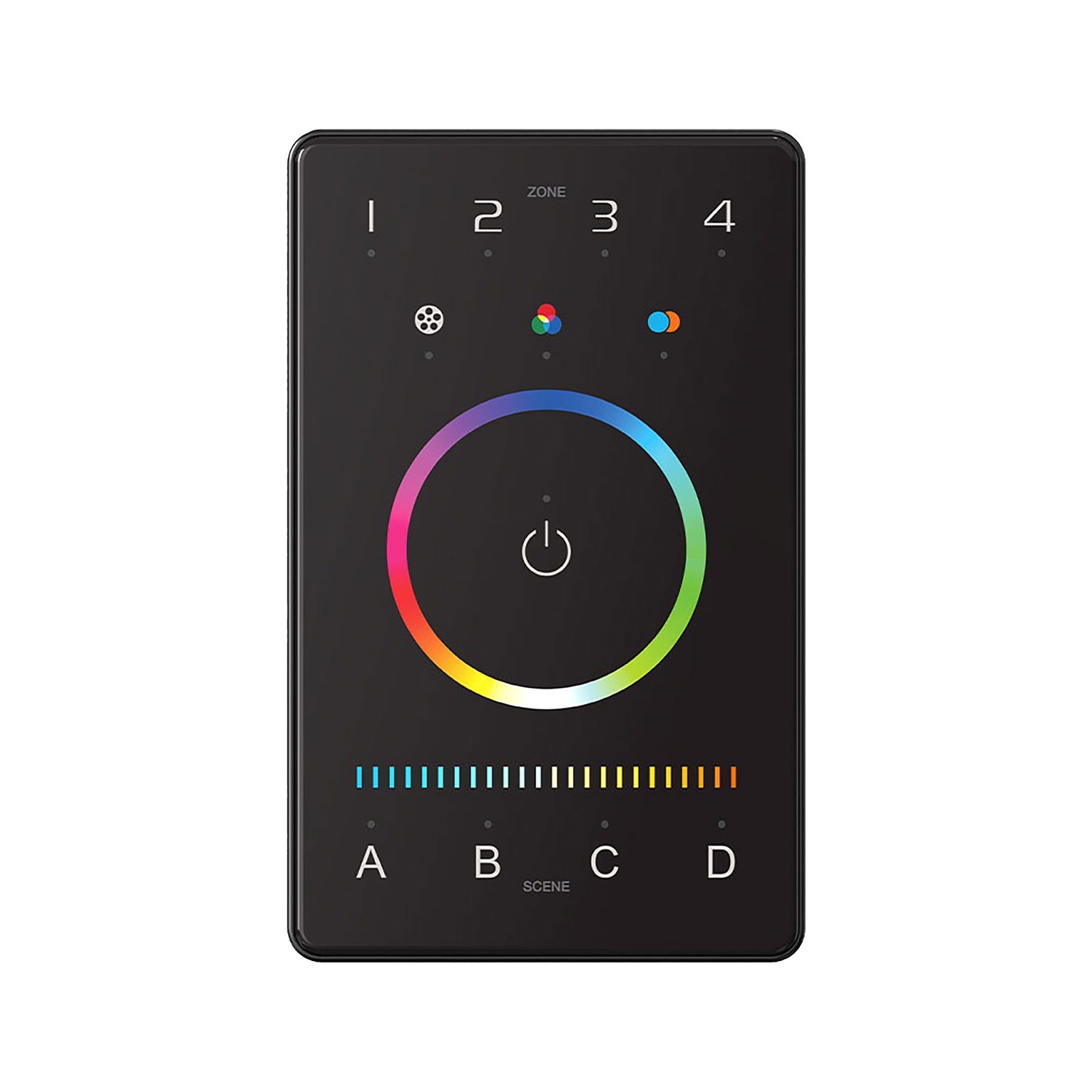

The UB5 is a sophisticated intelligent touch panel designed for full-colour lighting control, integrating Bluetooth 5.0 SIG Mesh wireless technology with DMX 512 output. Built with a CNC aviation aluminum frame and 2.5D tempered glass, it offers both style and durability. The UB5 supports up to four lighting zones and is engineered for RGBWY (RGB + Warm White + Cool White) applications, providing intuitive control over colours, brightness, white balance, and scenes—perfect for advanced residential, commercial, and entertainment lighting systems.
Key Features
-
Bluetooth 5.0 SIG Mesh and DMX 512 output for advanced control
-

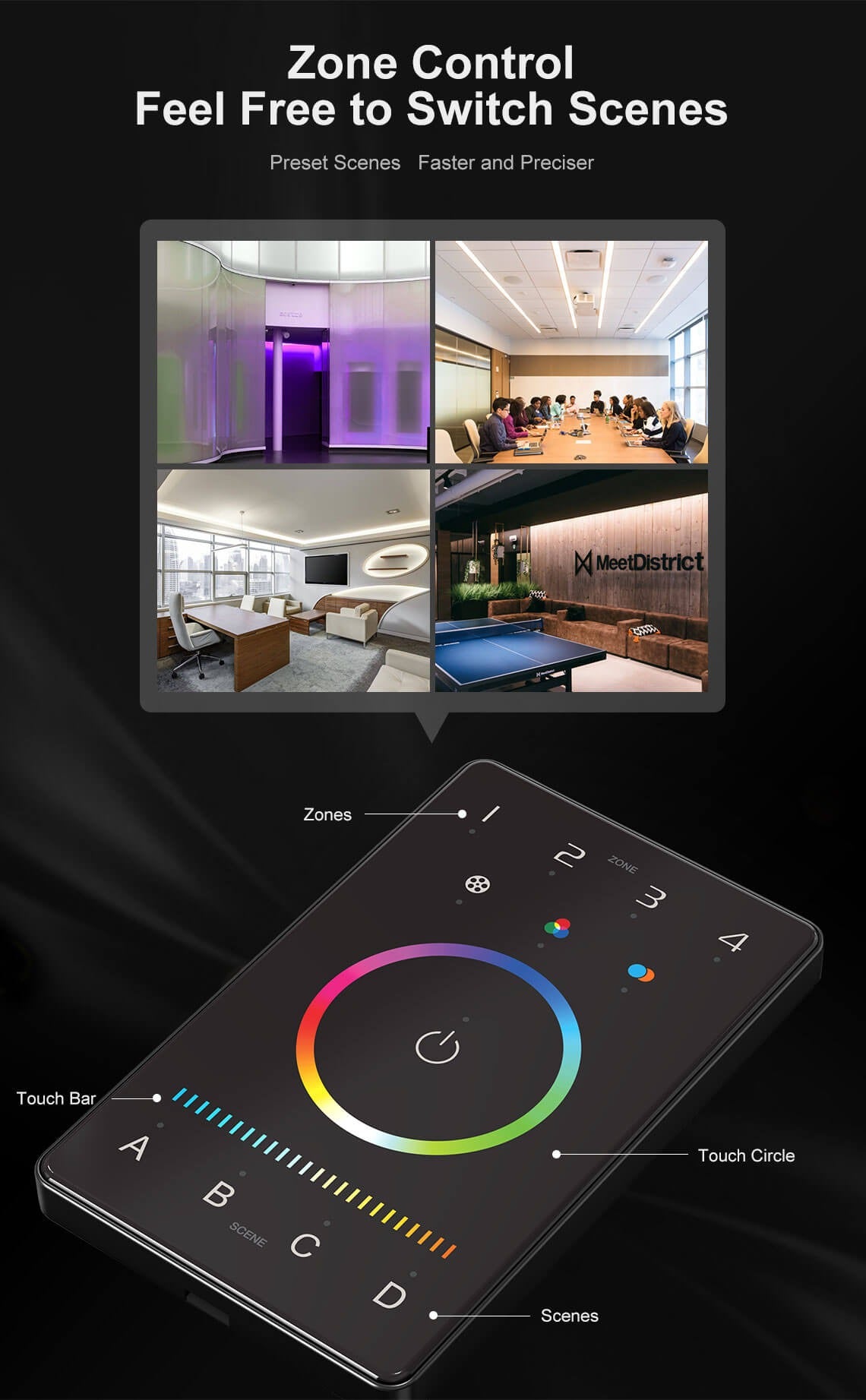

Supports up to 4 independent lighting zones
-
Zone keys with short/long press for ON/OFF and selection
-
Integrated touch colour circle for RGB control
-
Dedicated WY (Warm White + Cool White) brightness adjustment
-
16 pre-set lighting modes with adjustable speed
-
4 programmable scene keys for instant lighting recall
-

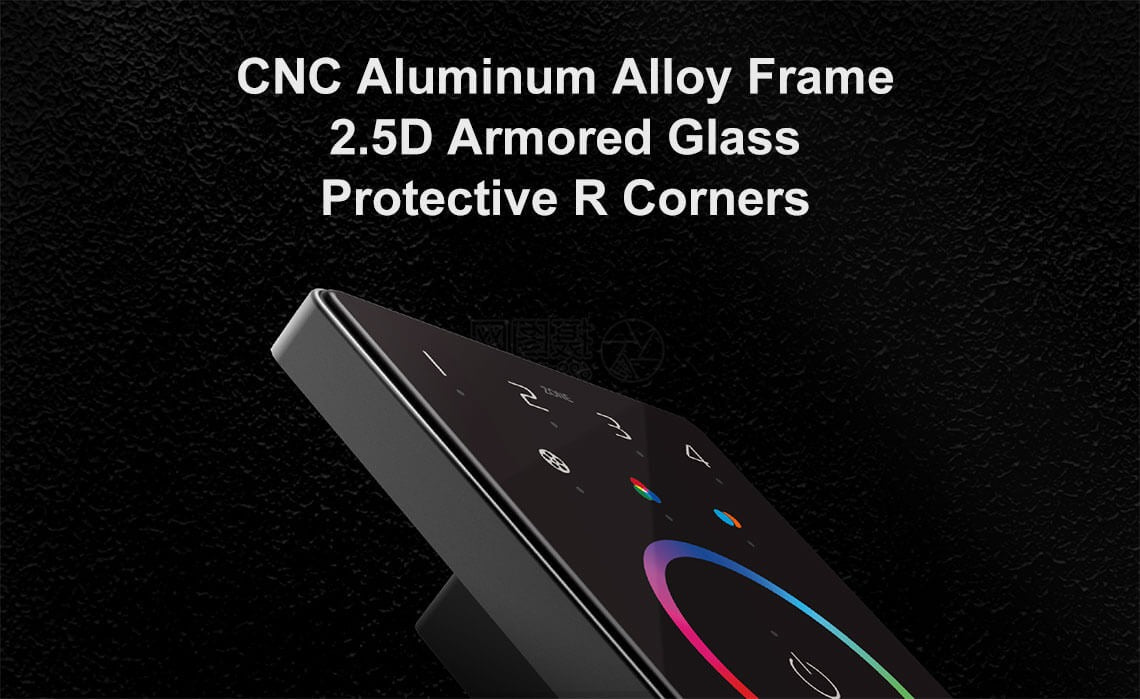

High-quality CNC aluminum frame with 2.5D tempered glass
-
Powered by 12–24VDC (Class 2)
-
Works with DMX drivers for RGBWY configurations
-
Dimensions: 120×75×30 mm, weight: 225 g
-
Operating temperature: -20°C to 55°C
-
Supports wireless-only or hybrid wireless + wired control configurations
Specifications
Specifications
-
BrandLtech
-
SeriesLtech UB Buletooth
-
Input Voltage12V~24V
-
Standards MetcUL,FCC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~55°C
-
Warranty2 Year
-
Length12 cm
-
Width7.5 cm
-
Height3 cm
-
Weight0.23 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the UB5 used for?
The Ltech Intelligent Touch Panel UB5 is designed for full-colour lighting control in RGBWY applications. It gives users control over colours, brightness, white balance, and scenes, making it suitable for commercial and professional lighting environments that need a wall-mounted control interface.
What control methods does the UB5 support?
This model combines Bluetooth 5.0 SIG Mesh wireless technology with DMX 512 output. That makes it relevant for projects that need both wireless control capability and DMX-based lighting control within the same panel.
How many lighting zones can the UB5 manage?
The UB5 supports control of up to four lighting zones. This is useful for spaces that need separate lighting areas managed from one touch panel rather than a single all-on/all-off control point.
What type of lighting is the UB5 intended to control?

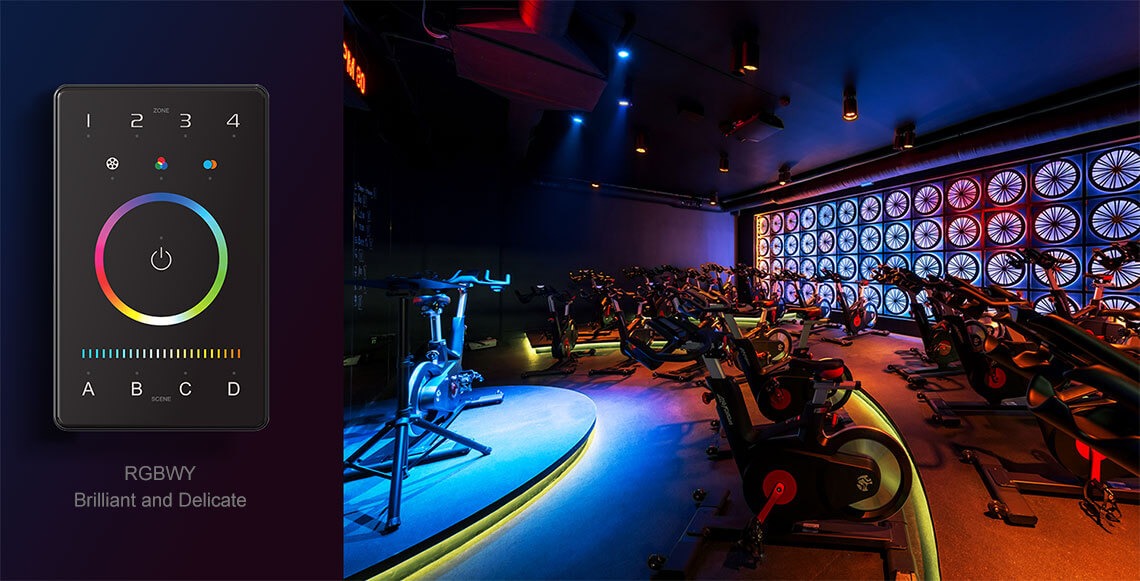

The UB5 is engineered for RGBWY lighting, which means RGB plus warm white and cool white control. That makes it a fit for applications where both colour effects and adjustable white tones are needed from the same controller.
What makes the UB5 different from a basic touch panel controller?
Compared with a basic wall controller, the UB5 stands out by combining Bluetooth SIG Mesh and DMX 512 functionality in one unit. It also adds multi-zone control and dedicated RGBWY scene and white-balance control, which is more advanced than a simple single-zone dimmer-style panel.
What operating environment is the UB5 rated for?
The stated operating temperature range is -20°C to 55°C. This gives the UB5 a broad working range for indoor professional lighting projects where temperature conditions may vary across seasons or equipment rooms.
What are the build quality and physical details of the UB5?
The UB5 uses a CNC aviation aluminum frame with 2.5D tempered glass for a more durable and premium finish. Its listed weight is 0.225 kg, and it includes a 2-year warranty period.
