Ltech D4B Constant Voltage 4 Channel DMX/RDM Decoder, 12-48V, 24A, Screw Terminal, LED Display

pwm frequency selectable

SKU D4B

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

Features:

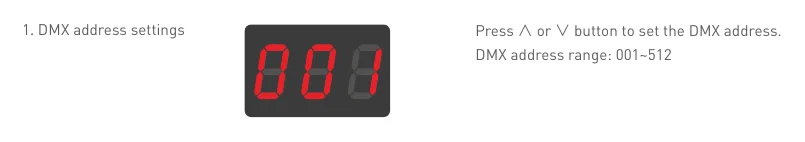

Standard DMX/RDM interfaces; Set addresses via the digital display and buttons.

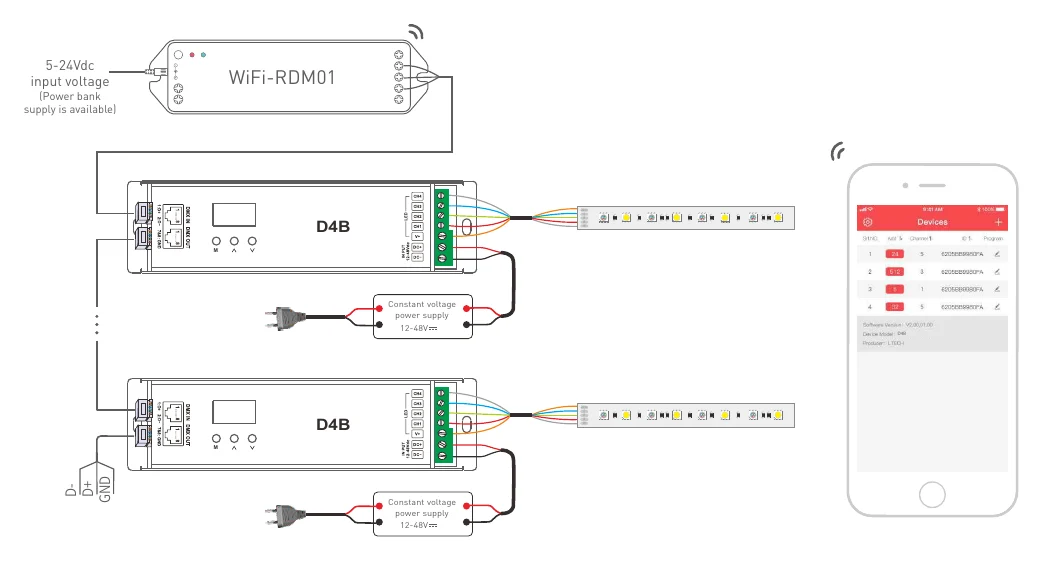

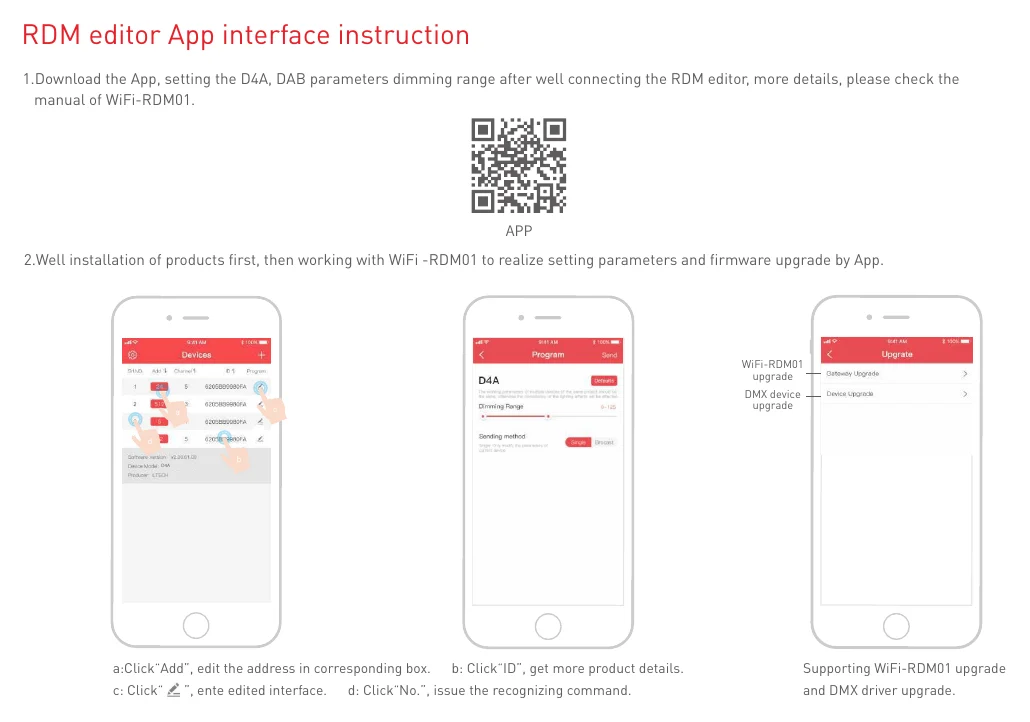

RDM protocol; Browse parameters and change DMX addresses via a RDM master or via the mobile APP .

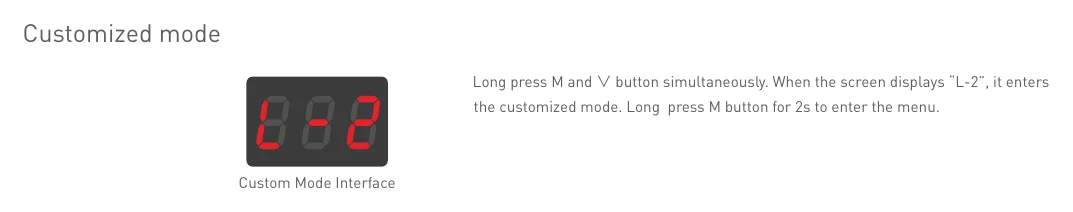

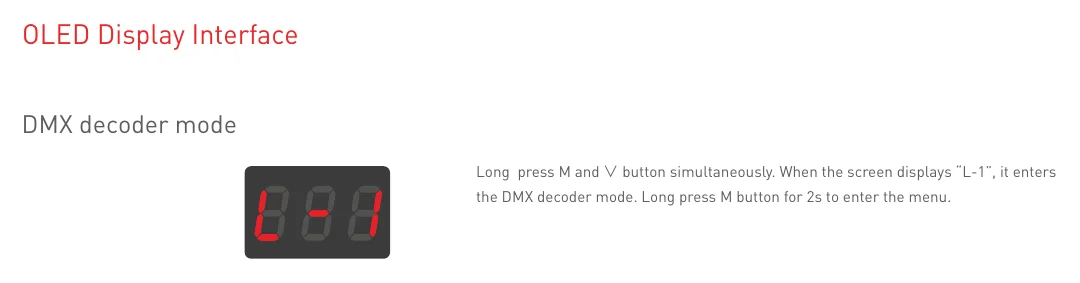

DMX mode and customized mode can be switched.

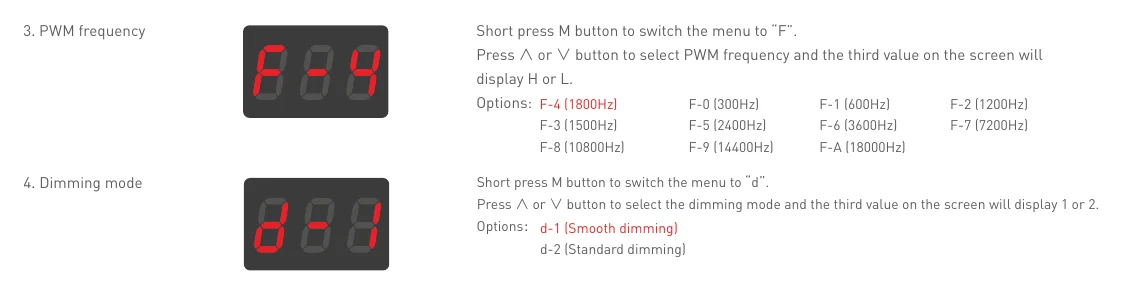

PWM frequency options: 300/600/1200/1500/1800/2400/3600/7200/10800/ 14400/18000Hz.

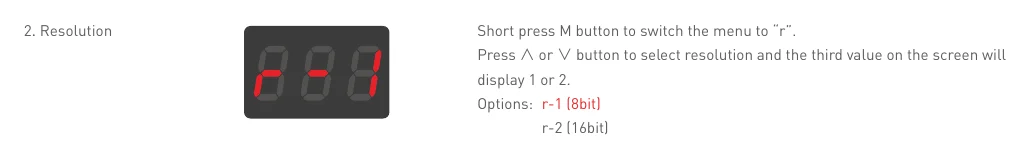

16bit (65536 levels)/8bit (256 levels) gray scale optional.
Two dimming mode options: standard and smooth dimming

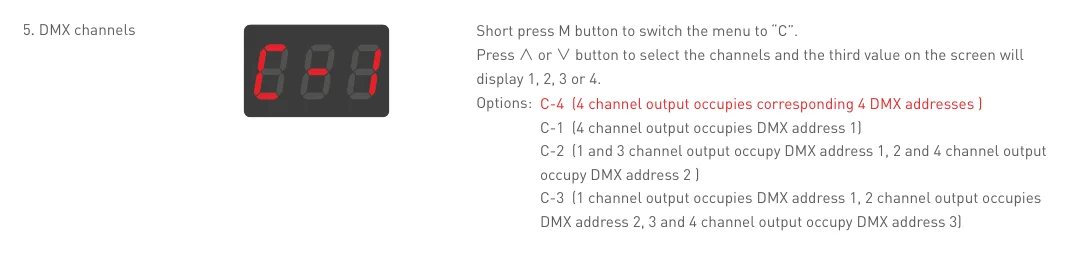

Set 1/2/3/4 DMX channel output.

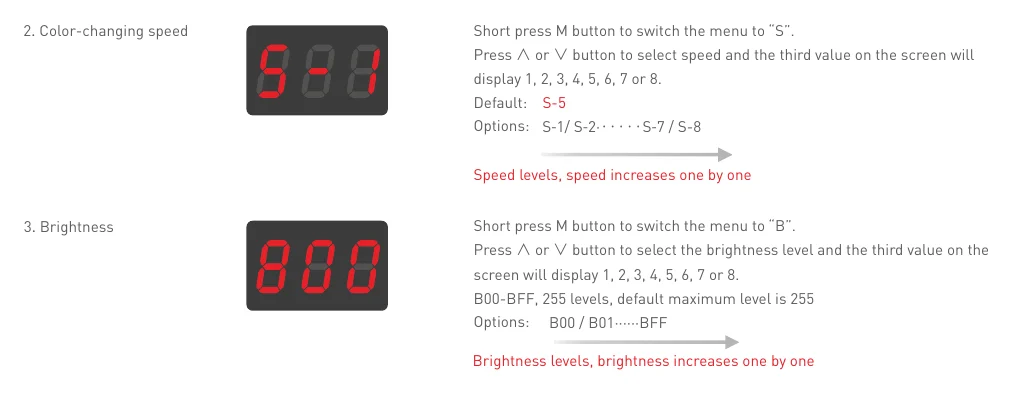

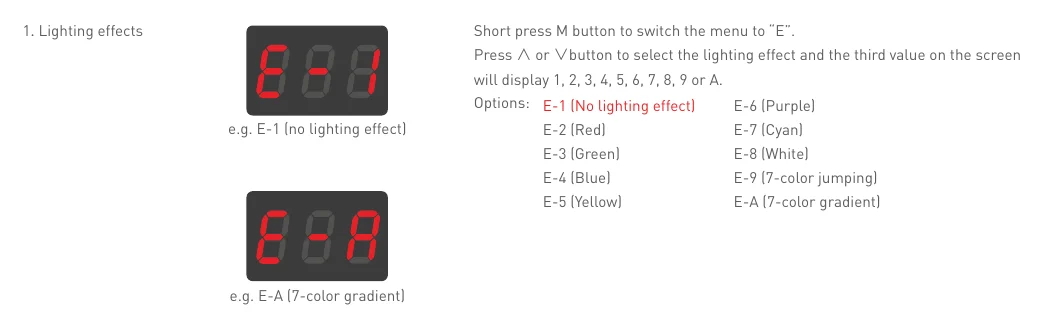

Provide 10 lighting effects, 8 speed levels of dynamic modes, and 255 brightness levels

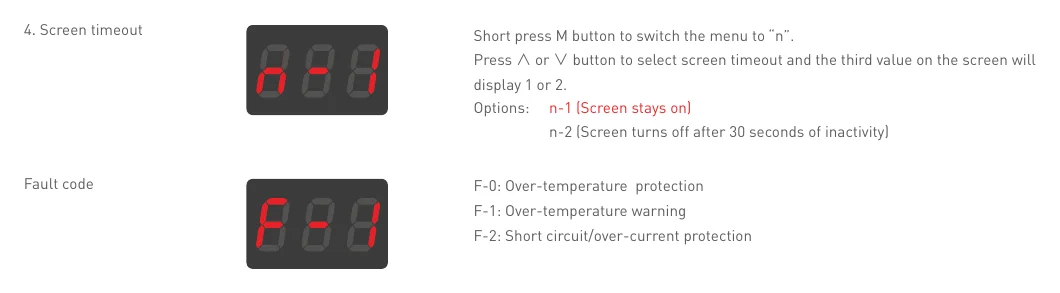

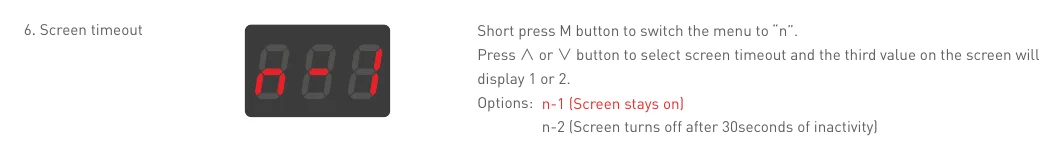

Set screen timeout, LCD screen always on, and screen turning off after 30s of inactivity
Short circuit, over-temperature, over-current protection and auto recovery
D4B has RJ45 DMX interfaces.

General Specification

Model

D4B

Input Signal

DMX512,RDM

Input Type

Constant Voltage

Output Current

8A×3CH 6A×4CH Max.24A

Output Voltage

4×(12-48V)

Output Power

288W@12V 576W@24V 864W@36V 1152W@48V

Dimming Range

0-100%

DMX Signal Port

RJ45

Working temp.

-25°C~55°C

Safety & Emc

CE, EN 55015: 2019/A11: 2020, EN IEC 61000-3-2:2019+A1: 2021, EN 61000-3-3: 2013+A1: 2019+A2: 2021, EN 61547-1: 2021

FCC Part 15 Class B

Dimension

L175×W46×H30mm

Package Size

L187×W52×H36mm

Weight(G.W.)

325g±5g

Protection

Short circuit, over temperature, over current protection, auto recovery

Frequently Asked Questions

What kind of LED loads is the Ltech D4B designed for?

The Ltech D4B is a constant voltage DMX/RDM decoder for low-voltage LED lighting systems. It supports 12-48V constant voltage output, so it is intended for compatible constant voltage LED applications rather than constant current fixtures.

How many channels does the D4B support?

This model supports up to 4 output channels. It can also be configured for 1, 2, 3, or 4 DMX channel output depending on the control mode required by the lighting system.

Does the D4B support both DMX512 and RDM?

Yes. The D4B supports standard DMX512 control and RDM functionality, allowing parameter browsing and DMX address changes through an RDM master or the supported mobile app workflow mentioned by the manufacturer.

What is the maximum output capacity of the Ltech D4B?

The D4B is rated for a maximum total output current of 24A. Its published output power is 288W at 12V, 576W at 24V, 864W at 36V, and 1152W at 48V.

What dimming and control resolution options are available on the D4B?

This decoder offers 0-100% dimming and supports either 16-bit gray scale with 65,536 levels or 8-bit gray scale with 256 levels. It also provides standard and smooth dimming modes, along with multiple PWM frequency options up to 18,000Hz.

Is the Ltech D4B suitable for demanding commercial environments?

The D4B is built for commercial LED control applications with an operating temperature range of -25°C to 55°C. It also includes short circuit, over-temperature, and over-current protection with auto recovery, which supports reliable use in tougher environments.

What interface does the D4B use for DMX signal input?

This model uses an RJ45 DMX signal port. That is a distinguishing feature noted for the D4B version in the product specifications.

What certifications and compliance standards are listed for the D4B?

The product listing shows CE compliance and FCC Part 15 Class B. It also lists EMC-related standards including EN 55015, EN IEC 61000-3-2, EN 61000-3-3, and EN 61547-1.
