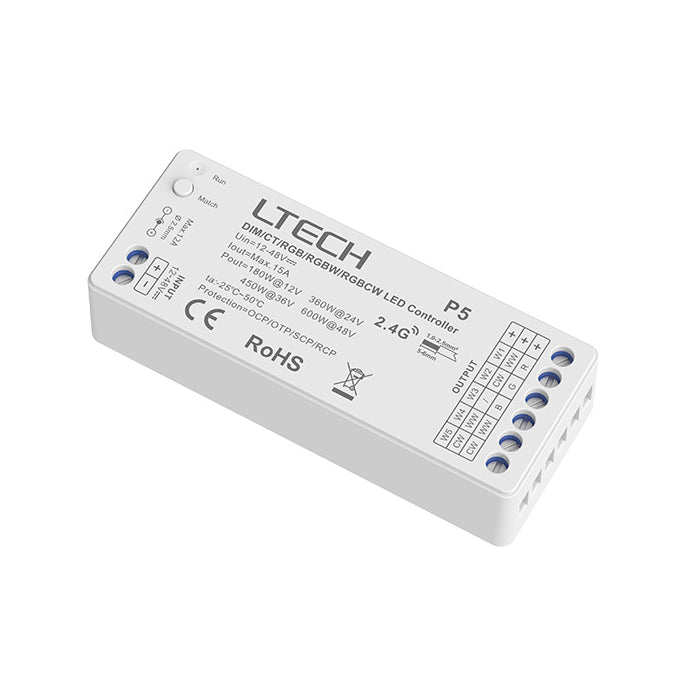

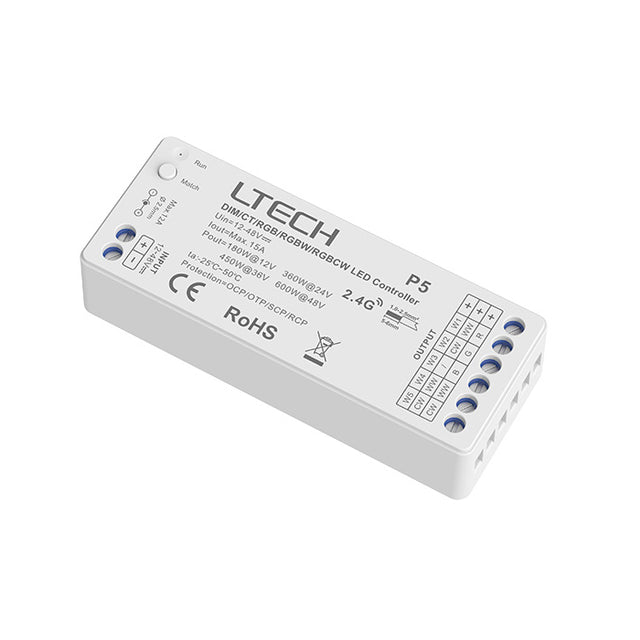

Ltech P5 5 Channel Receiver - 5 Channels 3A per Channel, 12-24V
Please Login for Pricing
Description
Description
Features:
- Small size and light weight. The housing is made from V0 flame retardant PC materials from SAMSUNG/COVESTRO.
- With soft-on and fade-in dimming function, enhancing your visual comfort.
- 2.4GHz wireless signal , no signal wire needed.
- 5 channels with constant voltage output.
- Control DIM, CT, RGB, RGBW, RGBCW light.
- Work with a MINI series RF 2.4GHz remote.
- Built-in 12 dynamic modes.
- One controller can be controlled by 10 remotes.
- Sync dynamic effects between controllers in the same group/zone.
General Specification
Model
P5
Input Signal
RF2.4GHz
Input Voltage
12-24V
Output Voltage
12-24V
Load Current
3A×5CH Max. 15A
Load Power
180W@12V 360W@24V
Protection
Over Temperature Protection, Anti Reverse Connection Protection
Working temp.
-25°C~50°C
Dimension
L91×W37×H21(mm)
Package Size
L94×W39×H22(mm)
Weight(G.W.)
46g
Specifications
Specifications
-
BrandLtech
-
SeriesLtech WIFI Series
-
Power Rating180 Watt
-
Output Voltage12 Volt
-
Rated Current15 Ampere
-
Input Voltage12V~24V
-
Standards MetCE,FC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~50°C
-
Warranty5 Year
-
Length9.1 cm
-
Width3.7 cm
-
Height2.1 cm
-
Weight0.05 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of lighting can the Ltech P5 control?
The Ltech P5 is a 5-channel constant-voltage receiver designed to control DIM, CT, RGB, RGBW, and RGBCW lighting. That makes it suitable for a range of LED lighting control applications where 12-24V constant-voltage fixtures are used.
What are the key electrical specifications of the Ltech P5?
This model operates on 12-24V DC input and provides 5 output channels rated at 3A per channel, with a 15A maximum total load current. Its maximum load power is 180W at 12V and 360W at 24V.
Is the Ltech P5 compatible with RF remote controls?
Yes. The P5 uses a 2.4GHz RF input signal and is designed to work with Ltech MINI series RF 2.4GHz remotes. One receiver can be controlled by up to 10 remotes.
Can multiple Ltech P5 receivers run synchronized effects?
Yes. The P5 supports sync of dynamic effects between controllers in the same group or zone. It also includes 12 built-in dynamic modes for coordinated lighting effects across compatible receivers.
Is the Ltech P5 suitable for demanding commercial environments?
The P5 is built with a V0 flame-retardant PC housing and supports operating temperatures from -25°C to 50°C. It also includes over-temperature protection and anti-reverse connection protection, which helps support reliable use in professional environments.
How compact is the Ltech P5 receiver?
The Ltech P5 is a compact receiver measuring 91 x 37 x 21 mm and weighing 46 g gross. Its small size and light weight make it a practical option where space is limited.
