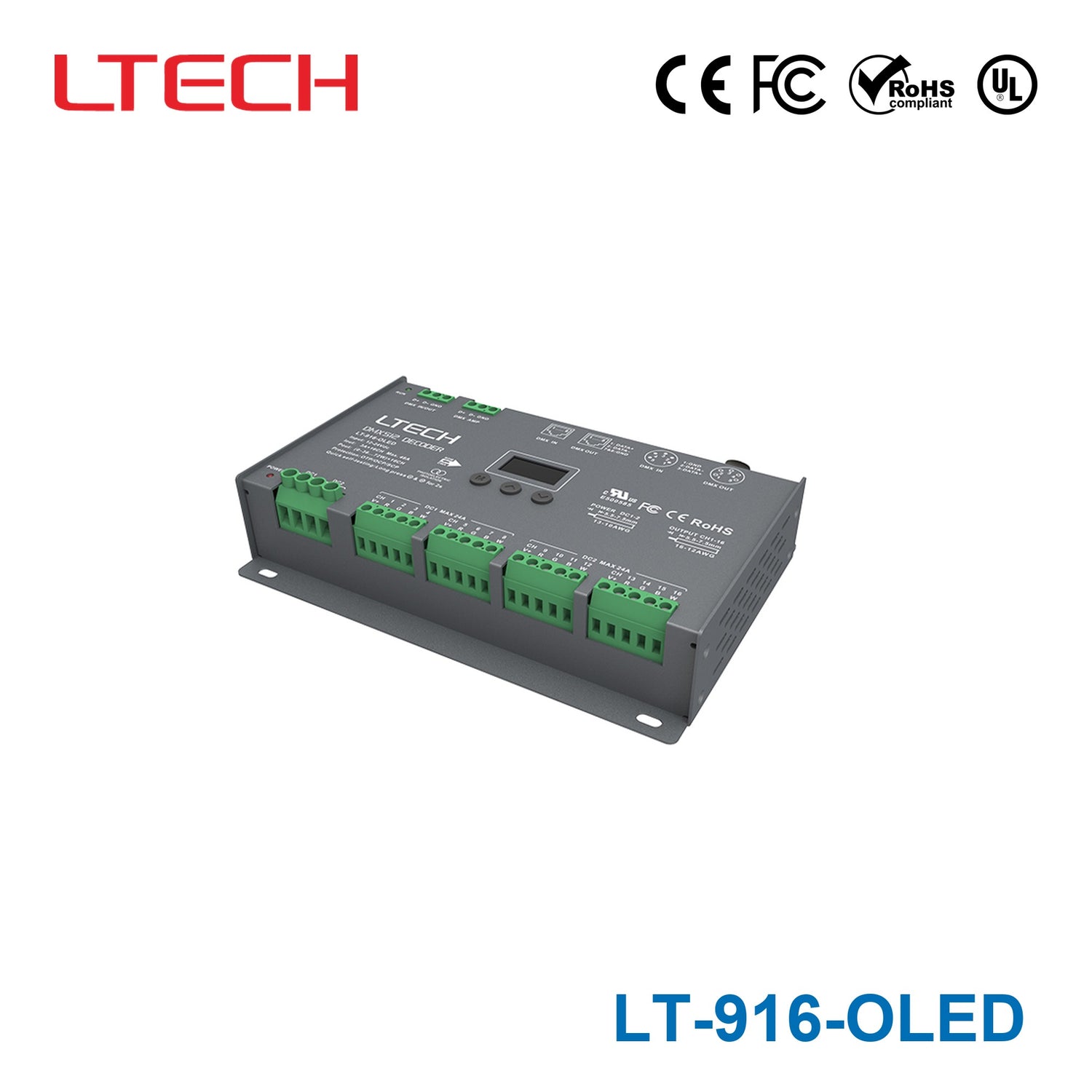

Ltech LT-916-OLED Constant Voltage Decoder - DMX/RDM
Please Login for Pricing
Description
Description
- Designed for Hi-power multiple channels application, 16 channels output, and
Max. 3A current per channel, up to 1152W output power.
- Easy operation with OLED screen and touch buttons.
- 4 kinds of mode optional: single color, color temperature, RGB, RGBW.
- Support 3 kinds of DMX ports with signal isolation function: 5-pin XLR, RJ45 and
green terminal (with signal amplifier function).
- With RDM remote management protocol, the operations can be completed via the
RDM master console, such as parameters browsing & setting, DMX address
setting, equipment recognition, etc.
- With photoelectric isolation function.
- With short circuit protection and over current protection, as well as warning
function when fault.
- With fast self-testing function.
- 16bit (65536 levels) / 8bit (256 levels) grey level optional.
- Multiple dimming curve (0.1~9.9) optional.
Specifications
Specifications
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating1152 Watt
-
Output Voltage24 Volt
-
Rated Current48 Ampere
-
Input Voltage12V~24V
-
Standards MetCE,FCC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~65°C
-
Warranty5 Year
-
Length18 cm
-
Width12.2 cm
-
Height3.9 cm
-
Weight0.73 kg
