Ltech

Ltech Intelligent Touch Panel UB1(Bluetooth + DMX)

single colour12-24V4 zones4 scenes
SKU UB1
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

Intelligent Touch Panel is an American base wall switch, integrating Bluetooth 5.0 SIG Mesh and DMX signals. It is a simple but elegant design with CNC aviation aluminum frame and 2.5D tempered glass. The panel is suitable for multi-scene and multi-zone lighting control applications. Working with Bluetooth systems makes it more convenient and intelligent.

Specifications

UB1Specifications from the official datasheetDownload datasheet PDF

Technical Specs

Control mode
DIM
Input voltage
12-24VDC, Powered by Class 2
Wireless protocol type
Bluetooth 5.0 SIG Mesh
Output signal
DMX 512
Zones
4
Working temperature
-20°C~55°C
Dimensions(L×W×H)
120×75×30(mm)
Package size(L×W×H)
158×113×62(mm)
Weight(G.W.)
225g

Others

Warranty periods
2 years

Certifications & ratings

Certification marks
UL, CE, RoHS, FCC

Technical drawings

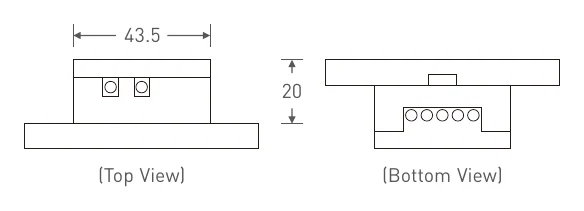

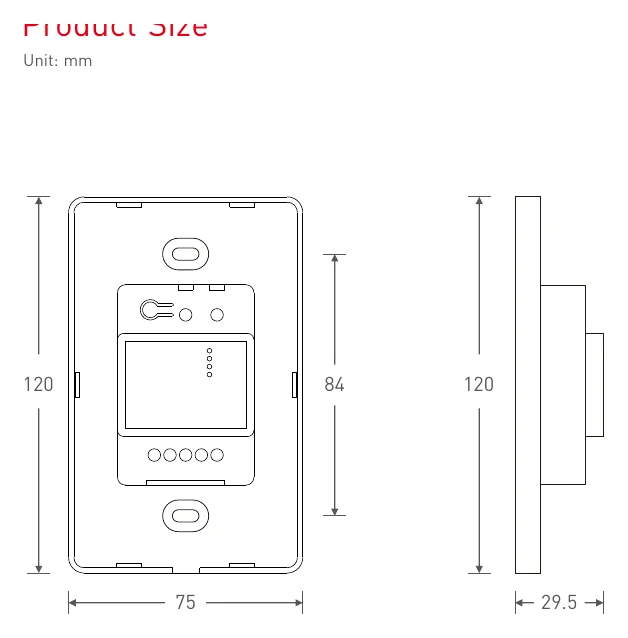

UB1 Unit: mm
Unit: mm
UB1 Illustration (page 3)
Illustration (page 3)
UB1 Illustration (page 4)
Illustration (page 4)
UB1 Illustration (page 5)
Illustration (page 5)

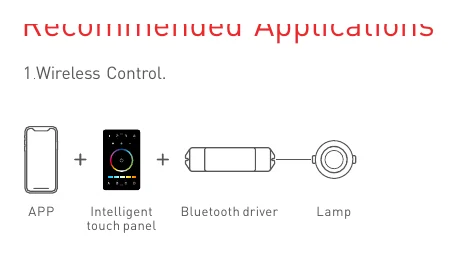

UB1 1.Wireless Control.
1.Wireless Control.

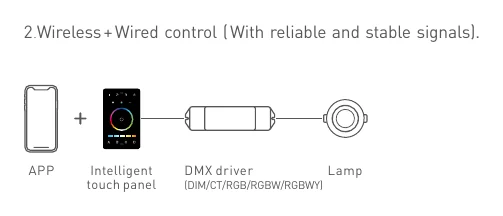

UB1 2.Wireless+Wired control (With reliable and stable signals).
2.Wireless+Wired control (With reliable and stable signals).

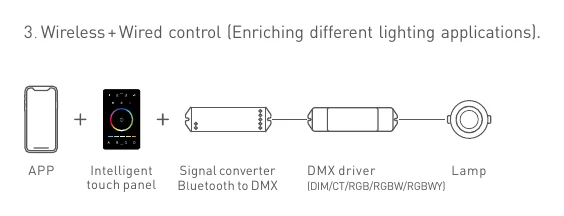

UB1 3.Wireless+Wired control (Enriching different lighting…
3.Wireless+Wired control (Enriching different lighting…

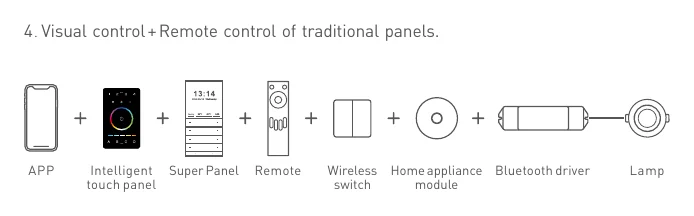

UB1 4.Visual control+Remote control of traditional panels.
4.Visual control+Remote control of traditional panels.

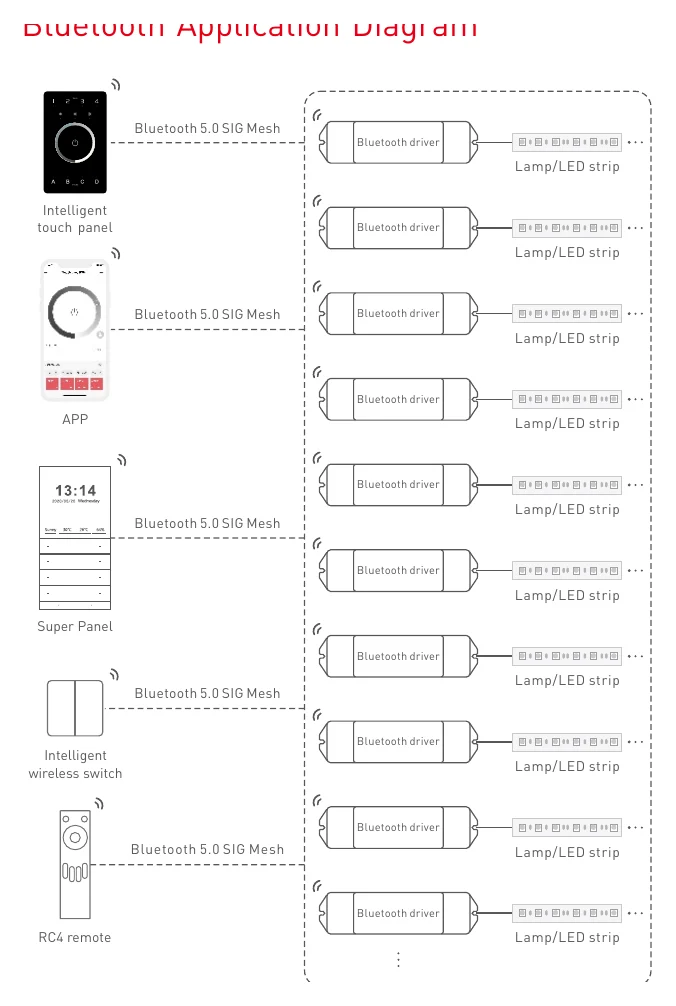

UB1 Bluetooth5.0SIG Mesh
Bluetooth5.0SIG Mesh
UB1 Zone1
Zone1

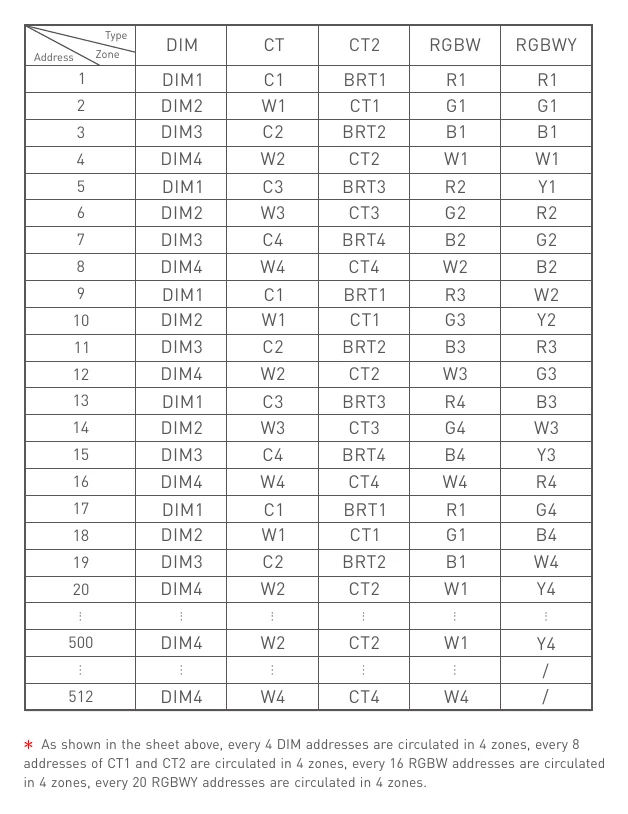

UB1 Type
Type

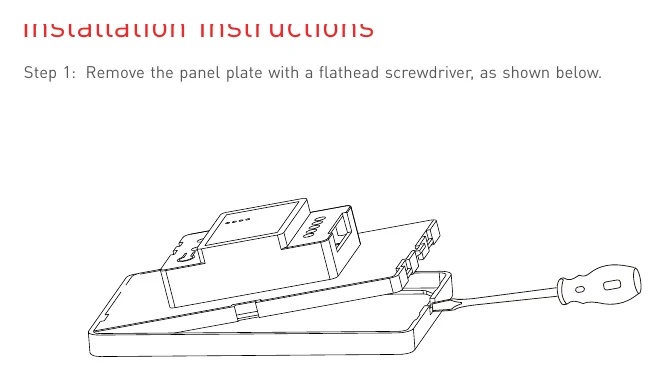

UB1 Step 1: Remove the panel plate with a flathead…
Step 1: Remove the panel plate with a flathead…

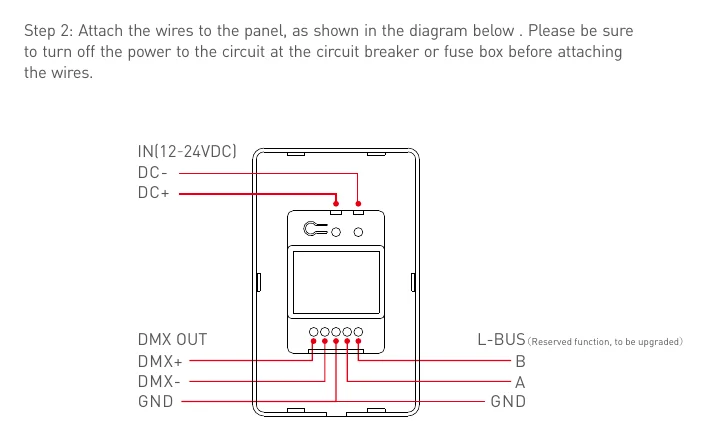

UB1 Step 2: Attach the wires to the panel, as shown in the…
Step 2: Attach the wires to the panel, as shown in the…

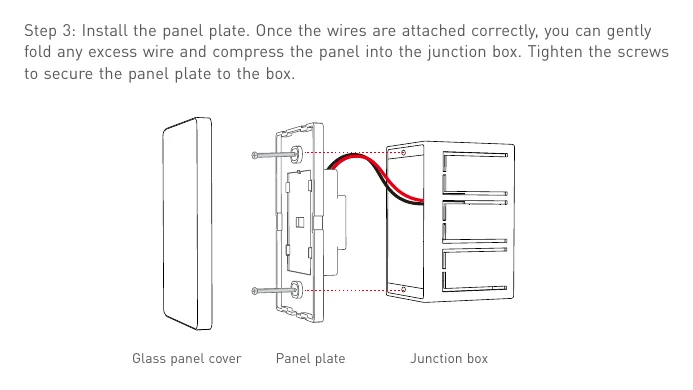

UB1 to secure the panel plate to the box.
to secure the panel plate to the box.
UB1 to secure the panel plate to the box. (2)
to secure the panel plate to the box. (2)
UB1 Scan and download the App
Scan and download the App

Downloads

FAQ

What is the Ltech Intelligent Touch Panel UB1(Bluetooth + DMX) used for?

The UB1 is designed for advanced lighting control in residential and commercial spaces. It combines Bluetooth 5.0 SIG Mesh wireless control with DMX 512 output, making it suitable for managing multi-scene and multi-zone lighting systems from a premium wall-mounted touch interface.

What control options does the UB1 support?

This model supports Bluetooth and DMX-based dimming control. That combination allows it to work in lighting environments where wireless control flexibility and DMX system integration are both important.

How many lighting zones can the UB1 manage?

The UB1 supports control of up to four lighting zones. It is intended for applications where users want separate control over multiple lighting areas while also accessing functions such as on/off switching, brightness adjustment, and scene selection.

What makes the UB1 different from a basic touch panel controller?

The UB1 is positioned as a premium intelligent touch panel rather than a basic controller. It stands out with Bluetooth 5.0 SIG Mesh integration, DMX 512 output, and support for multi-scene and multi-zone control.

Is the UB1 suitable for demanding indoor environments?

The UB1 is rated for operating temperatures from -20°C to 55°C, which supports use in a wide range of indoor project conditions. Its robust build helps provide a durable and refined finish for professional spaces.

What kind of lighting systems is the UB1 compatible with?

The UB1 is built for lighting control systems that use Bluetooth and DMX-based control methods. It is especially relevant for projects that need a standalone intelligent touch panel for LED control, dimming, remote control, and broader lighting system applications.
