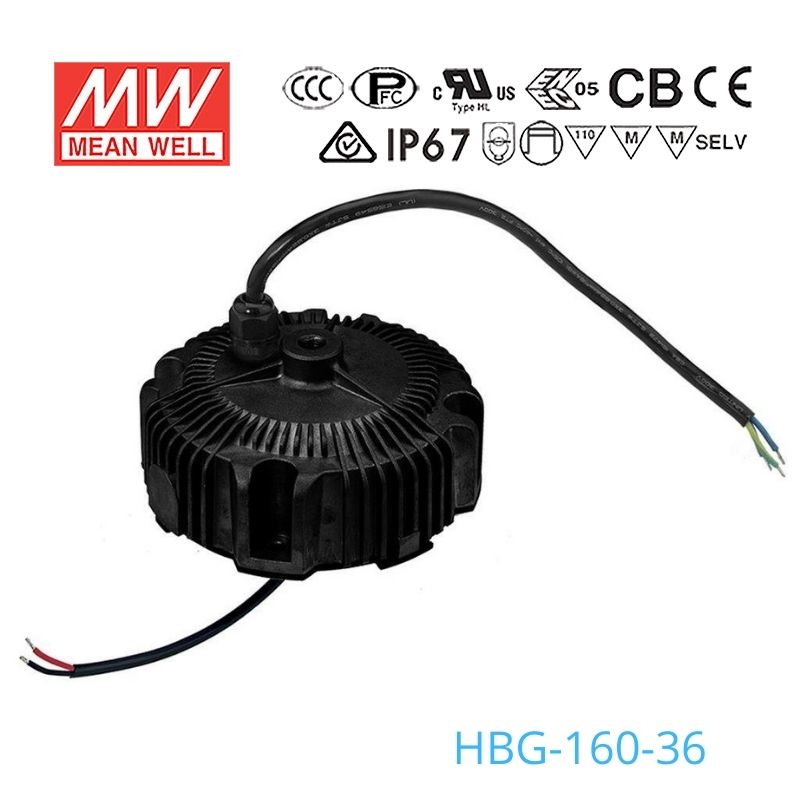

Mean Well HBG-160-36 Power Supply 160W 36V
Please Login for Pricing
Description
Description
The HBG-160 is a 160W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating158.4 Watt
-
Output Voltage36 Volt
-
Rated Current4.4 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length15.17 cm
-
Width15.17 cm
-
Height6.65 cm
-
Weight1.53 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HBG-160-36 for a 36V LED sign or illuminated display?
It can fit a 36V lighting load if the fixture stays within 158.4W and 4.4A. The IP67 waterproof rating also makes it suitable for outdoor or wet-location lighting applications.
Is the HBG-160-36 a good match for a 36V high bay or low bay fixture?
Yes, the series is specified for high/low bay light use, and this model provides 36V output up to 158.4W. The connected load should operate within the 21-36V constant current range.
Can this 36V driver be used for outdoor architectural lighting?
It can be used with a compatible 36V lighting load up to 158.4W. Its IP67 waterproof enclosure and -40°C to +85°C operating range support exposed outdoor conditions when the fixture matches the 21-36V CC range.
How much 36V LED strip can the HBG-160-36 support?
Use the strip-length formula 158.4W divided by the strip's rated watts per meter. For example, maximum length = 158.4 ÷ strip W/m, but check your strip rated power per meter and confirm it is a 36V load within the 21-36V CC range.
Is the HBG-160-36 suitable for wet or outdoor installations?
Yes, this model is rated IP67 waterproof for dust-tight and wet-location use. It is also specified for operation from -40°C to +85°C, which helps in harsher environments.
What are the differences between the HBG-160 24V, 36V, 48V, and 60V models?
The HBG-160-24 is 156W at 6.5A with a 14-24V CC range, while the HBG-160-36 is 158.4W at 4.4A with a 21-36V CC range. The HBG-160-48 is 158.4W at 3.3A with a 28-48V CC range, and the HBG-160-60 is 156W at 2.6A with a 36-60V CC range.
