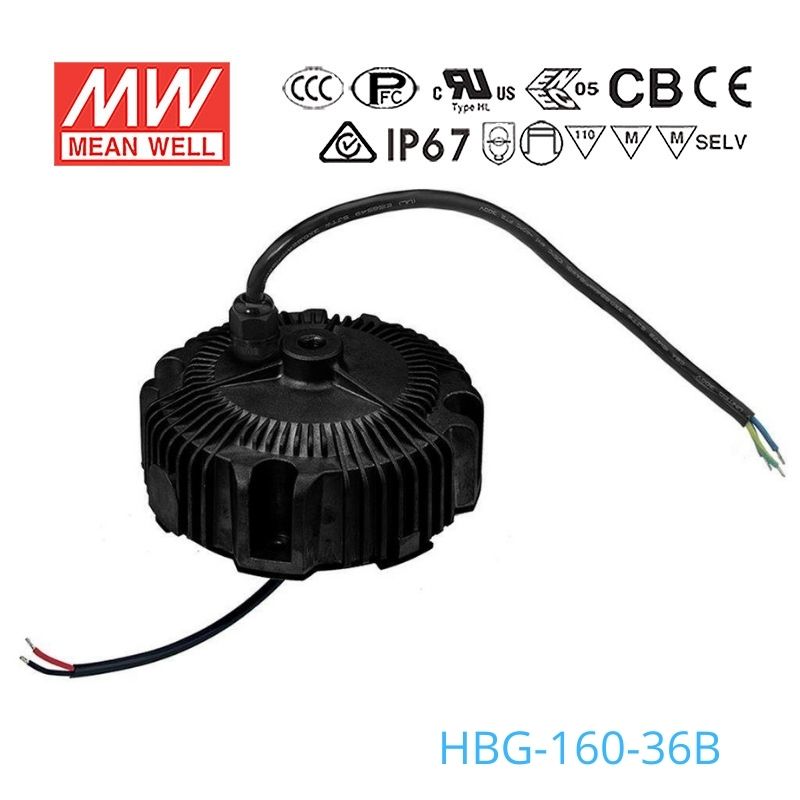

Mean Well HBG-160-36B 160W 36V - Dimmable LED Driver | Constant Voltage + Constant Current

Name: Mean Well HBG-160-36B Power Supply 160W 36V - Dimmable 4.4A
Brand: Mean Well
SKU: HBG-160-36B
Price: 192.28 NZD
Availability: InStock

Overview

HBG-160-36B is the 36V output model of this series: rated current 4.4A, rated power 158.4W, typical efficiency 92%.

HBG-160 series is a 160W AC/DC LED driver featuring the circular shape design. It operates from 90~305VAC and offers the dual modes constant voltage and constant current output models with different rated voltage between 24V and 60V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HBG-160 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output

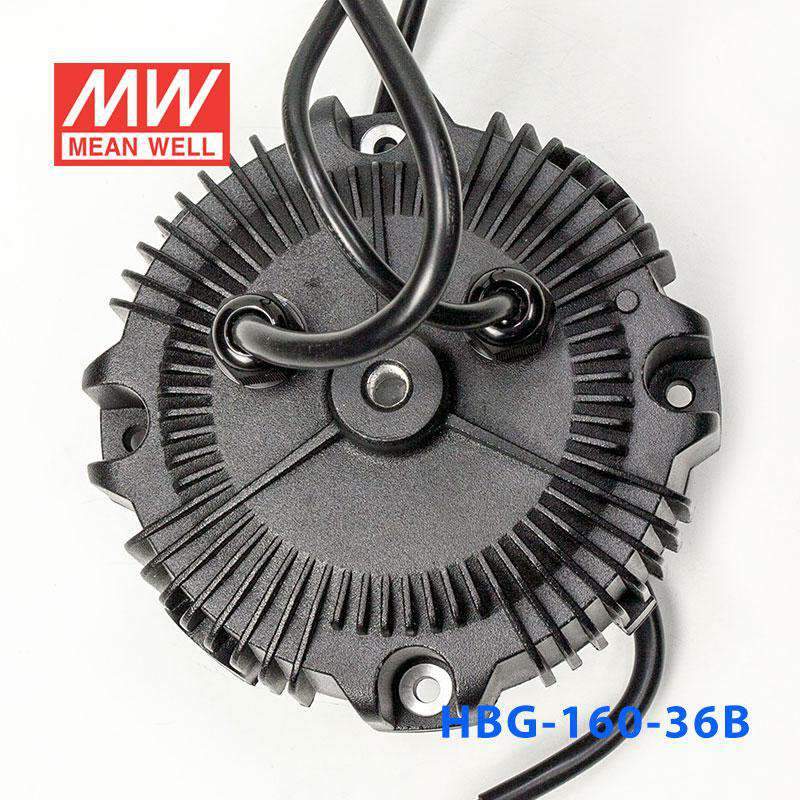

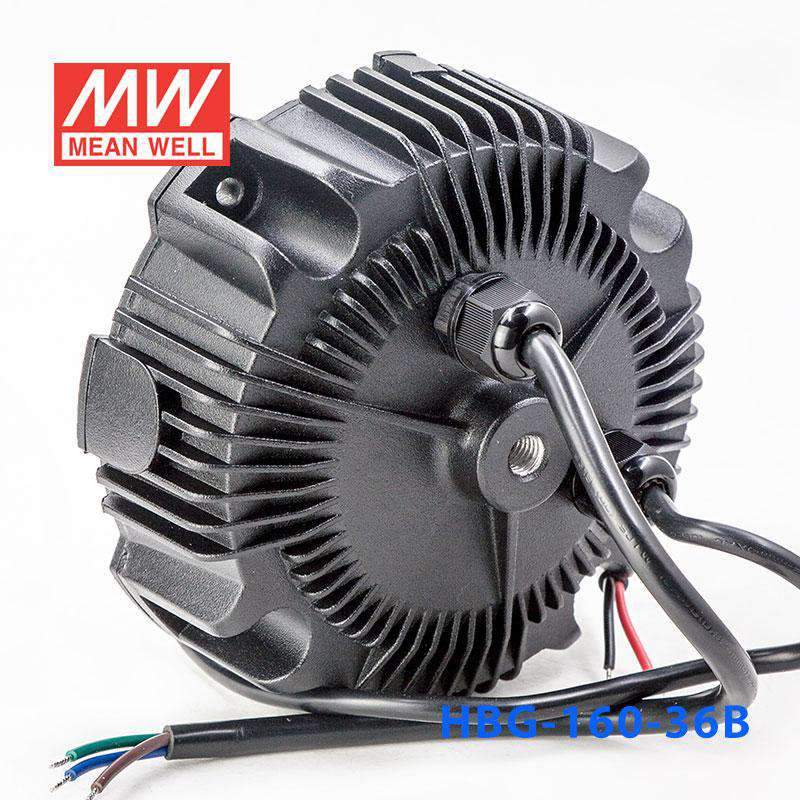

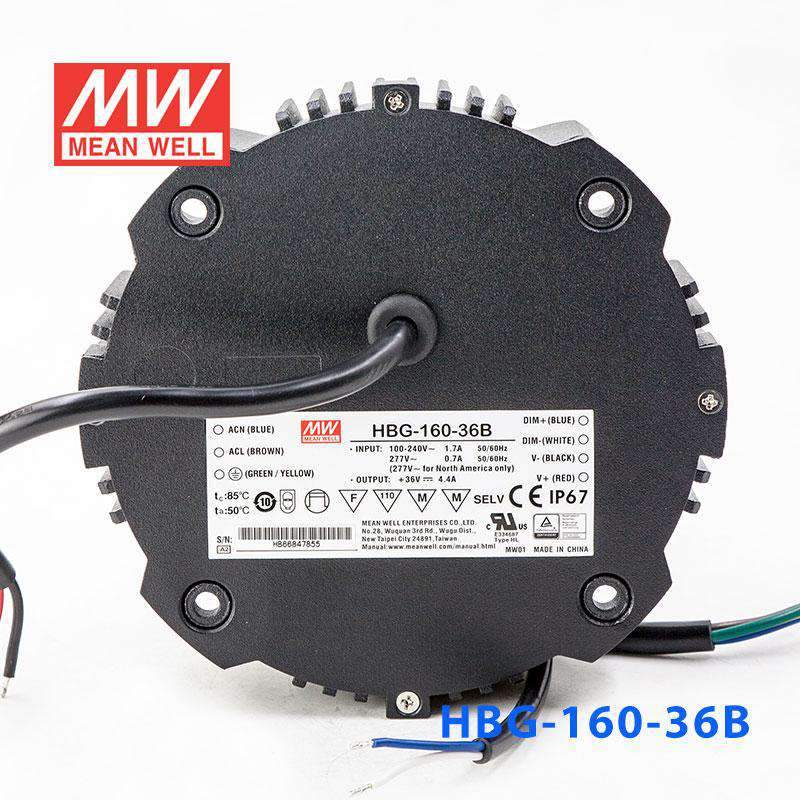

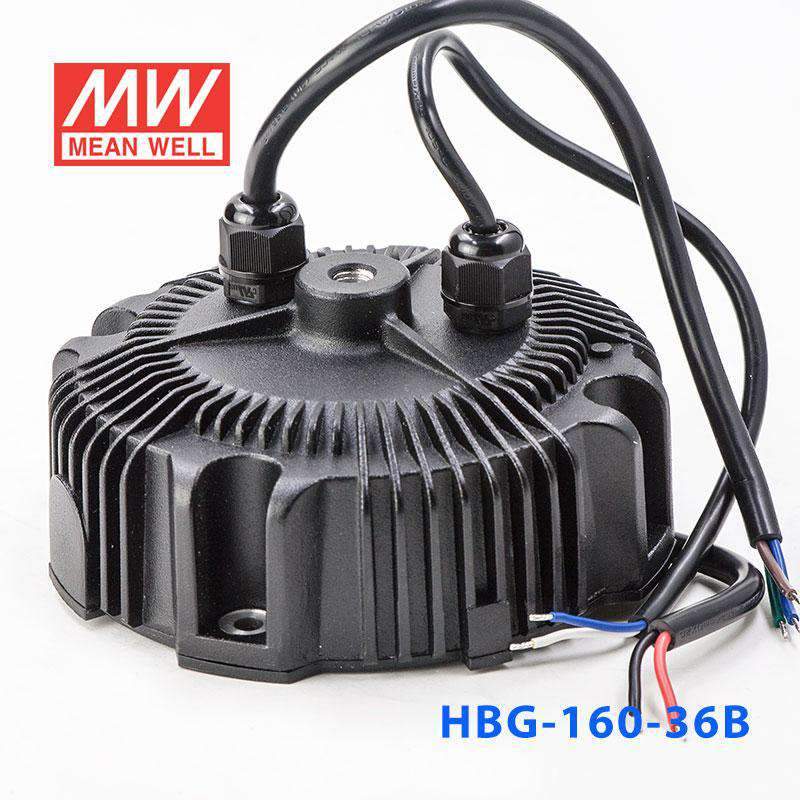

Circular metal housing with classⅠ design
Built-in active PFC function
IP67 / IP65 rating for indoor or outdoor installations
Type HL for use in Class I, Division 2 hazardous (Classified) location.
Function options: output adjustable via potentiometer; 3 in 1 dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

HBG-160-36BSpecifications from the official datasheet (2019-12-19 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE: 36V
CONSTANT CURRENT REGION^Note.2: 21.6 ~ 36V
RATED CURRENT: 4.4A
RATED POWER: 158.4W
RIPPLE & NOISE (max.)^Note.3: 300mVp-p
CURRENT ADJ. RANGE: 2.6 ~ 4.4A
VOLTAGE TOLERANCE^Note.4: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME^Note.6: 2500ms, 200ms / 115VAC 500ms, 200ms / 230VAC
HOLD UP TIME (Typ.): 12ms /115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)^Note.7: 92%
AC CURRENT (Typ.): 1.7A / 115VAC 0.78A / 230VAC 0.7A / 277VAC
INRUSH CURRENT (Typ.): COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 41 ~ 47V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”),CSA C22.2 No.250.13-12, TUV EN61347-1,EN61347-2-13; BIS IS15885(for 36A,48A,48B,60A,60DA only), EAC TP TC 004, GB19510.1,GB19510.14, IP65 or IP67 approved, design refer to TUV EN60950
DALI STANDARDS: Compliance to IEC62386-101, 102, 207 for DA-Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55015, EN61000-3-2 Class C (@load≧60%) ; EN61000-3-3, GB17743 and GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547,light industry level (surge immunity:Line-Earth:4KV,Line-Line:2KV), EAC TP TC 020

OTHERS

MTBF: 783.1K hrs min. Telcordia SR-332 (Bellcore) ; 252.3Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: ψ151.68mm *66.5mm (D * H)
PACKING: 1.53Kg; 8pcs/13.8Kg/1.61CUFT

Test conditions and notes13

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to “DRIVING METHODS OF LED MODULE”.
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The DA type power supply is less efficient than the typical efficiency in specification by 1%.
8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
9. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
10. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly Tc point (or TMP, per DLC), is about 70℃ or less.
11. Please refer to the warranty statement on MEAN WELL’s website at http://www.meanwell.com
12. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HBG-160-36B BLOCK DIAGRAM — BLOCK DIAGRAM

HBG-160-36B DIMMING OPERATION — DIMMING OPERATION

HBG-160-36B Illustration (page 5) — Illustration (page 5)

HBG-160-36B OUTPUT LOAD vs TEMPERATURE(Note.11) — OUTPUT LOAD vs TEMPERATURE(Note.11)

HBG-160-36B STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HBG-160-36B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HBG-160-36B MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

HBG-160-36B INSTALLATIONS — INSTALLATIONS

Typical applications

LED bay lighting
LED stage lighting
LED spot lighting

Downloads

Datasheet1

HBG-160-36B datasheethbg_160_spec.pdf · 2019-12-19 edition PDF Download

Certificates5

UL Certificate (HBG-160)(EN) PDF Download

TUV Certificate(HBG-160)(EN) PDF Download

CB Certificate(HBG-160)(EN) PDF Download

EMC Certificate(HBG-160)(EN) PDF Download

CCC Certificate(HBG-160)(CN) PDF Download

Test reports1

Test Report(HBG-160-36)(EN) PDF Download

Catalogues2

Mean Well LED Driver Catalog PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

Can I use the HBG-160-36B for a 36V outdoor sign or facade lighting load?

It can fit a 36V lighting load if the total demand stays within 158.4W and 4.4A. Its IP67 waterproof rating makes it suitable for outdoor or wet-location lighting where a protected enclosure is not available.

Is the HBG-160-36B appropriate for a 36V high bay fixture in an industrial space?

Yes, the HBG series is specified for high/low bay light use, and this model provides up to 158.4W at 36V. The load needs to operate within the 21-36V constant current range.

Can this driver be used for exterior architectural lighting in cold or hot conditions?

This model is rated for -40°C to +85°C operation and has an IP67 waterproof enclosure. That combination supports outdoor lighting use when the 36V load remains within 158.4W and 4.4A.

How do I estimate the supported length of a 36V LED strip with the HBG-160-36B?

Use the driver's maximum wattage divided by the strip's watts per meter: 158.4 ÷ strip W/m. Check your strip rated power per meter and confirm the strip is a 36V load that fits within the 21-36V CC range.

Is the HBG-160-36B suitable for wet or washdown environments?

Yes, it is rated IP67 waterproof, which is intended for dust-tight and wet-location use. The specified operating temperature range is -40°C to +85°C, so both enclosure rating and temperature range support harsher environments.

How does the HBG-160-36B compare to the other HBG-160 voltage models?

The 24V version is 156W at 6.5A with a 14-24V CC range, and the 36V version including this model is 158.4W at 4.4A with a 21-36V CC range. The 48V version is 158.4W at 3.3A with a 28-48V CC range, while the 60V version is 156W at 2.6A with a 36-60V CC range.
