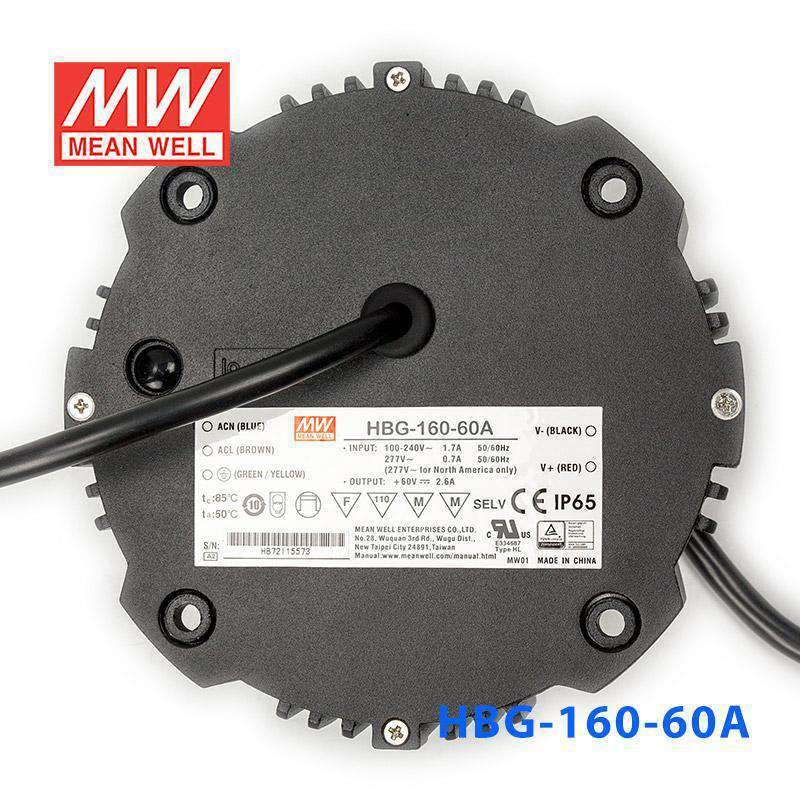

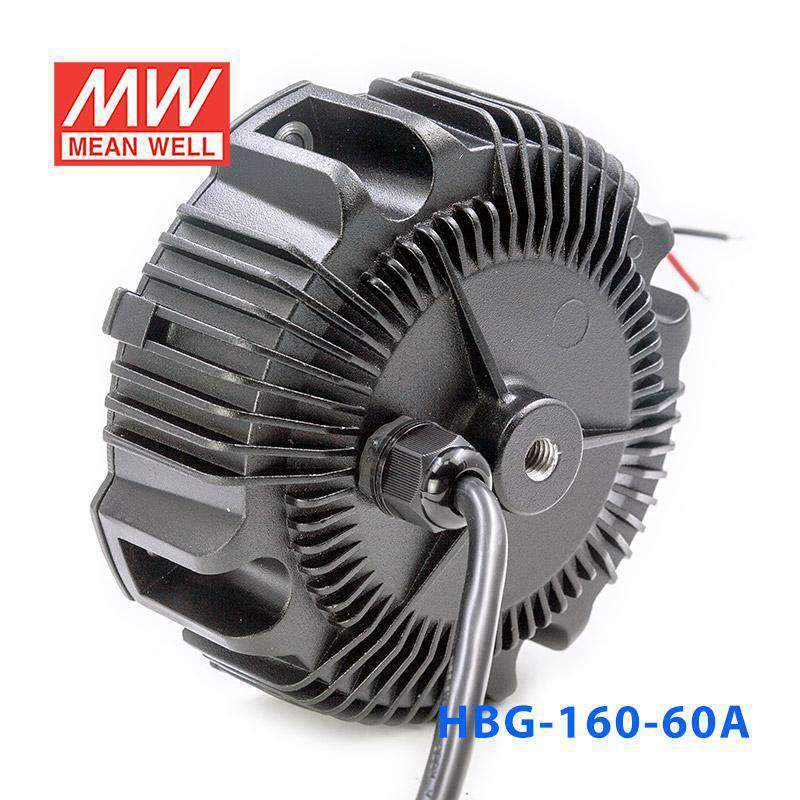

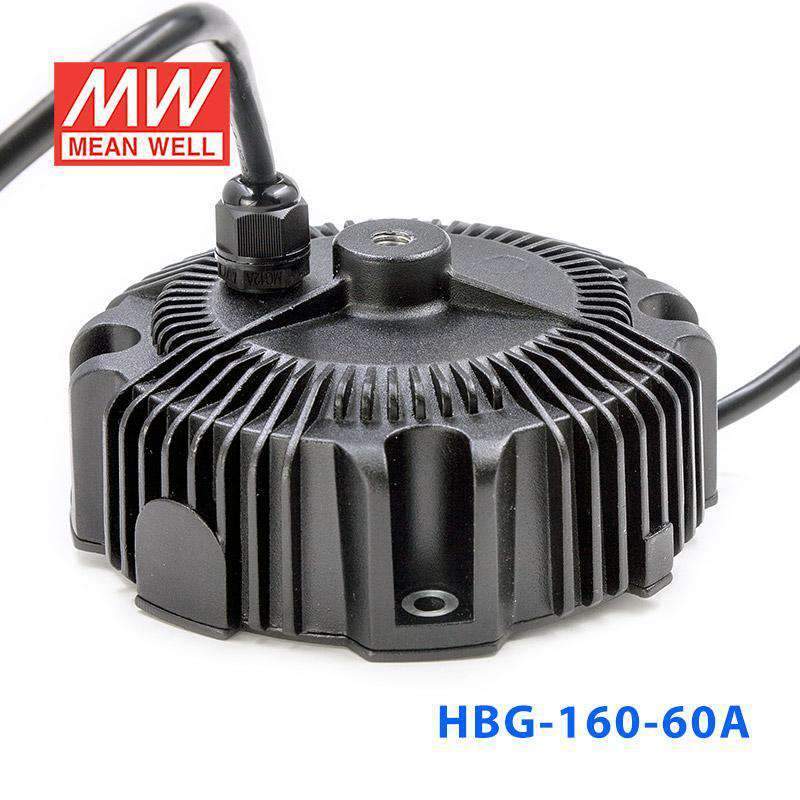

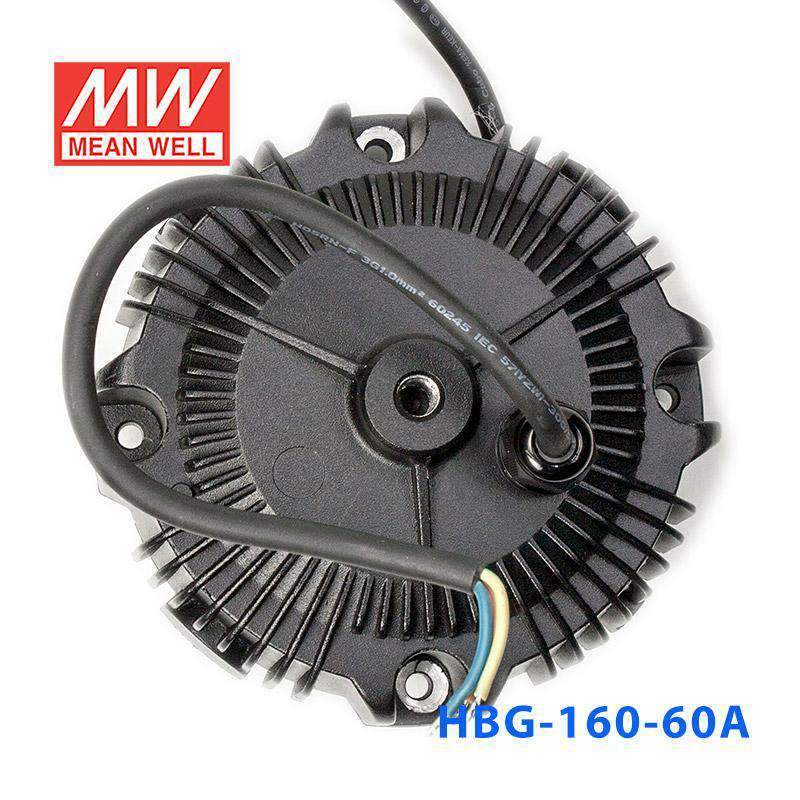

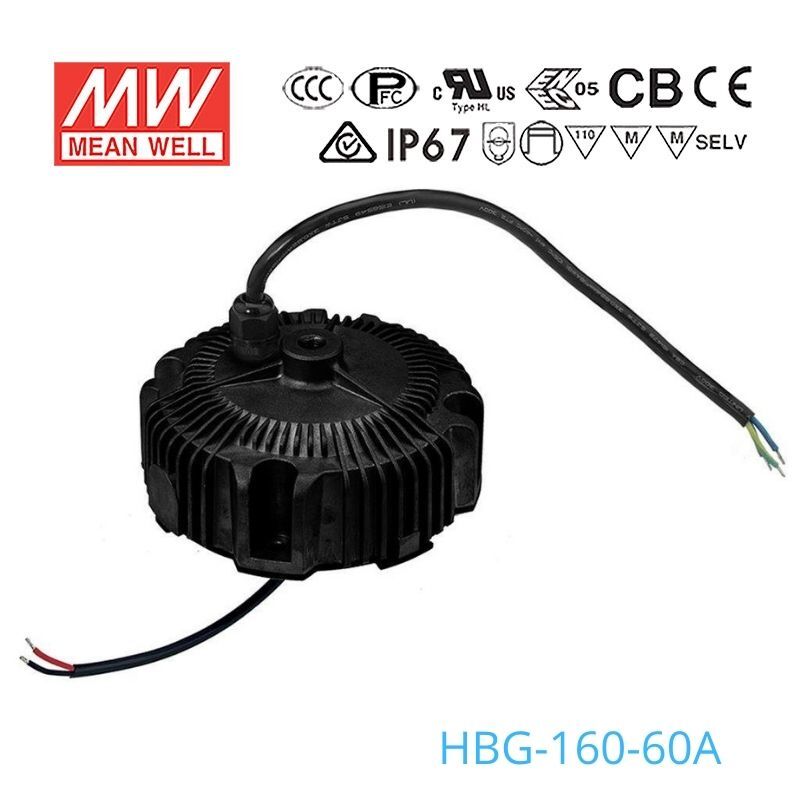

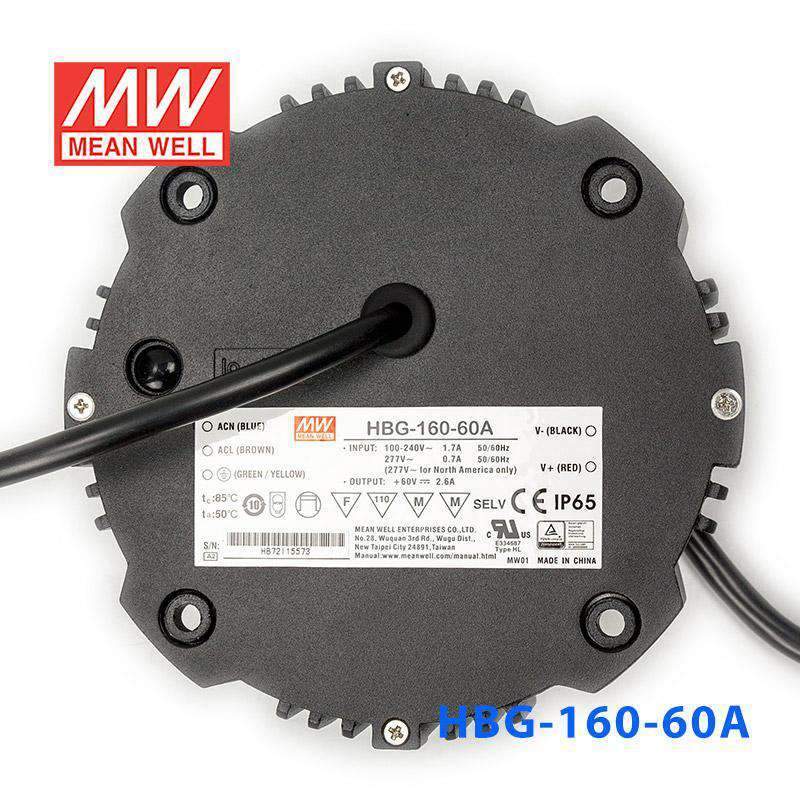

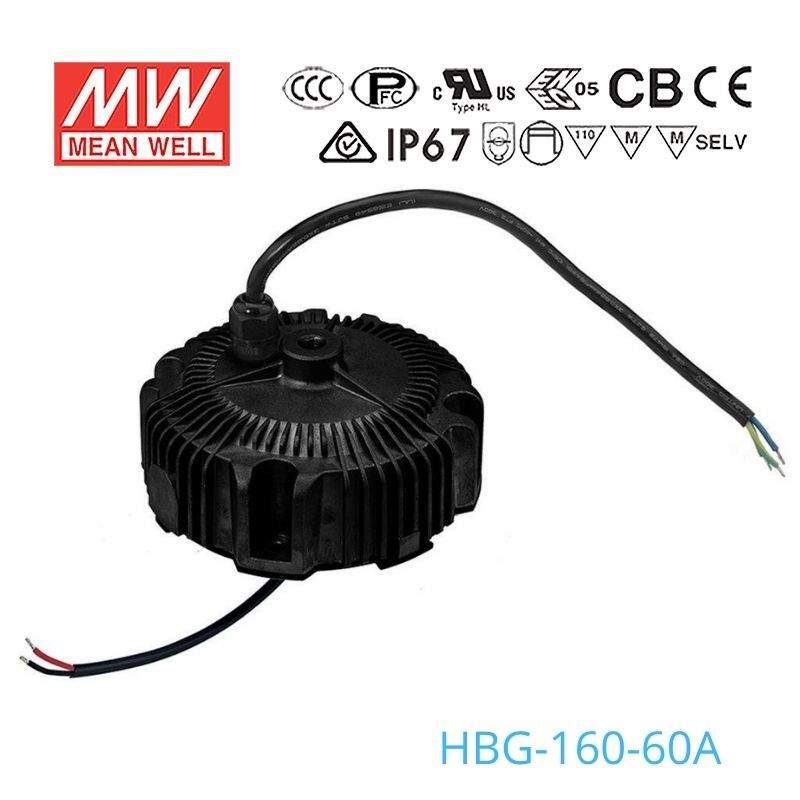

Mean Well HBG-160-60A Power Supply 160W 60V - Adjustable
Please Login for Pricing
Description
Description
The HBG-160 is a 160W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating156 Watt
-
Output Voltage60 Volt
-
Rated Current2.6 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length15.17 cm
-
Width15.17 cm
-
Height6.65 cm
-
Weight1.53 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the HBG-160-60A be used for a 60V low bay or high bay retrofit?
Yes, the feature set specifically lists high/low bay light use, and this model is a constant current driver with a 36-60V range. It delivers 156W at 2.6A, which fits higher-power 60V fixture designs.
Is the HBG-160-60A suitable for sheltered outdoor 60V lighting?
It can be used in outdoor lighting applications where IP65 water resistance is sufficient and the fixture needs a 60V constant current driver. The -40°C to +85°C operating temperature range supports broad ambient conditions.
Can I use this driver for 60V LED signage lighting?
Yes, if the signage lighting assembly is designed for constant current operation between 36V and 60V and does not exceed 156W or 2.6A. Its rating makes it more suitable for larger sign lighting systems than for small low-load applications.
What is the maximum 60V LED strip load for the HBG-160-60A?
The driver is rated for 156W maximum output, so strip length can be estimated with 156W / strip watts per meter. That gives the maximum meters based on your strip's rated power. Check your strip rated power per meter and confirm it is compatible with a 60V constant current driver.
Can the HBG-160-60A be used in rainy or washdown areas?
This model is IP65 water-resistant, so it is appropriate for dust protection and water spray exposure. If the environment needs a fully waterproof rating, the IP67 versions in the same family are the better match.
How does the HBG-160-60A compare with the other HBG-160 voltage versions?
The HBG-160 family steps through 24V at 156W and 6.5A, 36V at 158.4W and 4.4A, 48V at 158.4W and 3.3A, and 60V at 156W and 2.6A, with each version having its own CC voltage range. The HBG-160-60A is the adjustable 60V model with a 36-60V CC range.
