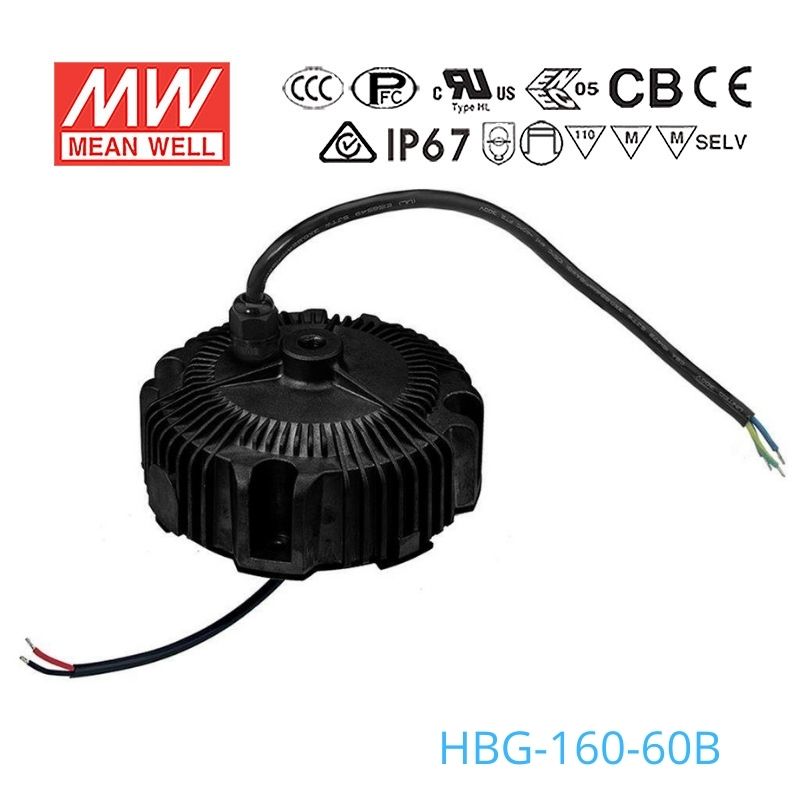

Mean Well HBG-160-60B Power Supply 160W 60V - Dimmable
Please Login for Pricing
Description
Description
The HBG-160 is a 160W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating156 Watt
-
Output Voltage60 Volt
-
Rated Current2.6 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length15.17 cm
-
Width15.17 cm
-
Height6.65 cm
-
Weight1.53 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the Mean Well HBG-160-60B for a high bay LED light?
Yes, this model is intended for high and low bay lighting and has a circular shape that fits that style of fixture. It delivers 156W in constant current mode with a 36-60V CC range and 2.6A output, so the LED load must match that operating range.
Can this power supply be used for outdoor or wet-location LED lighting?
Yes, the HBG-160-60B is rated IP67 waterproof, so it is suited to outdoor or wet-location lighting environments where that protection level is required. It also has an operating temperature range of -40°C to +85°C, so the load still needs to be a 36-60V constant current LED system within 156W.
Can I use the HBG-160-60B for LED signage or sign lighting?
It can work for LED signage if the sign uses a constant current LED load that operates within 36-60V. The driver provides up to 156W at 2.6A and has an IP67 metal case, which makes it suitable for signage exposed to dust or water.
Can I use this driver with a 60V LED strip?
Only if the LED strip is a 36-60V constant current product, because this is a constant current LED driver rather than a general-purpose constant voltage supply. The maximum load is 156W, so the strip's total rated power must stay within 156W.
How much LED strip can the HBG-160-60B run?
Use the formula: maximum strip length = 156W / your strip's rated power per meter. Check your strip rated power per meter, and also confirm the strip is designed for 36-60V constant current operation before sizing the run.
What is the difference between the HBG-100-60B, HBG-160-60B, and HBG-200-60B?
All three are B-type dimmable models in the same 36-60V constant current family, but their output power and current are different. HBG-100-60B is 96W at 1.6A, HBG-160-60B is 156W at 2.6A, and HBG-200-60B is 198W at 3.3A.
