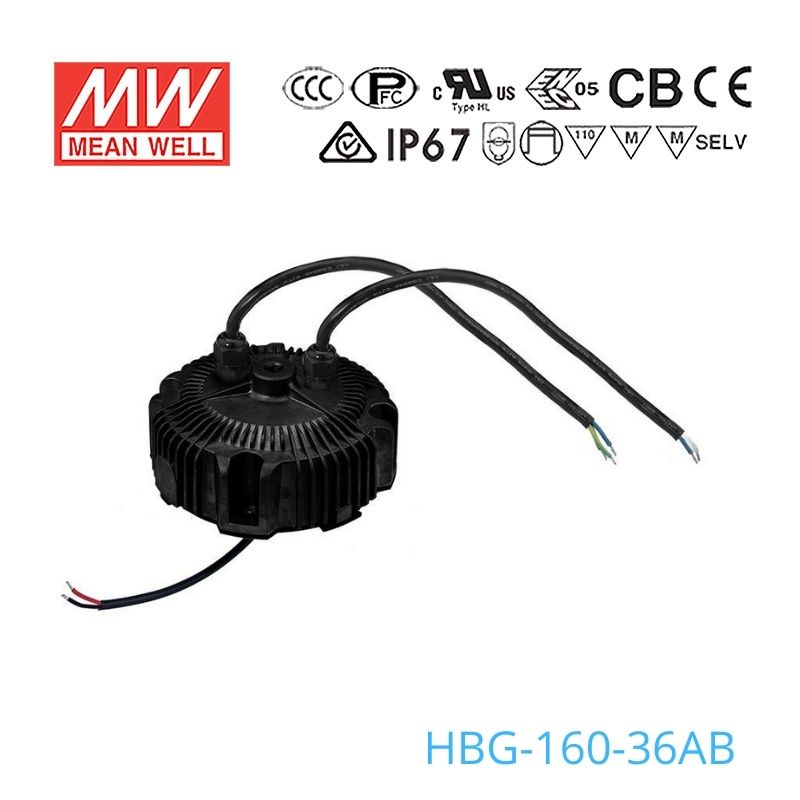

Mean Well HBG-160-36AB Power Supply 160W 36V - Adjustable and Dimmable
Please Login for Pricing
Description
Description
The HBG-160 is a 160W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating158.4 Watt
-
Output Voltage36 Volt
-
Rated Current4.4 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length15.17 cm
-
Width15.17 cm
-
Height6.65 cm
-
Weight1.53 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HBG-160-36AB for a 36V commercial sign lighting load?
It can fit a 36V lighting load when the total load stays within 158.4W and 4.4A. This version is IP65 water-resistant, so it is more appropriate for indoor or sheltered outdoor sign lighting than fully exposed wet locations.
Is the HBG-160-36AB suitable for a 36V low bay or high bay luminaire?
Yes, the HBG series is specified for high/low bay light use, and this model provides 36V output up to 158.4W. The fixture should operate within the stated 21-36V constant current range.
Can this driver be used for protected outdoor architectural lighting?
It can be used with a compatible 36V lighting load up to 158.4W in a protected outdoor location. The IP65 enclosure is water-resistant, but it does not provide the same wet-location margin as the IP67 versions in the series.
How much 36V LED strip can the HBG-160-36AB support?
The maximum strip length is calculated as 158.4W divided by the strip's watts per meter. Use 158.4 ÷ strip W/m, and check your strip rated power per meter while confirming the strip is a 36V load within the 21-36V CC range.
Is the HBG-160-36AB waterproof enough for exposed outdoor use?
This model is rated IP65 water-resistant, not IP67 waterproof. It can handle dust and water spray, but if the location is fully exposed to wet conditions, the enclosure rating is the key limitation to review.
What is the sibling overview for HBG-160 series output options?
The HBG-160-24 is rated 156W at 6.5A with a 14-24V CC range, while the HBG-160-36 family is 158.4W at 4.4A with a 21-36V CC range. The HBG-160-48 is 158.4W at 3.3A with a 28-48V CC range, and the HBG-160-60 is 156W at 2.6A with a 36-60V CC range.
