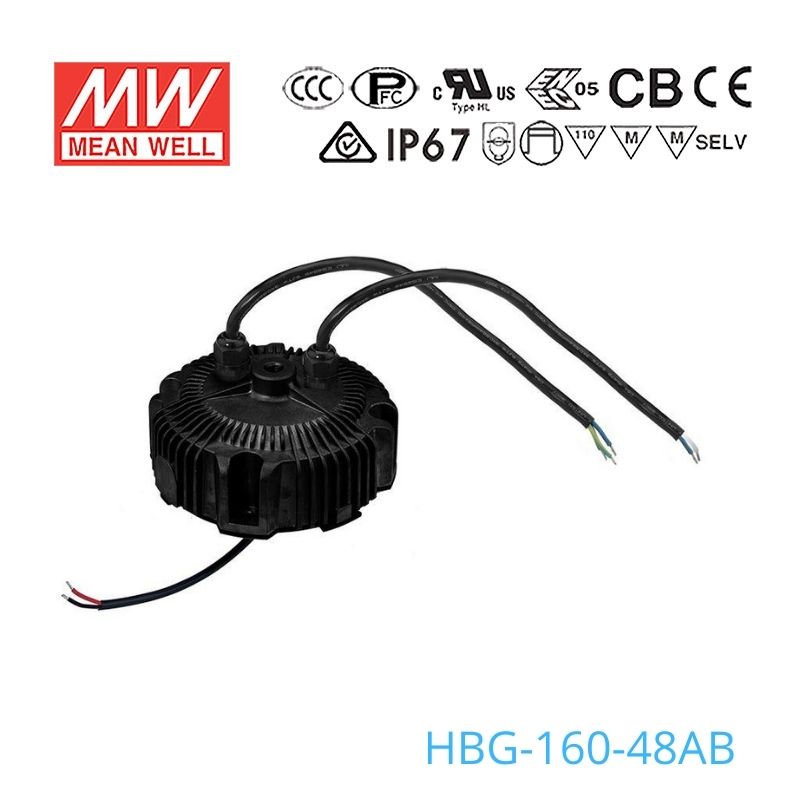

Mean Well HBG-160-48AB Power Supply 160W 48V - Adjustable and Dimmable
Please Login for Pricing
Description
Description
The HBG-160 is a 160W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating158.4 Watt
-
Output Voltage48 Volt
-
Rated Current3.3 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length15.17 cm
-
Width15.17 cm
-
Height6.65 cm
-
Weight1.53 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the Mean Well HBG-160-48AB for a 48V high bay or low bay light?
Yes, this model is intended for high and low bay lighting and provides 48V output in constant current mode. It supports a 28-48V constant current range, delivers up to 158.4W, and is rated at 3.3A. Its circular shape and metal case are also part of the HBG series design for this lighting category.
Is the HBG-160-48AB suitable for 48V LED signage or outdoor lighting displays?
It can be a fit for 48V LED signage or lighting displays if the load is designed for constant current operation within the 28-48V range. The driver provides up to 158.4W and has an IP65 water-resistant rating, which helps for exposed lighting environments. Check that the sign or display matches the 48V output and 3.3A operating requirement.
Can I use this driver for 48V LED strip lighting?
It may work for 48V LED strip systems only if the strip is designed for constant current operation in the 28-48V range. This unit is not a general-purpose constant voltage supply; it is a constant current LED driver rated for 48V, 3.3A, and 158.4W. Confirm the strip's electrical requirement before pairing it with this model.
Is this power supply appropriate for industrial or warehouse lighting in hot or cold conditions?
Yes, the operating temperature range is -40°C to +85°C, which suits demanding indoor or outdoor lighting environments. The IP65 water-resistant housing and metal case also support use in harsher conditions than dry indoor-only drivers. It is still important to use it within its 90-305VAC input range and 158.4W output rating.
How much 48V LED strip can the HBG-160-48AB support?
The driver can supply up to 158.4W total, so the maximum strip length is calculated as 158.4W divided by your strip's rated watts per meter. For sizing, use the formula 158.4 ÷ strip W/m = maximum theoretical meters. Also verify the strip is a 48V constant current design and not a different driver type.
What is the difference between the HBG-160-24AB, HBG-160-36AB, HBG-160-48AB, and HBG-160-60AB?
These HBG-160 AB models mainly differ by output voltage, constant current range, and rated power. The HBG-160-24AB is 156W with a 14-24V range, the HBG-160-36AB is 158.4W with a 21-36V range, the HBG-160-48AB is 158.4W with a 28-48V range, and the HBG-160-60AB is 156W with a 36-60V range. The HBG-160-48AB is the 48V option within that sibling group.
