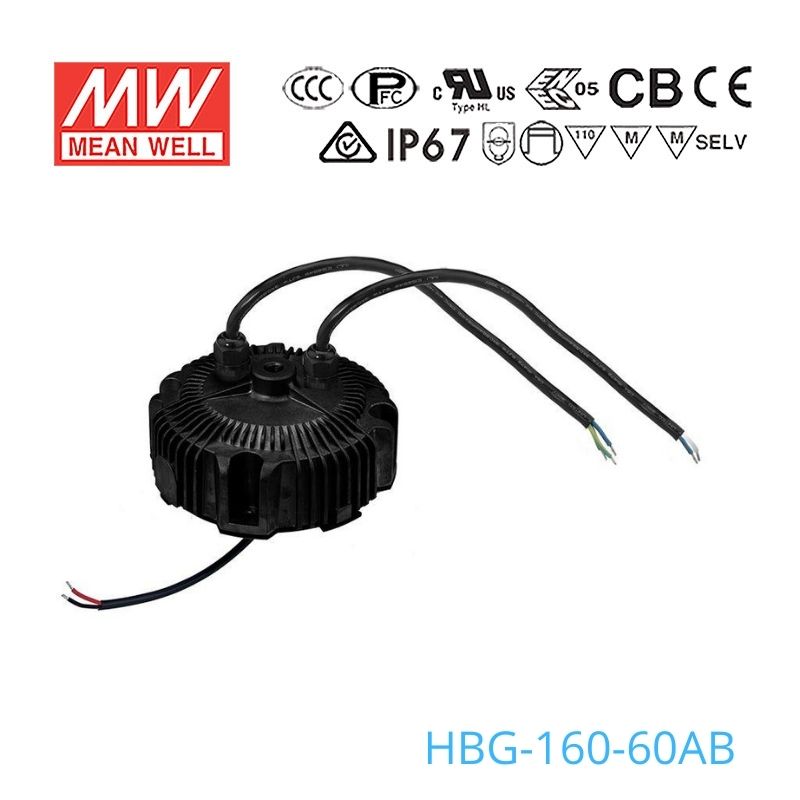

Mean Well HBG-160-60AB Power Supply 160W 60V - Adjustable and Dimmable 2.6A
Request a quote for one or many products — we'll reply with pricing and availability.
Overview
HBG-160-60AB is the 60V output model of this series: rated current 2.6A, rated power 156W, typical efficiency 93.5%. Type AB: Io adjustable through built-in potentiometer with 3 in 1 dimming function (IP65).
HBG-160 series is a 160W AC/DC LED driver featuring the circular shape design. It operates from 90~305VAC and offers the dual modes constant voltage and constant current output models with different rated voltage between 24V and 60V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit indoor and outdoor applications. HBG-160 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Features
- Constant Voltage + Constant Current mode output
- Circular metal housing with classⅠdesign
- Built-in active PFC function
- IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming
- Typical lifetime>50000 hours
- 5 years warranty
Model encoding
| Type | Function |
|---|---|
| Blank | Io fixed; IP67 |
| A | Io adjustable through built-in potentiometer; IP65 |
| B | 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67 |
| AB (this model) | Io adjustable through built-in potentiometer with 3 in 1 dimming function; IP65 |
| DA | DALI control technology; IP67 |
Specifications
OUTPUT
- DC VOLTAGE
- 60V
- CONSTANT CURRENT REGIONNote.2
- 36 ~ 60V
- RATED CURRENT
- 2.6A
- RATED POWER
- 156W
- RIPPLE & NOISE (max.)Note.3
- 300mVp-p
- CURRENT ADJ. RANGE
- 1.6 ~ 2.6A
- VOLTAGE TOLERANCENote.4
- ±2.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIMENote.6
- 2500ms, 200ms / 115VAC 500ms, 200ms / 230VAC
- HOLD UP TIME (Typ.)
- 12ms /115VAC, 230VAC
INPUT
- VOLTAGE RANGENote.5
- 90 ~ 305VAC 127~417VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR
- PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to "TOTAL HARMONIC DISTORTION(THD)" section)
- EFFICIENCY (Typ.)Note.7
- 93.5%
- AC CURRENT (Typ.)
- 1.7A / 115VAC 0.78A / 230VAC 0.7A / 277VAC
- INRUSH CURRENT (Typ.)
- COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
PROTECTION
- OVER CURRENT
- 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 65 ~ 75V
- OVER TEMPERATURE
- Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +85℃ (Please refer to " OUTPUT LOAD vs TEMPERATURE" section)
- MAX. CASE TEMP.
- Tcase=+85℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750(type"HL"),CSA C22.2 No.250.13-12, TUV BS EN/EN61347-1,BS EN/EN61347-2-13; BIS IS15885(for 36A,48A,48B,60A, 60DA only), EAC TP TC 004, GB/T19510.1,GB/T19510.213, IP65 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level (surge immunity:Line-Earth:4KV, Line-Line:2KV), EAC TP TC 020
OTHERS
- MTBF
- 2047.8K hrs min. Telcordia SR-332 (Bellcore) ;194.1K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- ψ151.68mm *66.5mm (D * H)
- PACKING
- 1.53Kg; 8pcs/13.8Kg/1.37CUFT
Certifications & ratings
- Type
- Type HL
Test conditions and notes12
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE".
- 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 4. Tolerance : includes set up tolerance, line regulation and load regulation.
- 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 6. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
- 8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
- 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 13. For A/AB type need to consider build-in using or filling the Io adjusting hole with the potting compound to comply with Type HL application.
Technical drawings
Typical applications
- LED bay lighting
- LED stage lighting
- LED spot lighting
- Type "HL" for use in Class I, Division 2 hazardous (Classified) location.
Downloads
Datasheet1
Certificates5
Test reports1
FAQ
Can I use the HBG-160-60AB for a 60V commercial high bay fixture?
Yes, this constant voltage + constant current LED driver is intended for high/low bay light use and operates across a 36-60V CC range. It provides 156W total power at 2.6A for larger 60V fixture designs.
Is the HBG-160-60AB appropriate for 60V LED lighting in damp industrial spaces?
It can be used in damp or industrial environments where IP65 water resistance is suitable and the fixture is designed for a 60V driver. The case temperature (Tcase) range of -40°C to +85°C, with output derating at higher temperatures, also supports tougher conditions.
Can this model be used for 60V sign cabinet or display lighting?
Yes, if the sign or display lighting system is specified for constant current operation within the 36-60V range and does not exceed 156W. Its output current is 2.6A, so the load needs to match that driver profile.
How many meters of 60V LED strip can the HBG-160-60AB run?
Use the power rating to estimate it: 156W divided by the strip's watts per meter equals the maximum strip length. The math is 156W / watts per meter = maximum meters. Check your strip rated power per meter and verify the strip is a 60V product that suits this constant voltage + constant current driver.
Is the HBG-160-60AB suitable for outdoor use?
It is rated IP65 water-resistant, so it can be used in outdoor or damp locations where protection against dust and water spray is enough. For more demanding wet exposure, the IP67 HBG-160-60 variants provide a higher enclosure rating.
What are the main spec differences across HBG-160 family voltage choices?
The 24V versions are 156W with a 14.4-24V CC range at 6.5A, the 36V versions are 158.4W with a 21.6-36V CC range at 4.4A, the 48V versions are 158.4W with a 28.8-48V CC range at 3.3A, and the 60V versions are 156W with a 36-60V CC range at 2.6A. The HBG-160-60AB is the adjustable and dimmable 60V model in that set.
