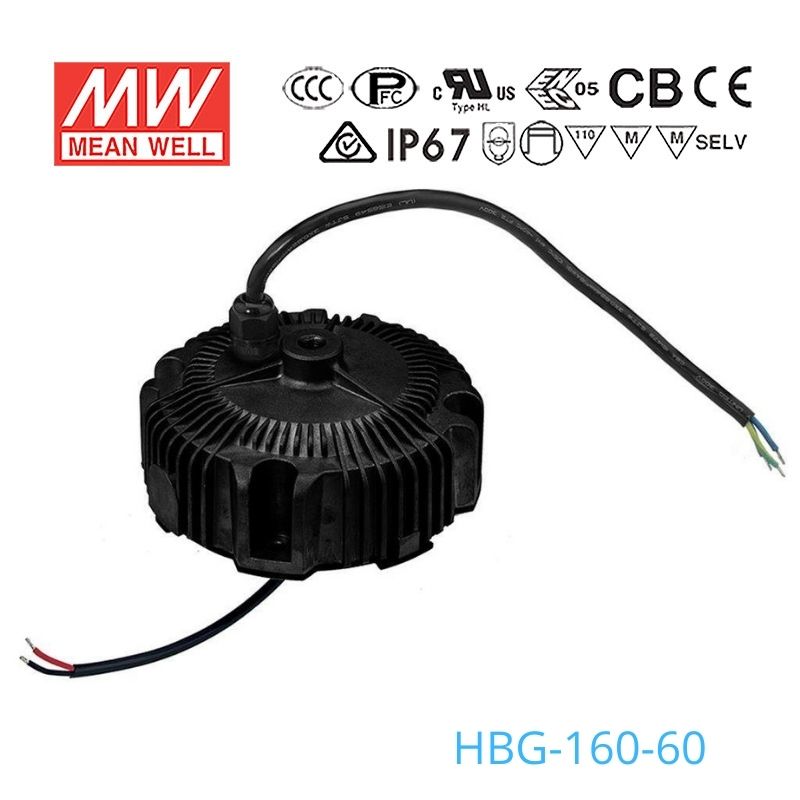

Mean Well HBG-160-60 Power Supply 160W 60V
Please Login for Pricing
Description
Description
The HBG-160 is a 160W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating156 Watt
-
Output Voltage60 Volt
-
Rated Current2.6 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length15.17 cm
-
Width15.17 cm
-
Height6.65 cm
-
Weight1.53 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HBG-160-60 for a 60V high bay LED fixture?
Yes, this model is intended for high/low bay light use and delivers constant current output across a 36-60V CC range. It provides up to 156W at 2.6A, which suits larger 60V-class LED fixtures.
Is the HBG-160-60 suitable for outdoor 60V architectural lighting?
It can be used for outdoor architectural lighting fixtures that require a 60V constant current driver and do not exceed 156W. The IP67 waterproof rating and -40°C to +85°C operating temperature range support exposed and demanding environments.
Can this driver power a 60V LED sign or display lighting system?
It can, provided the lighting system is designed for constant current operation within the 36-60V range and 2.6A output. With 156W available, it is aimed at larger sign or display lighting loads rather than small low-power modules.
How much 60V LED strip can the HBG-160-60 support?
The maximum available power is 156W, so estimated strip length is 156W divided by your strip wattage per meter. The math is 156W / watts per meter = maximum meters. Check your strip rated power per meter and make sure the strip is compatible with this 60V constant current driver.
Is the HBG-160-60 good for wet or fully exposed outdoor locations?
Yes, this version is rated IP67 waterproof, so it is intended for harsher outdoor and wet-location use than an IP65 water-resistant unit. It also supports operation from -40°C to +85°C, which helps in hot or cold environments.
What changes when you move from HBG-160-48 to HBG-160-60?
The HBG-160-48 versions are 158.4W with a 28-48V CC range at 3.3A, while the HBG-160-60 versions are 156W with a 36-60V CC range at 2.6A. The HBG-160-60 is the higher-voltage option in the same 160W family.
