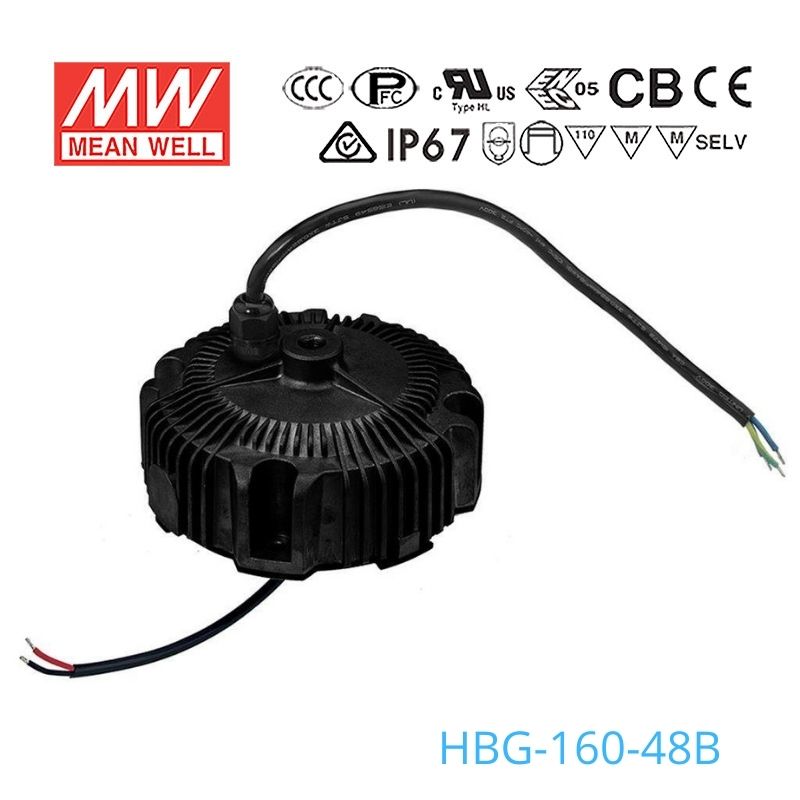

Mean Well HBG-160-48B Power Supply 160W 48V - Dimmable
Please Login for Pricing
Description
Description
The HBG-160 is a 160W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating158.4 Watt
-
Output Voltage48 Volt
-
Rated Current3.3 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length15.17 cm
-
Width15.17 cm
-
Height6.65 cm
-
Weight1.53 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the Mean Well HBG-160-48B for a 48V high bay LED light?
Yes, this model is built for high and low bay lighting and provides a 48V output with 158.4W maximum power. It operates in constant current mode at 3.3A, so the fixture must be designed to work with a constant current LED driver in the 28-48V range.
Is the HBG-160-48B suitable for 48V low bay lighting?
Yes, this LED driver is intended for high and low bay light applications and has a circular shape that fits that style of fixture. Its 48V output, 3.3A output current, and 158.4W rating need to match the light engine's required constant current operating range of 28-48V.
Can I use this driver for outdoor 48V LED signage?
It can work for outdoor 48V signage if the sign lighting is designed for a constant current LED driver operating in the 28-48V range at 3.3A. The IP67 waterproof rating supports wet locations, but the lighting load still has to stay within 158.4W.
Will this work with 48V LED strip lighting?
It can only be used with 48V LED strip products that are specifically designed to run from a constant current driver. This unit outputs 3.3A in a 28-48V constant current range up to 158.4W, so check whether the strip requires constant current or constant voltage before pairing it.
How much 48V LED strip can the HBG-160-48B run?
The driver can supply up to 158.4W total at 48V. To estimate maximum strip length, divide 158.4W by your strip's rated power per meter, and check your strip rated power per meter so the total load stays within 158.4W.
Is the HBG-160-48B okay for outdoor or wet environments?
Yes, the housing is rated IP67 waterproof, so it is suited for wet and outdoor environments where that level of ingress protection is required. It is also rated for operation from -40°C to +85°C, which supports demanding temperature conditions.
