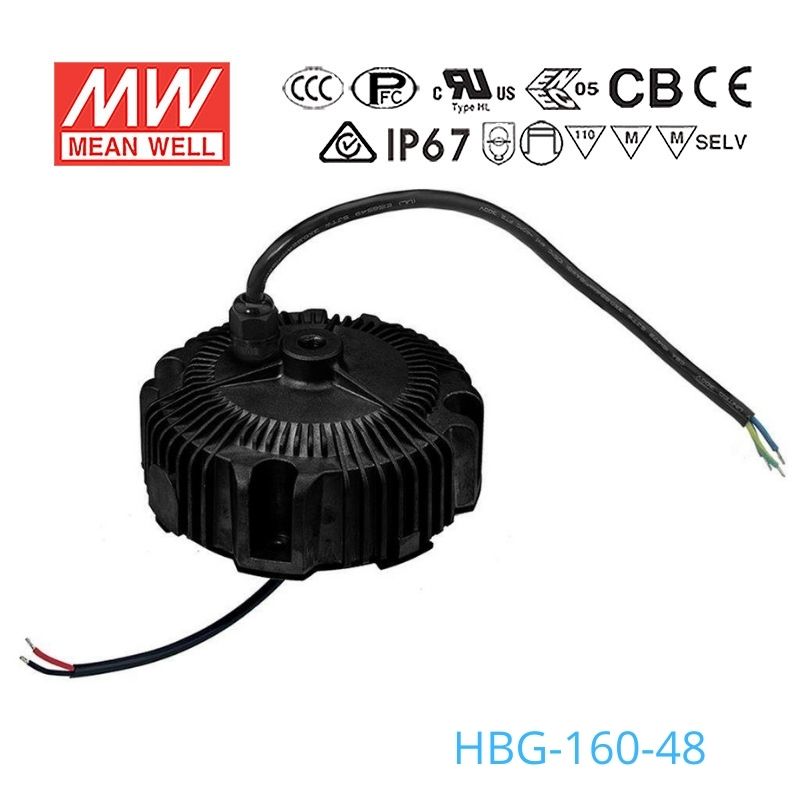

Mean Well HBG-160-48 Power Supply 160W 48V
Please Login for Pricing
Description
Description
The HBG-160 is a 160W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating158.4 Watt
-
Output Voltage48 Volt
-
Rated Current3.3 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length15.17 cm
-
Width15.17 cm
-
Height6.65 cm
-
Weight1.53 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the Mean Well HBG-160-48 for a 48V high bay LED light?
Yes, if the fixture is designed for constant current operation and its electrical requirement stays within the 28-48V constant current range. This model provides 48V output at 3.3A with 158.4W maximum power, and the HBG series is specified for high/low bay light use.
Is the HBG-160-48 a good fit for a UFO-style high bay fixture?
It can be, provided the UFO fixture needs a constant current LED driver with a 28-48V operating range and no more than 3.3A or 158.4W. The circular shape and metal case for 100W+ applications match the form factor commonly used in this type of lighting.
Can this LED driver be used for outdoor LED signage?
It can be used for outdoor signage if the sign uses a constant current LED load that falls within 28-48V and up to 3.3A. Its IP67 waterproof rating supports wet-location use, and the input range is 90-305VAC.
Can I use the HBG-160-48 with a 48V LED strip?
Only if the 48V LED strip is designed for constant current operation, because this is a constant current LED driver rather than a general constant voltage power supply. The maximum available power is 158.4W, so maximum strip length = 158.4W divided by your strip rated power per meter; check your strip rated power per meter before sizing.
Is the HBG-160-48 suitable for outdoor or wet locations?
Yes, it is rated IP67 waterproof, so it is built for wet and outdoor environments. The operating temperature range is -40°C to +85°C, which supports use in very cold and very hot conditions.
What is the difference between the HBG-160-24, HBG-160-36, HBG-160-48, and HBG-160-60?
The main differences are output voltage, current, and constant current range. HBG-160-24 is 156W, 6.5A, 14-24V; HBG-160-36 is 158.4W, 4.4A, 21-36V; HBG-160-48 is 158.4W, 3.3A, 28-48V; and HBG-160-60 is 156W, 2.6A, 36-60V.
