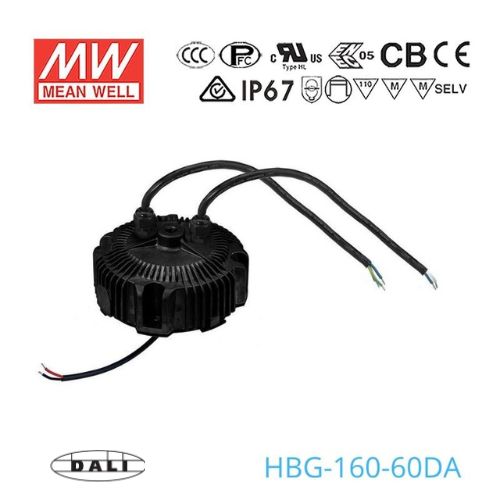

Mean Well HBG-160-60DA Power Supply 160W 60V - DALI
Please Login for Pricing
Description
Description
The HBG-160 is a 160W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating156 Watt
-
Output Voltage60 Volt
-
Rated Current2.6 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length15.17 cm
-
Width15.17 cm
-
Height6.65 cm
-
Weight1.53 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the Mean Well HBG-160-60DA for a 60V constant-current LED high bay light?
Yes, this model is designed for constant-current LED loads and provides 2.6A with a 36-60V constant-current range. Its circular shape and 156W rating make it suitable for high bay or low bay light fixtures that match those electrical requirements.
Is the HBG-160-60DA suitable for outdoor LED signage or wet-location lighting?
It is suitable for outdoor or wet-location use where an IP67 waterproof driver is required. The operating temperature range is -40°C to +85°C, so it can be used in demanding environmental conditions if the fixture itself is rated appropriately.
Can this driver be used for a 60V LED lighting application with DALI control?
Yes, the HBG-160-60DA is a 60V LED driver with DALI in the model designation, and it operates in constant-current mode at 2.6A. It should only be paired with LED lighting products whose electrical requirements fall within the 36-60V constant-current range and 156W maximum power.
Can I use the HBG-160-60DA for long runs of 60V LED strip lighting?
It can be used for 60V LED strip applications if the strip is compatible with a 60V, 2.6A, constant-current driver. For sizing, use the 156W maximum power and divide by your strip rated power per meter; for example, maximum length = 156W / strip watts per meter, and you should check your strip rated power per meter before selecting run length.
Is the Mean Well HBG-160-60DA okay for hot, cold, or exposed environments?
This driver is built for demanding conditions with an IP67 waterproof rating and an operating temperature range of -40°C to +85°C. Its metal case and 1.53 kg body are part of a design intended for higher-power lighting applications in harsher environments.
What is the difference between the HBG-160-24DA, HBG-160-36DA, HBG-160-48DA, and HBG-160-60DA?
These HBG-160 DA models mainly differ by output voltage and output current while staying in the same power class. HBG-160-24DA is 156W at 24V and 6.5A with a 14-24V constant-current range, HBG-160-36DA is 158.4W at 36V and 4.4A with a 21-36V range, HBG-160-48DA is 158.4W at 48V and 3.3A with a 28-48V range, and HBG-160-60DA is 156W at 60V and 2.6A with a 36-60V range.
