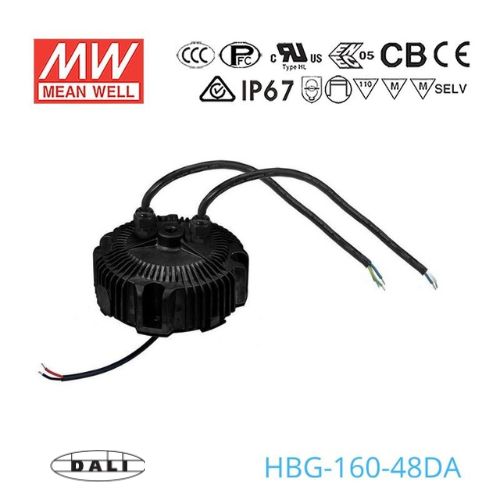

Name: Mean Well HBG-160-48DA Power Supply 160W 48V - DALI 3.3A
Brand: Mean Well
SKU: HBG-160-48DA
Price: 206.83 NZD
Availability: InStock

Overview

HBG-160-48DA is the 48V output model of this series: rated current 3.3A, rated power 158.4W, typical efficiency 93%.

HBG-160 series is a 160W AC/DC LED driver featuring the circular shape design. It operates from 90~305VAC and offers the dual modes constant voltage and constant current output models with different rated voltage between 24V and 60V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HBG-160 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Circular metal housing with classⅠ design
Built-in active PFC function
IP67 / IP65 rating for indoor or outdoor installations
Type HL for use in Class I, Division 2 hazardous (Classified) location.
Function options: output adjustable via potentiometer; 3 in 1 dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

HBG-160-48DASpecifications from the official datasheet (2019-12-19 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE: 48V
CONSTANT CURRENT REGION^Note.2: 28.8 ~ 48V
RATED CURRENT: 3.3A
RATED POWER: 158.4W
RIPPLE & NOISE (max.)^Note.3: 300mVp-p
CURRENT ADJ. RANGE: 1.98 ~ 3.3A
VOLTAGE TOLERANCE^Note.4: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME^Note.6: 2500ms, 200ms / 115VAC 500ms, 200ms / 230VAC
HOLD UP TIME (Typ.): 12ms /115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)^Note.7: 93%
AC CURRENT (Typ.): 1.7A / 115VAC 0.78A / 230VAC 0.7A / 277VAC
INRUSH CURRENT (Typ.): COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 54 ~ 62V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”),CSA C22.2 No.250.13-12, TUV EN61347-1,EN61347-2-13; BIS IS15885(for 36A,48A,48B,60A,60DA only), EAC TP TC 004, GB19510.1,GB19510.14, IP65 or IP67 approved, design refer to TUV EN60950
DALI STANDARDS: Compliance to IEC62386-101, 102, 207 for DA-Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55015, EN61000-3-2 Class C (@load≧60%) ; EN61000-3-3, GB17743 and GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547,light industry level (surge immunity:Line-Earth:4KV,Line-Line:2KV), EAC TP TC 020

OTHERS

MTBF: 783.1K hrs min. Telcordia SR-332 (Bellcore) ; 252.3Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: ψ151.68mm *66.5mm (D * H)
PACKING: 1.53Kg; 8pcs/13.8Kg/1.61CUFT

Test conditions and notes13

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to “DRIVING METHODS OF LED MODULE”.
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The DA type power supply is less efficient than the typical efficiency in specification by 1%.
8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
9. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
10. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly Tc point (or TMP, per DLC), is about 70℃ or less.
11. Please refer to the warranty statement on MEAN WELL’s website at http://www.meanwell.com
12. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HBG-160-48DA BLOCK DIAGRAM — BLOCK DIAGRAM

HBG-160-48DA DIMMING OPERATION — DIMMING OPERATION

HBG-160-48DA Illustration (page 5) — Illustration (page 5)

HBG-160-48DA OUTPUT LOAD vs TEMPERATURE(Note.11) — OUTPUT LOAD vs TEMPERATURE(Note.11)

HBG-160-48DA STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HBG-160-48DA TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HBG-160-48DA LIFETIME(Kh) — LIFETIME(Kh)

HBG-160-48DA MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

HBG-160-48DA INSTALLATIONS — INSTALLATIONS

Typical applications

LED bay lighting
LED stage lighting
LED spot lighting

Downloads

Datasheet1

HBG-160-48DA datasheethbg_160_spec.pdf · 2019-12-19 edition PDF Download

Certificates5

UL Certificate (HBG-160)(EN) PDF Download

TUV Certificate(HBG-160)(EN) PDF Download

CB Certificate(HBG-160)(EN) PDF Download

EMC Certificate(HBG-160)(EN) PDF Download

CCC Certificate(HBG-160)(CN) PDF Download

Test reports1

Test Report(HBG-160-48)(EN) PDF Download

Catalogues2

Mean Well LED Driver Catalog PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

Can I use the HBG-160-48DA for a 48V high bay or low bay LED fixture?

Yes, this constant current driver is a fit for high/low bay lighting because the product features explicitly list that application. It provides 48V output, 3.3A current, and 158.4W total power within a 28-48V CC range.

Is the HBG-160-48DA a good match for outdoor 48V area lighting?

It can be used for outdoor 48V area lighting fixtures that are designed for constant current operation in the 28-48V range. The IP67 waterproof rating and -40°C to +85°C operating temperature range make it better suited to exposed environments than the IP65 versions.

Can this driver work for waterproof 48V LED signage lighting?

Yes, if the signage lighting system is built for a 48V constant current driver and stays within 158.4W and 3.3A. The IP67 rating makes it a stronger option for wet-location sign enclosures and exposed outdoor conditions.

How much 48V LED strip load can the HBG-160-48DA handle?

This driver can supply up to 158.4W, so the estimated strip length is calculated as 158.4W / strip watts per meter. For example, use that formula to find the maximum meters. Check your strip rated power per meter and verify that the strip is compatible with a 48V constant current driver.

Is the HBG-160-48DA fully waterproof for outdoor use?

It is rated IP67 waterproof, which is stronger environmental protection than IP65 water-resistant. That makes it suitable for outdoor and wet-location use where the driver may face dust and stronger water exposure.

How does the HBG-160-48DA compare with other HBG-160 voltage options?

Within the HBG-160 family, 24V models are 156W with a 14-24V CC range at 6.5A, 36V models are 158.4W with a 21-36V CC range at 4.4A, 48V models are 158.4W with a 28-48V CC range at 3.3A, and 60V models are 156W with a 36-60V CC range at 2.6A. The HBG-160-48DA is the 48V DALI version with IP67 protection.
