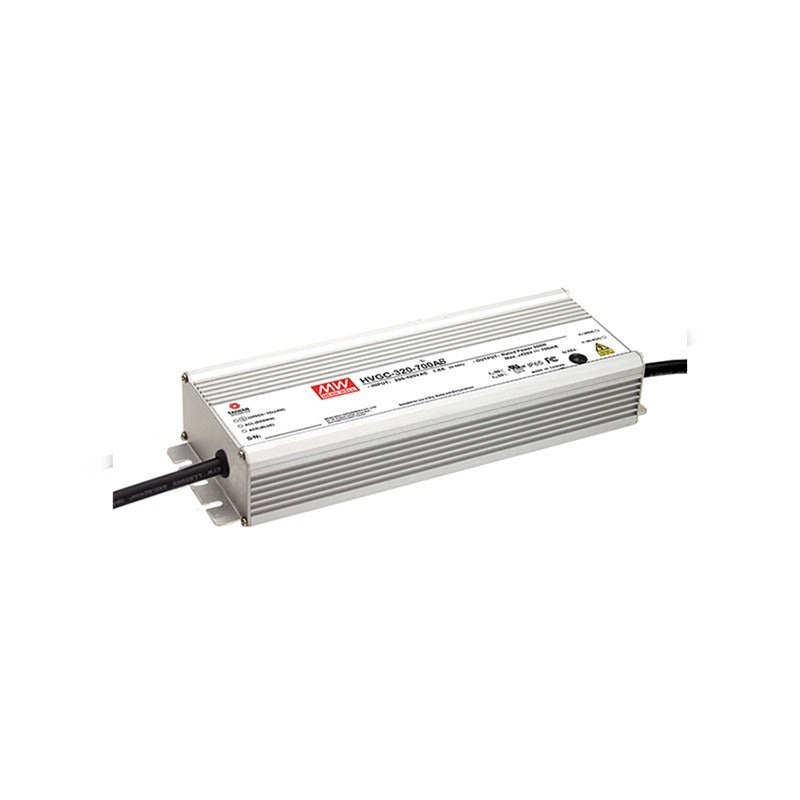

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

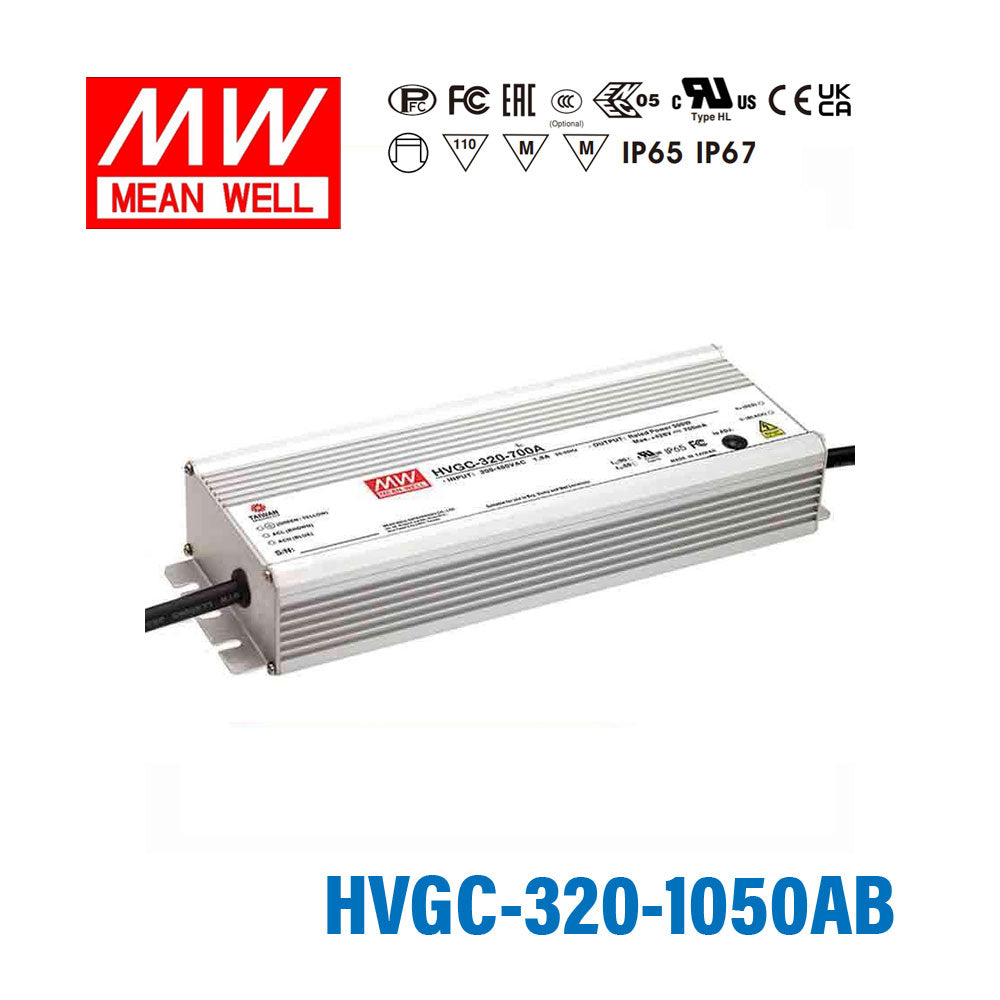

Mean Well HVGC-320-1050AB Power Supply 320W 1050mA - Adjustable and Dimmable

wide input range 180~528VAC, aluminium casing

SKU:

HVGC-320-1050AB

Please for Pricing

Notify me when it's back in stock

Description

Features

Wide input range 180 ~ 528VAC

Constant Current mode output

Metal housing with Class design

Built-in active PFC function

IP67 / IP65 design for indoor or outdoor installations

Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Timer dimming

Typical lifetime>50000 hours

5 years warranty

General Specification

AC input voltage range	180~528VAC ; 254~747VDC
AC inrush current (max.)	Cold start 50A/480VAC
Over temperature protection	Shut down and latch off o/p voltage, re-power on to recover
Over voltage protection	Shut down o/p voltage with auto-recovery or re-power on to recovery
Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Working temperature	-40~+90ºC (refer to output derating curve)
Safety standards	UL8750 CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384, independent,IP65 or IP67 approved
EMC standards	Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level(surge immunity Line-Earth 4KV,Line-Line 2KV), criteria A
Dimension (LxWxH)(mm)	262 x 90 x 43.8 mm

Specifications

Brand

Mean Well
Series

HVGC Series
Power Rating

320 Watt
Output Voltage

311 Volt
Rated Current

1.05 Ampere
Input Voltage

180V~528V
Standards Met

CE,EAC,ENEC,FCC,UL
Operation Mode

Constant Current
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

26.2 cm
Width

9 cm
Height

4.38 cm
Weight

2 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HVGC-320-1050AB with LED downlights that need dimming?

Yes, if the downlight system is a constant-current 1050mA load and its total LED forward voltage is within 152-304V. This model is rated at 320W and is the adjustable and dimmable version in this 1050mA group.

Is the HVGC-320-1050AB appropriate for dimmable signage modules?

It can be, as long as the signage module uses constant current at 1050mA and the LED string voltage fits the 152-304V CC range. It is not a constant-voltage driver, so it is better suited to constant-current signage assemblies than to low-voltage CV modules.

Can this driver power a small LED array in a commercial lighting fixture?

Yes, when the array is built for 1050mA constant-current operation and the total forward voltage remains between 152V and 304V. The 320W output rating supports larger constant-current arrays than lower-power drivers in the series.

What should I check before pairing this driver with an LED array?

Check that the LED array requires 1050mA constant current and that its total forward voltage falls inside the 152-304V constant-current range. The exact number of LEDs depends on each LED's forward voltage, so compatibility should be based on current and voltage range rather than a fixed LED count.

Is the HVGC-320-1050AB suitable for damp or outdoor lighting enclosures?

This version is rated IP65, so it is water-resistant and intended for environments where that enclosure level is appropriate. It also operates from -40°C to +90°C and accepts a wide 180-528VAC input range, which helps in demanding indoor or outdoor installations with proper enclosure protection.
