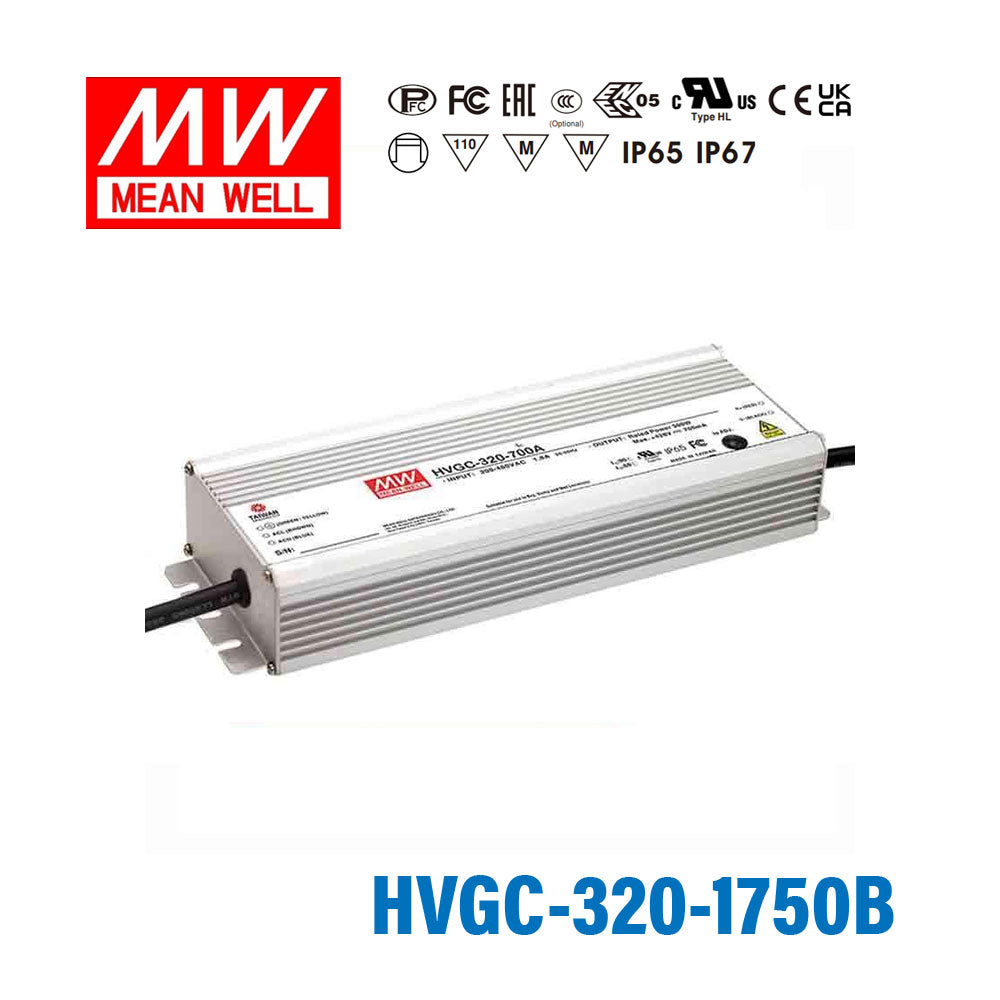

Mean Well HVGC-320-1750B Power Supply 320W 1750mA - Dimmable

wide input range 180~528VAC, aluminium casing

SKU:

HVGC-320-1750B

Please for Pricing

Notify me when it's back in stock

Description

Features

Wide input range 180 ~ 528VAC

Constant Current mode output

Metal housing with Class design

Built-in active PFC function

IP67 / IP65 design for indoor or outdoor installations

Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Timer dimming

Typical lifetime>50000 hours

5 years warranty

General Specification

AC input voltage range	180~528VAC ; 254~747VDC
AC inrush current (max.)	Cold start 50A/480VAC
Over temperature protection	Shut down and latch off o/p voltage, re-power on to recover
Over voltage protection	Shut down o/p voltage with auto-recovery or re-power on to recovery
Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Working temperature	-40~+90ºC (refer to output derating curve)
Safety standards	UL8750 CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384, independent,IP65 or IP67 approved
EMC standards	Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level(surge immunity Line-Earth 4KV,Line-Line 2KV), criteria A
Dimension (LxWxH)(mm)	262 x 90 x 43.8 mm

Specifications

Brand

Mean Well
Series

HVGC Series
Power Rating

320 Watt
Output Voltage

187 Volt
Rated Current

1.75 Ampere
Input Voltage

180V~528V
Standards Met

CE,EAC,ENEC,FCC,UL
Operation Mode

Constant Current
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

26.2 cm
Width

9 cm
Height

4.38 cm
Weight

2 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HVGC-320-1750B for an outdoor LED downlight array?

Yes, if the LED downlight array is a 1750mA constant current load and its total forward voltage is within 91-182V. Because this version is IP67 waterproof, it is better suited to exposed environments than the IP65 versions.

Will this driver work with constant current signage modules in a sealed sign cabinet?

It can, provided the signage module assembly is designed for 1750mA constant current and the combined LED forward voltage falls within 91-182V. It should not be used in place of a constant voltage supply for modules that expect fixed DC output.

Is the HVGC-320-1750B suitable for a small LED array in a harsher environment?

Yes, when the LED array requires 1750mA constant current and stays inside the 91-182V CC window. The IP67 waterproof rating, aluminium casing, and -40°C to +90°C operating temperature range support use in tougher indoor or outdoor conditions.

How do I determine whether my LED load matches this model?

Your LED load should require 1750mA constant current and have a total forward voltage within the 91-182V constant current range. The number of LEDs cannot be fixed from the driver alone because it depends on the forward voltage of each LED in the array.

What environmental protection does the HVGC-320-1750B offer?

This version is rated IP67 and described as waterproof, making it suitable where stronger sealing is needed. It also has a wide operating temperature range from -40°C to +90°C and uses an aluminium casing.
