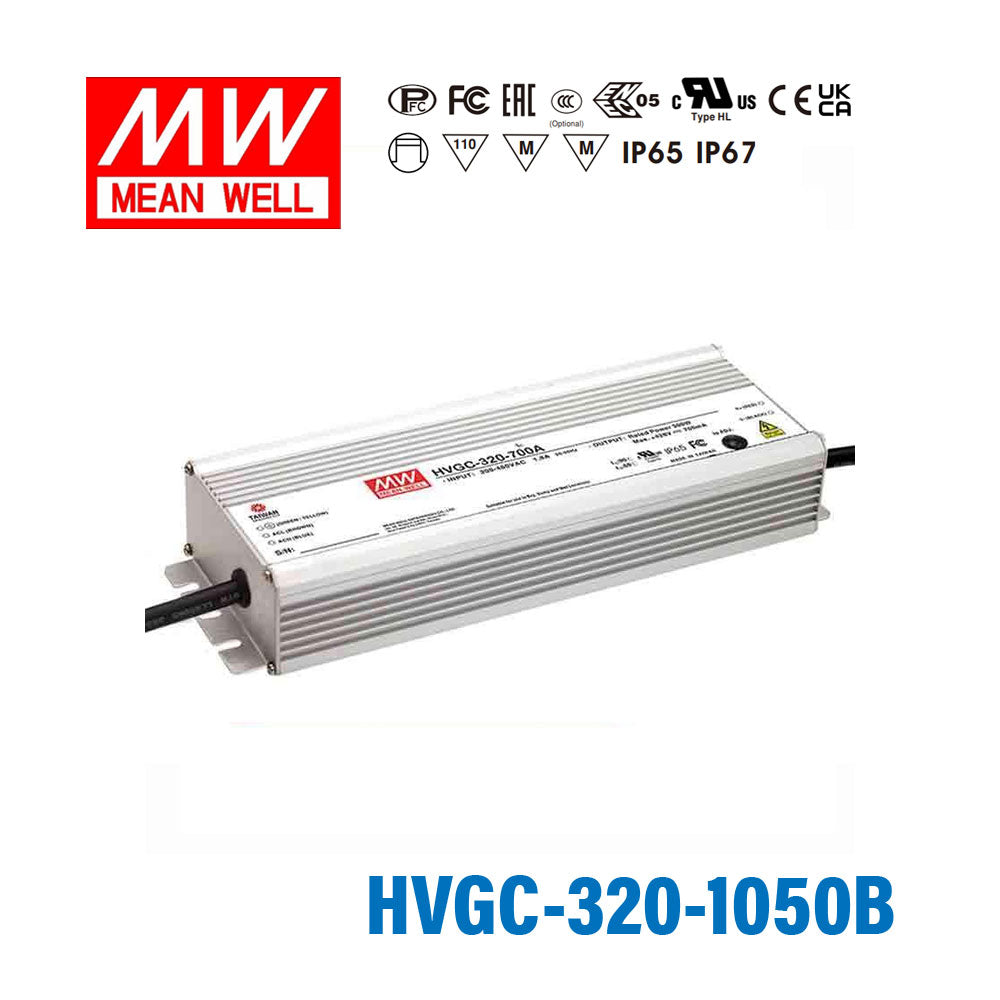

Mean Well HVGC-320-1050B Power Supply 320W 1050mA - Dimmable

wide input range 180~528VAC, aluminium casing

SKU:

HVGC-320-1050B

Please for Pricing

Notify me when it's back in stock

Description

Features

Wide input range 180 ~ 528VAC

Constant Current mode output

Metal housing with Class design

Built-in active PFC function

IP67 / IP65 design for indoor or outdoor installations

Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Timer dimming

Typical lifetime>50000 hours

5 years warranty

General Specification

AC input voltage range	180~528VAC ; 254~747VDC
AC inrush current (max.)	Cold start 50A/480VAC
Over temperature protection	Shut down and latch off o/p voltage, re-power on to recover
Over voltage protection	Shut down o/p voltage with auto-recovery or re-power on to recovery
Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Working temperature	-40~+90ºC (refer to output derating curve)
Safety standards	UL8750 CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384, independent,IP65 or IP67 approved
EMC standards	Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level(surge immunity Line-Earth 4KV,Line-Line 2KV), criteria A
Dimension (LxWxH)(mm)	262 x 90 x 43.8 mm

Specifications

Brand

Mean Well
Series

HVGC Series
Power Rating

320 Watt
Output Voltage

311 Volt
Rated Current

1.05 Ampere
Input Voltage

180V~528V
Standards Met

CE,EAC,ENEC,FCC,UL
Operation Mode

Constant Current
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

26.2 cm
Width

9 cm
Height

4.38 cm
Weight

2 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HVGC-320-1050B for outdoor LED downlights?

Yes, if the fixture uses a constant-current LED load at 1050mA and the total forward voltage is within 152-304V. This version adds an IP67 waterproof rating, which makes it the most weather-exposed option among the 320W 1050mA siblings.

Is this driver a good match for exposed signage modules?

It can be a fit for constant-current signage modules that run at 1050mA and fall within the 152-304V CC voltage window. Because it is a constant-current driver rather than a constant-voltage supply, it should be matched to LED modules designed for regulated current operation.

Can the HVGC-320-1050B run a small LED array in a wet or washdown area?

Yes, if the LED array requires 1050mA constant current and its total forward voltage stays between 152V and 304V. The IP67 enclosure and -40°C to +90°C operating range make it better suited for harsh environments than the IP65 versions.

How do I size LED compatibility for the HVGC-320-1050B?

The LED load must be designed for 1050mA constant current, and its total forward voltage must stay within the 152-304V constant-current range. The number of LEDs depends on the forward voltage of each LED, so this model should be matched by current and voltage range, not by a specific LED quantity.

What is the difference between the HVGC-320-1050B and the A or AB versions?

All three versions share 320W output, 1050mA current, and a 152-304V constant-current range. The A version is adjustable and IP65, the AB version is adjustable and dimmable at IP65, and the B version is dimmable with an IP67 waterproof rating.

Model	Power	Voltage	Current	IP Rating
Mean Well HVGC-320-700B Power Supply 320W 700mA - Dimmable	300W	442V	0.7A	IP67	View
Mean Well HVGC-320-700AB Power Supply 320W 700mA - Adjustable and Dimmable	300W	442V	0.7A	IP65	View
Mean Well HVGC-320-700A Power Supply 320W 700mA - Adjustable	300W	442V	0.7A	IP65	View
Mean Well HVGC-320-3500B Power Supply 320W 3500mA - Dimmable	320W	94V	3.5A	IP67	View
Mean Well HVGC-320-3500AB Power Supply 320W 3500mA - Adjustable and Dimmable	320W	94V	3.5A	IP65	View
Mean Well HVGC-320-3500A Power Supply 320W 3500mA - Adjustable	320W	94V	3.5A	IP65	View
Mean Well HVGC-320-2800B Power Supply 320W 2800mA - Dimmable	320W	118V	2.8A	IP67	View
Mean Well HVGC-320-2800AB Power Supply 320W 2800mA - Adjustable and Dimmable	320W	118V	2.8A	IP65	View
Mean Well HVGC-320-2800A Power Supply 320W 2800mA - Adjustable	320W	118V	2.8A	IP65	View
Mean Well HVGC-320-2100B Power Supply 320W 2100mA - Dimmable	320W	156V	2.1A	IP67	View
Mean Well HVGC-320-2100AB Power Supply 320W 2100mA - Adjustable and Dimmable	320W	156V	2.1A	IP65	View
Mean Well HVGC-320-2100A Power Supply 320W 2100mA - Adjustable	320W	156V	2.1A	IP65	View
Mean Well HVGC-320-1750B Power Supply 320W 1750mA - Dimmable	320W	187V	1.75A	IP67	View
Mean Well HVGC-320-1750AB Power Supply 320W 1750mA - Adjustable and Dimmable	320W	187V	1.75A	IP65	View
Mean Well HVGC-320-1750A Power Supply 320W 1750mA - Adjustable	320W	187V	1.75A	IP65	View
Mean Well HVGC-320-1400B Power Supply 320W 1400mA - Dimmable	320W	234V	1.4A	IP67	View
Mean Well HVGC-320-1400AB Power Supply 320W 1400mA - Adjustable and Dimmable	320W	234V	1.4A	IP65	View
Mean Well HVGC-320-1400A Power Supply 320W 1400mA - Adjustable	320W	234V	1.4A	IP65	View
Mean Well HVGC-320-1050AB Power Supply 320W 1050mA - Adjustable and Dimmable	320W	311V	1.05A	IP65	View
Mean Well HVGC-320-1050A Power Supply 320W 1050mA - Adjustable	320W	311V	1.05A	IP65	View
