Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

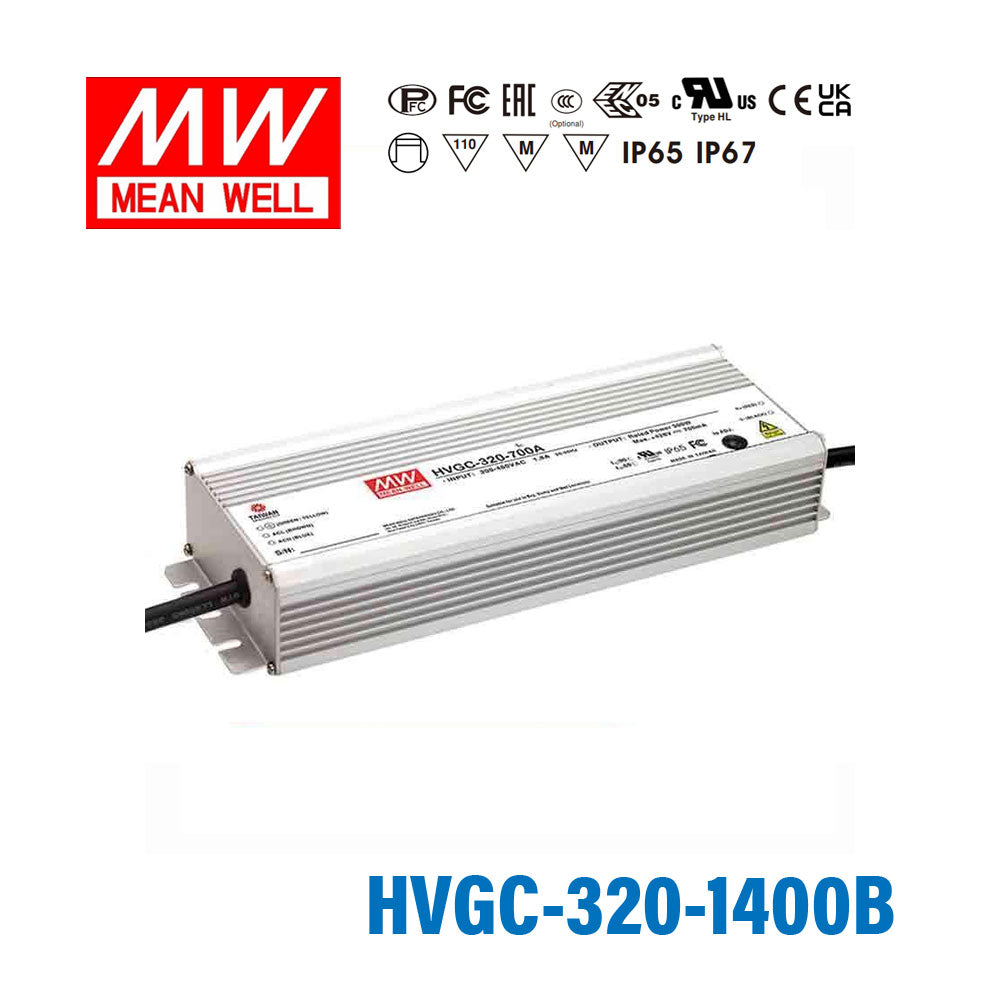

Mean Well HVGC-320-1400B Power Supply 320W 1400mA - Dimmable

wide input range 180~528VAC, aluminium casing

SKU:

HVGC-320-1400B

Please for Pricing

Notify me when it's back in stock

Description

Features

Wide input range 180 ~ 528VAC

Constant Current mode output

Metal housing with Class design

Built-in active PFC function

IP67 / IP65 design for indoor or outdoor installations

Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Timer dimming

Typical lifetime>50000 hours

5 years warranty

General Specification

AC input voltage range	180~528VAC ; 254~747VDC
AC inrush current (max.)	Cold start 50A/480VAC
Over temperature protection	Shut down and latch off o/p voltage, re-power on to recover
Over voltage protection	Shut down o/p voltage with auto-recovery or re-power on to recovery
Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Working temperature	-40~+90ºC (refer to output derating curve)
Safety standards	UL8750 CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384, independent,IP65 or IP67 approved
EMC standards	Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level(surge immunity Line-Earth 4KV,Line-Line 2KV), criteria A

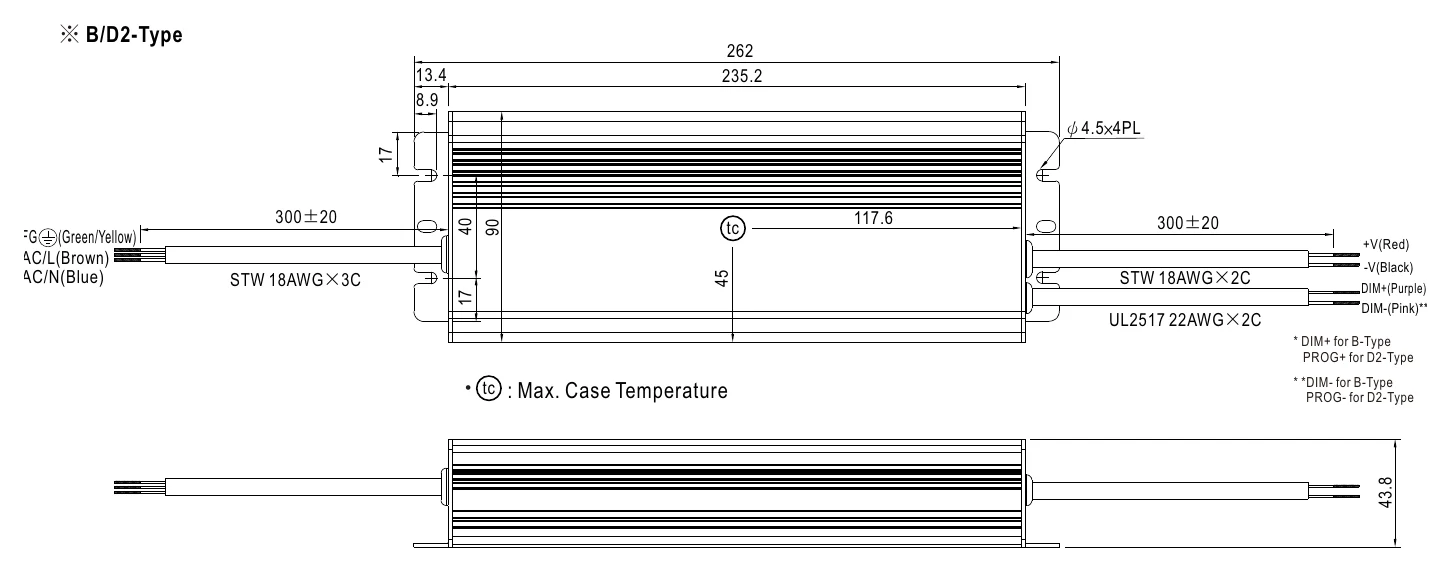

Dimension (LxWxH)(mm)	262 x 90 x 43.8 mm

Specifications

Brand

Mean Well
Series

HVGC Series
Power Rating

320 Watt
Output Voltage

234 Volt
Rated Current

1.4 Ampere
Input Voltage

180V~528V
Standards Met

CE,EAC,ENEC,FCC,UL
Operation Mode

Constant Current
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

26.2 cm
Width

9 cm
Height

4.38 cm
Weight

2 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HVGC-320-1400B for a high-power LED downlight array?

Yes, if the downlight array is designed for constant current at 1400mA and its total forward voltage stays within the 114-228V constant current range. This is a constant current LED driver, not a constant voltage power supply, so it is intended for LED loads that regulate by current rather than fixed DC voltage.

Is this driver suitable for signage modules with a higher total forward voltage?

It can be used for signage modules only when the module assembly is a constant current load at 1400mA and the total LED forward voltage falls within 114-228V. If the signage modules are built for constant voltage operation, this model is not the right match.

Can the HVGC-320-1400B run a small LED array for architectural or display lighting?

It can, provided the LED array is specified for 1400mA constant current and the full array voltage is within the 114-228V CC range. With a 320W rating, it is intended for higher-power constant current LED assemblies rather than low-power constant voltage loads.

How do I know if my LED load is compatible with this driver?

Match the load to 1400mA constant current output and make sure the combined LED forward voltage lands inside the 114-228V constant current range. The number of LEDs depends on the forward voltage of each LED, so compatibility should be checked by total forward voltage rather than LED count.

What are the main differences between the HVGC-320 constant current models?

Within the HVGC-320 family, the main electrical differences are output current and CC voltage range: 700mA at 214-428V and 300W, 1050mA at 152-304V and 320W, 1400mA at 114-228V and 320W, 1750mA at 91-182V and 320W, 2100mA at 76-152V and 320W, 2800mA at 57-114V and 320W, and 3500mA at 45-91V and 320W. The HVGC-320-1400B sits in the middle of that range with 1400mA output and IP67 protection.

Is the HVGC-320-1400B suitable for wet or harsh outdoor environments?

Yes, this model is rated IP67 and is described as waterproof, which makes it suited to demanding indoor or outdoor environments where a sealed driver is needed. Its operating temperature range is -40°C to +90°C, and the aluminium casing supports use in tough conditions.

Model	Power	Voltage	Current	IP Rating
Mean Well HVGC-320-700B Power Supply 320W 700mA - Dimmable	300W	442V	0.7A	IP67	View
Mean Well HVGC-320-700AB Power Supply 320W 700mA - Adjustable and Dimmable	300W	442V	0.7A	IP65	View
Mean Well HVGC-320-700A Power Supply 320W 700mA - Adjustable	300W	442V	0.7A	IP65	View
Mean Well HVGC-320-3500B Power Supply 320W 3500mA - Dimmable	320W	94V	3.5A	IP67	View
Mean Well HVGC-320-3500AB Power Supply 320W 3500mA - Adjustable and Dimmable	320W	94V	3.5A	IP65	View
Mean Well HVGC-320-3500A Power Supply 320W 3500mA - Adjustable	320W	94V	3.5A	IP65	View
Mean Well HVGC-320-2800B Power Supply 320W 2800mA - Dimmable	320W	118V	2.8A	IP67	View
Mean Well HVGC-320-2800AB Power Supply 320W 2800mA - Adjustable and Dimmable	320W	118V	2.8A	IP65	View
Mean Well HVGC-320-2800A Power Supply 320W 2800mA - Adjustable	320W	118V	2.8A	IP65	View
Mean Well HVGC-320-2100B Power Supply 320W 2100mA - Dimmable	320W	156V	2.1A	IP67	View
Mean Well HVGC-320-2100AB Power Supply 320W 2100mA - Adjustable and Dimmable	320W	156V	2.1A	IP65	View
Mean Well HVGC-320-2100A Power Supply 320W 2100mA - Adjustable	320W	156V	2.1A	IP65	View
Mean Well HVGC-320-1750B Power Supply 320W 1750mA - Dimmable	320W	187V	1.75A	IP67	View
Mean Well HVGC-320-1750AB Power Supply 320W 1750mA - Adjustable and Dimmable	320W	187V	1.75A	IP65	View
Mean Well HVGC-320-1750A Power Supply 320W 1750mA - Adjustable	320W	187V	1.75A	IP65	View
Mean Well HVGC-320-1400AB Power Supply 320W 1400mA - Adjustable and Dimmable	320W	234V	1.4A	IP65	View
Mean Well HVGC-320-1400A Power Supply 320W 1400mA - Adjustable	320W	234V	1.4A	IP65	View
Mean Well HVGC-320-1050B Power Supply 320W 1050mA - Dimmable	320W	311V	1.05A	IP67	View
Mean Well HVGC-320-1050AB Power Supply 320W 1050mA - Adjustable and Dimmable	320W	311V	1.05A	IP65	View
Mean Well HVGC-320-1050A Power Supply 320W 1050mA - Adjustable	320W	311V	1.05A	IP65	View
